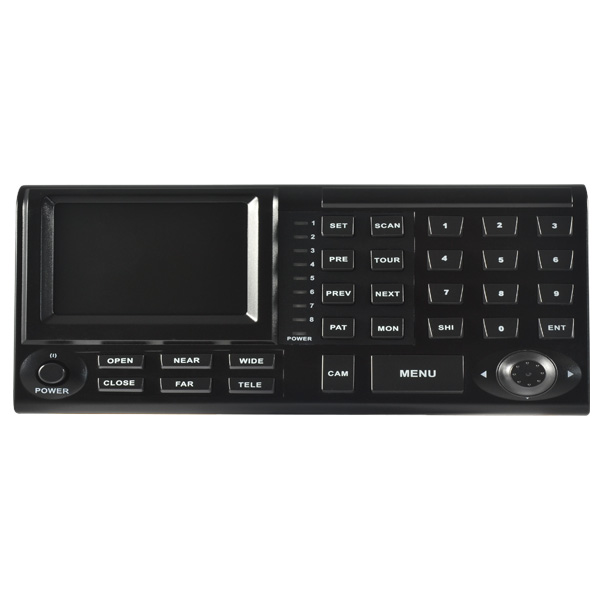

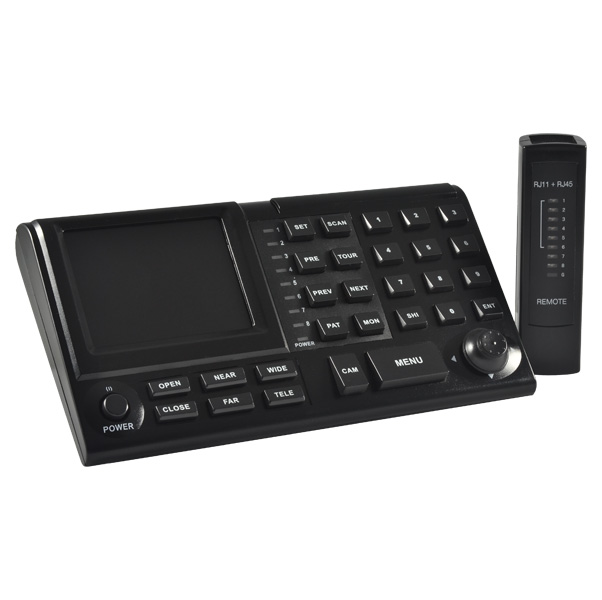

Joystick control for PTZ cameras, supports up to 31 cameras.
  • Joystick control for PTZ cameras, supports up to 31 cameras. - Image 1
  • Joystick control for PTZ cameras, supports up to 31 cameras. - Image 2
  • Joystick control for PTZ cameras, supports up to 31 cameras. - Image 3
  • - Multifunction keyboard for PTZ cameras
  • - Multi control way (RS485, RS422).
  • - 3.5" TFT LCD Monitor.
  • - UTP cable tester and IR Remote our camera.
  • - Built-in Battery.
Products recommendaded to work with this item:
joystick control for ptz cameras, supports up to 31 cameras.
+
outdoor ptz camera, sony ccd sensor, 700tvl, 10x optical zoom.
+
passive video balun with power 300m / 1000ft
Price for all 3: $423.97

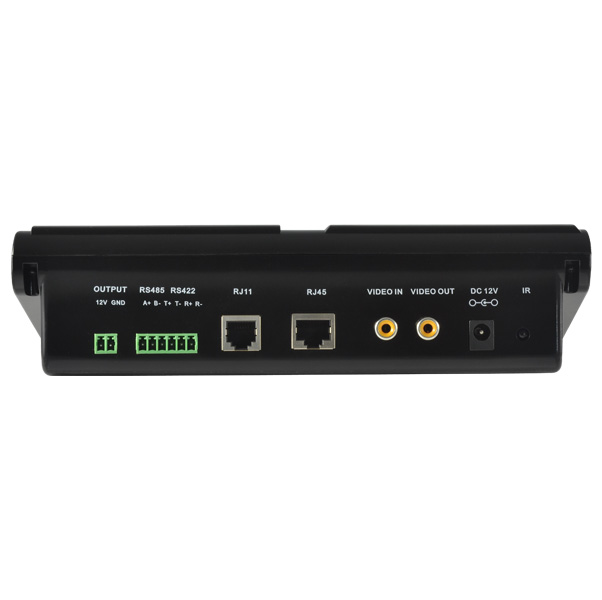

  • Multiprotocol Controller RS-485 and RS422 communication distance of 1.2 km, easy to use. It has speeds communication of 2400/4800/9600/19200 bps. It can be compatible with all types of protocols. Controls iris, focus and zoom. It runs various types of preset. Equipped with key 3D LCD screen and navigation. RCA video output. Network Tester, RJ45 and RJ11 Current 9v to 12v.

    Main Features:

    - Multi control way (RS485, RS422).
    - 3.5" High Light Digital LCD Monitor.
    - UTP cable tester and IR Remote our camera.
    - Built-in Battery can supply power (DC 12V/500mA).
    Warranty: One (1) Year
  • Joystick control for PTZ cameras, supports up to 31 cameras.
    General
    Brand LineMak
    Model LS-781KB
    LCD Panel
    Monitor 3.5" Digital LCD Monitor
    PTZ
    PTZ Control RS485, RS422
    Communication protocol Pelco-P / Pelco-D / HCDVR / DH
    Baud rate 2400, 4800, 9600, 19200bps.
    Environment
    Operation temperature -10°C ~ 50°C
    Working humidity 90%
    Power
    Power supply DC 12V/250mA
    Power consumption 2.5W
    Battery Litium batery: 3.6~4.2 V/2800mA
    Appearance
    Color Dark gray
    Size 2.36(L) * 4.72(H) * 8.27(W) inches
    Weight 13.23 ounces
    Material ABS Plastic Cover
