Vandalproof Mini Dome camera SONY CCD 600TVL 360 degree vision

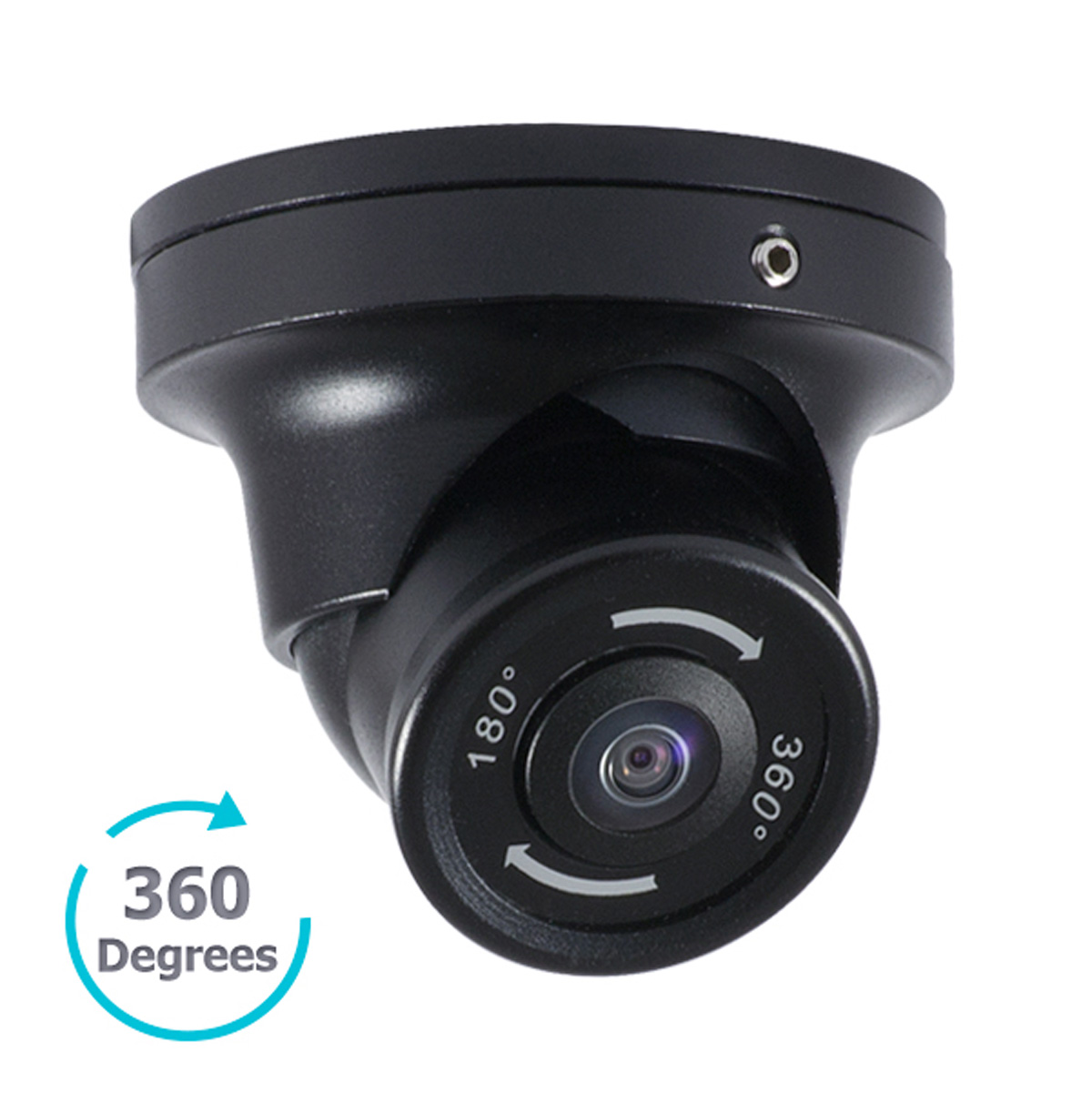

  • Vandalproof Mini Dome camera SONY CCD 600TVL 360 degree vision - Image 1

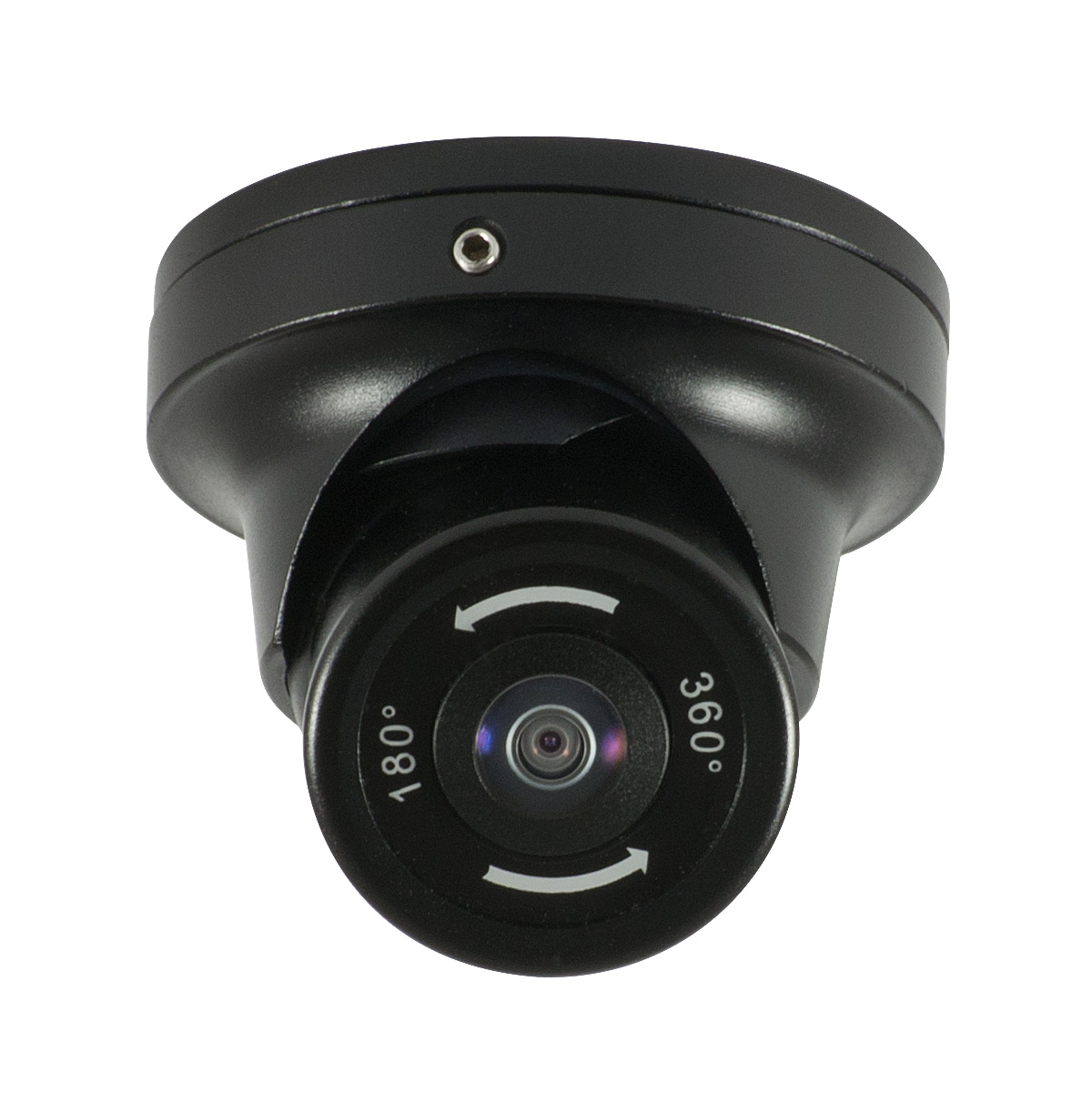

  • Vandalproof Mini Dome camera SONY CCD 600TVL 360 degree vision - Image 2

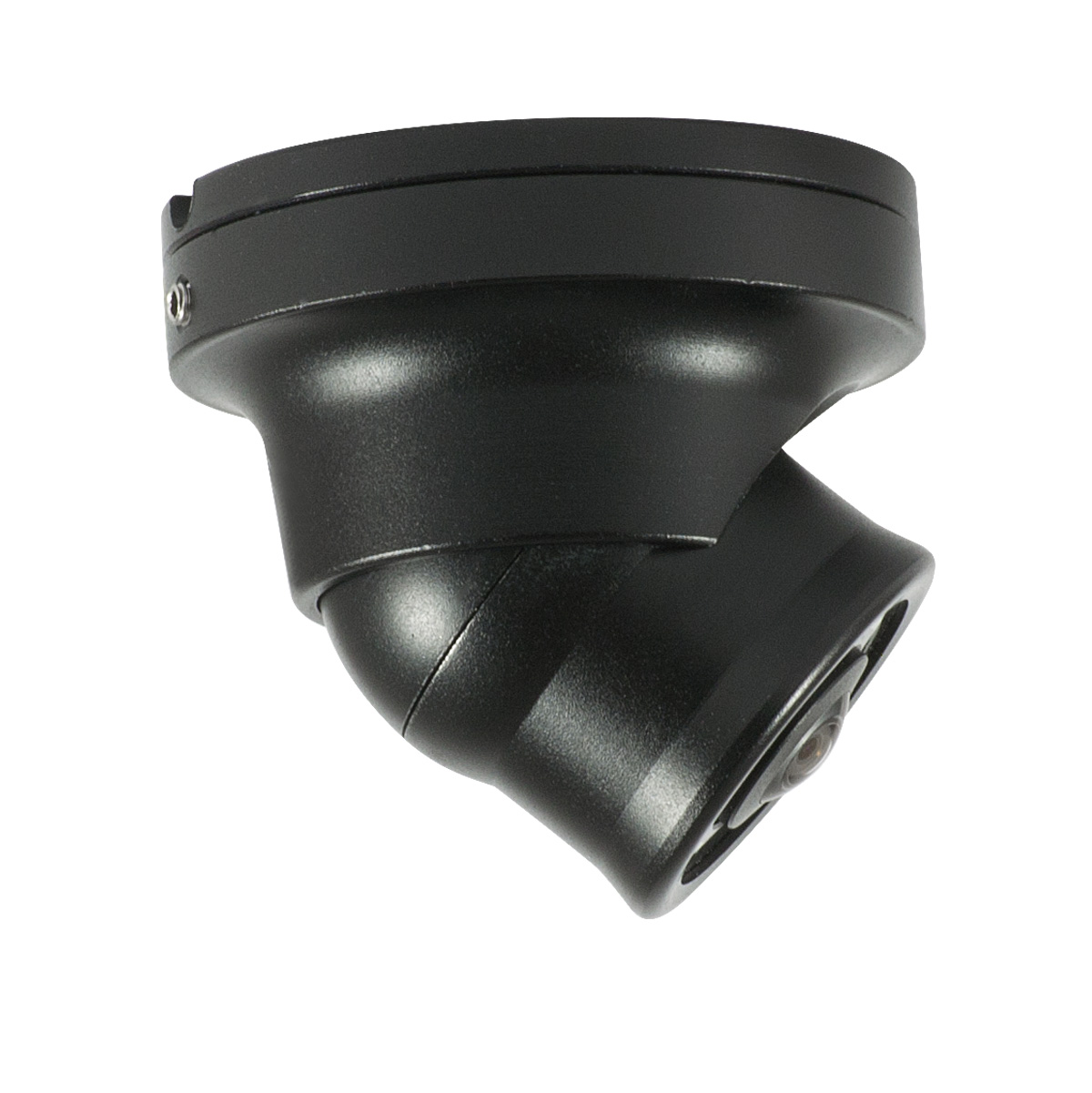

  • Vandalproof Mini Dome camera SONY CCD 600TVL 360 degree vision - Image 3
  • - 360° wide Angle View angle.
  • - IP66 Waterproof.
  • - Hi-resolution Video Resolution.
  • - Power adapter not included.
  • - Built-in 1.2mm lens.
  • - 1/3" SONY CCD Sensor, 600TVL.
  • Vandalproof Mini dome camera with a viewing angle of 360? and great performance during low illumination circumstances.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main Features:
    - Vandalproof Dome Camera.
    - Built-in 1.2mm lens.
    - 360? wide Angle View angle.
    - Angle of view: ceilling mount 360?, Wall mount 180?.
    - Hi-resolution Video Resolution.
    - AES support function: adapt to different monitoring environment.
    Wide angle lens covering more areas
    Wide angle lens covering more areas
    The camera’s wide angle lens enables it to cover a large area because of its wide field of view. Cameras are enabled to capture more of an area than standard camera lenses and provide greater depth of field, along with good low light performance.
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    HD video
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • Vandalproof Mini Dome camera SONY CCD 600TVL 360 degree vision
    General
    Brand LineMak
    Model LS-360A
    Sensor
    Resolution 600TVL
    Sensor 1/3" Sony CCD
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC connector)
    Lens
    Lens 1.2mm
    Minimum illumination 0.01 Lux
    Viewing angle 360°
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Storage temperature -30°C ~ 80°C
    -22°F ~ 176°F
    Weatherproof standard IP66 (dustproof and waterproof)
    Power
    Power supply DC 12V
    Battery 120mA
    Appearance
    Color Black
    Size 1.77(H) * 1.97(D) inches
    Weight 3.17 ounces
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Adaptive Tone Reproduction (ATR) No
    Mirror No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instrucción
    File Size: 443.59 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 401.22 Kb
    Languages: English
    File Type: PDF
