IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR

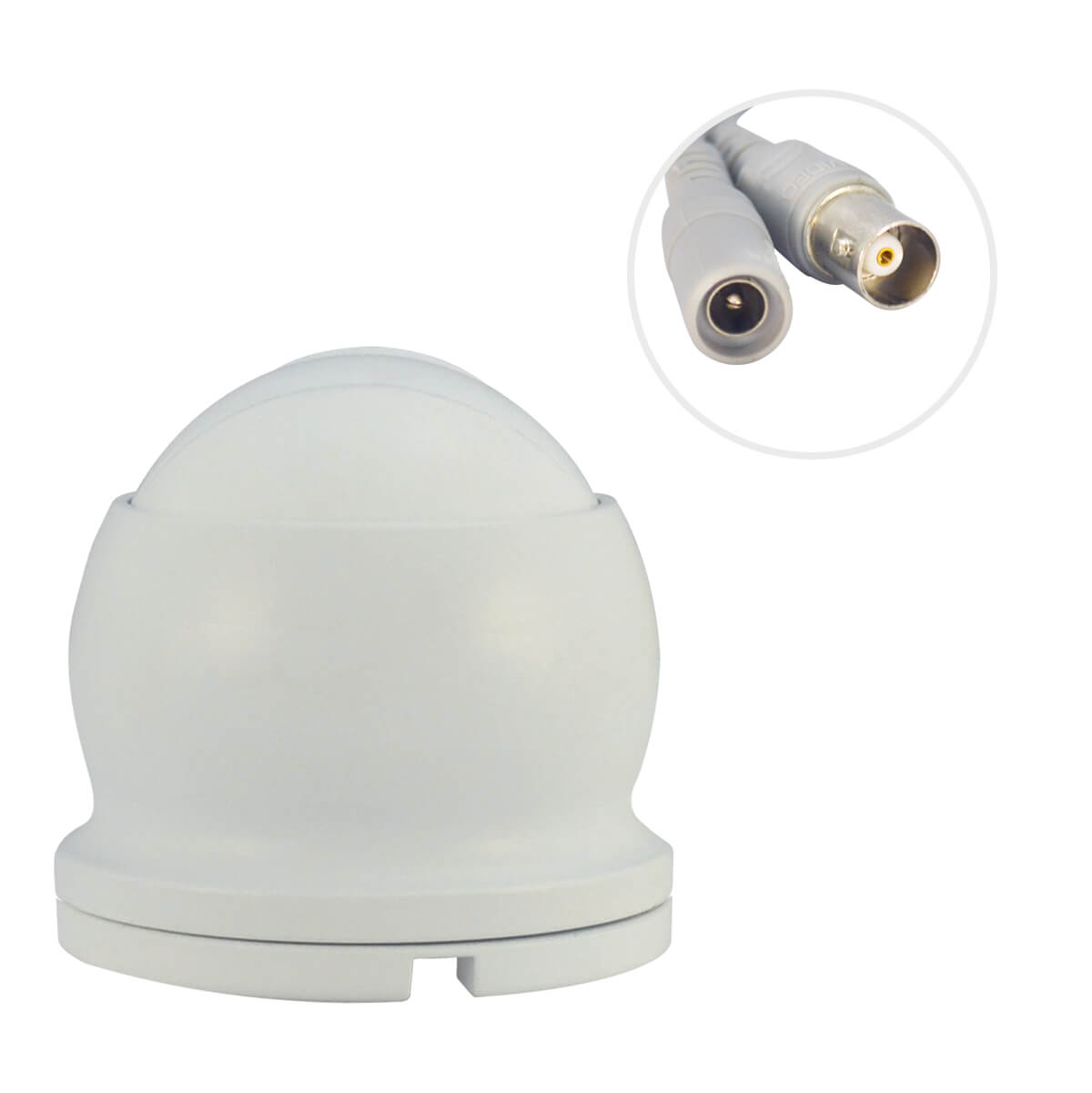

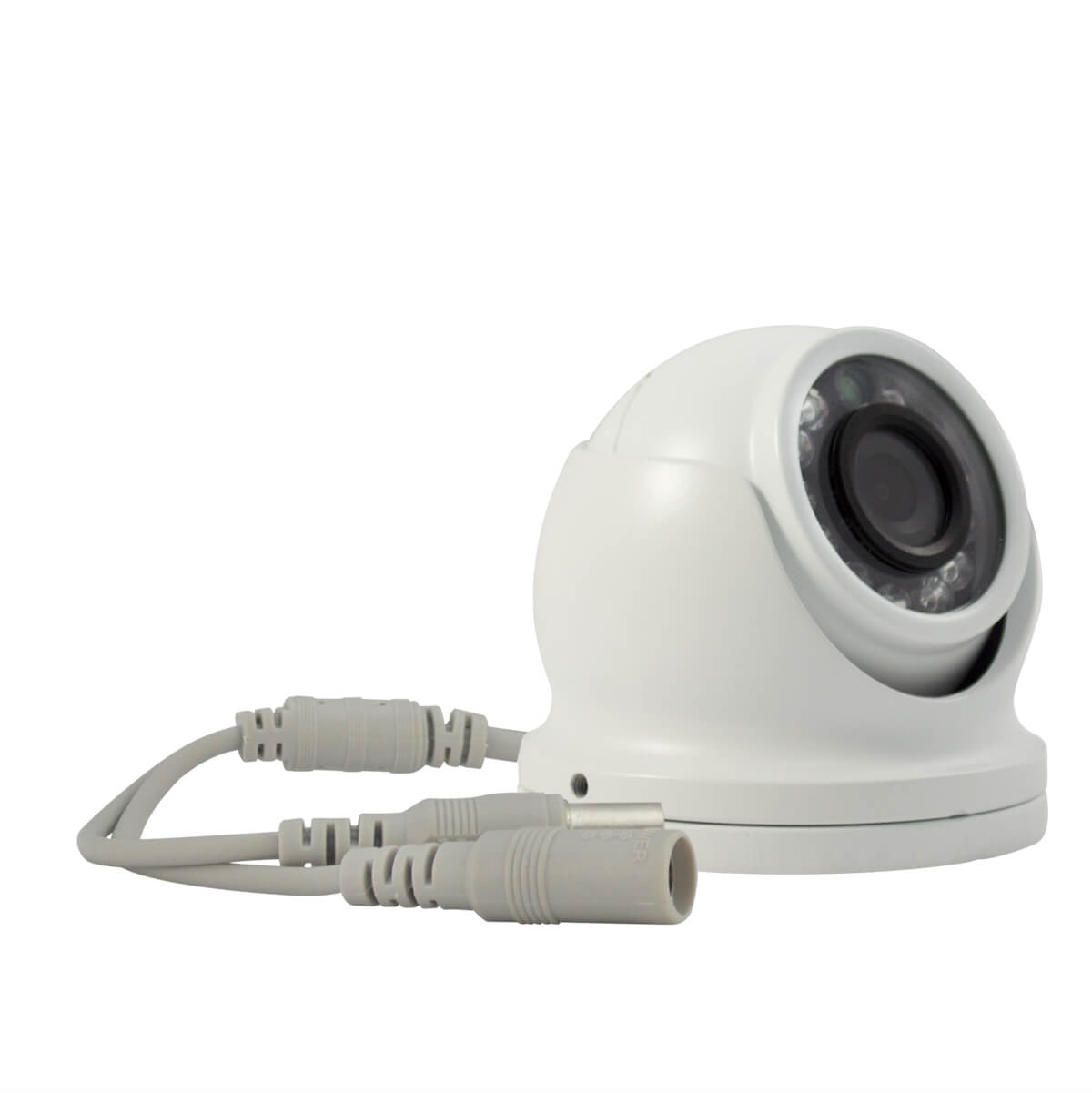

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 1

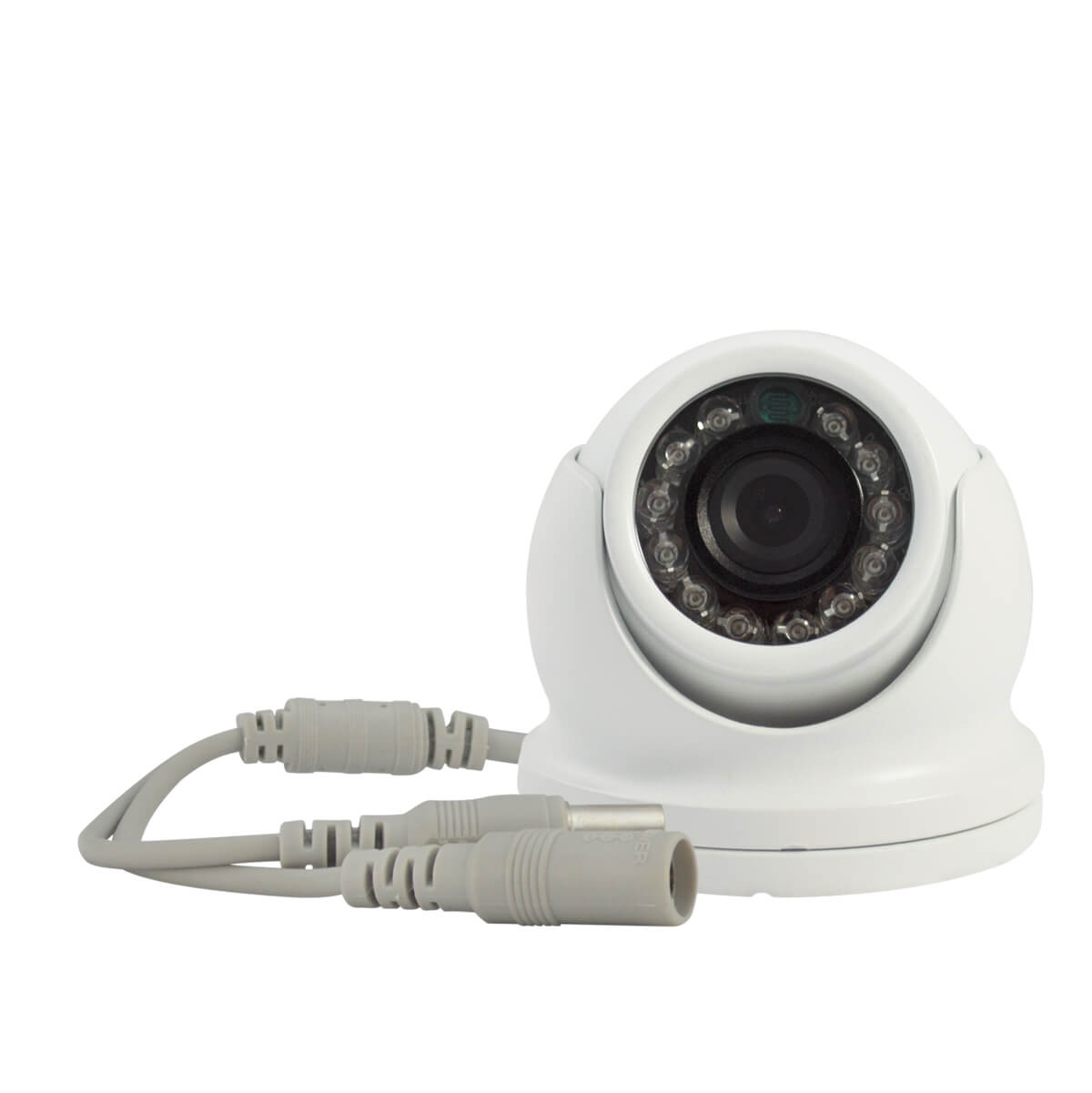

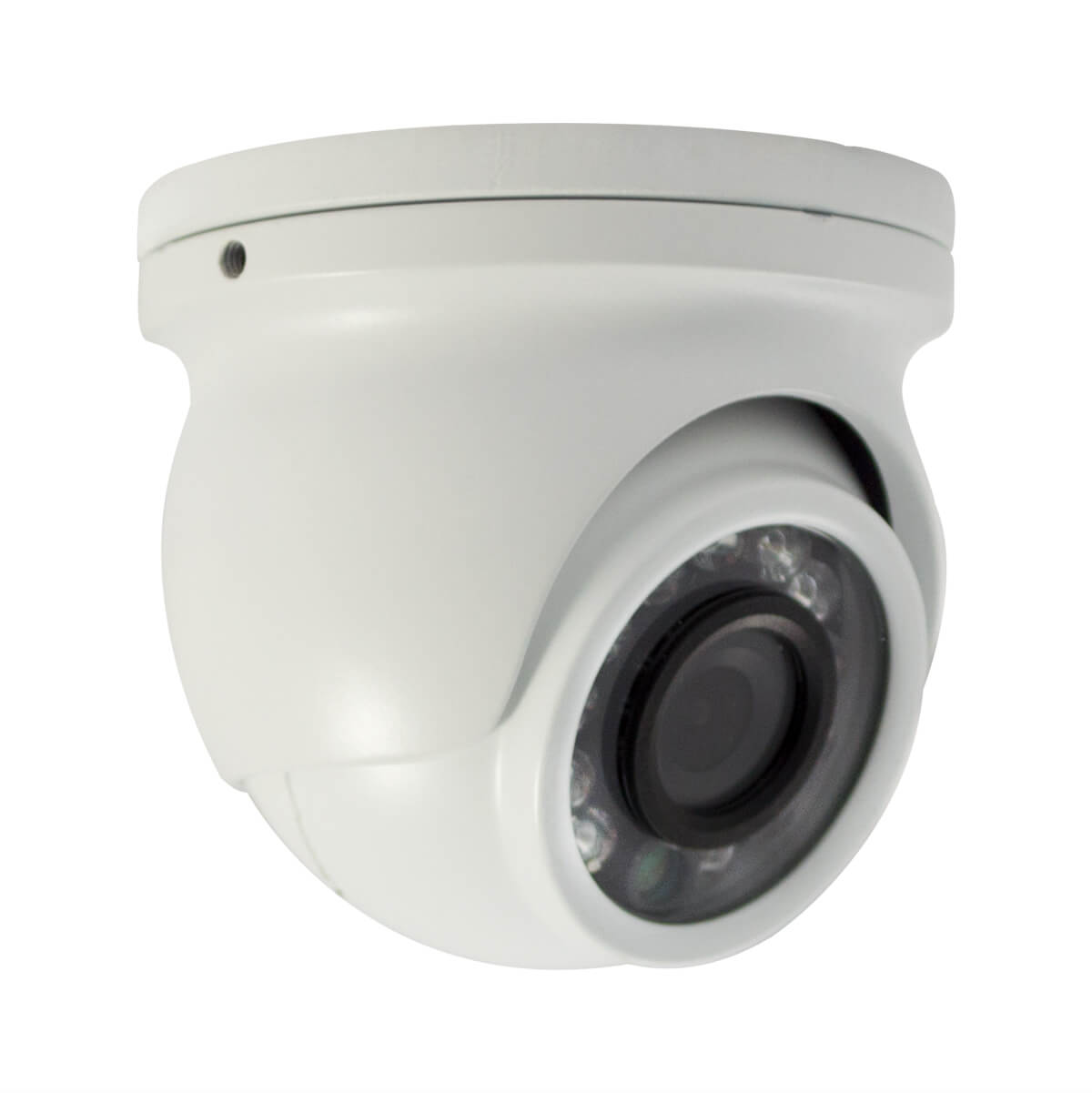

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 2

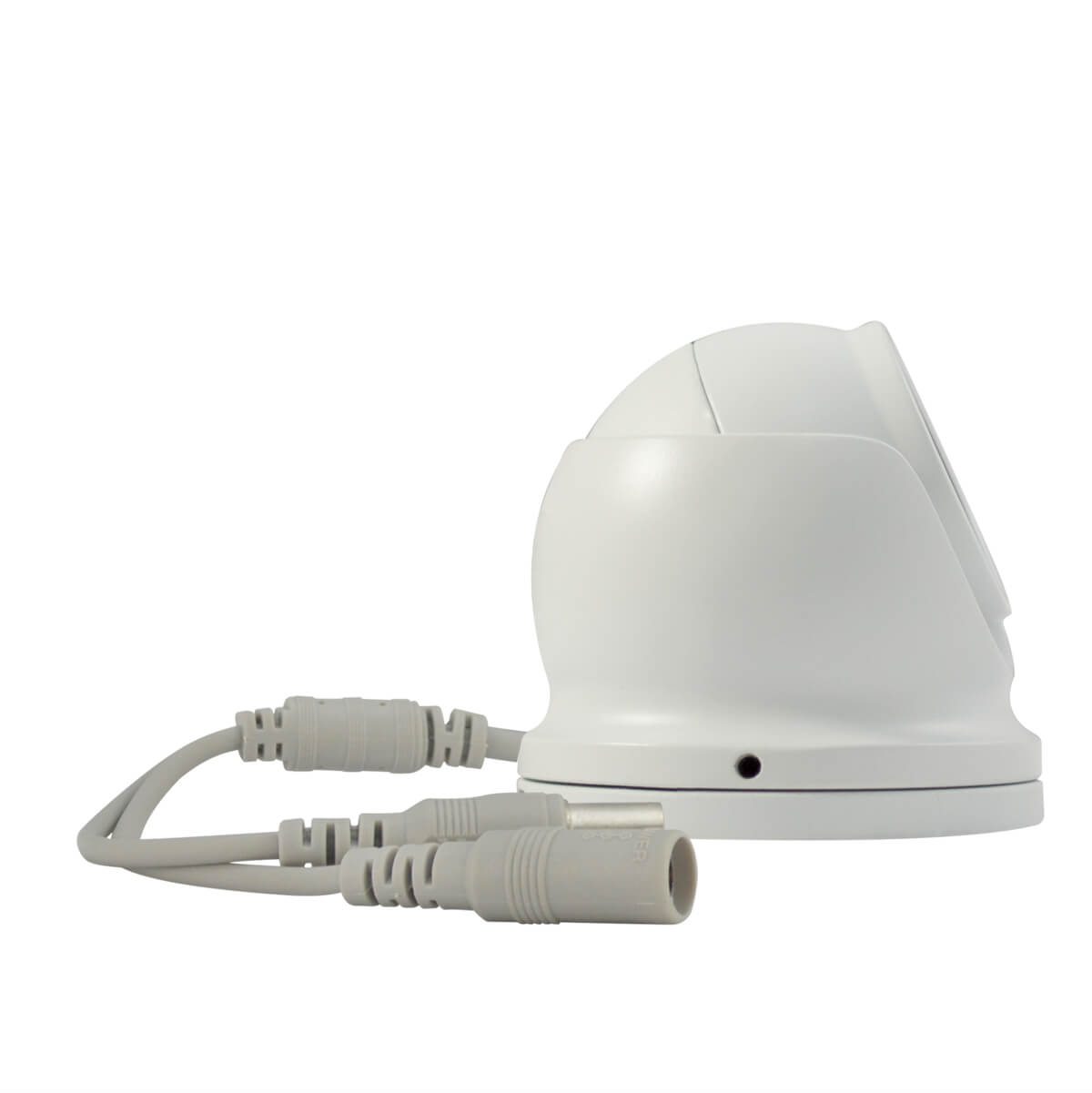

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 3

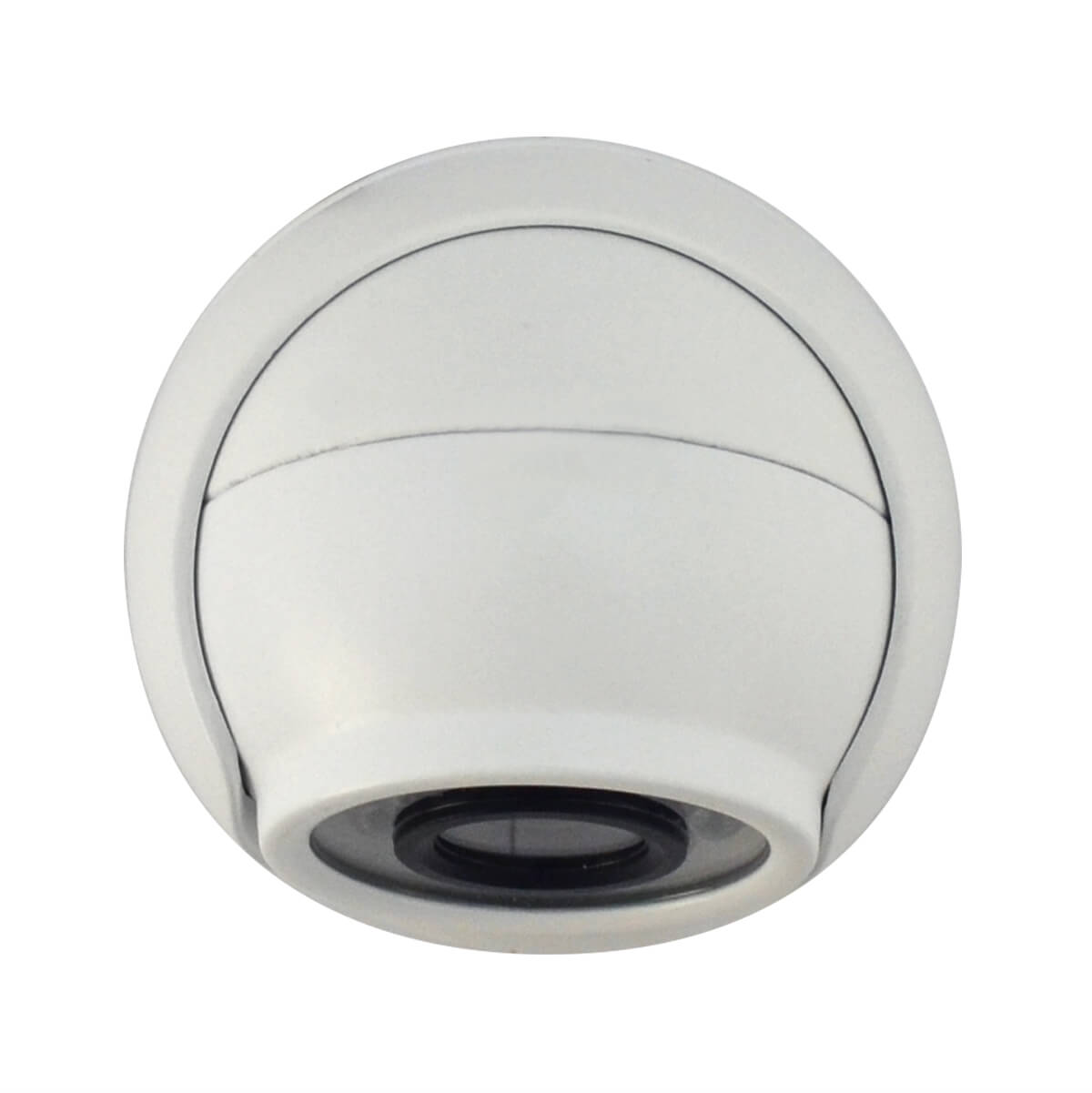

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 4

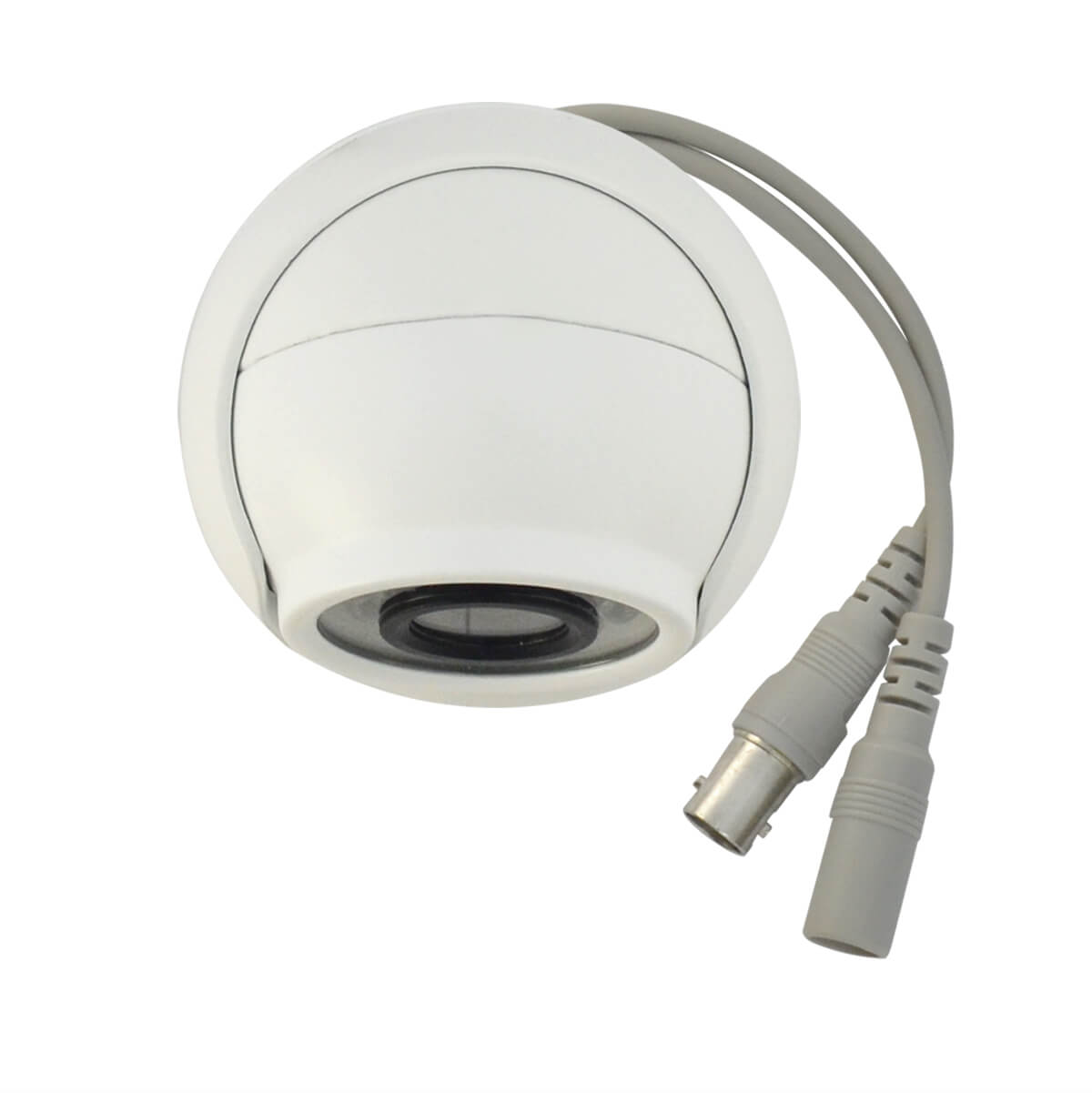

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 5

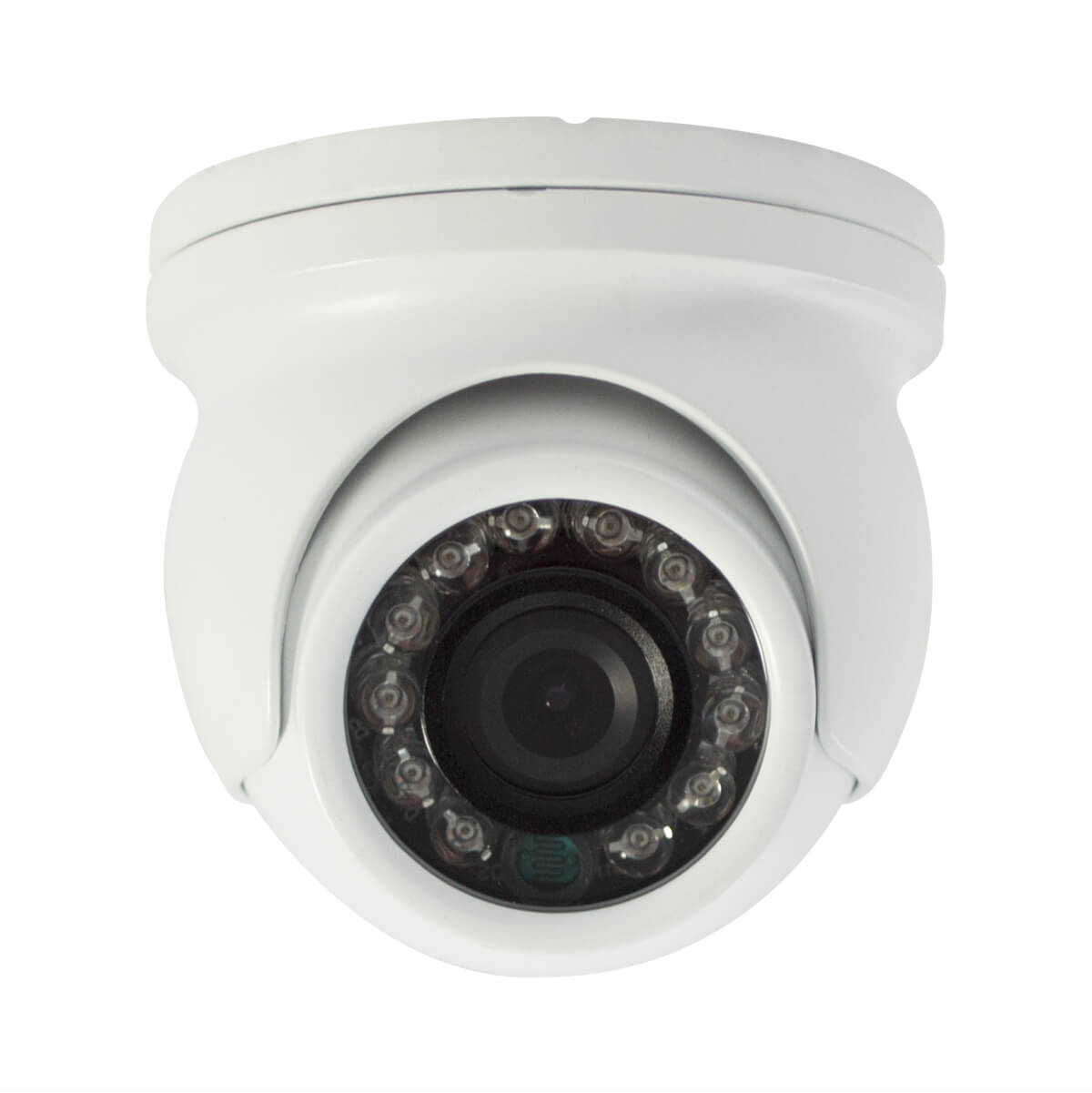

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 6

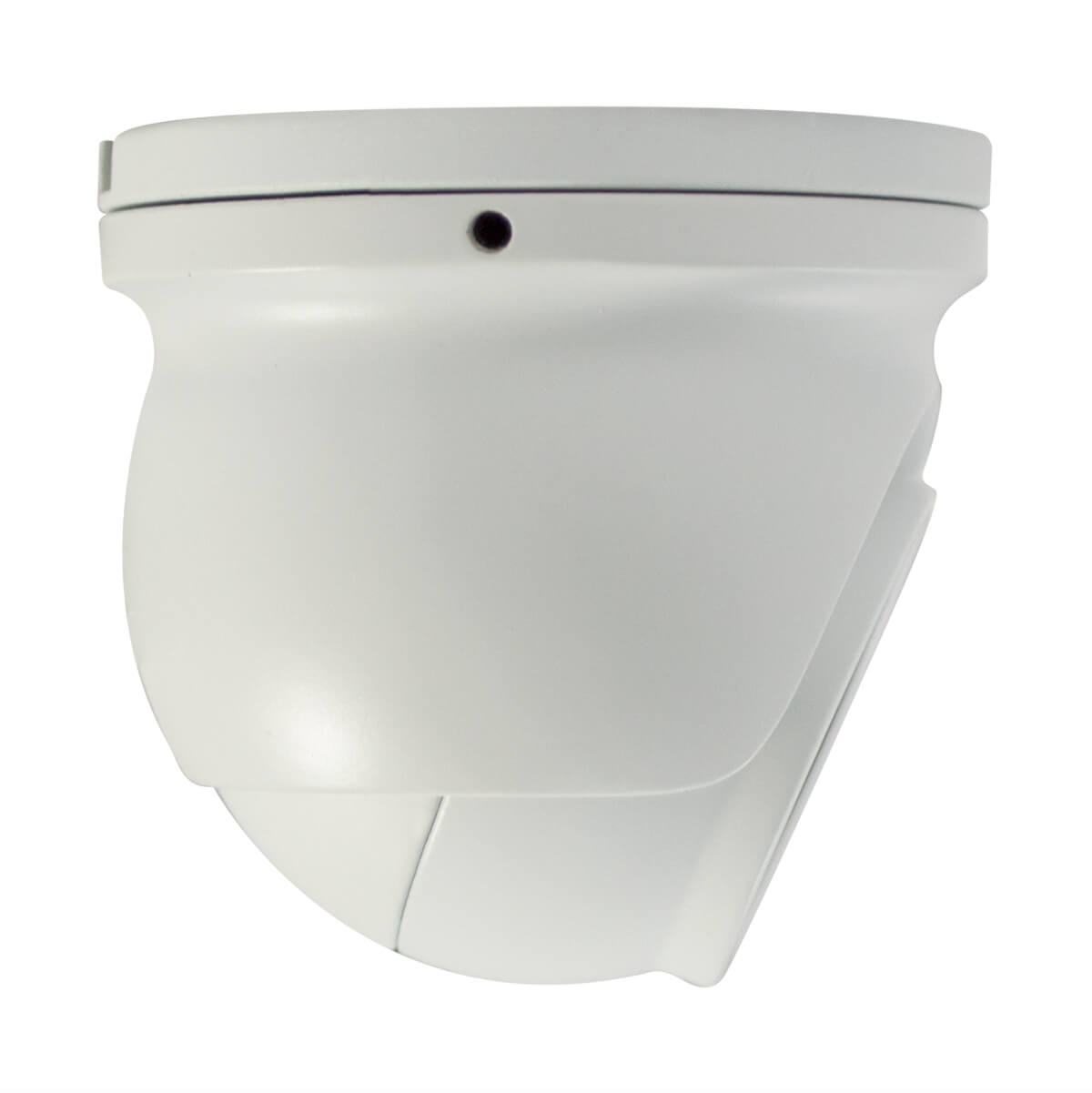

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 7

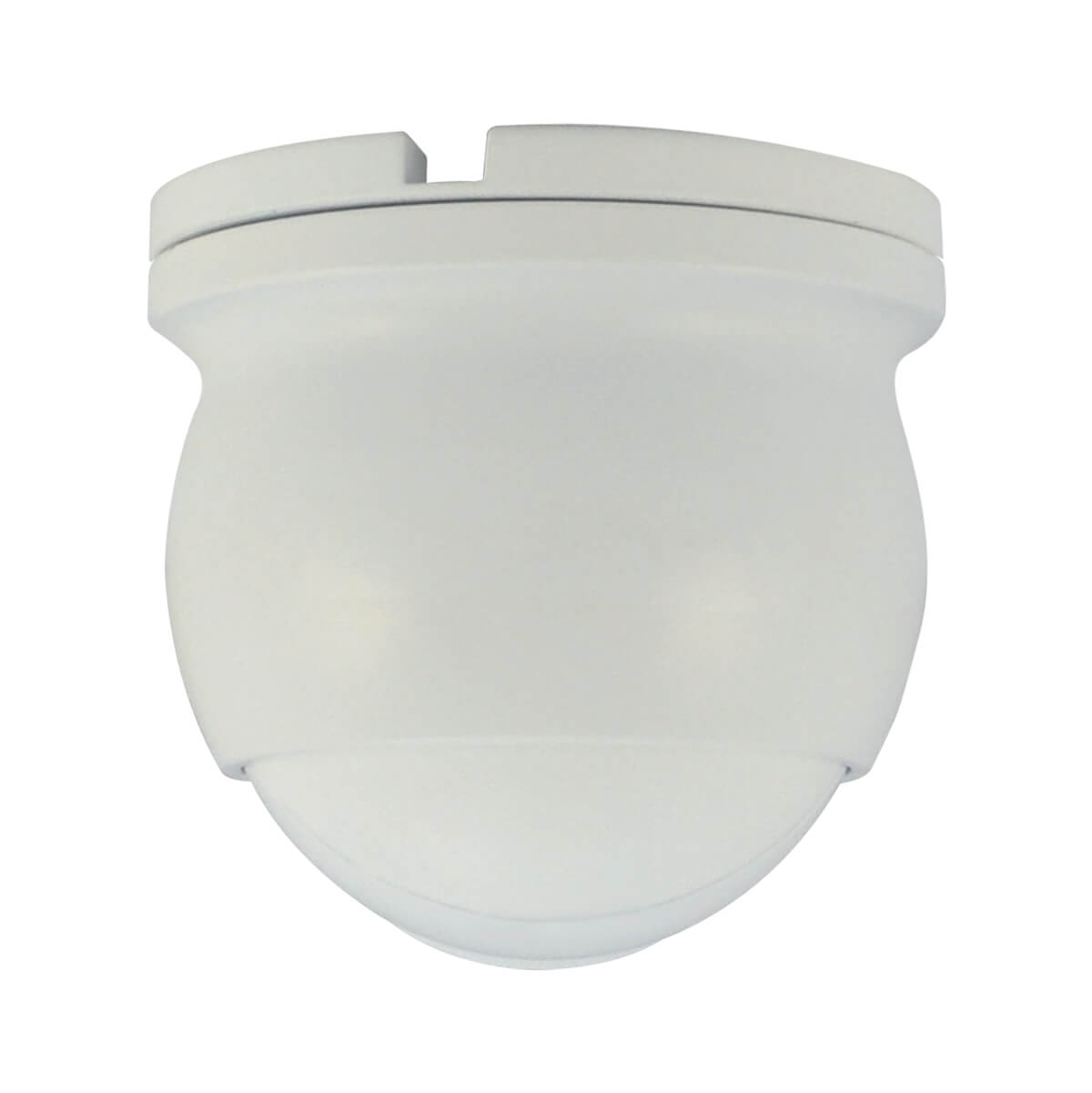

  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 8
  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 9
  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR - Image 10
  • - AES, AGC, AWB, BLC and mirror function.
  • - 12pcs LEDs.
  • - 33ft IR distance.
  • - Power adapter not included.
  • - 1/3" HD Digital Sensor, 800TVL.
  • - Board lens 3.6mm/F2.0.
  • High-resolution vandalproof IR dome camera with a 3.6mm lens and a viewing angle of 92° which has a 33ft range infrared night vision and a 12pcs LEDs 5mm each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Board lens 3.6mm/F2.0.
    - 12pcs LEDs (5mm each).
    - 33ft IR distance.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    Warranty: One (1) Year
  • IR Dome camera 1/3 HD Sensor 800TVL 3.6mm lens 12 LEDs 33ft IR
    General
    Brand LineMak
    Model LS-CV351D
    Sensor
    Resolution 800TVL
    Sensor 1/3" HD Digital Color
    Effective pixels PAL: 500*582
    NTSC: 510*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.6mm/F2.0 Board lens
    IR Range 33ft night vision
    LEDs 12pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0.1 Lux (with LEDs on)
    Viewing angle 92°
    Environment
    Operation temperature -20°C ~ 50°C
    -4°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 2.36(H) * 2.36(D) inches
    Weight 5.82 ounces
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
  • Instrucción
    File Size: 465.38 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 390.37 Kb
    Languages: English
    File Type: PDF
