Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR

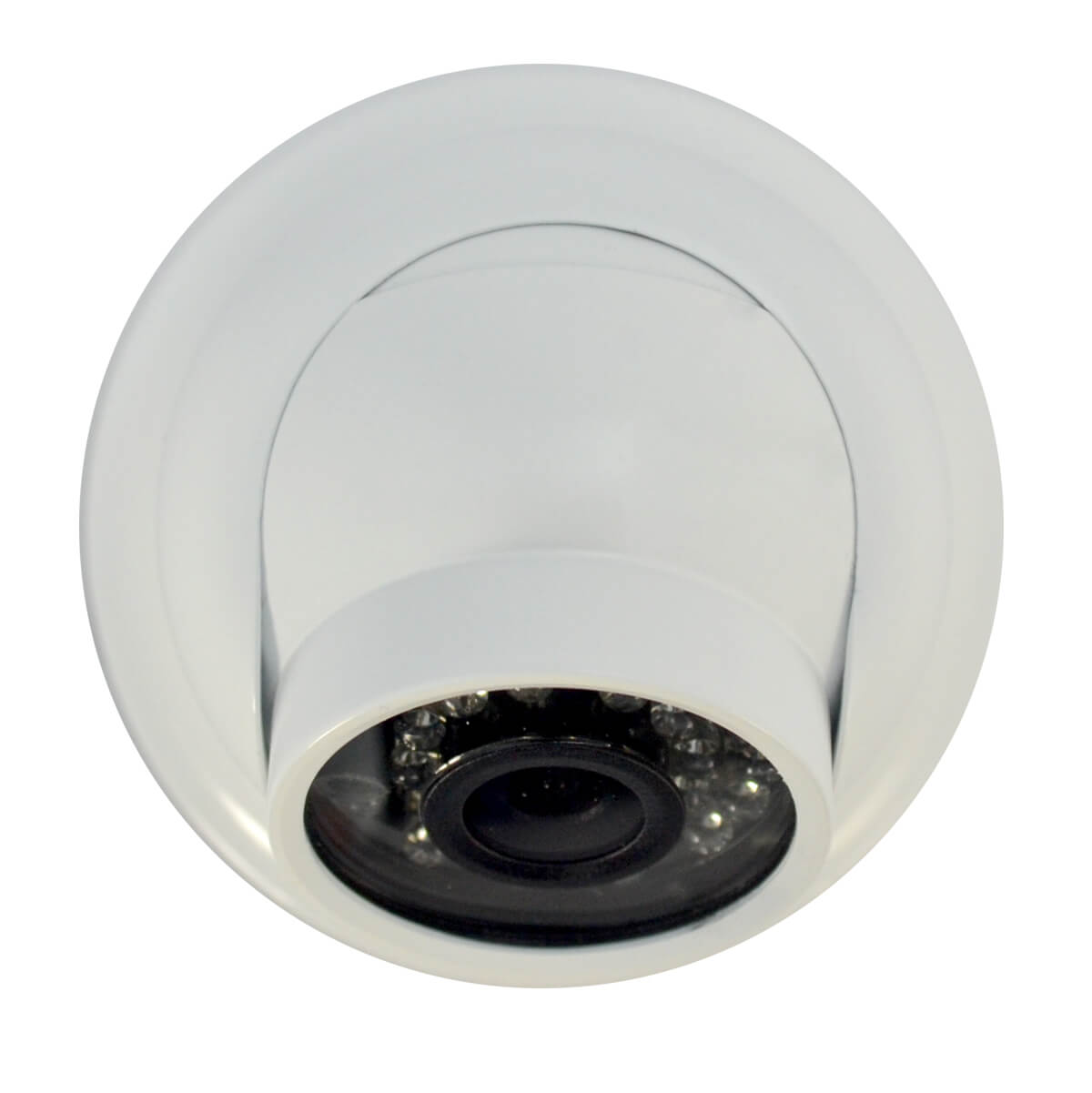

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 1

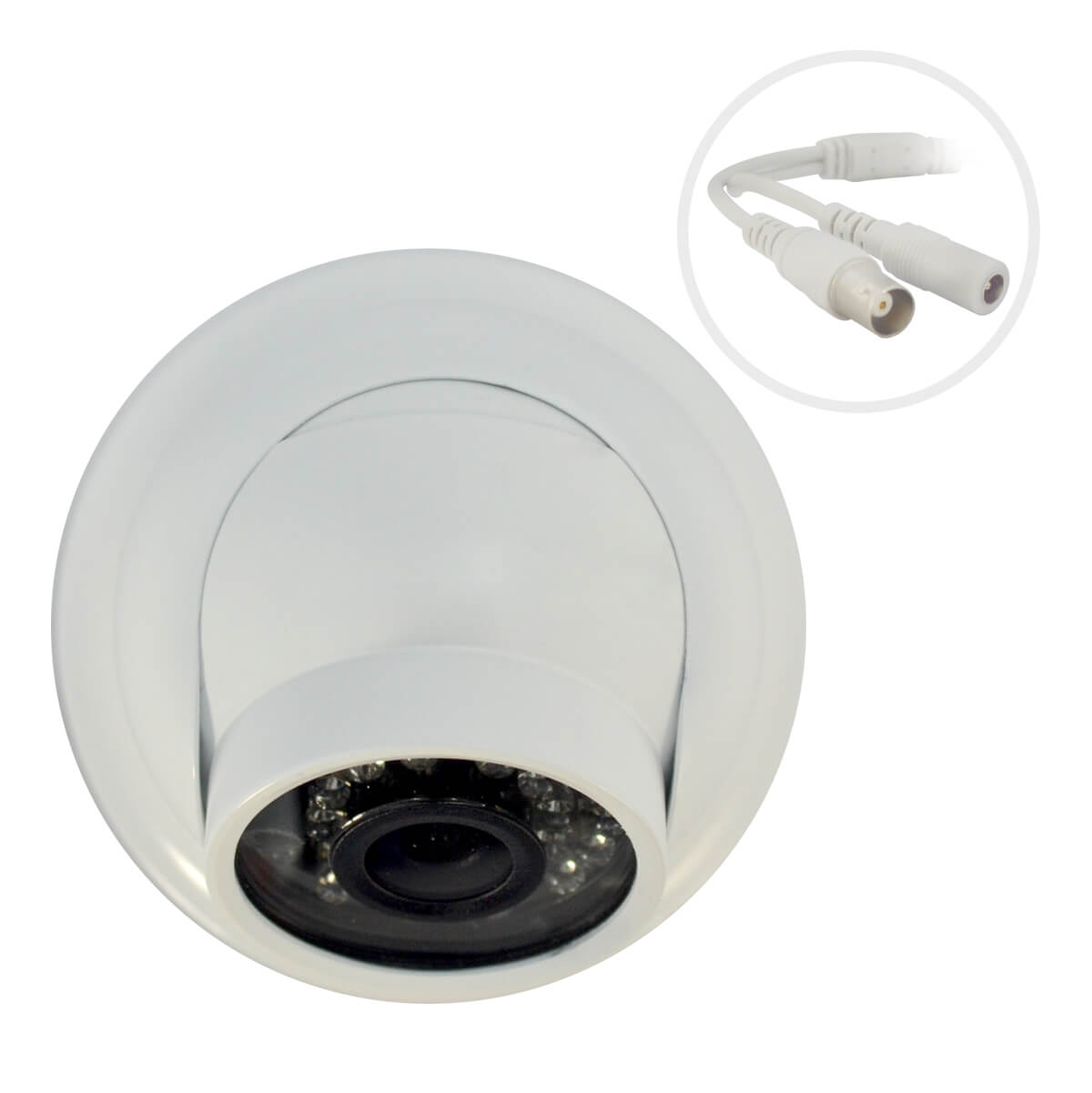

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 2

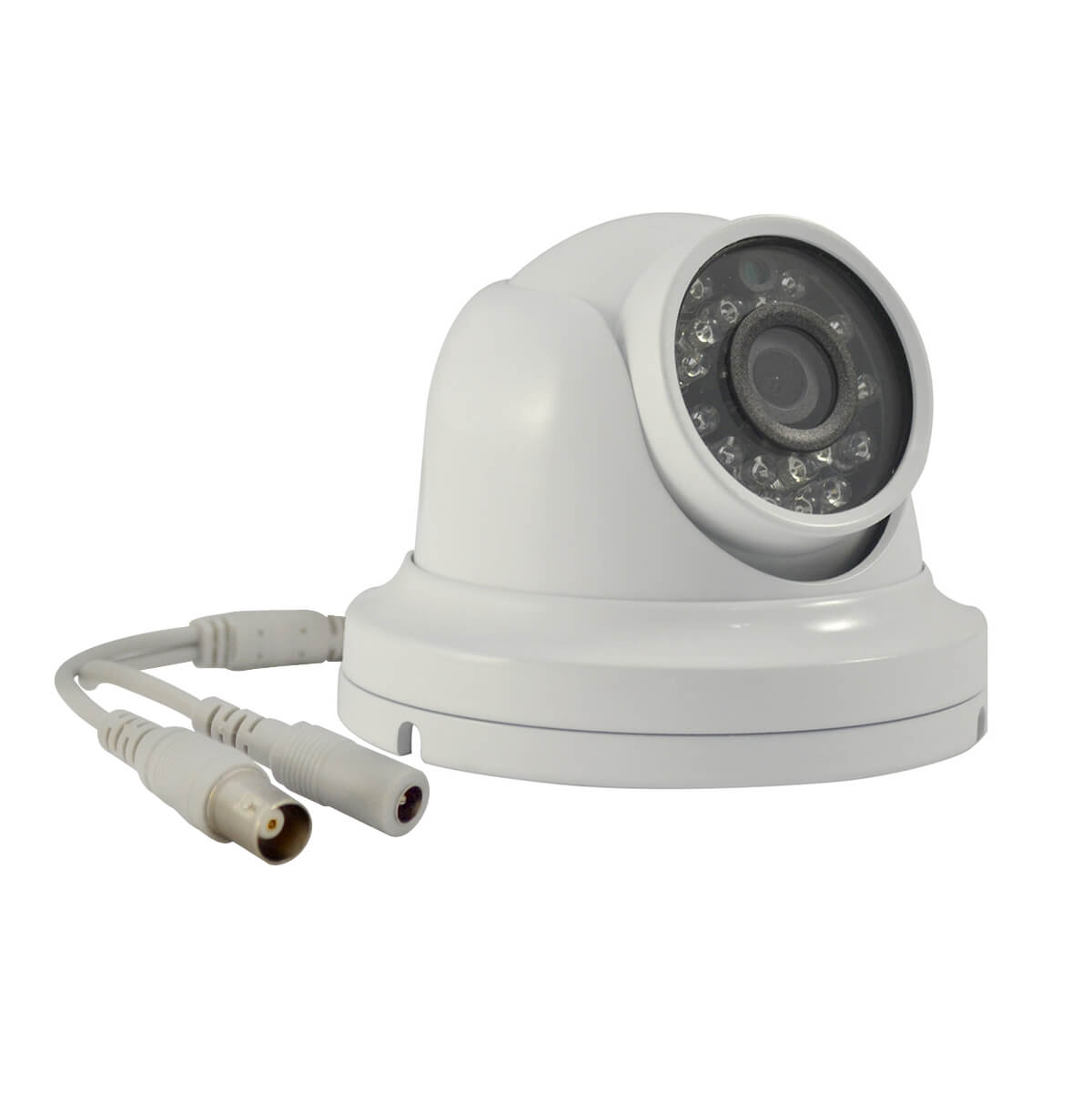

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 3

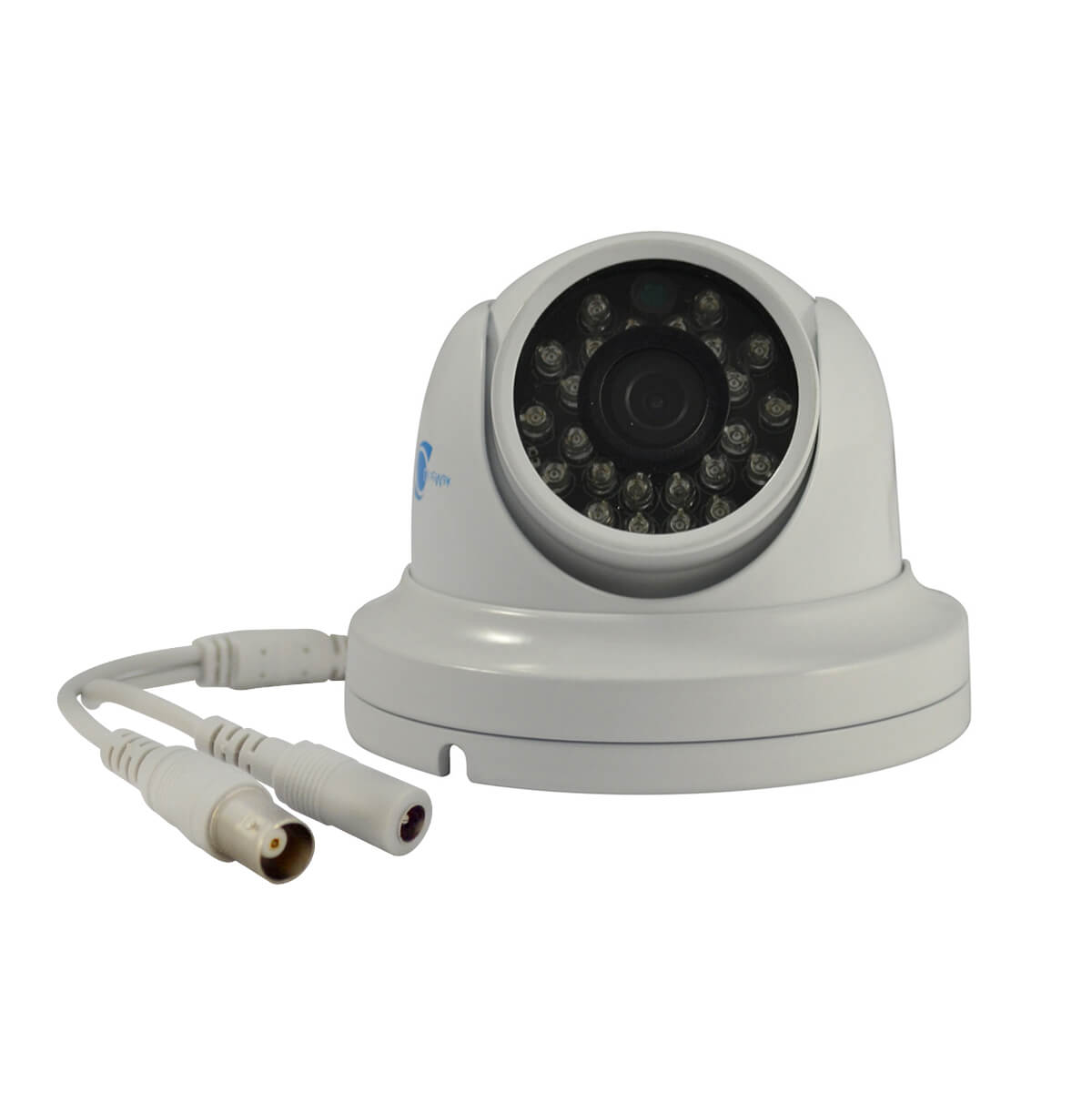

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 4

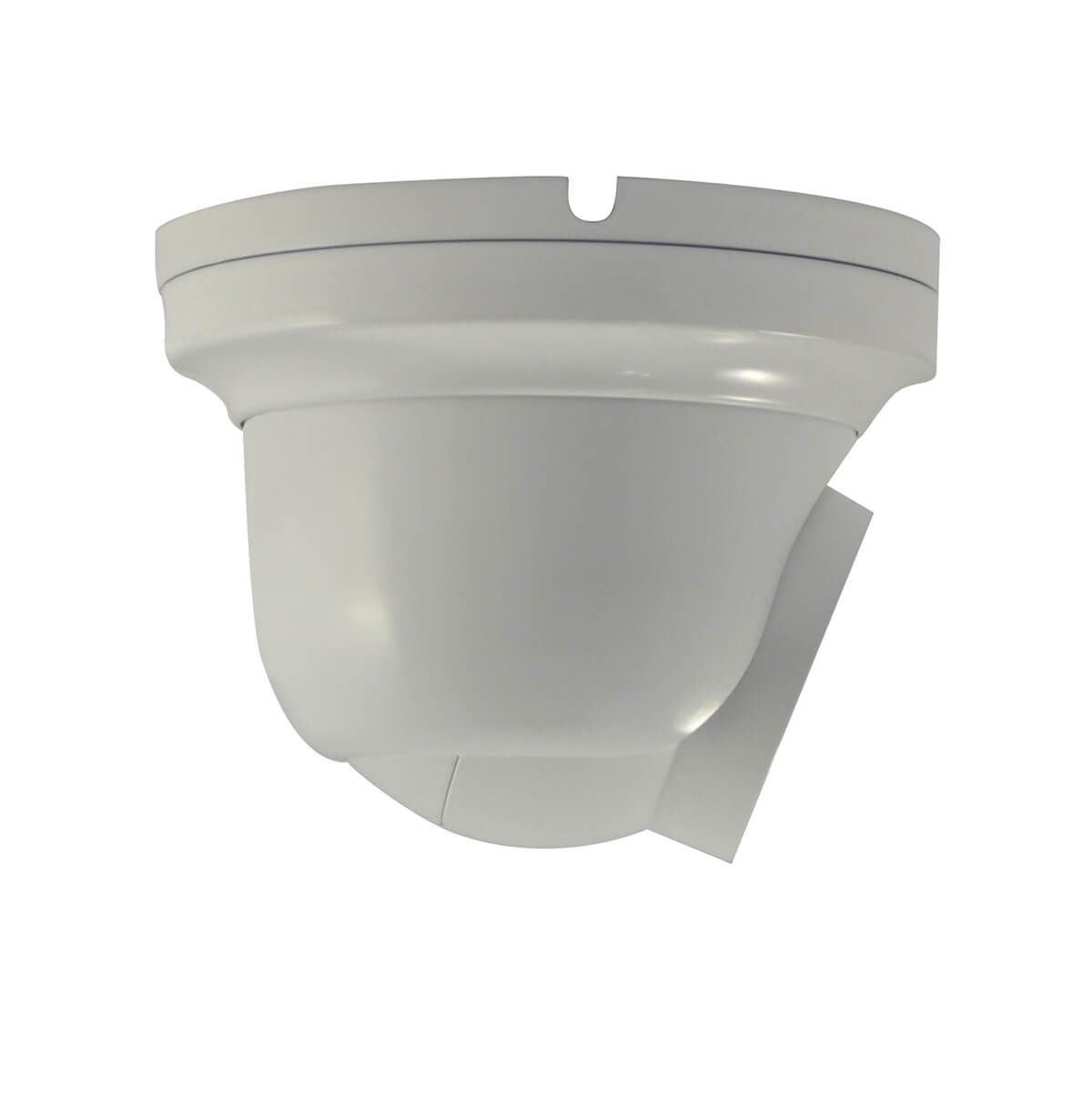

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 5

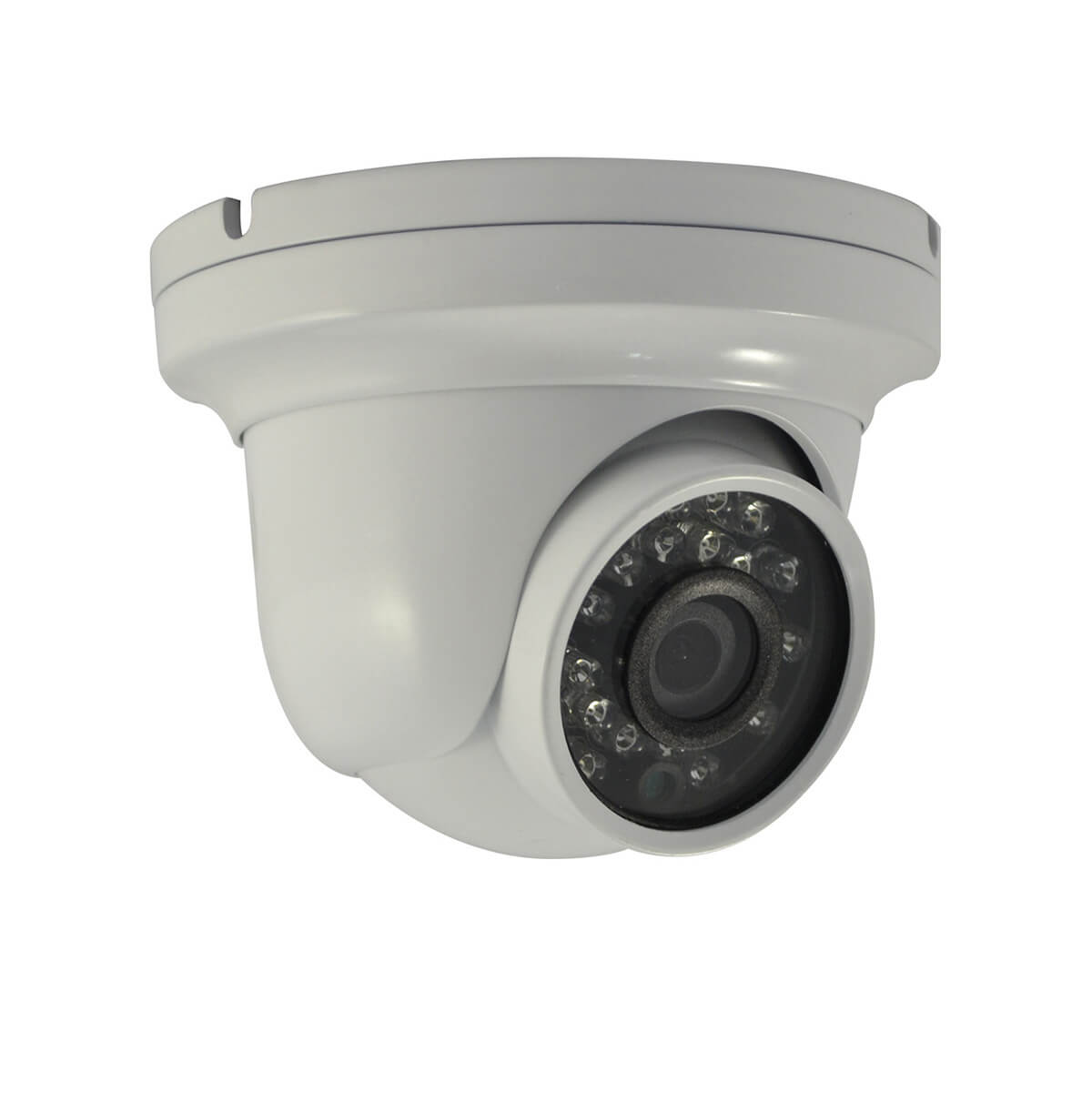

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 6

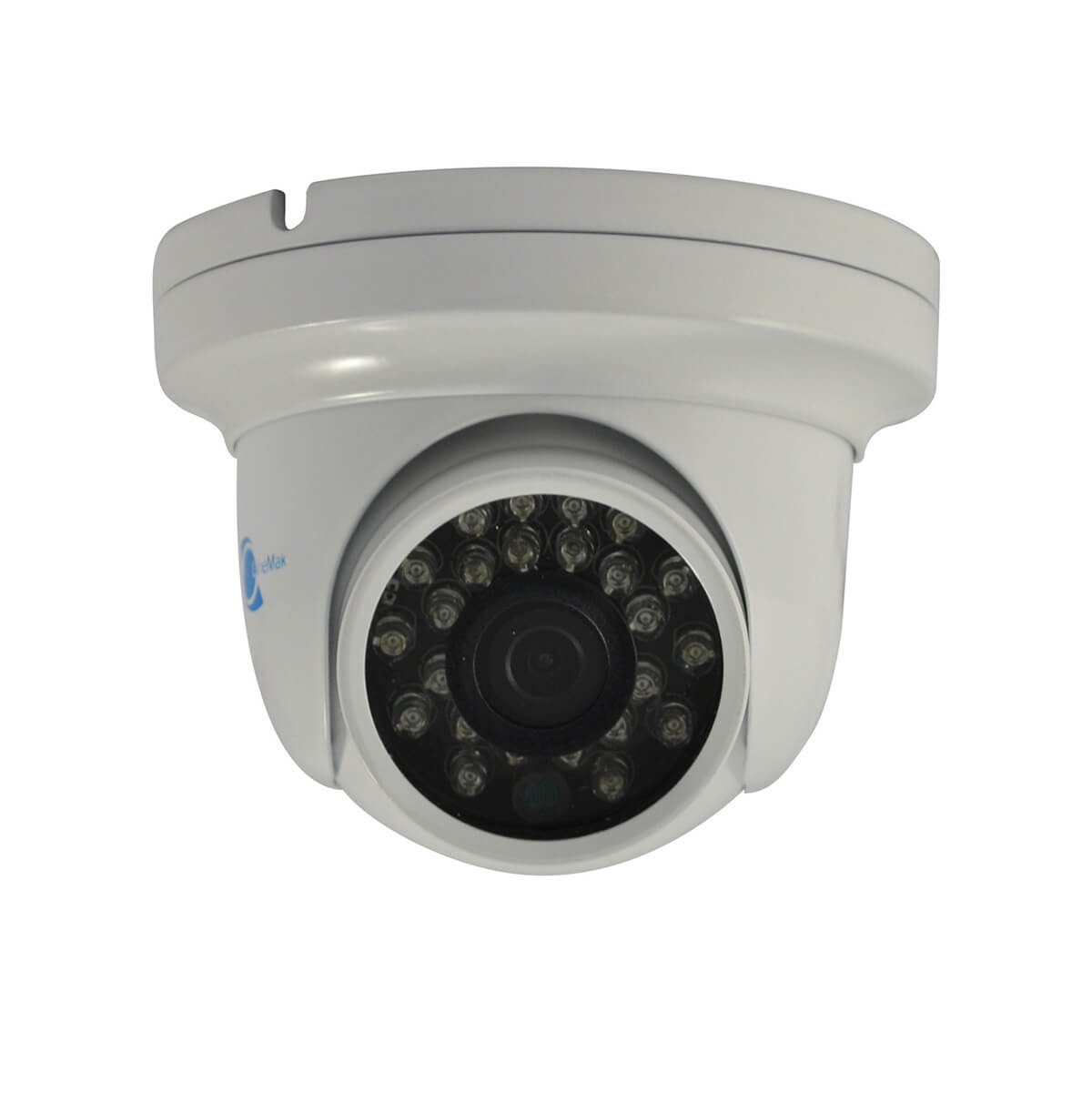

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 7

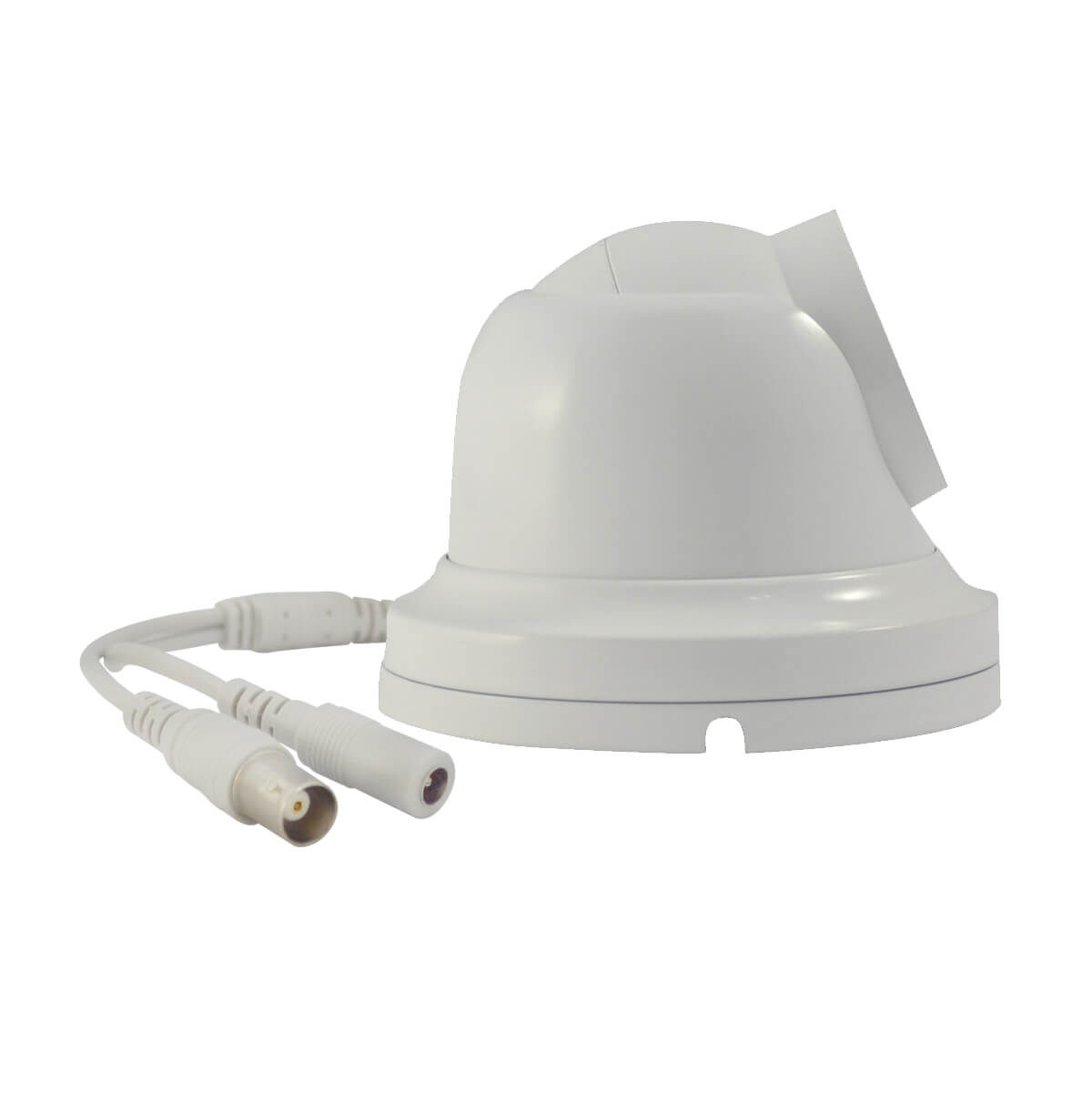

  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR - Image 8
  • - 1/3" HDIS Color CMOS Sensor, 700TVL.
  • - 3.6mm Board lens.
  • - 24pcs LED. 65ft IR distance.
  • - Power adapter not included.
  • - 92° Viewing angle.
  • - Synchronizing system: Internal.
Products recommendaded to work with this item:
dome camera 1/3 hdis cmos sensor 700tvl 3.6mm lens 24 leds 65ft ir
+
dc12v 1a power adapter specially for security cameras
+
16ch dvr, h264, bnc/vga/hdmi outputs, 960h resolution, pentaplex
Price for all 3: $248.97
  • Dome camera with 3.6mm lens and a viewing angle of 92° which has a 65ft range of infrared night vision, and a 24 pcs LEDs 5mm each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included:
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Warranty: One (1) Year
  • Dome Camera 1/3 HDIS CMOS Sensor 700TVL 3.6mm lens 24 LEDs 65ft IR
    General
    Brand LineMak
    Model LS-TC4952CGF
    Sensor
    Resolution 700TVL
    Sensor 1/3" HDIS Color CMOS
    Effective pixels 756*504
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC connector)
    Lens
    Lens 3.6mm Board Lens
    IR Range 65ft night vision
    LEDs 24pcs (5mm each)
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 92°
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 12°F
    Storage temperature -30°C ~ 80°C
    -22°F ~ 176°F
    Power
    Power supply DC 12V
    Power consumption 300mA
    Appearance
    Color White
    Size 3.15(H) * 3.94(D) inches
    Weight 12.7 ounces
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) 1/50~1/100,000s
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instrucción
    File Size: 458.2 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 376.14 Kb
    Languages: English
    File Type: PDF
