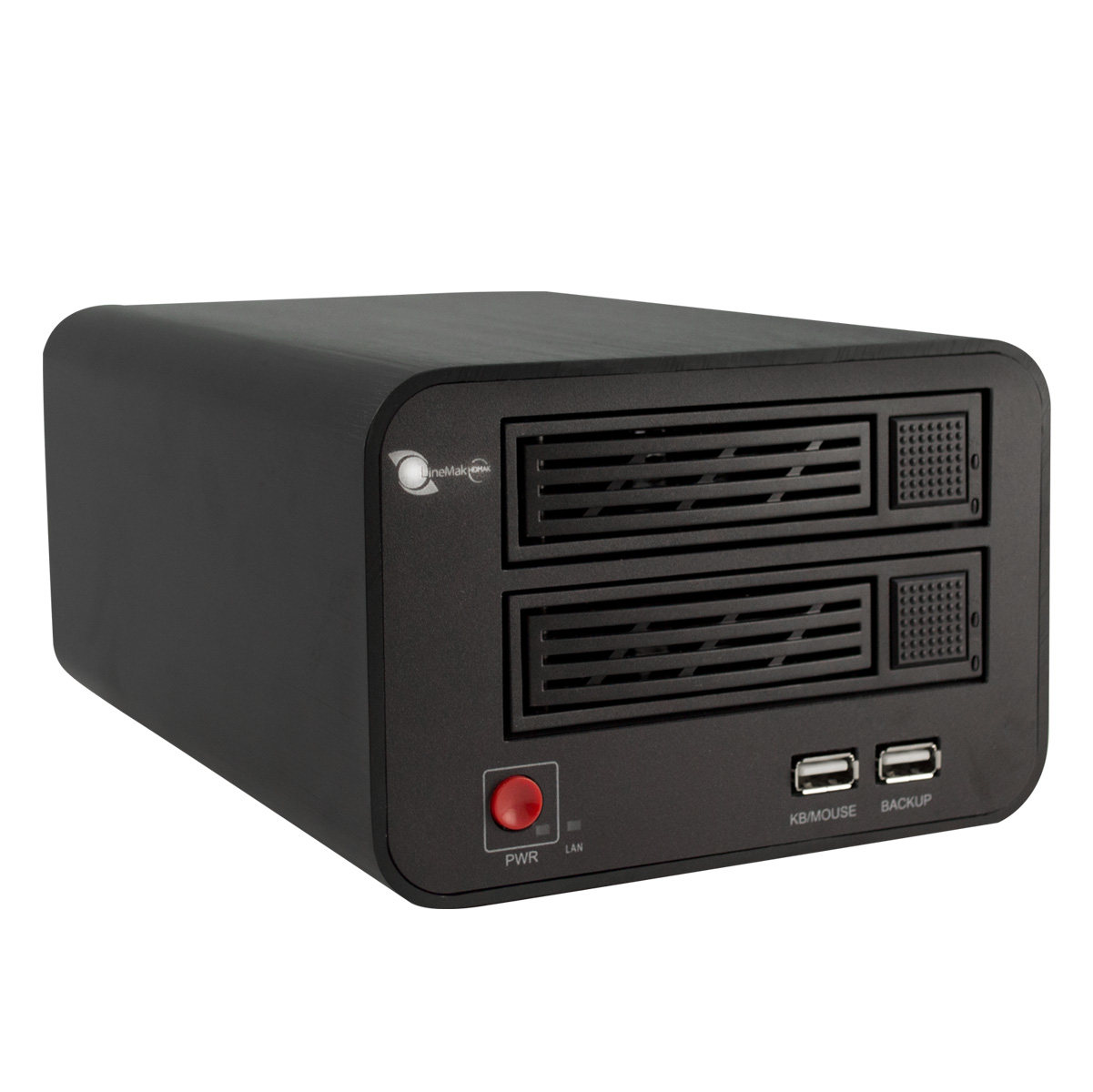

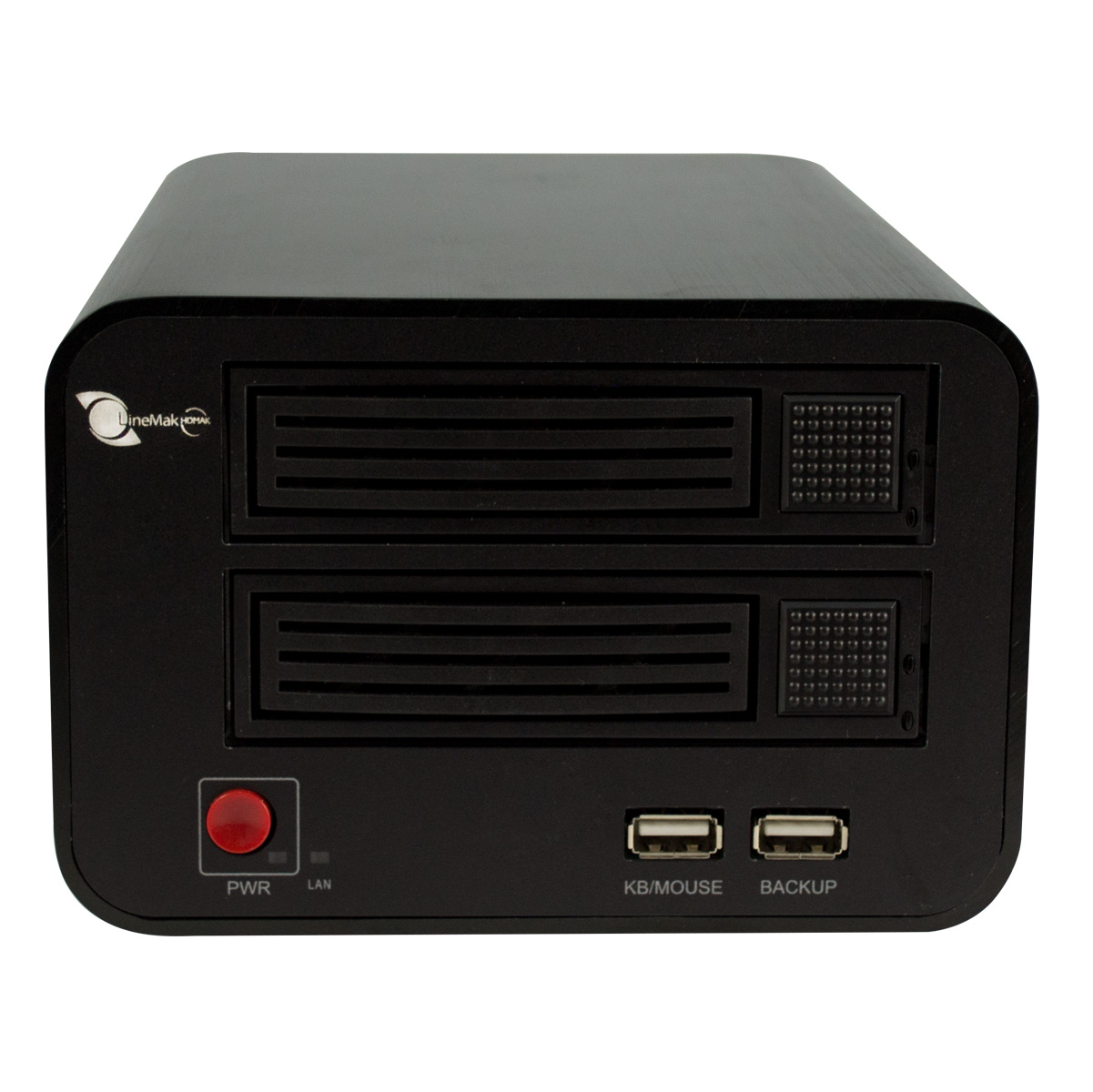

LineMak HD-MAK, 4Ch NVR, H264/G711A, VGA/HDMI outputs, PoE, ONVIF
|
|
General
|
|
Brand | LineMak |
Model | LS-NVR10-02T2-004NSEP4 |
Video
|
|
Resolution | VGA: 1024*768, 1280*1024, 1600*1200 HDMI: 1280*720p, 1920*1080p |
Compression format | Up to H.264 (ISO/IEC 14496-10) high profile to level 4.2 |
Display quality | Single screen: 1x1080p / 720p with Tour Quad display of 1080p / 720p resolutions Split screen: 1/4 layout for 1080p / 720p Live video |
Frame rate | NTSC: 4-Ch 25fps 1080p/720p PAL: 4-Ch 30fps 1080p / 720p |
Video recording | 4 Channel 1080P / 720P |
Rate control | CBR (Constant Bit Rate), VBR (Variable Bit Rate) as defined by IP Device |
Stream input | 720P: Standard 3Mbps 720P (main stream) or VGA quality (sub stream)1080P: Standard 4.5Mbps 1080P (main stream) or VGA quality (sub stream) |
Audio
|
|
Audio compression | G711 A-Law, G711 U-Law |
Recording & Playback
|
|
Recording mode | Constant, motion detection |
Local playback | 4ch 1080P / 720P |
Speed | 720p: average bit-rate 3Mbps with 4Channel Up to 60Days1080p: average bitrate 4.5Mbps with 4Channel Up to 42Days |
Interface
|
|
Video input/output | Input: N/A Output: 1-Ch VGA and 1-Ch HDMI |
Audio input/output | Input: N/ Output: 3.5mm linear audio |
USB Port | 2 USB 2.0 Respectively as a backup and USB mouse (USB keyboard support for name input) |
HDD Port | 2 SATA (1 HDD capacity up to 4TB) |
Network interface | 1 RJ45 10M/100M network port ,4 RJ45 10M/100M PoE ports |
Network
|
|
Network protocol | RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS,NTP, RTMP, Sunell SDK,ONV |
Web server | Embedded server supporting Flash Video RTMP server (Multi Browser Support) 4ch Live cameras real-time. |
Environment
|
|
Operation temperature | 0ºC ~ 45ºC 14ºF ~ 113ºF |
Working humidity | 0% ~ 90% |
Cooling fan | Main chip cooling using heat sinks, plus thermal controlled intelligent cooling fan. |
Power
|
|
Power supply | DC12V / 5A |
Power consumption | MAX 6W (without HDD) / MAX 18W (with 2HDD) |
PoE | 48V / 1.04A |
Power switch | Power on from connected power source / power off software control with authentication. |
Appearance
|
|
Size | 8.67(L) * 3.94(H) 6.3(W) inches |
Weight | 5.22 pounds |

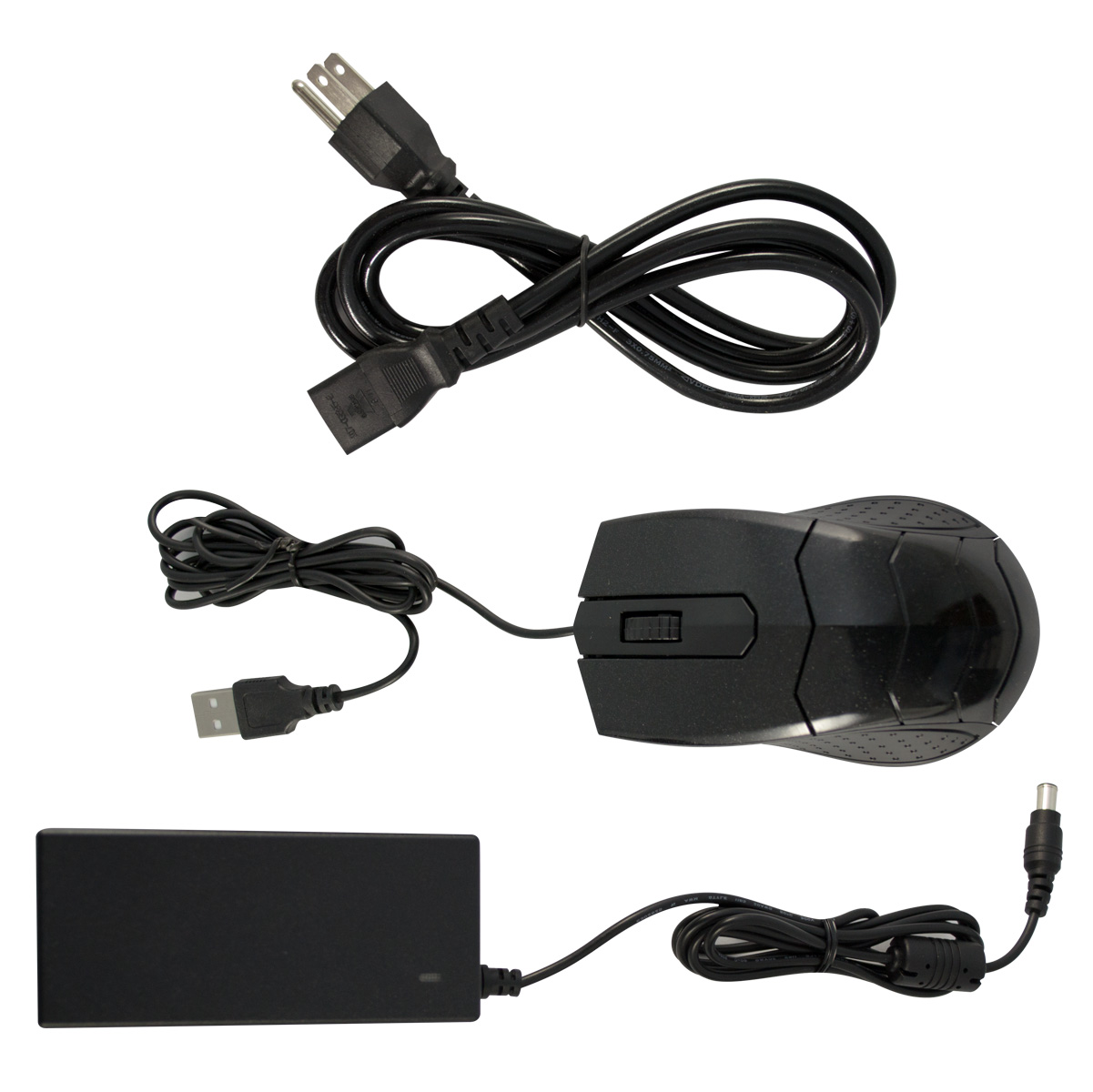

Accessories
|
|
Mouse | Yes |
Standard
|
|
Approvals | CE / FCC / RoHS Compliant |
