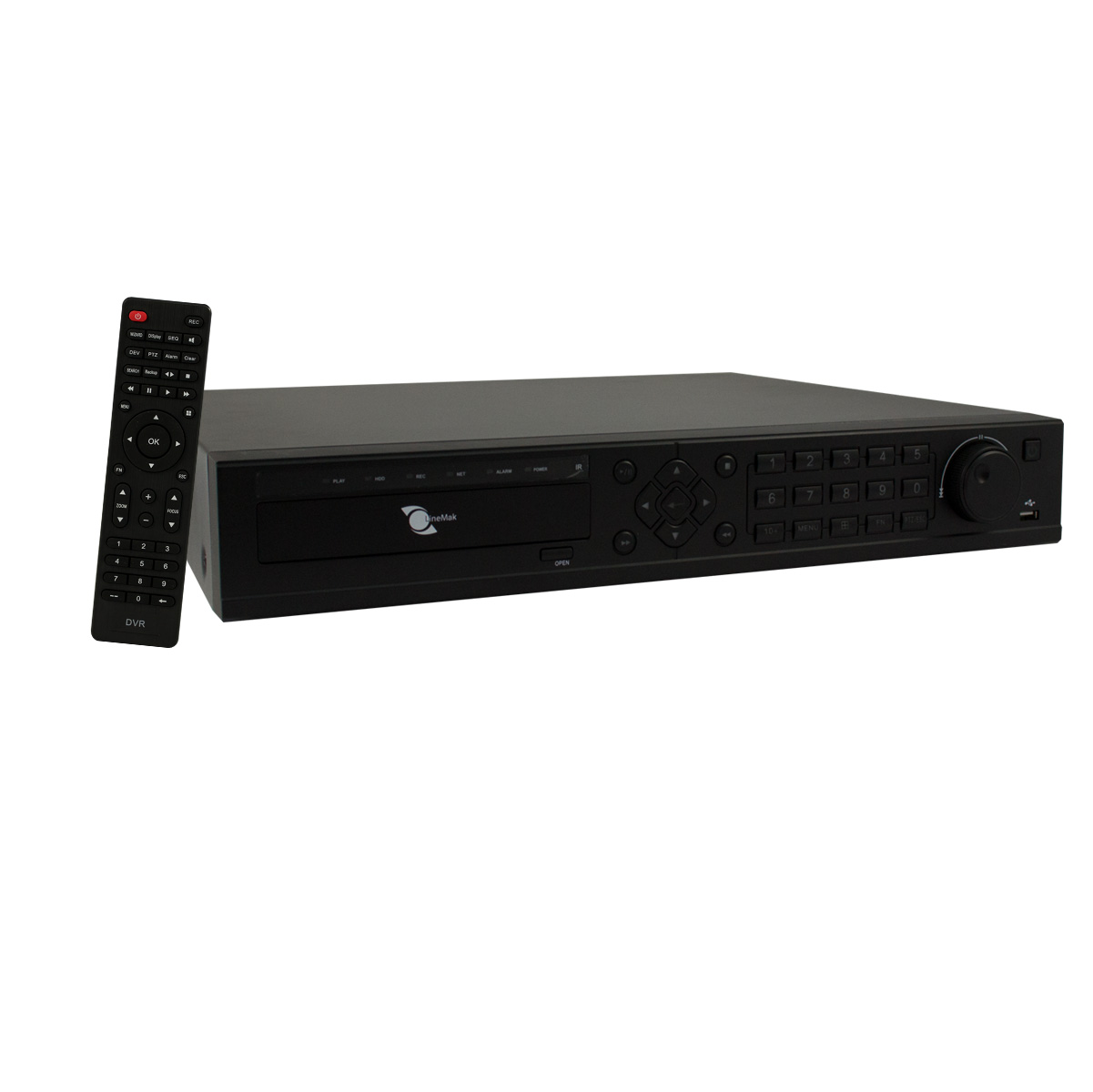

16Ch DVR, H264, BNC/VGA/HDMI output, Audio 16Ch in/1Ch out, 960H
|
|
General
|
|
Brand | LineMak |
Model | LS-NTR6616H1-2 |
System
|
|
Operating system | Embedded Linux |
System resources | Multi-channel real time recording and playback,multiple network operation and USB backup |
Display
|
|
Display area | 1/4/8/9/16 (according to the input mode you choose) |
Graphic user interface (GUI) | Voice user interface |
Video
|
|
Resolution | 960H |
Video format | NTSC |
Compression format | H.264 |
Encode capacity | 16ch real time |
Decode capacity | 16ch real time |
Streams | Dual stream, can be set up in each channel |
Recording & Playback
|
|
Recording mode | Manual, timing, motion detection, video blind and video loss recording |
Local playback | 1-8Ch playback simultaneously |
Search mode | Time, date, motion and channel detection |
Interface
|
|
Video input/output | Input: 16-Ch BNCOutput: 1-Ch BNC (1.0Vp-p,75ohm),1-Ch VGA and 1-Ch HDMI |
Audio input/output | Input: 16-Ch RCAOutput: 1-Ch RCA |
Alarm input/output | Input: 16-ChOutput: 4-Ch |
PTZ Control | 1 RS485 port |
USB Port | 2 2.0 USB ports |
HDD Port | 4 SATA HDDs port (up to 3TB each) |
Network interface | 1 RJ45 10M/100M base-T Ethernet port |
Environment
|
|
Operation temperature | -10°C ~ 55°C 14ºF ~ 131ºF |
Working humidity | 10% ~ 90% |
Power
|
|
Power supply | DC 12V/6A |
Power consumption | <50W |
Appearance
|
|
Color | Black |
Size | 11.82(L) * 3.15(H) * 15.36(W) inches |
Weight | 8.67 pounds |
Accessories
|
|
Remote control | Yes |
Mouse | Yes |
Manual |
![]() |
![]() |
![]() |
![]() |
Instructions |
![]() |
![]() |
![]() |
![]() |
