Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens

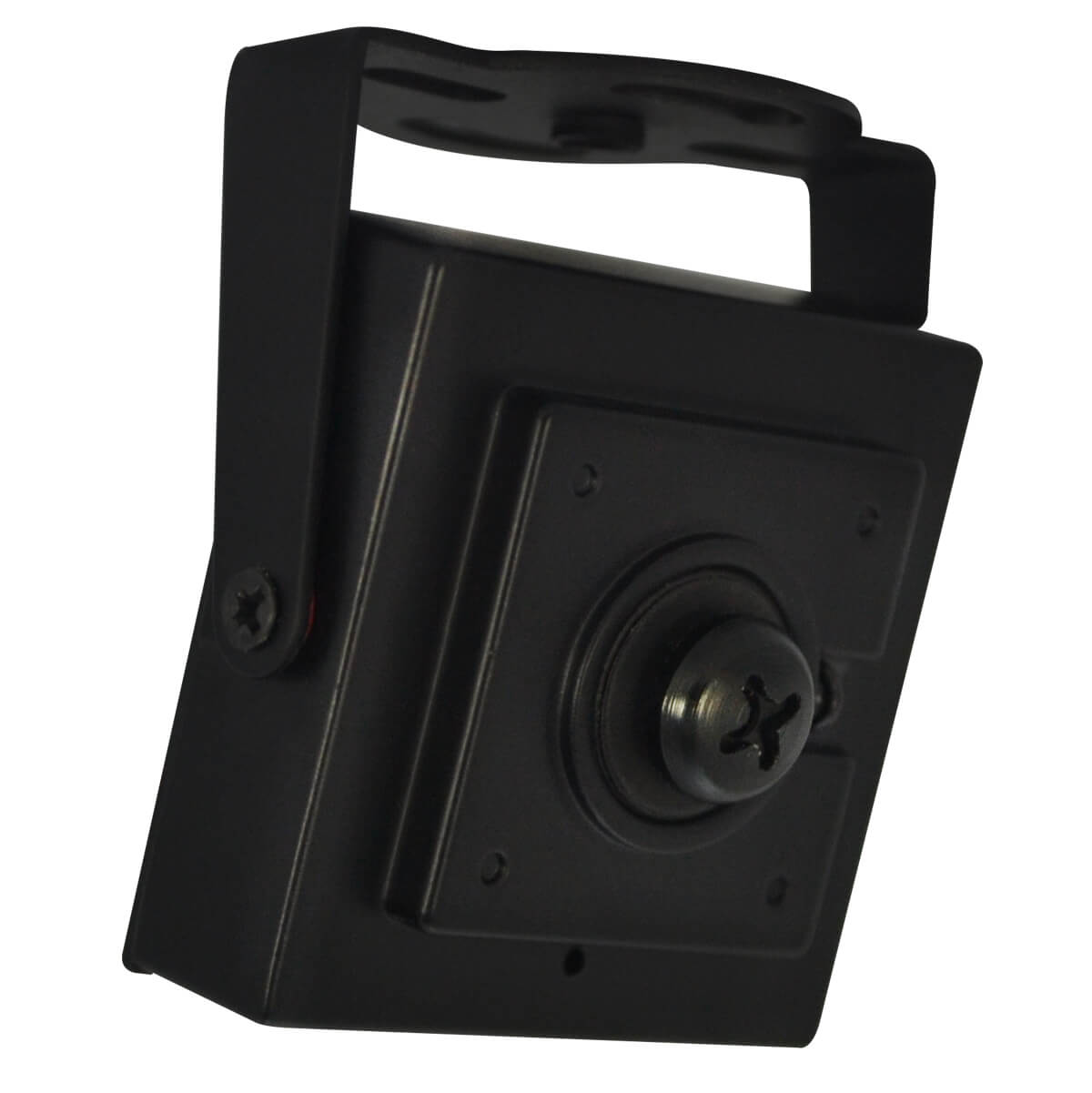

  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens - Image 1

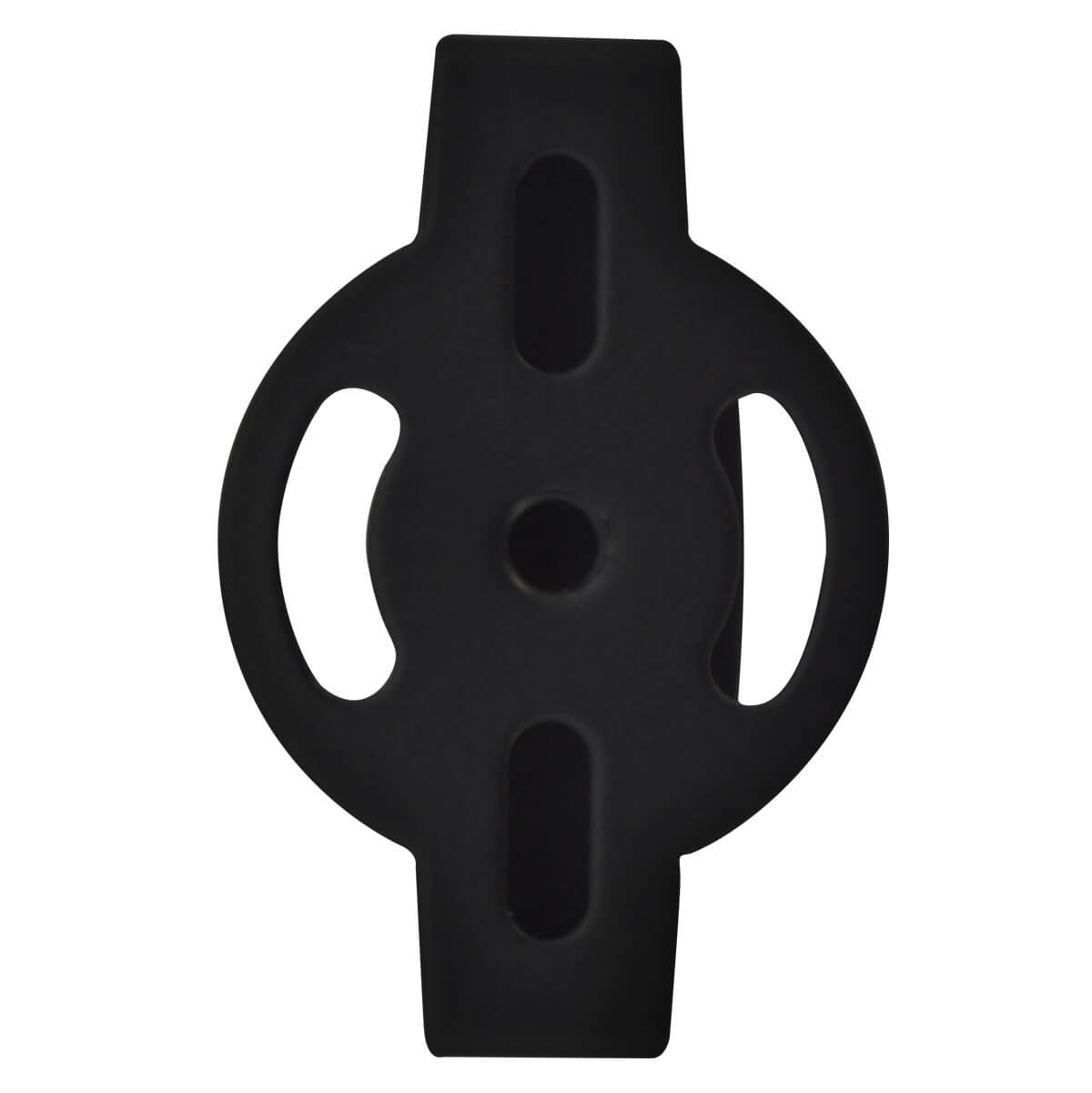

  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens - Image 2

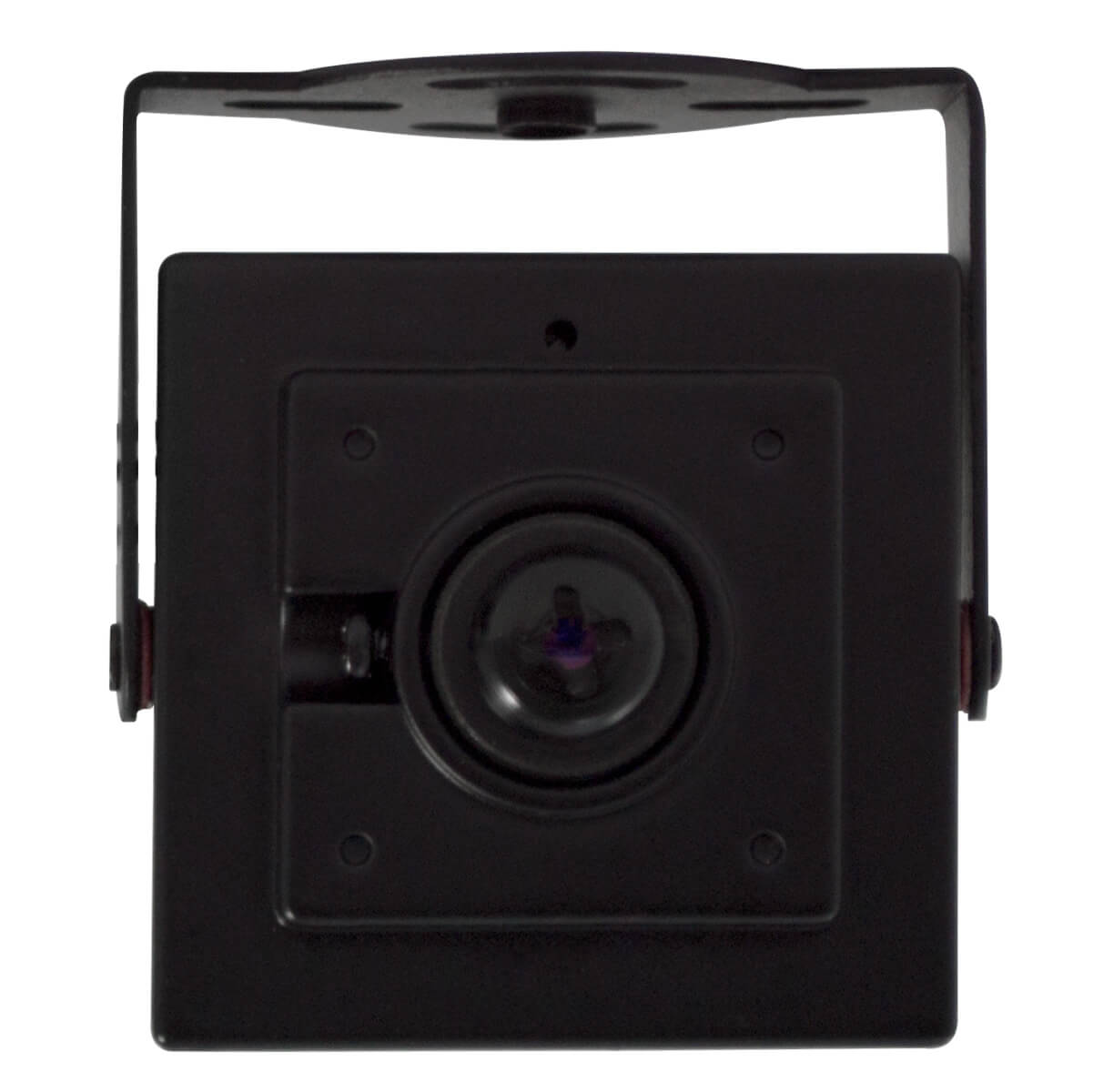

  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens - Image 3

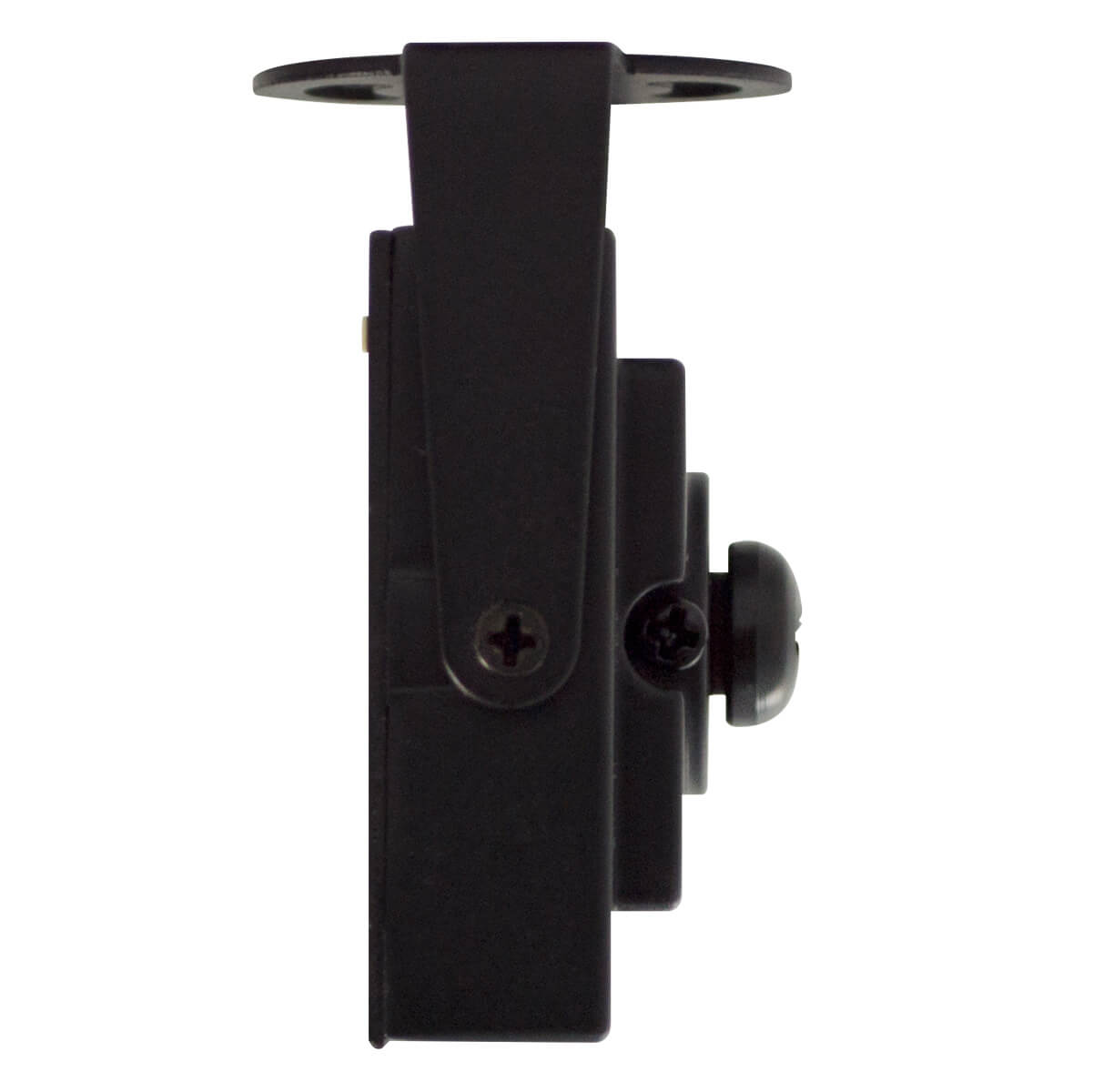

  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens - Image 4

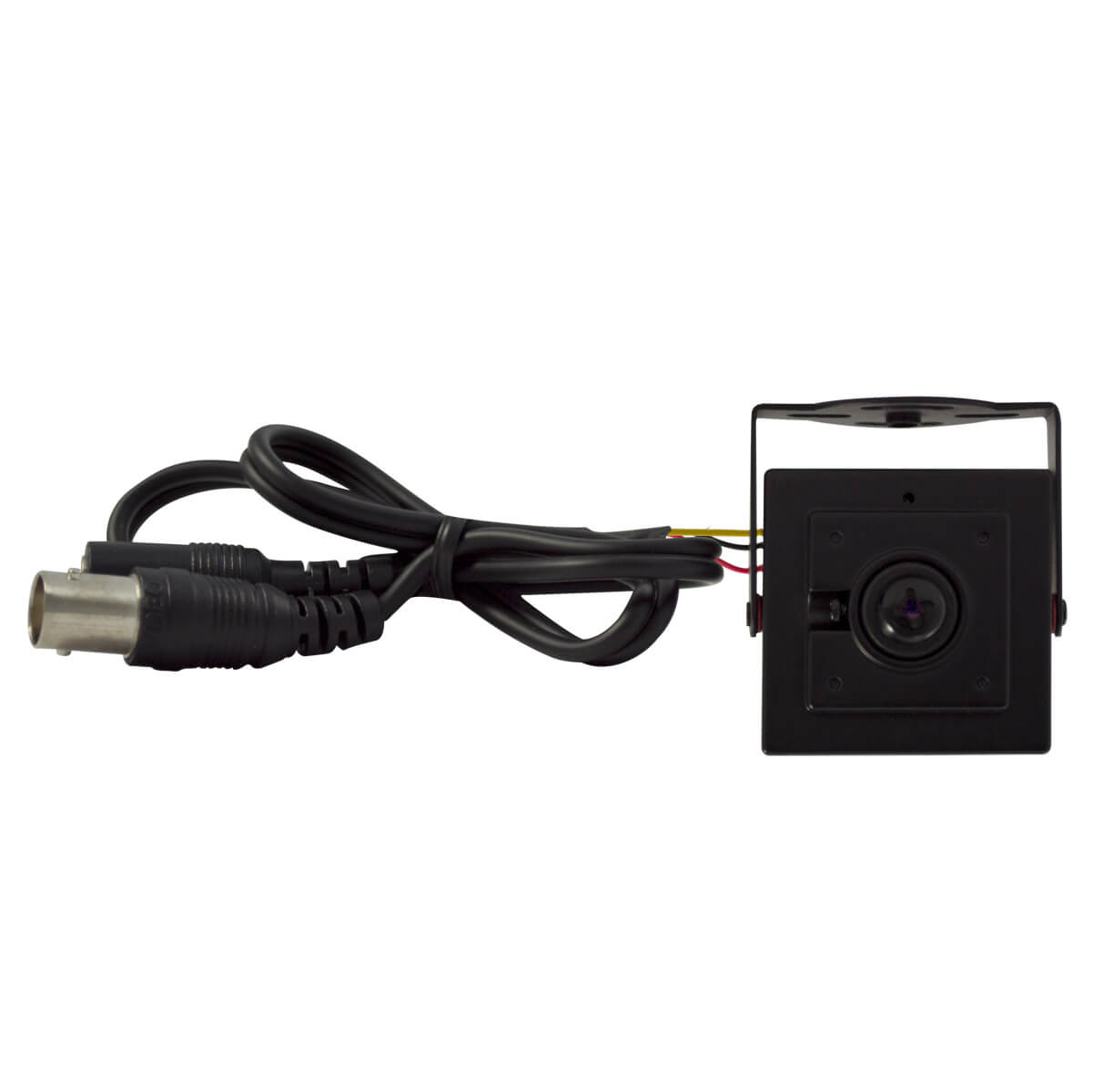

  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens - Image 5

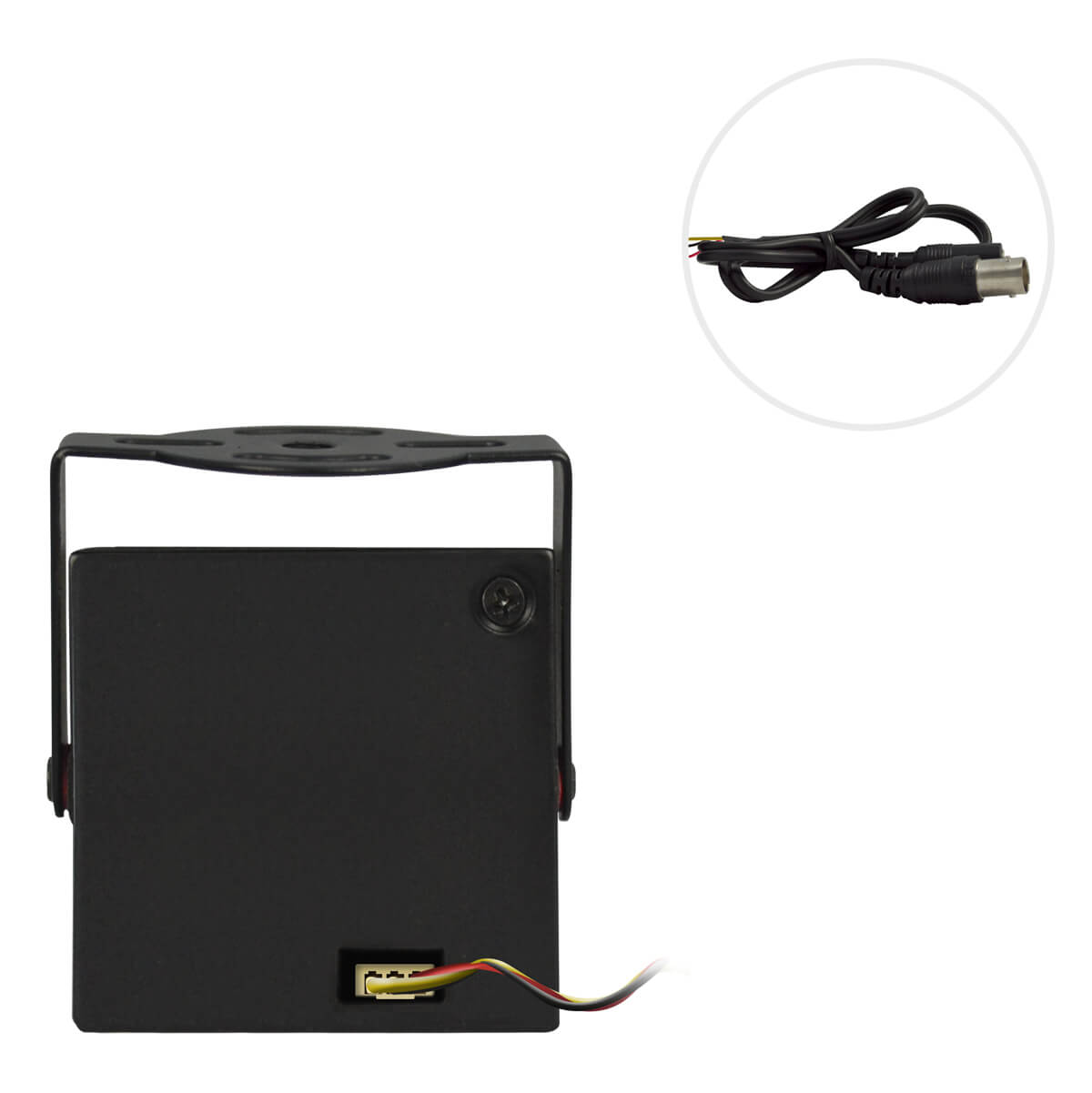

  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens - Image 6

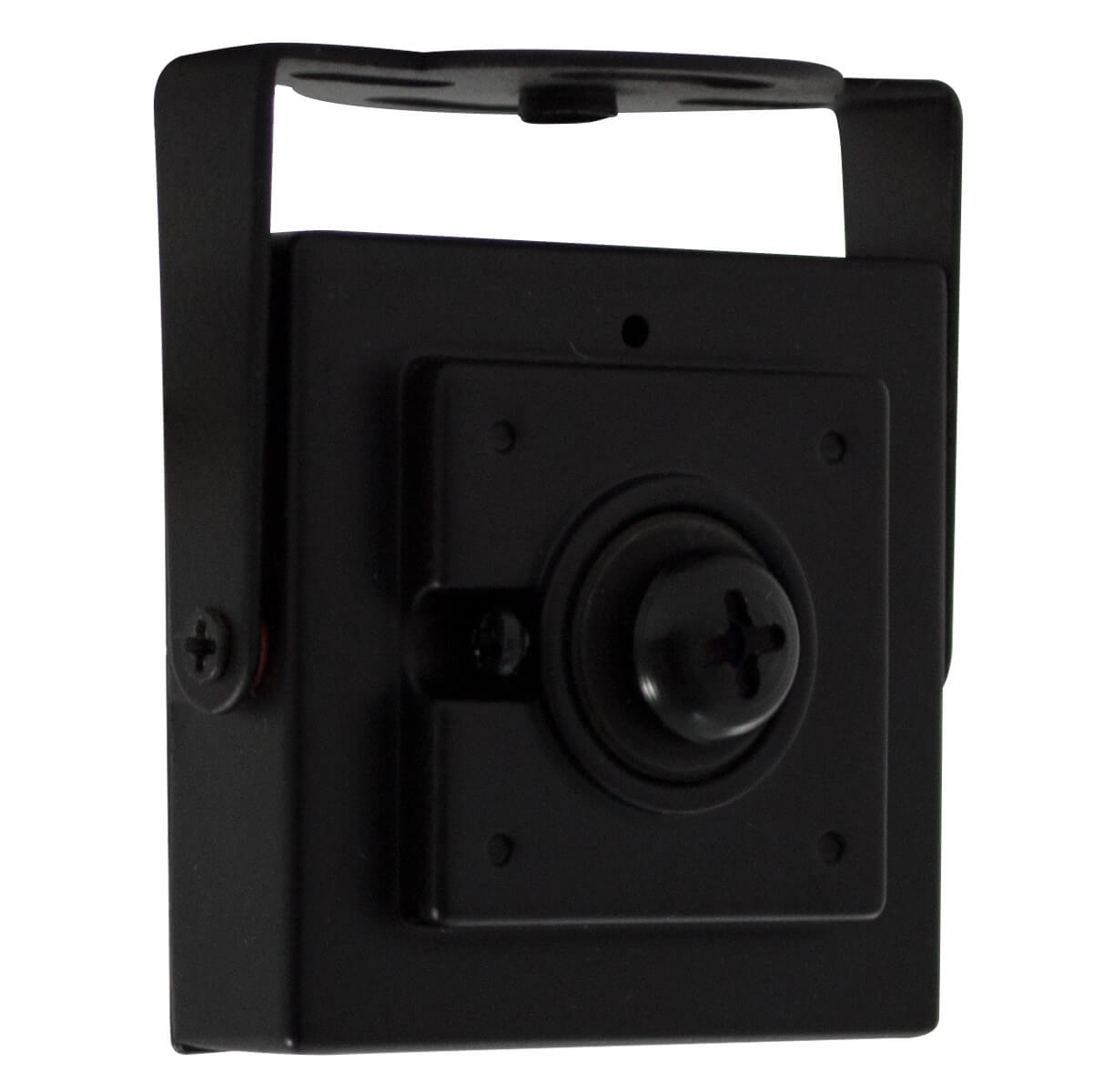

  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens - Image 7
  • - BLC, AWB and AGC function.
  • - 3.7mm Taper Pinhole Lens.
  • - 1/4" HD digital sensor.
  • - Power adapter not included.
  • - 700TVL.
  • - 72° Viewing angle.
Products recommendaded to work with this item:
mini camera for indoor 1/4 hd digital sensor 700tvl 3.7mm pinhole lens
+
1 channel passive video balun 1082ft, contains 6 pairs 12 pcs
+
dc12v 1a power adapter specially for security cameras
Price for all 3: $60.97
  • Mini metal camera with a viewing angle of 72° has a 3.7mm lens Taper Pinhole.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included:
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - 3.7mm Taper Pinhole Lens.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Pinhole
    A Pinhole consists of a camera which works without a lens, but carries a small aperture through which the recording is made. Typically, the smaller the hole, the sharper the image, but dimmer its projection.
    Pinhole
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • Mini Camera for indoor 1/4 HD Digital Sensor 700TVL 3.7mm Pinhole lens
    General
    Brand LineMak
    Model LS-CM340S
    Sensor
    Resolution 700TVL
    Sensor 1/4" HD Color Digital
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.7mm Taper Pinhole
    Viewing angle 72°
    Environment
    Operation temperature -20°C ~ 50°C
    -4°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Black
    Size 0.59 (L) * 1.97 (H) * 1.77 (W) inches
    Weight 2.12 ounces
    Material Metal
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Adaptive Tone Reproduction (ATR) No
    Mirror No
    High Light Compensation (HLC) No
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
  • Instructions
    File Size: 384.48 Kb
    Languages: English
    File Type: PDF
