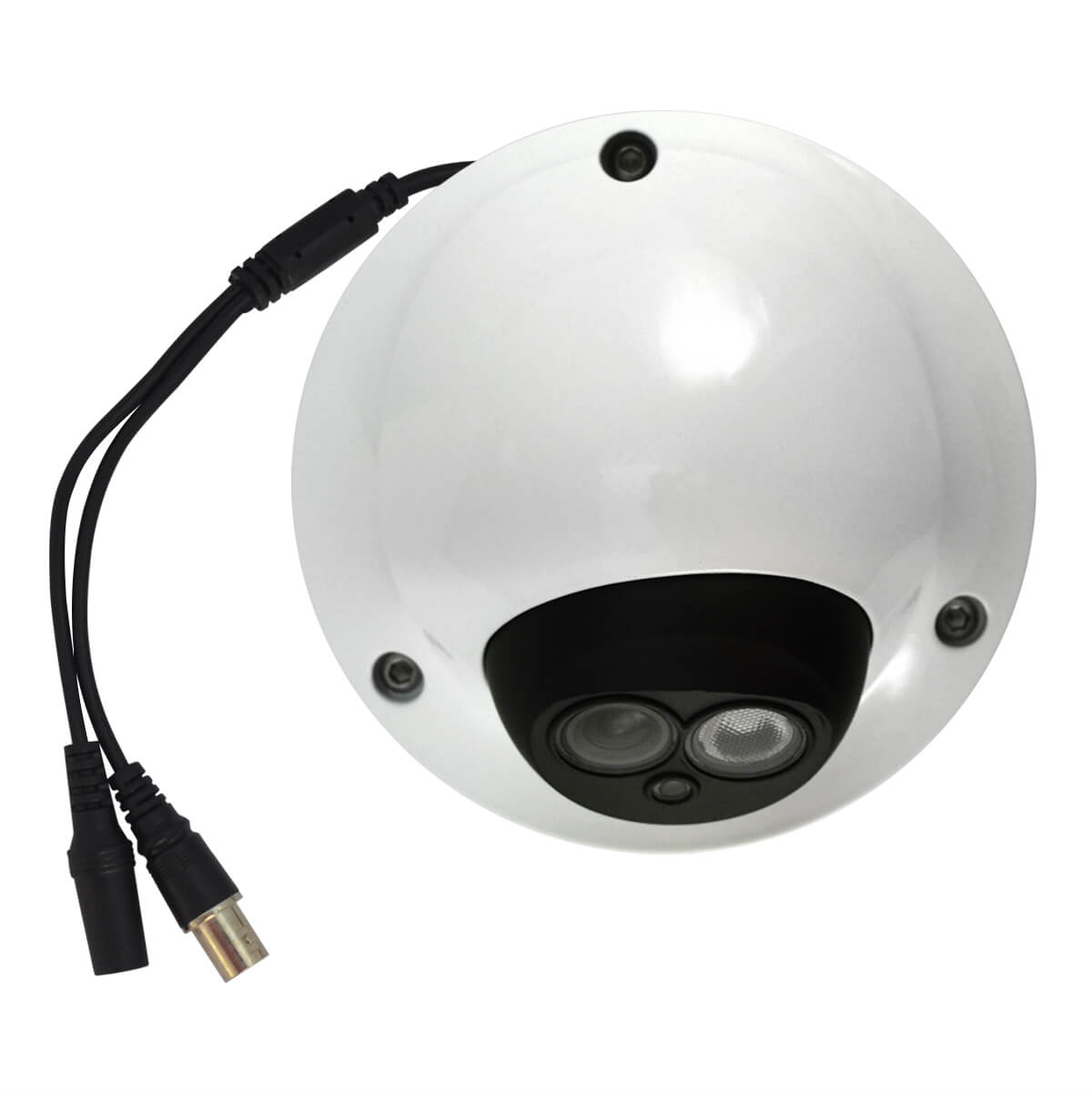

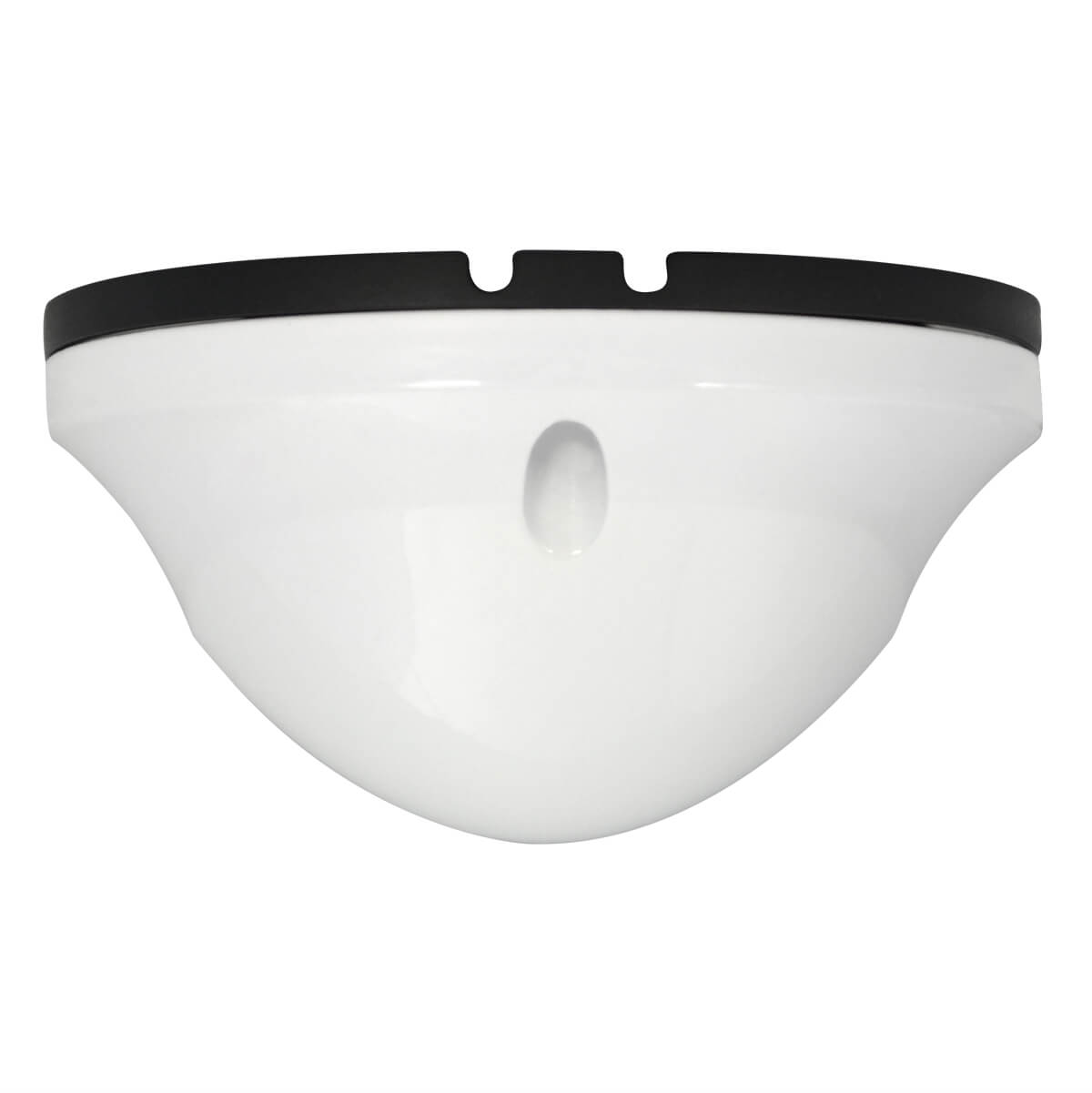

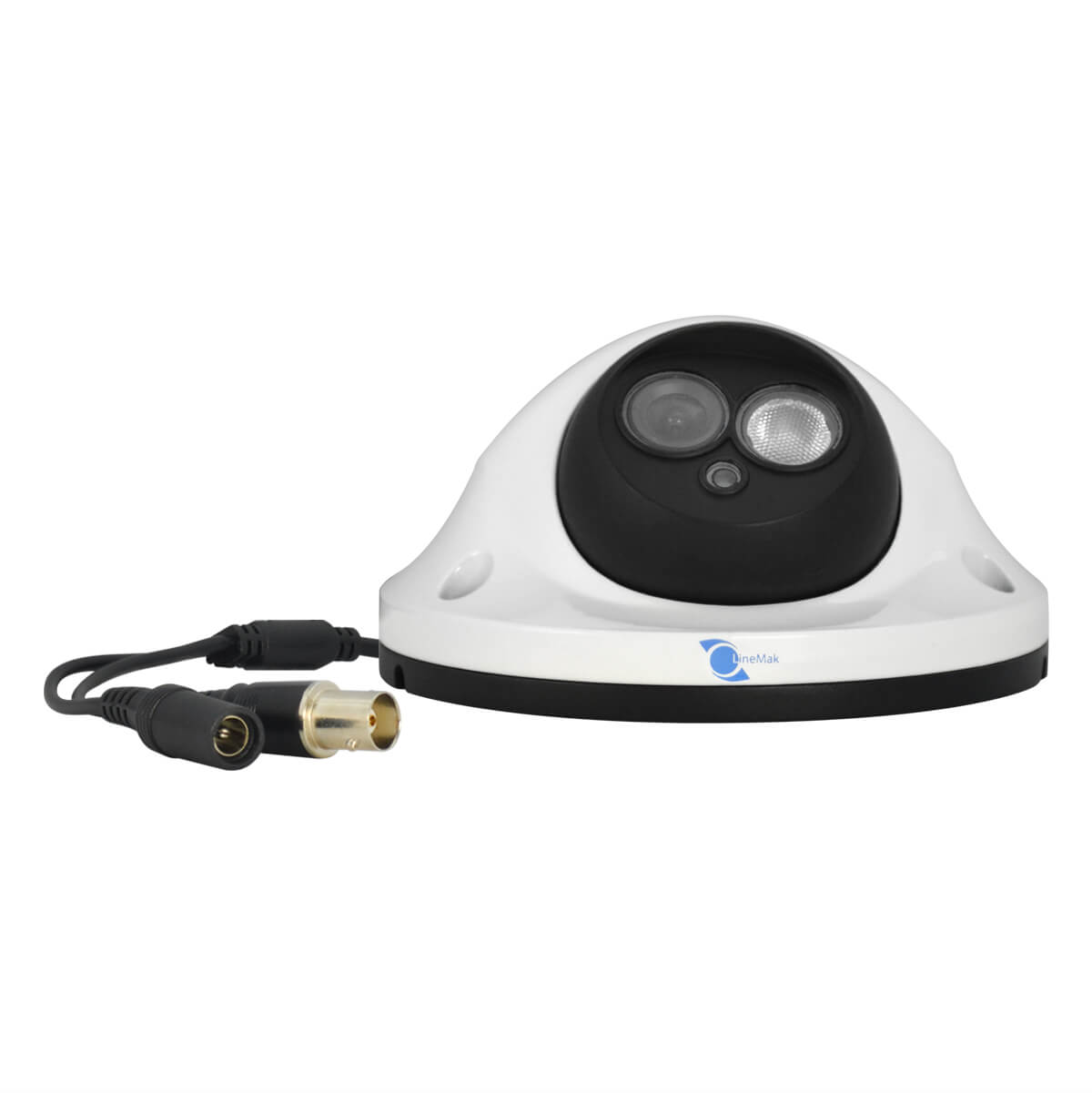

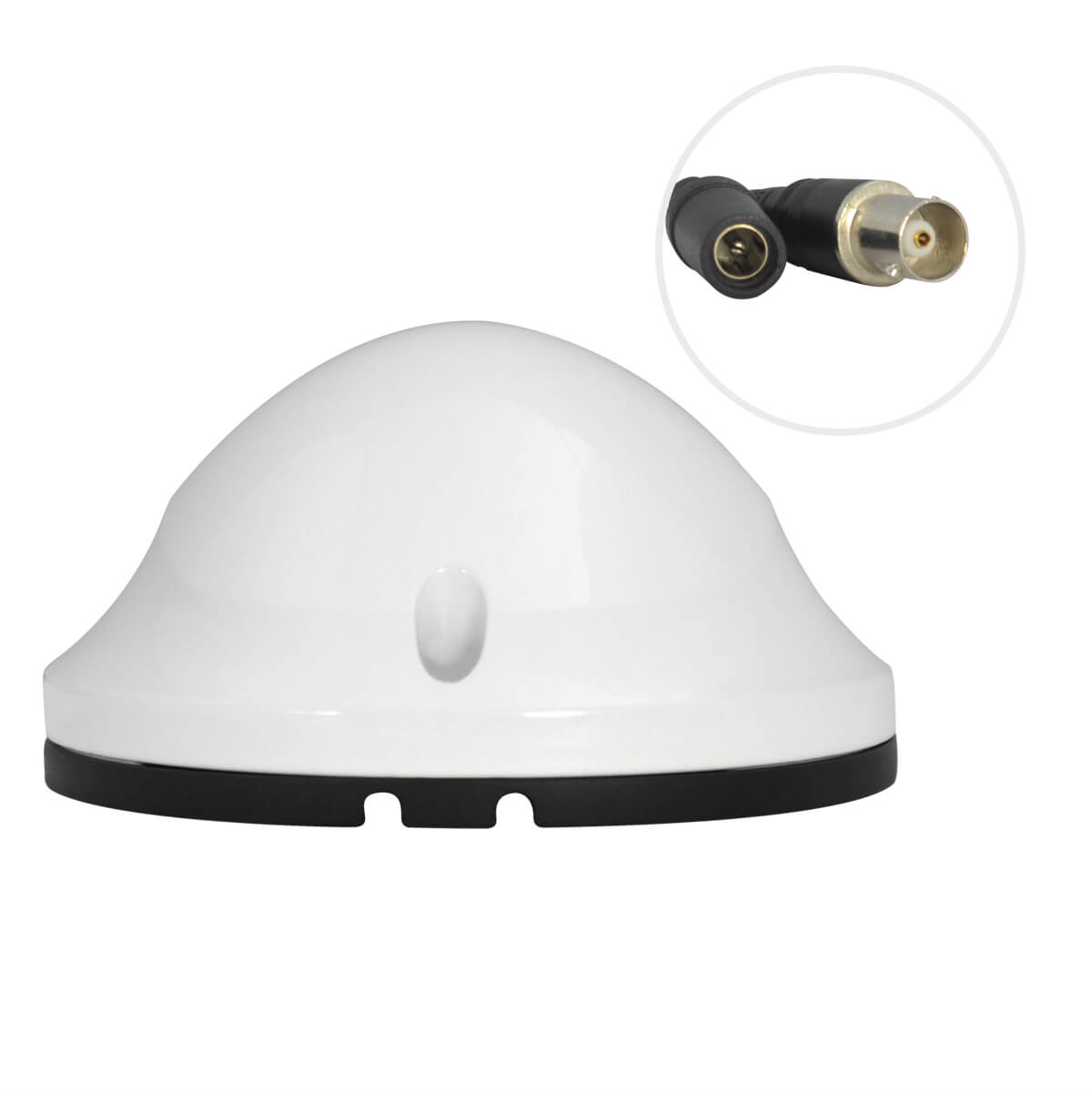

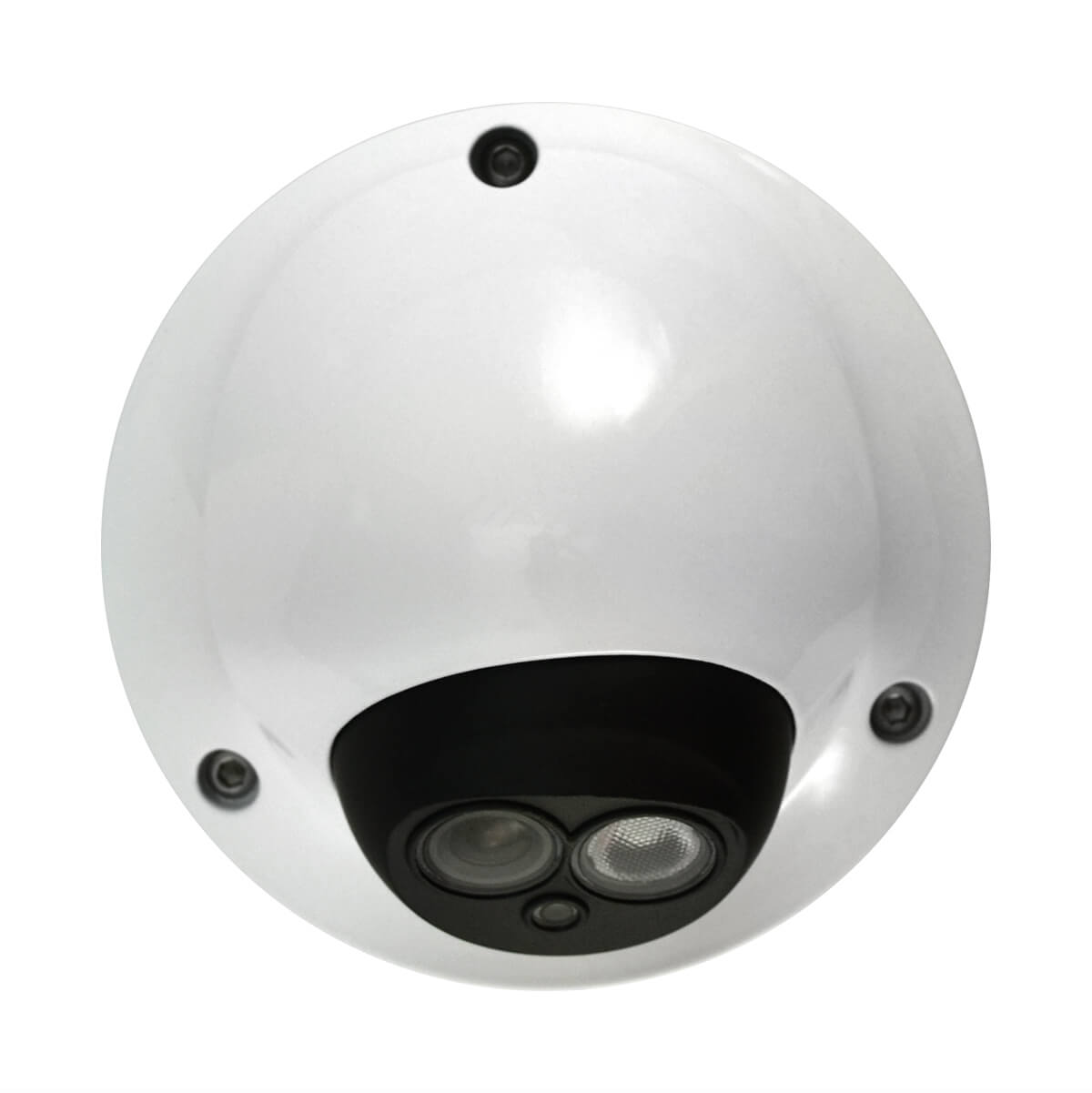

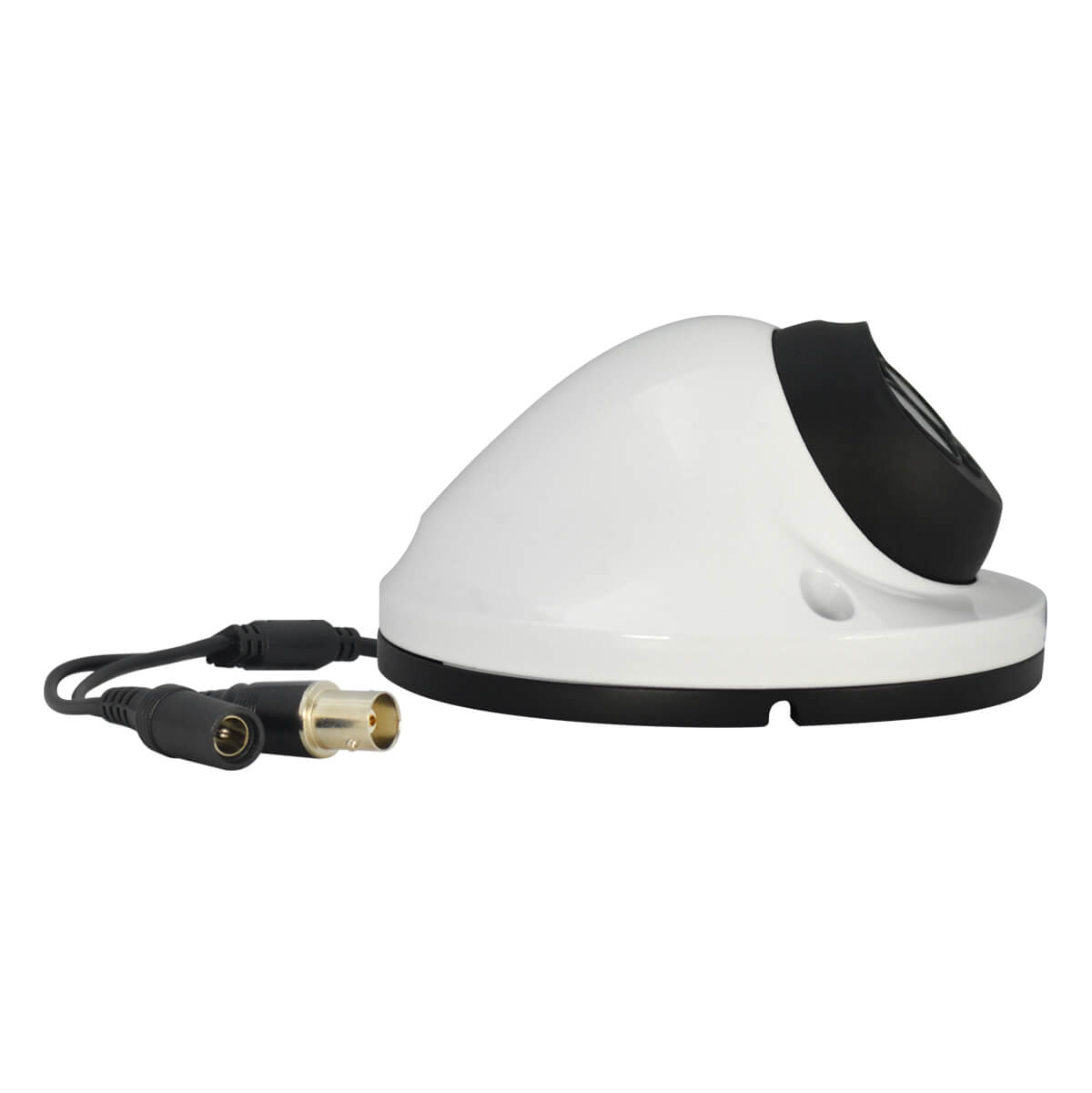

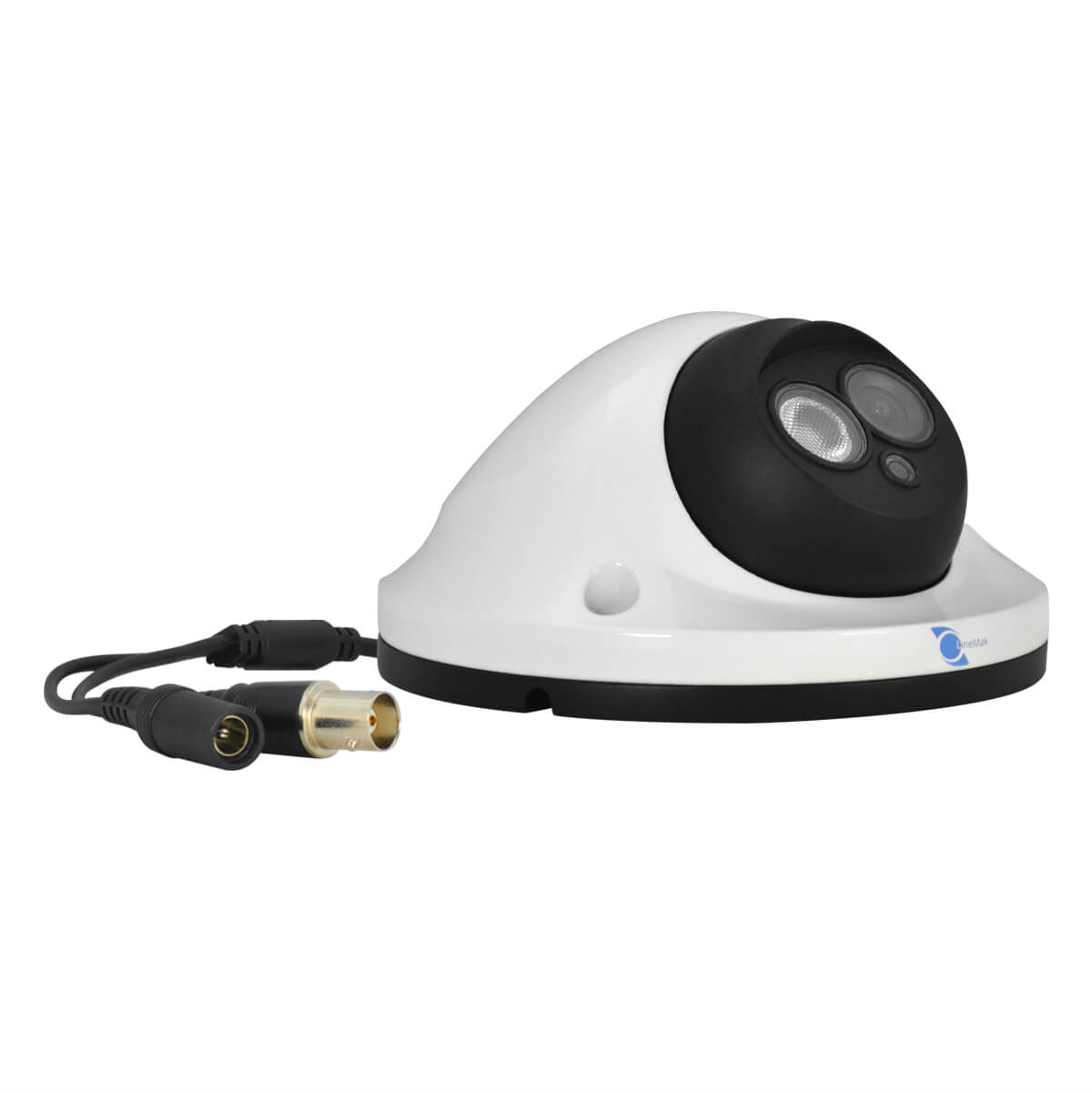

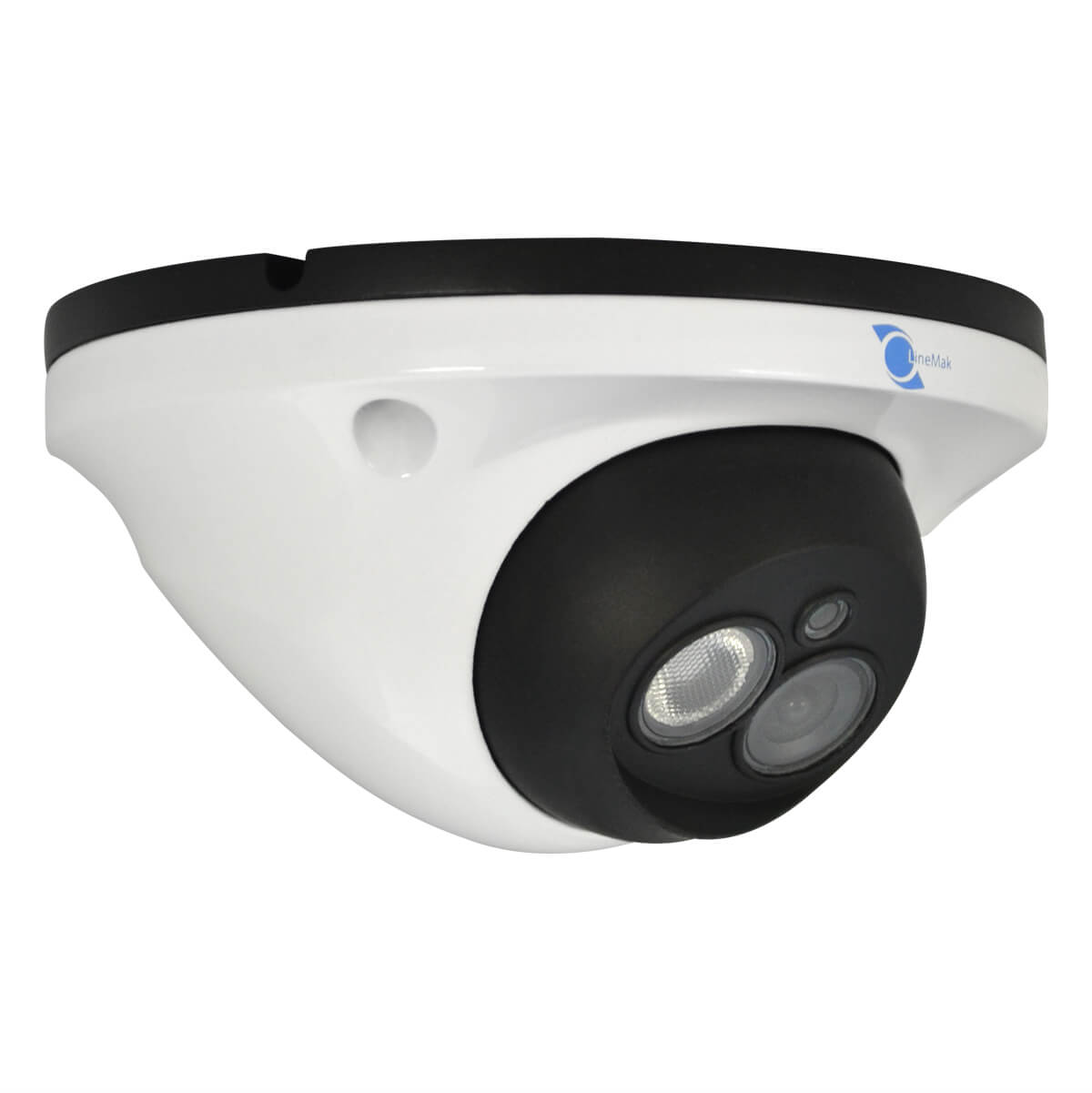

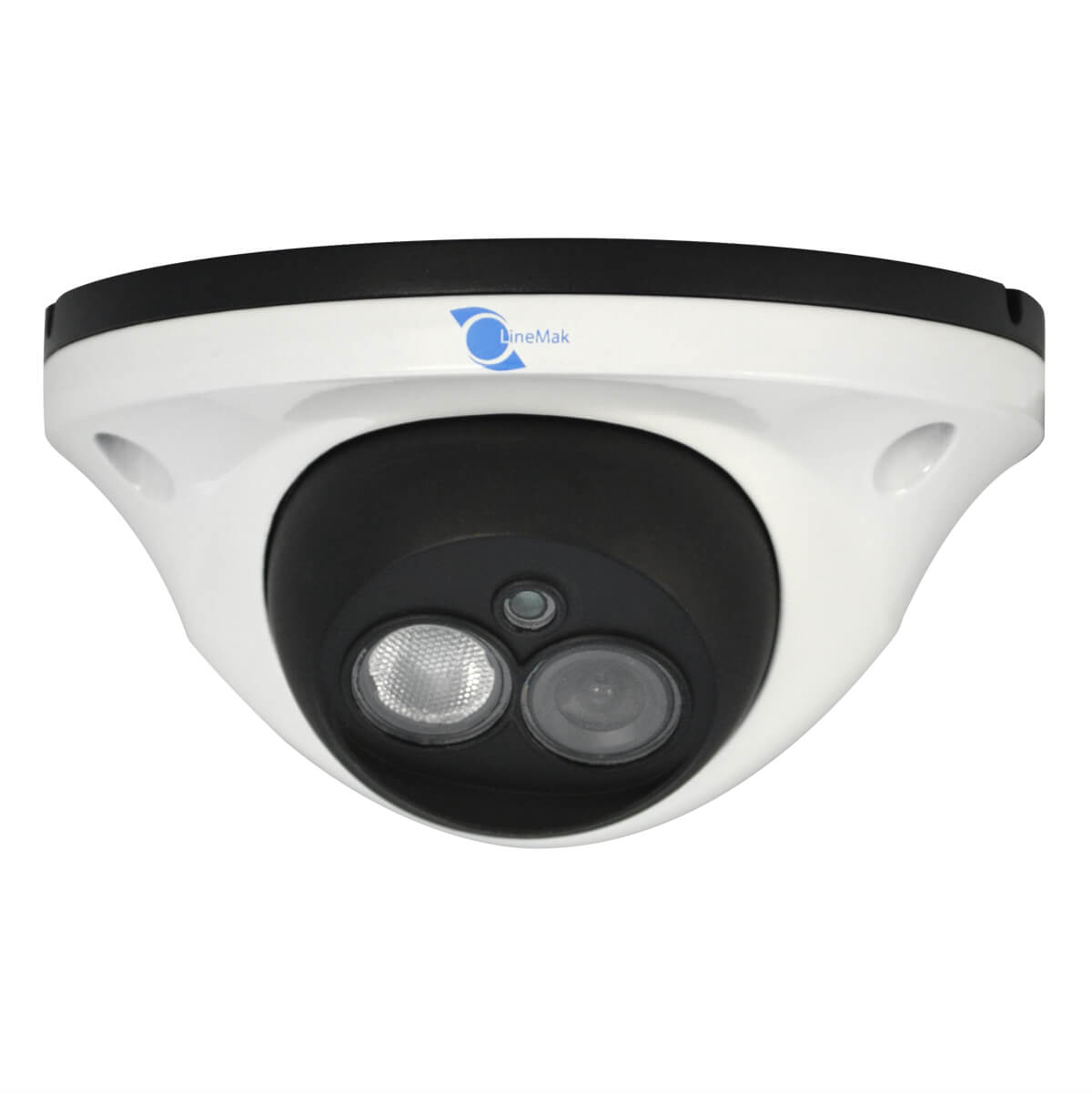

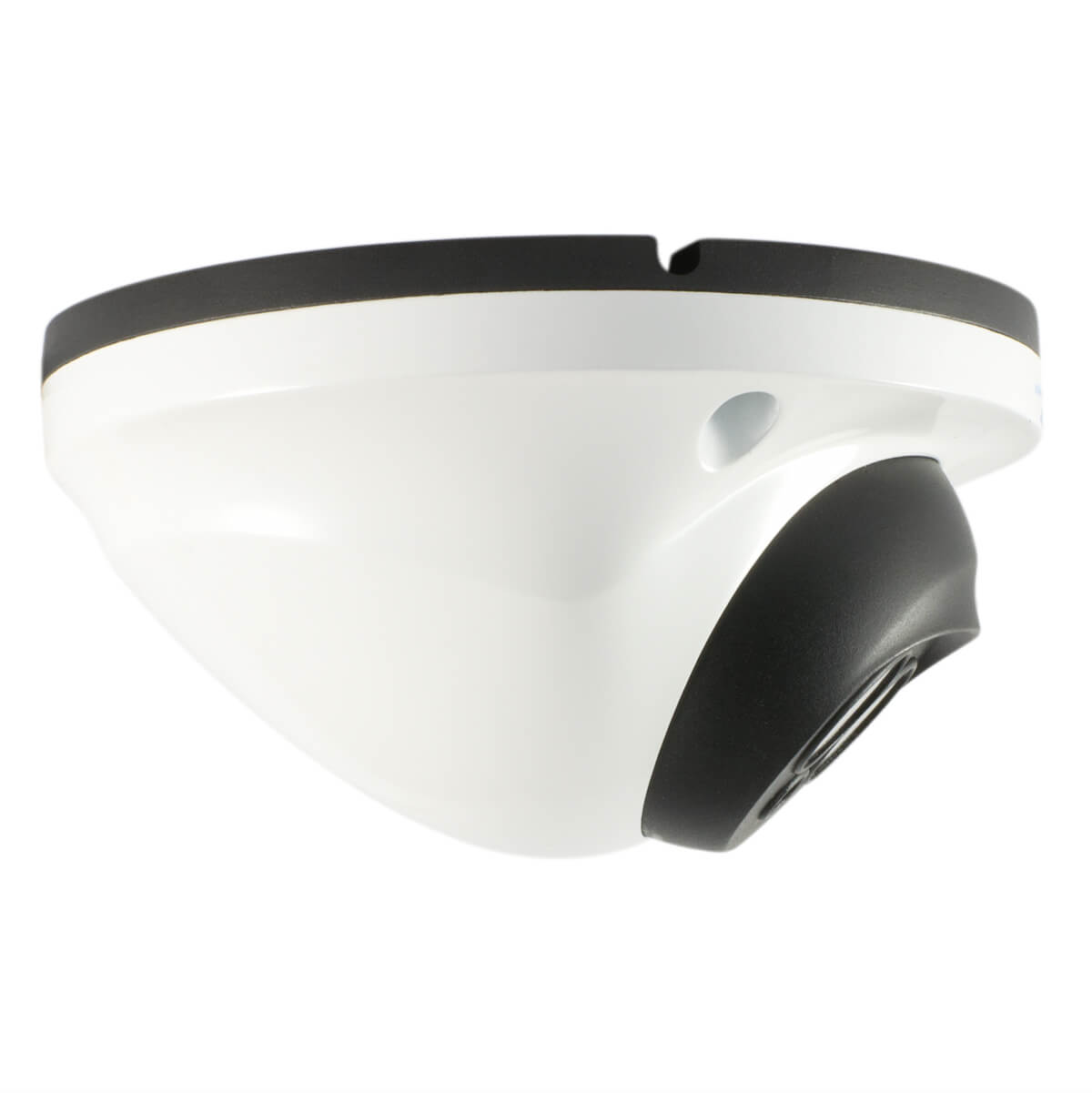

IR Dome Camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82fts IR
  • IR Dome Camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82fts IR - Image 1
  • - 1/3" SONY EFFIO-E Exview CCD II Sensor, 700TVL.
  • - 3D adjust Horizontal 355°, Vertical 90°.
  • - IR ON 0 Lux.
  • - Power adapter not included.
  • - Beautiful appearance, Easy installation.
  • - 3.6mm lens, 1 LED Array, 82fts IR distance.
Products recommendaded to work with this item:
ir dome camera 1/3 sony ccd 700tvl 3.6mm lens 1 led array 82fts ir
video balun passive 2000ft, contains 6 pairs 12 pcs.
dc12v 2a power adapter specially for security cameras
Price for all 3: $70.97
  • Mini IR plastic dome camera high-resolution with a 3.6mm lens and a viewing angle of 92° which has an 82ft IR range of infrared night vision thanks to its LED array type.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    - Power camera by using an individual power source.
    - Never point the camera towards the sun.
    - Do not operate camera beyond its temperature, humidity or power source ratings.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - 1/3" CCD Sony Effio-E Exview II.
    - 700TVL.
    - 3D adjust Horizontal 355°, Vertical 90°.
    - 0 Lux with LED on.
    - Beautiful appearance, Easy installation.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AGC support function: adaptive brightness.
    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    True round-the-clock surveillance for illuminant/dark places
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    Warranty: One (1) Year
  • IR Dome Camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82fts IR
    Brand LineMak
    Model LS-619DE
    Resolution 700TVL
    Sensor 1/3" CCD Sony Effio-E Exview II
    Effective pixels PAL: 976*582
    NTSC: 976*494
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC Connector)
    Scanning Area 4.9mm*3.7mm
    Lens 3.6mm
    IR Range 82ft night vision
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 92°
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Power supply DC 12V
    Power consumption 90mA (with LED on 280mA)
    Color White
    Size 2.76(H) * 4.33(D) inches
    Weight 9.17 ounces
    Material Aluminum
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Synchronizing system Internal
    S/N Ratio >50dB
    Gamma correction 0.45
