IR Dome camera 1/3 SONY CCD 700TVL 2.8-12mm lens 36 LEDs 98ft IR

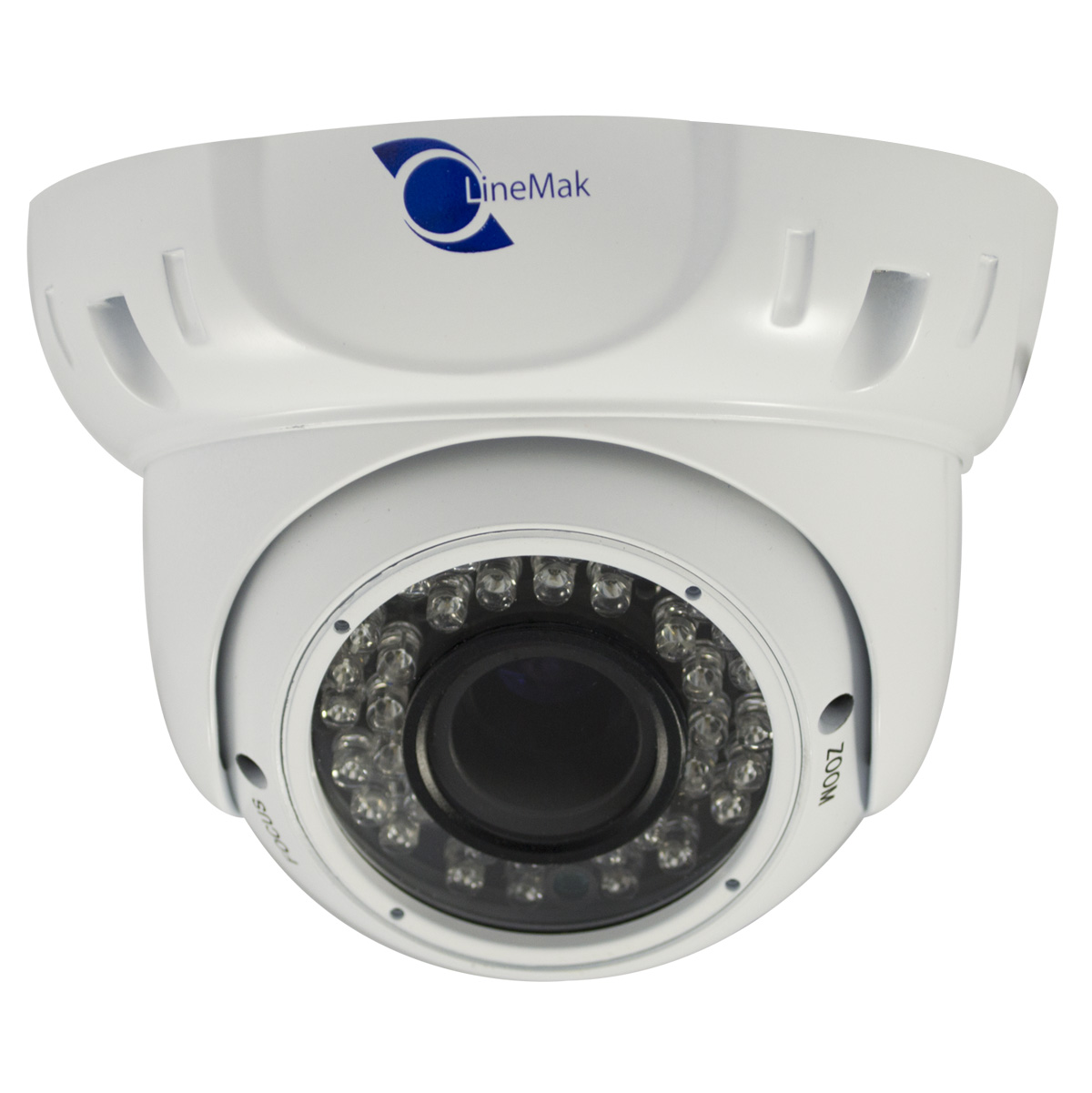

  • IR Dome camera 1/3 SONY CCD 700TVL 2.8-12mm lens 36 LEDs 98ft IR - Image 1
  • - AES, AGC, AWB, BLC and mirror function.
  • - ATR, WDR, DNR, OSD menu.
  • - Special for low temperature areas like freezers and below zero F° places
  • - Power adapter not included.
  • - 1/3" SONY Effio EXview HAD CCD II Sensor, 700TVL.
  • - 36pcs IR LEDs, 96ft IR distance.

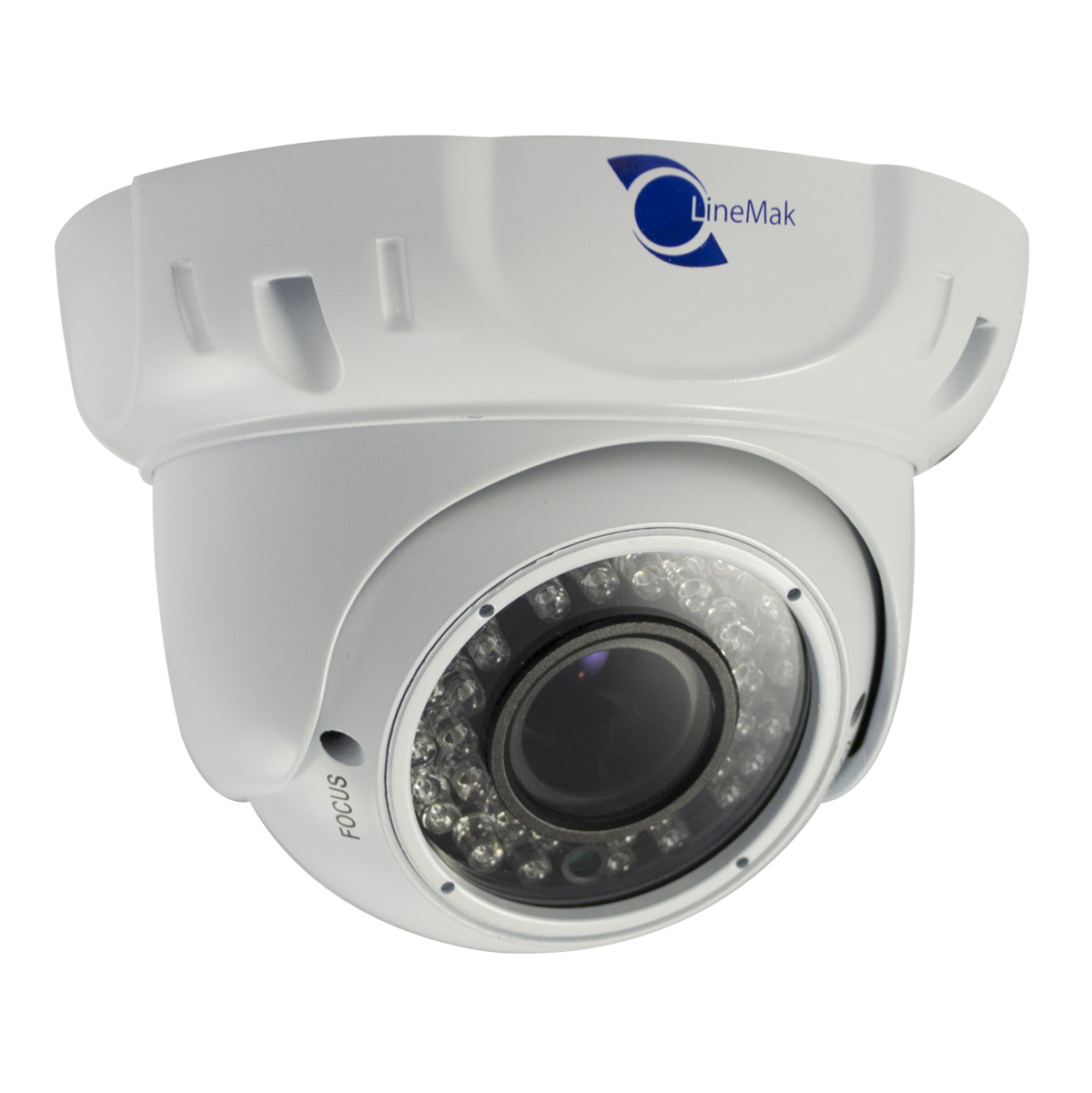

  • Vandalproof IR high-resolution dome camera with a 2.8~12mm varifocal lens and a viewing angle of 25°~115° which has a 98ft range of IR night vision and a 36pcs LEDs 5mm each.

    Top of the line equipment regarding sensor and driver.

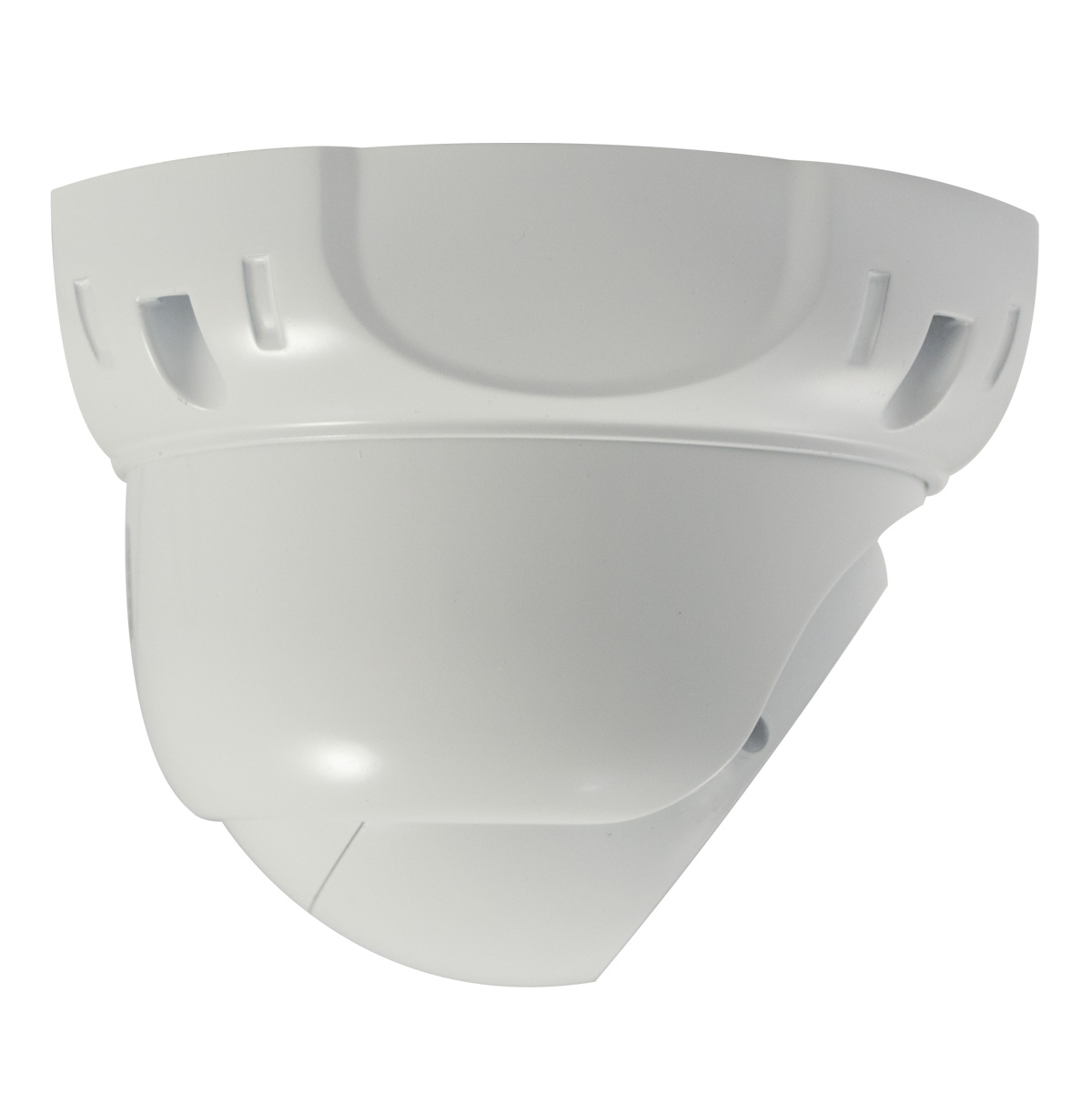

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Special for low temperature areas like freezers and below zero F° places. Includes heater for main board.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Vandalproof IR Dome Camera.
    - 36pcs IR LEDs 5mm each.
    - 96ft IR distance.
    - 2.8-12mm Varifocal Manual Iris Lens
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - ATR, DWDR, DNR, OSD menu.

    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Digital Noise Reduction (DNR)
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Highlight Compensation (HLC)
    Differently from BLC, stands for highlight compensation. Camera can detect the strong spots and then reduce the brightness of the strong spots to improve the overall images. This function is mainly designed so cameras capture vehicle plate license.
    Highlight Compensation (HLC)
    Wide Dynamic Range (WDR)
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    OSD Menu
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    Warranty: One (1) Year
  • IR Dome camera 1/3 SONY CCD 700TVL 2.8-12mm lens 36 LEDs 98ft IR
    Brand Linemak
    Model LS-CV163H-F
    Resolution 700TVL
    Sensor 1/3" SONY Effio Exview HAD CCD II
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video format PAL / NTSC
    Video output 1.0Vp-p 75ohm
    Lens 2.8mm~12mm varifocal
    IR Range 98ft night vision
    LEDs 36pcs (5mm each)
    Zoom Manual
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    Operation temperature -40°C ~ 70°C
    -40°F ~ 158°F
    Weatherproof standard IP66 (waterproof and dustproof)
    Power supply DC 12V
    Power consumption 500mA
    Color White
    Size 3.94(H) * 5.71(D) inches
    Weight 1.38 pounds
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000 sec
    NTSC: 1/60~1/100,000sec
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) Yes (2D-DNR)
    Wide Dynamic Range (WDR) Yes
    Mirror No
    Adaptive Tone Reproduction (ATR) Yes
    High Light Compensation (HLC) Yes
    Calling routing system (CRS) No
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
    OSD Menu Yes
