Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB

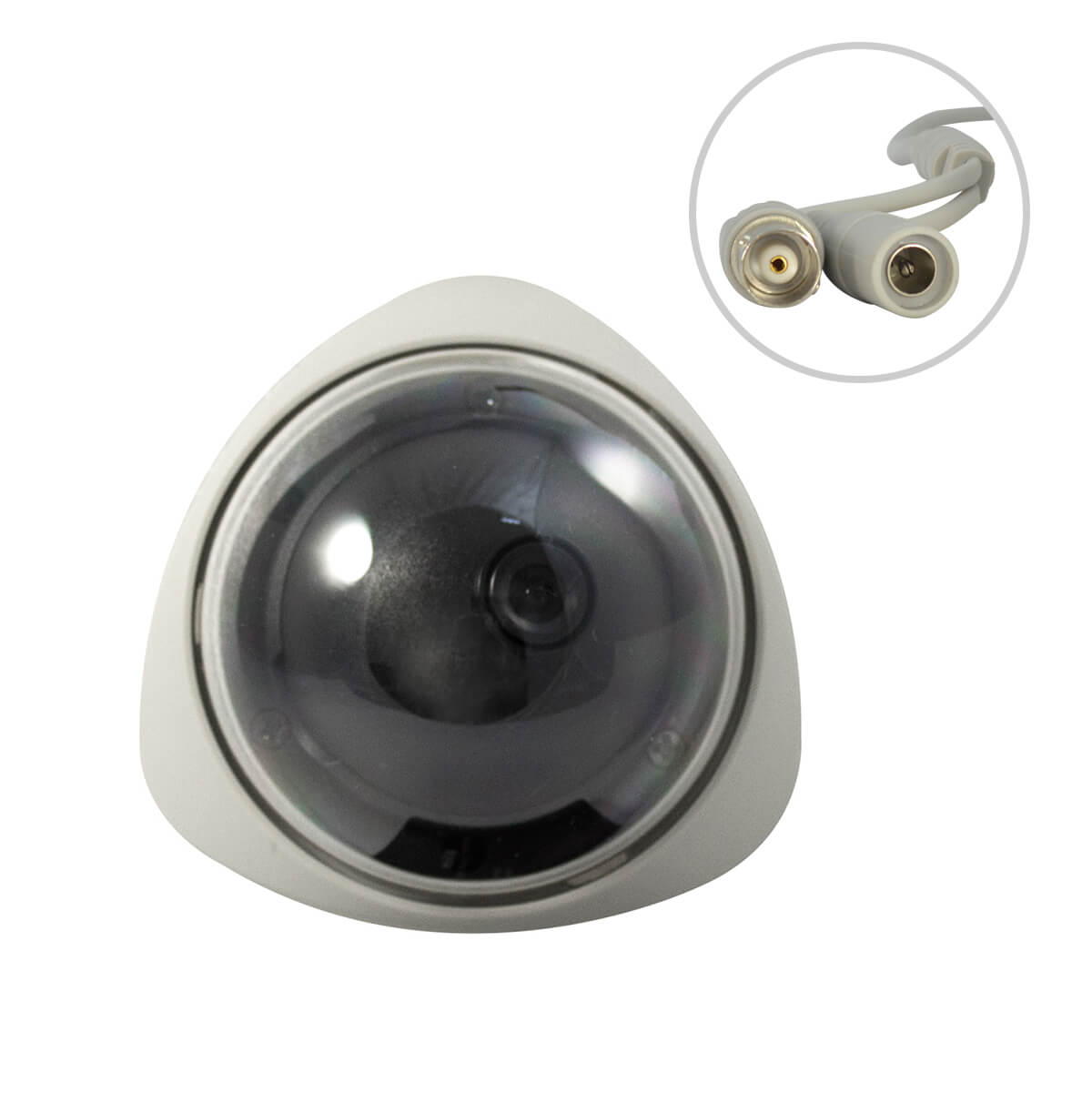

  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 1

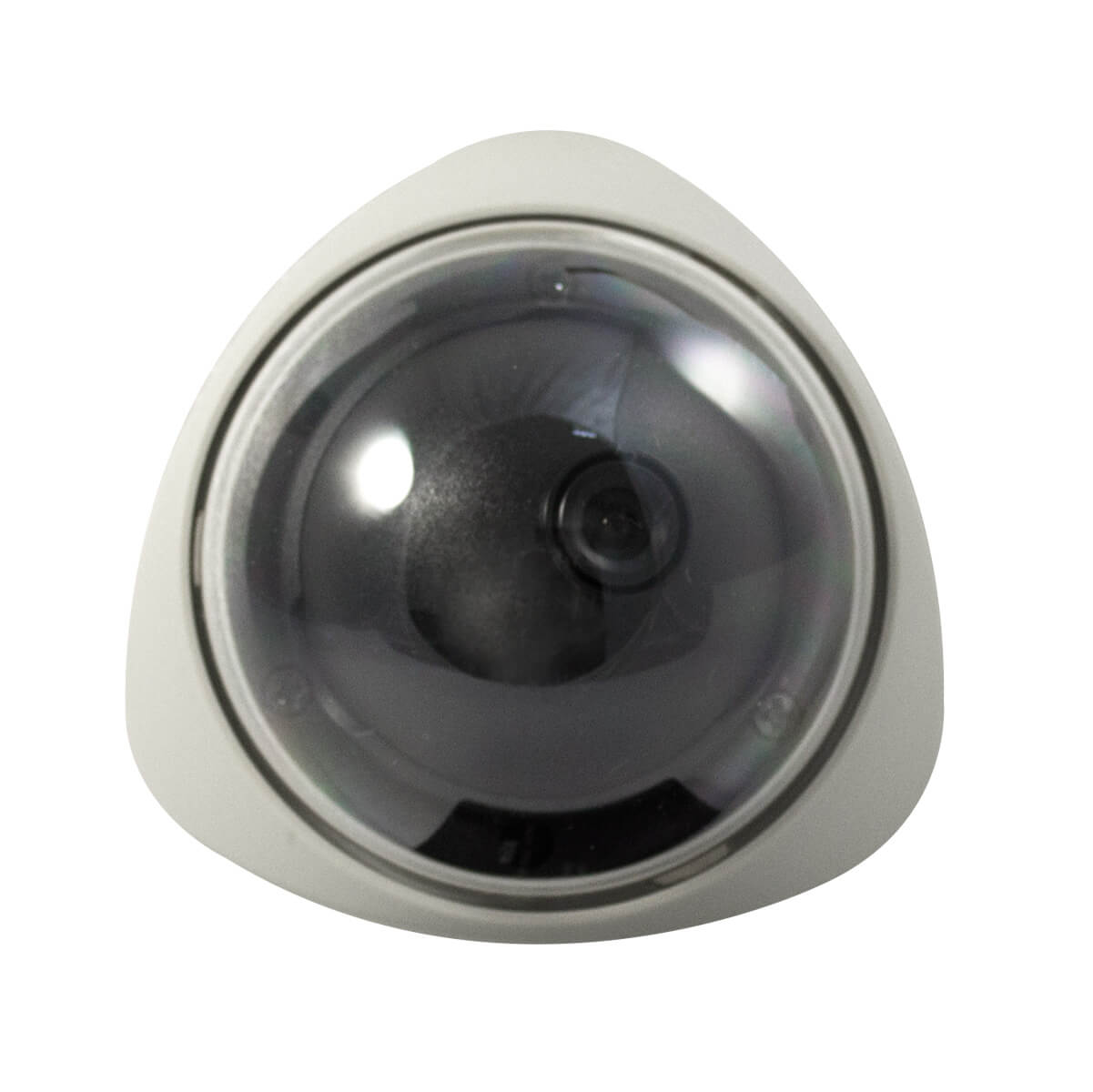

  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 2

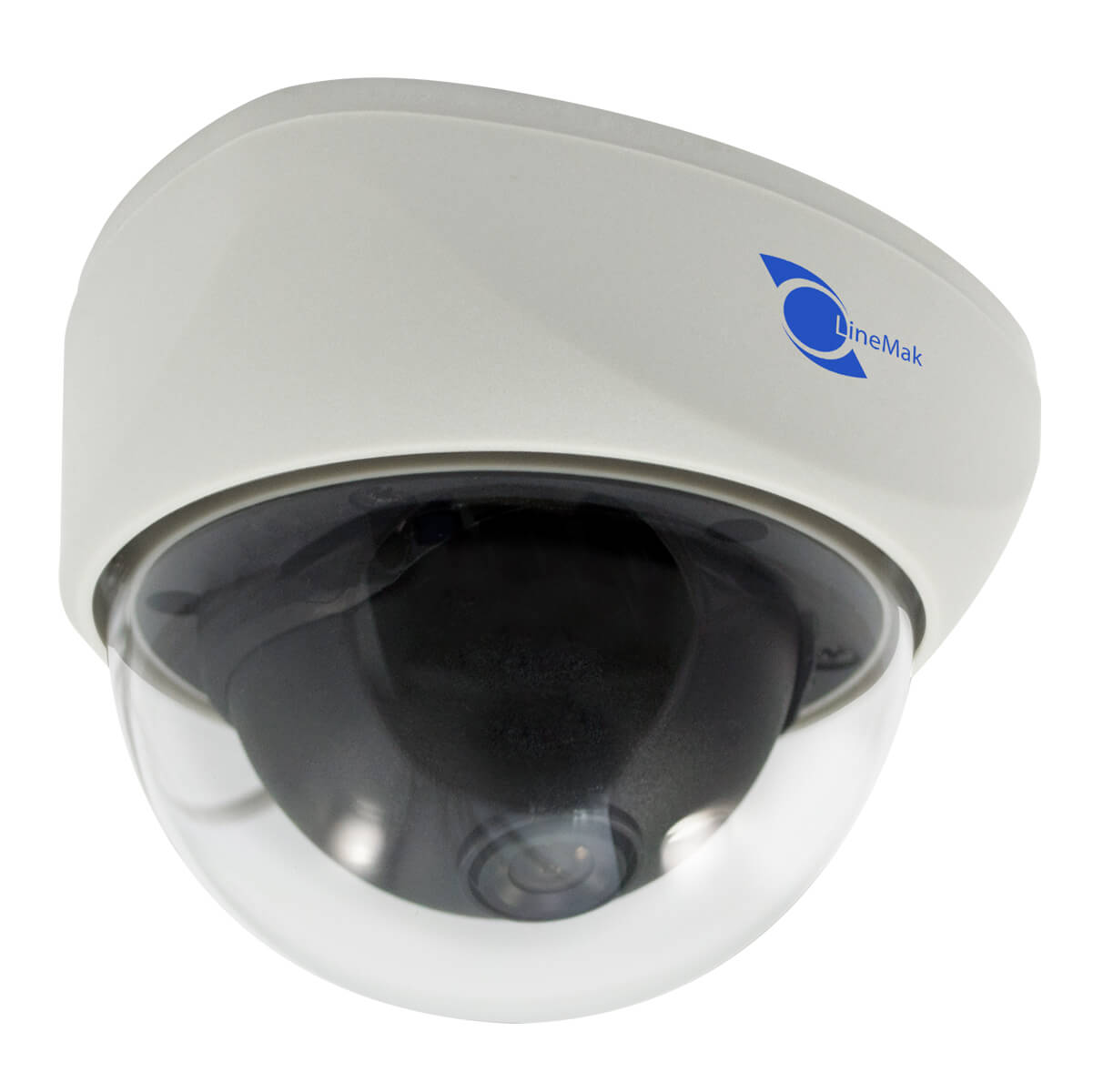

  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 3

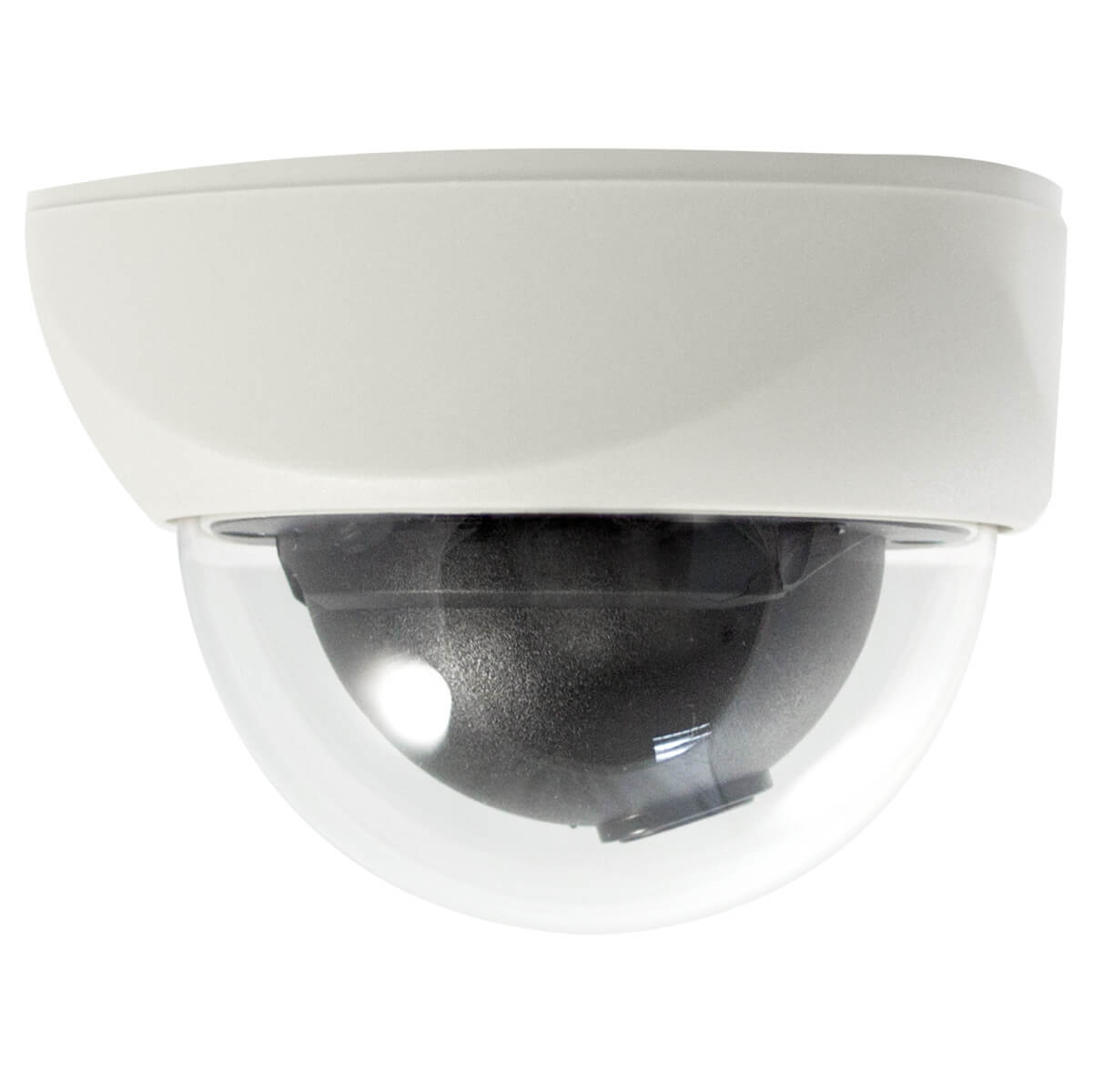

  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 4

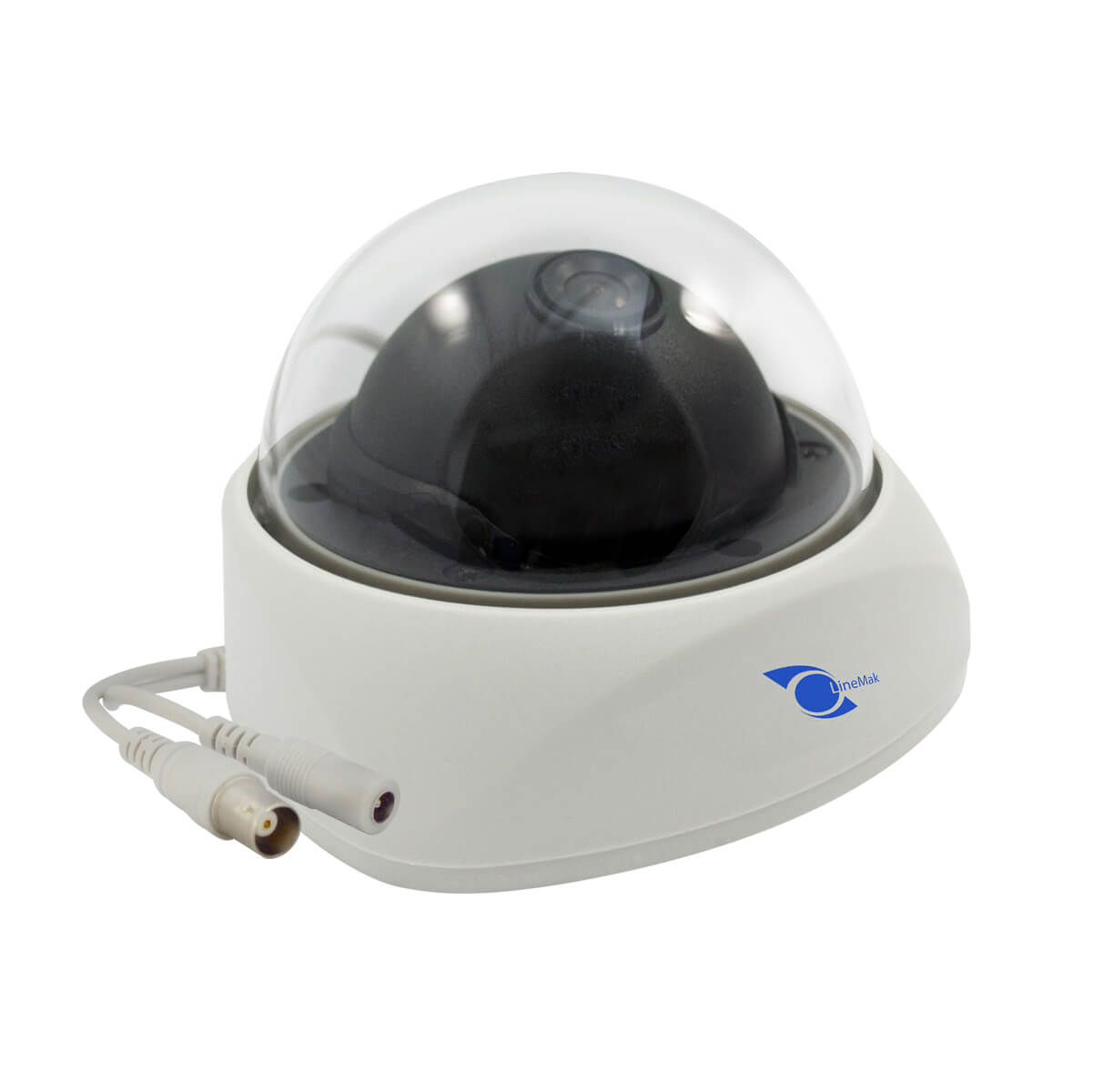

  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 5

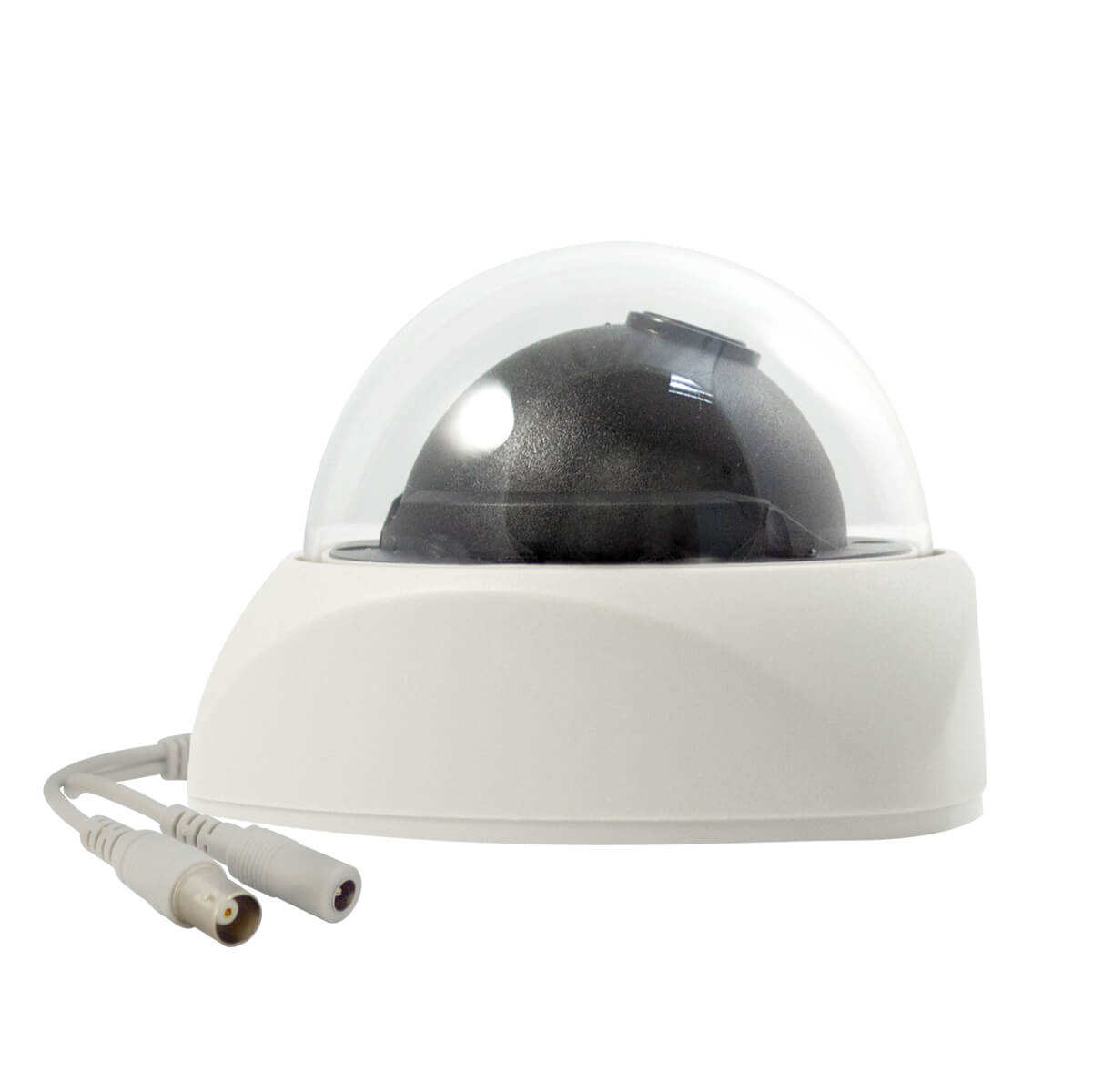

  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 6

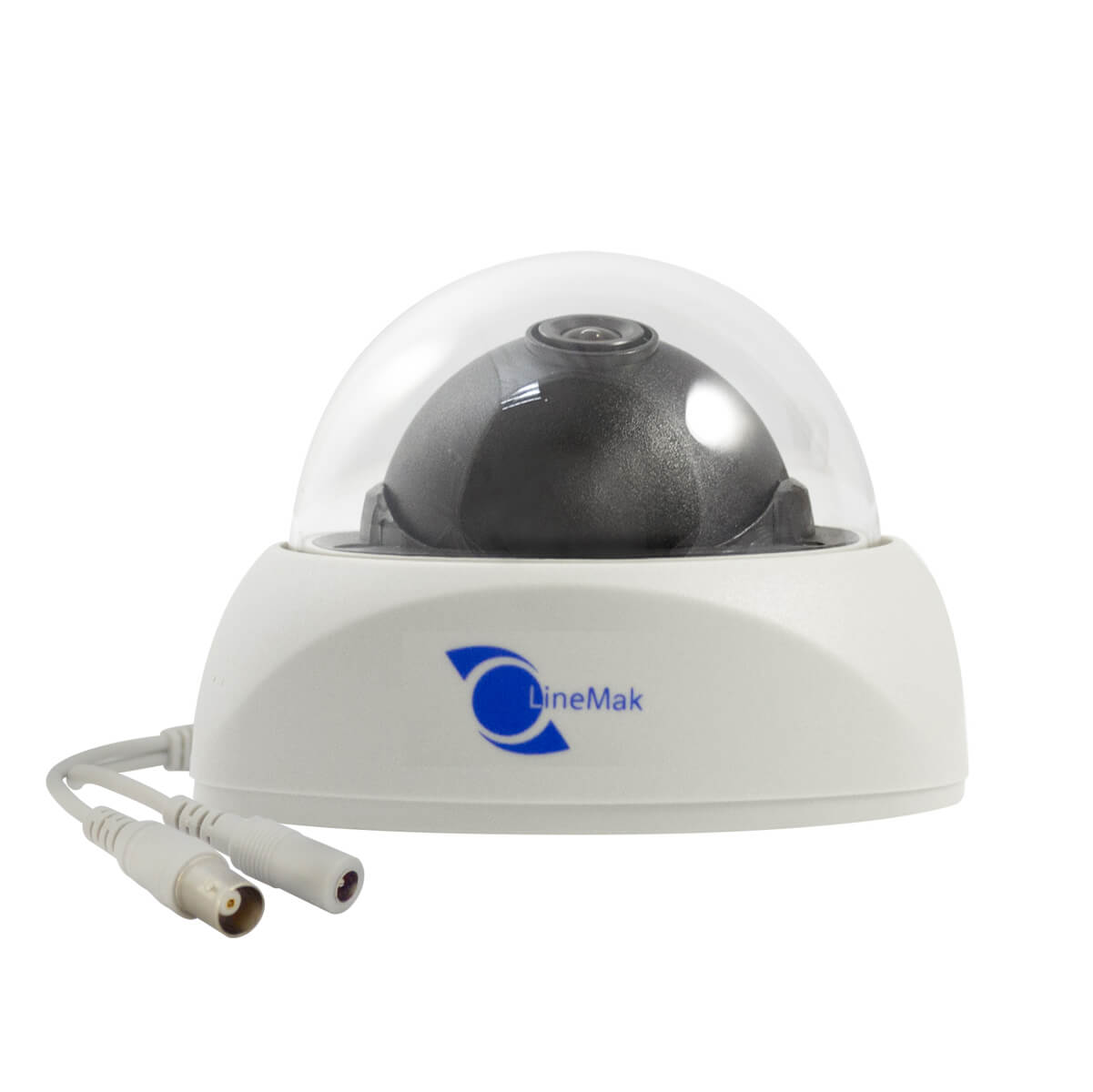

  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 7
  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB - Image 8
  • - Excellent image quality.
  • - It supports ICR infrared filter
  • - BLC, AES, AGC and AWB function.
  • - Power adapter not included.
  • - Images easily identified.
  • - Demist function.
Products recommendaded to work with this item:
dome camera, cmos pc1099 sensor, 800tvl, 3.6mm lens, agc, awb
+
dc12v 1a power adapter specially for security cameras
+
passive video balun, power and video
Price for all 3: $39.97
  • Plastic dome camera, with a 3.6mm lens and a viewing angle of 92°.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included:
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Demist functions. Automatic electrical level adjustment and contour correction.
    - Gray scale up to 135 level standards.
    - Mist presence effectively solved.
    - Excellent image quality. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc.).
    - Images easily identified.
    - It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - It uses an advanced double loop glass design for clearer images.
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    Warranty: One (1) Year
  • Dome Camera, CMOS PC1099 Sensor, 800TVL, 3.6mm lens, AGC, AWB
    General
    Brand LineMak
    Model LS-CDC-CMOSQA
    Sensor
    Resolution 800TVL
    Sensor 1/3" CMOS PC1099 Sensor
    Effective pixels PAL: 976*582
    NTSC: 976*494
    Video
    Video output 1.0Vp-p, 75ohm (Composite signal)
    Frequency 36Mhz
    Lens
    Lens 3.6mm
    Minimum illumination 0.5 Lux
    Viewing angle 92°
    Environment
    Operation temperature -10°C ~ 45°C
    14°F ~ 113°F
    Storage temperature -30°C ~ 60°C
    -22°F ~ 140°F
    Working humidity 85%
    Power
    Power supply DC 12V
    Power consumption 120mA
    Appearance
    Color White
    Size 3.54(D) * 3.94(H) inches
    Weight 4.76 ounces
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50s~1/100,000s
    NTSC: 1/60s~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Scanning system 2:1 interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
