Waterproof Dome camera HDIS CMOS Sensor 1200TVL, 30 LED, 98ft IR, IP66

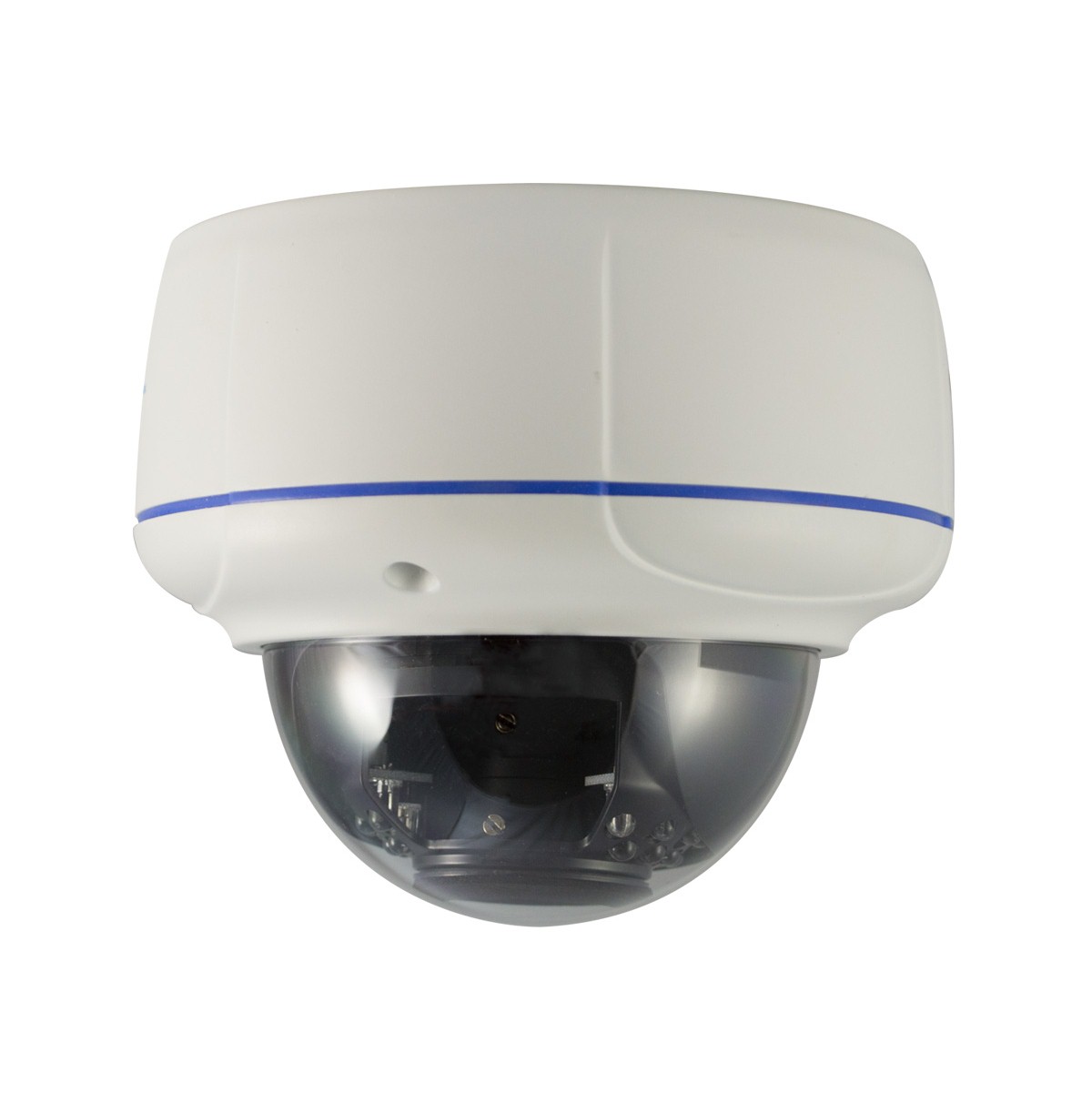

  • Waterproof Dome camera HDIS CMOS Sensor 1200TVL, 30 LED, 98ft IR, IP66 - Image 1
  • - 1/2.8" HDIS Color CMOS Sensor, 1200TVL.
  • - 30pcs LEDs, 98ft IR distance.
  • - Waterproof: IP66.
  • - Power adapter not included.
  • - 2.8-12mm varifocal lens.
  • - Minimun illumination: 0 LUX.
  • Waterproof high-resolution dome camera with a 2.8mm~12mm lens and a viewing angle of 25°-115° which has a 98ft IR distance night vision, 30pcs 5mm LEDs each. Available in white.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Waterproof: IP66.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • Waterproof Dome camera HDIS CMOS Sensor 1200TVL, 30 LED, 98ft IR, IP66
    Brand LineMak
    Model LS-VE7064CB08
    Resolution 1200TVL
    Sensor 1/2.8" HDIS Color CMOS
    Effective pixels 1280*720
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (Composite output)
    Lens 2.8mm~12mm varifocal
    IR Range 98ft night vision
    LEDs 30pcs (5mm each)
    Infrared wavelength 850nm
    Minimum illumination 0 Lux (with LED on)
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Power supply DC 12V
    Battery 450mA
    Color White
    Size 5.12(H) * 5.31(D) inches
    Weight 1.62 pounds
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) 1/50~1/12,000s
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Adaptive Tone Reproduction (ATR) No
    Mirror No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instructions
    File Size: 493.63Kb
    Languages: English
    File Type: PDF
