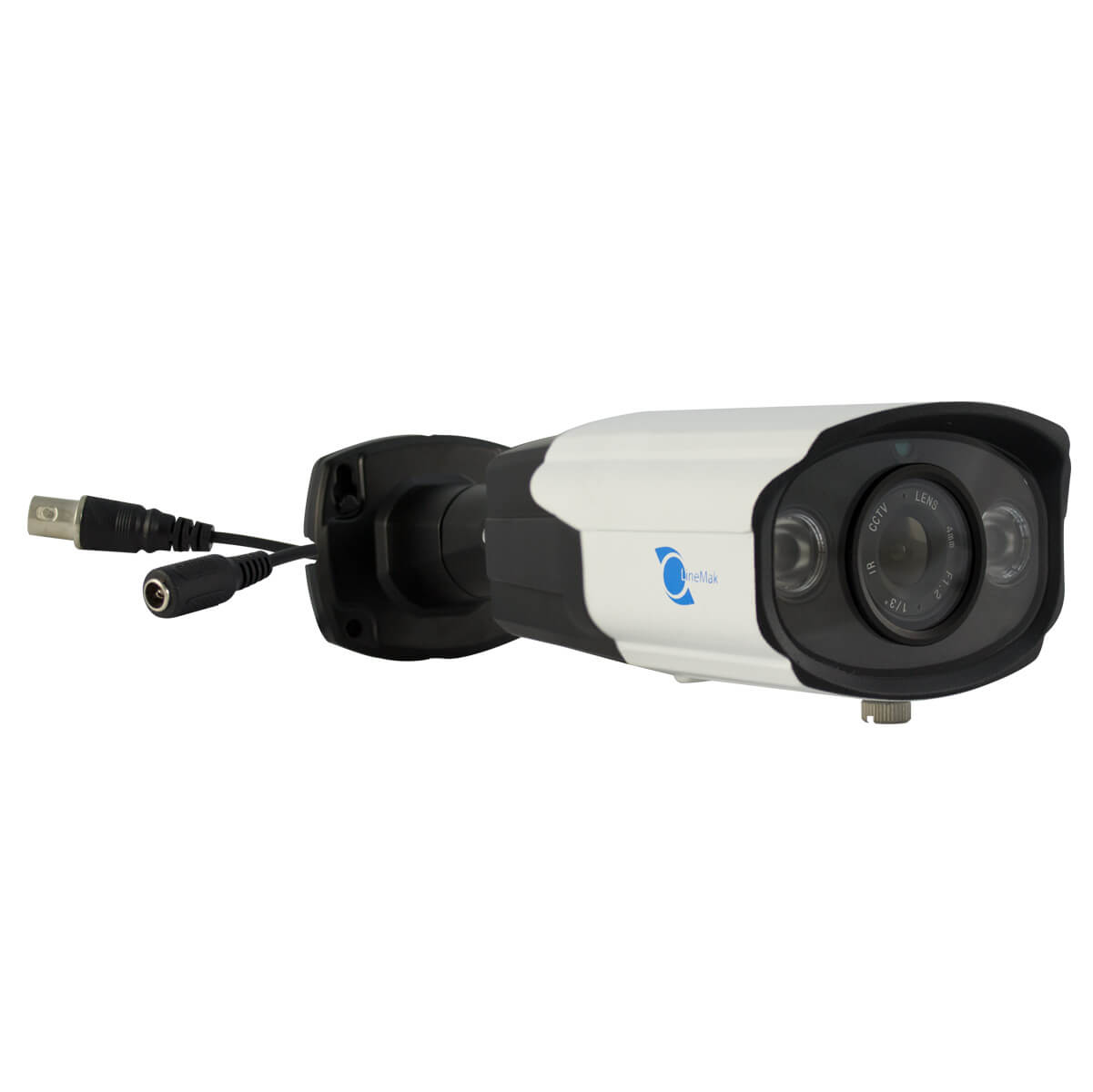

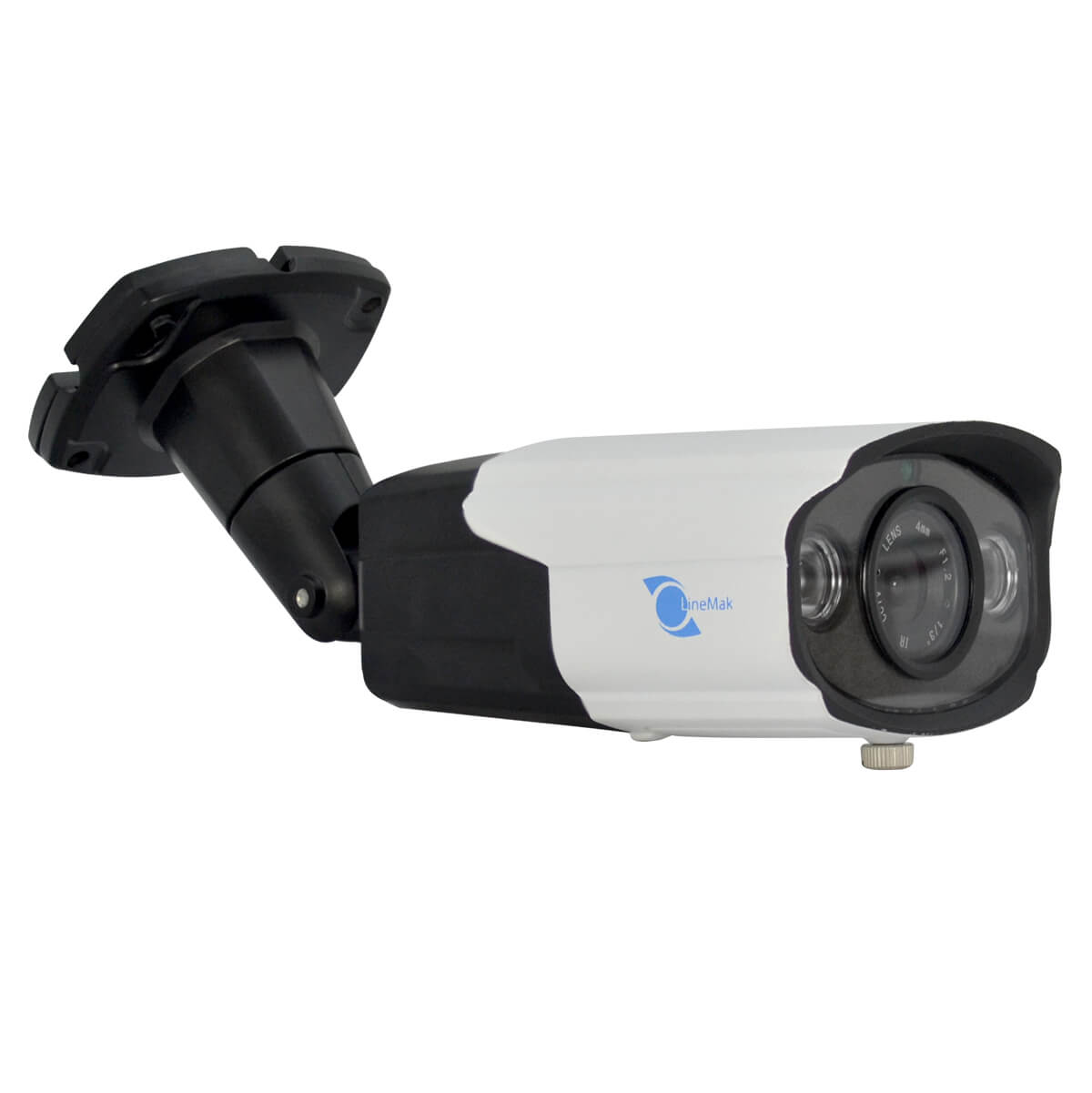

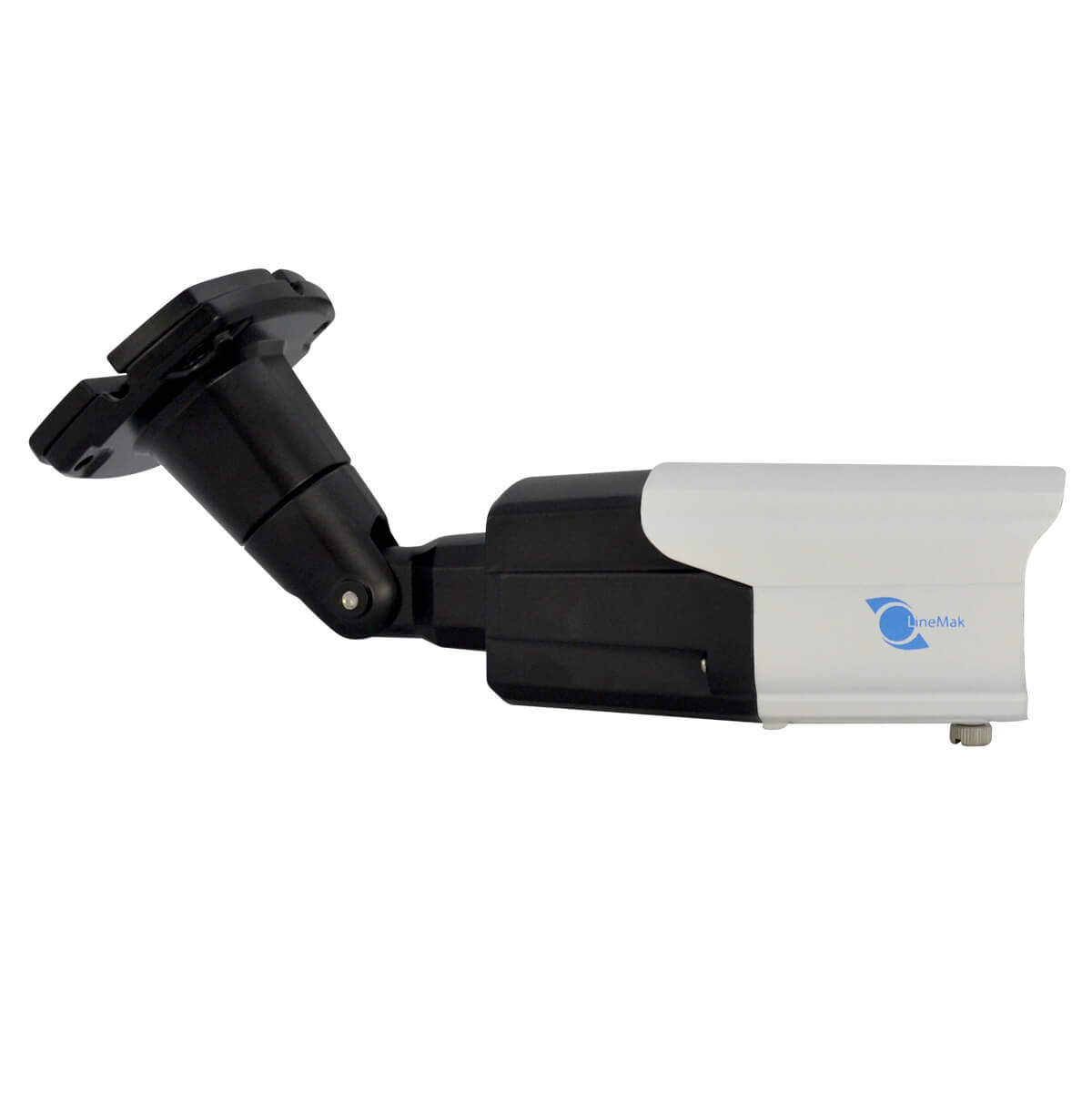

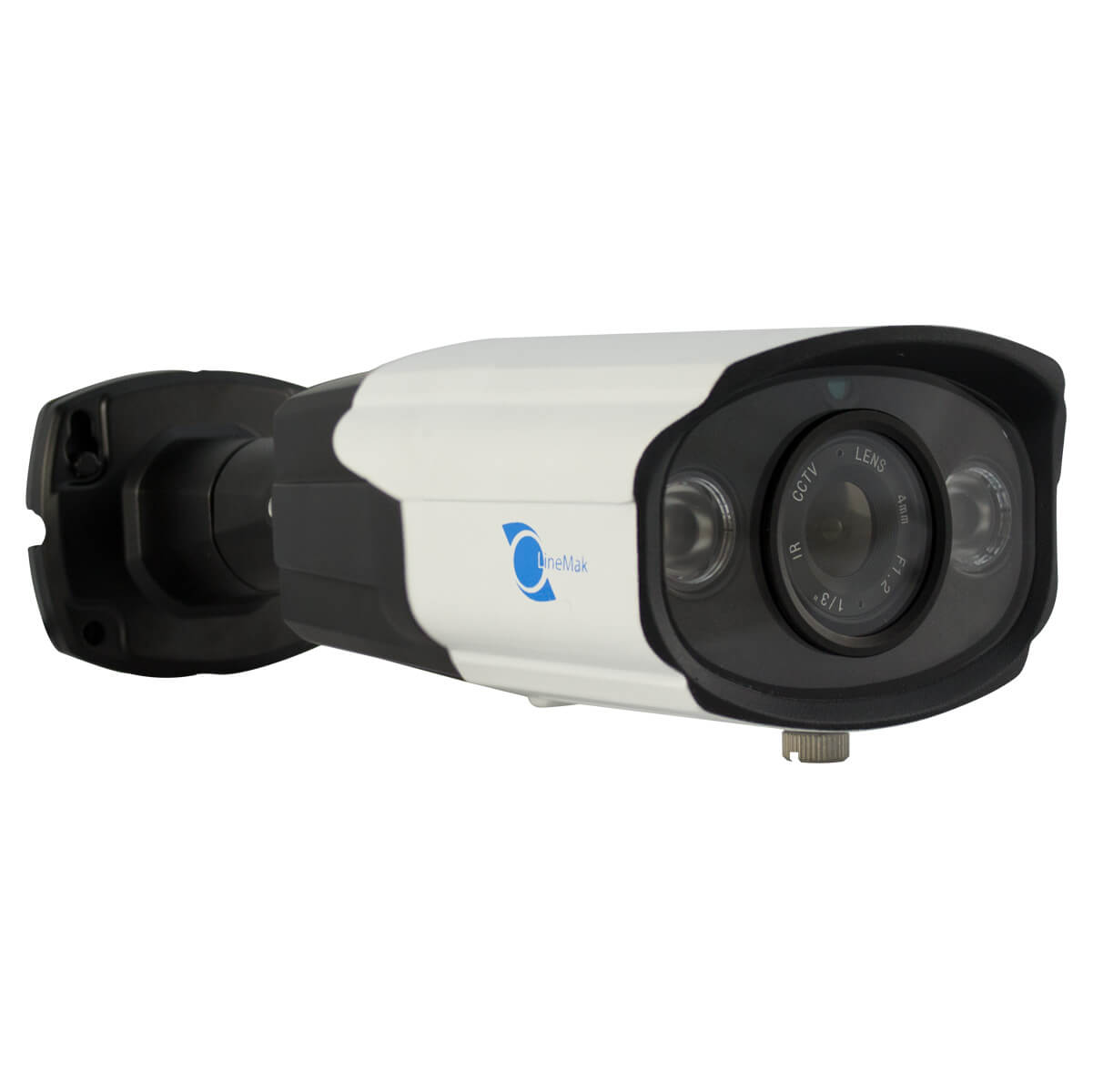

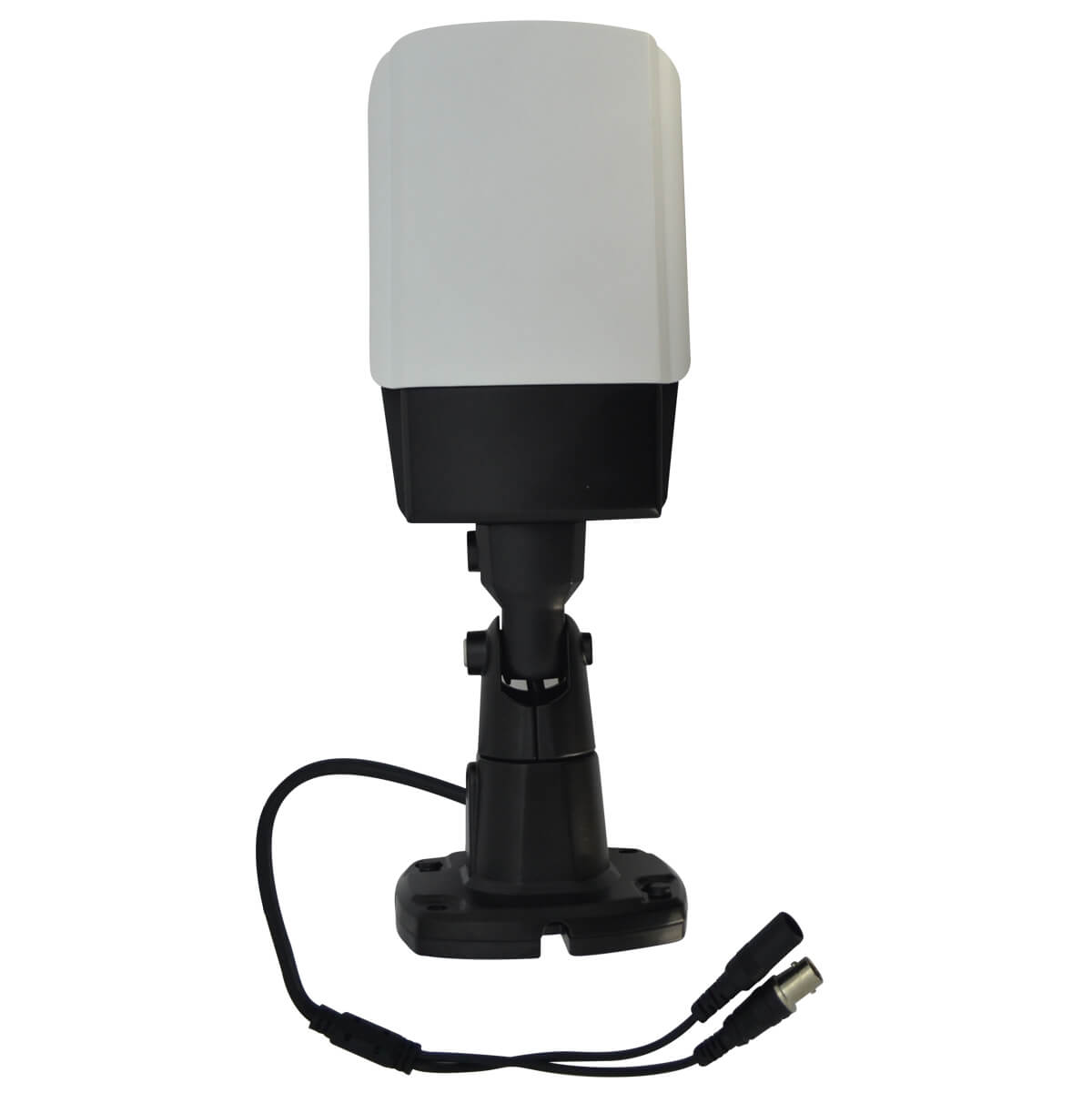

IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 1
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 2
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 3
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 4
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 5
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 6
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 7
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array - Image 8
  • - 1/3" CMOS Image (PC1099)
  • - IR-CUT Filter.
  • - BLC, AES and AGC functions.
  • - Power adapter not included.

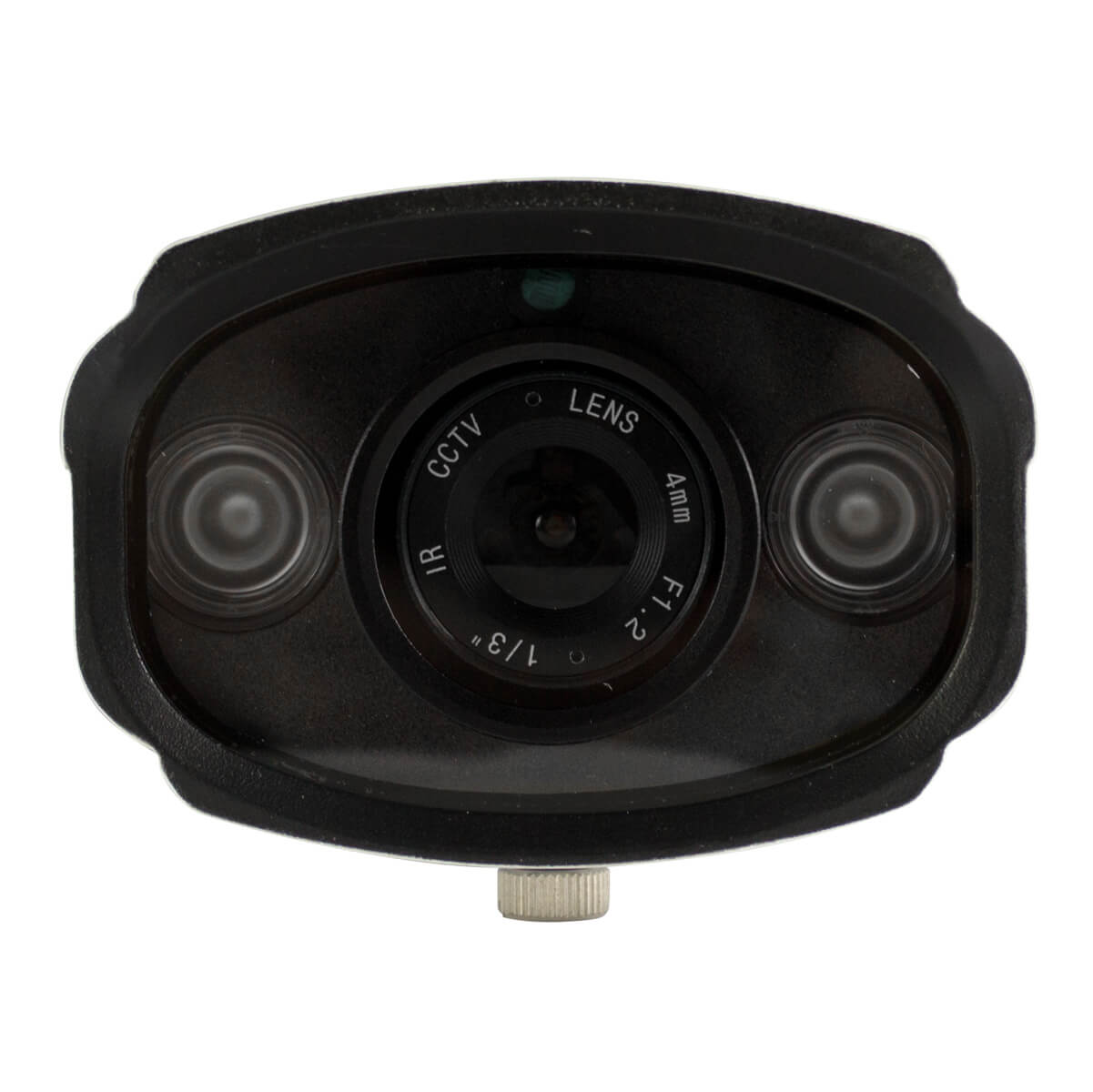

  • - 4mm/F 1.2 lens.
  • - 2pcs LED Array. 98ft IR distance.
  • IR waterproof high-resolution bullet camera with 4mm lens and a viewing angle of 90° which has a 98ft IR range of night vision and 2pcs LEDs array.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

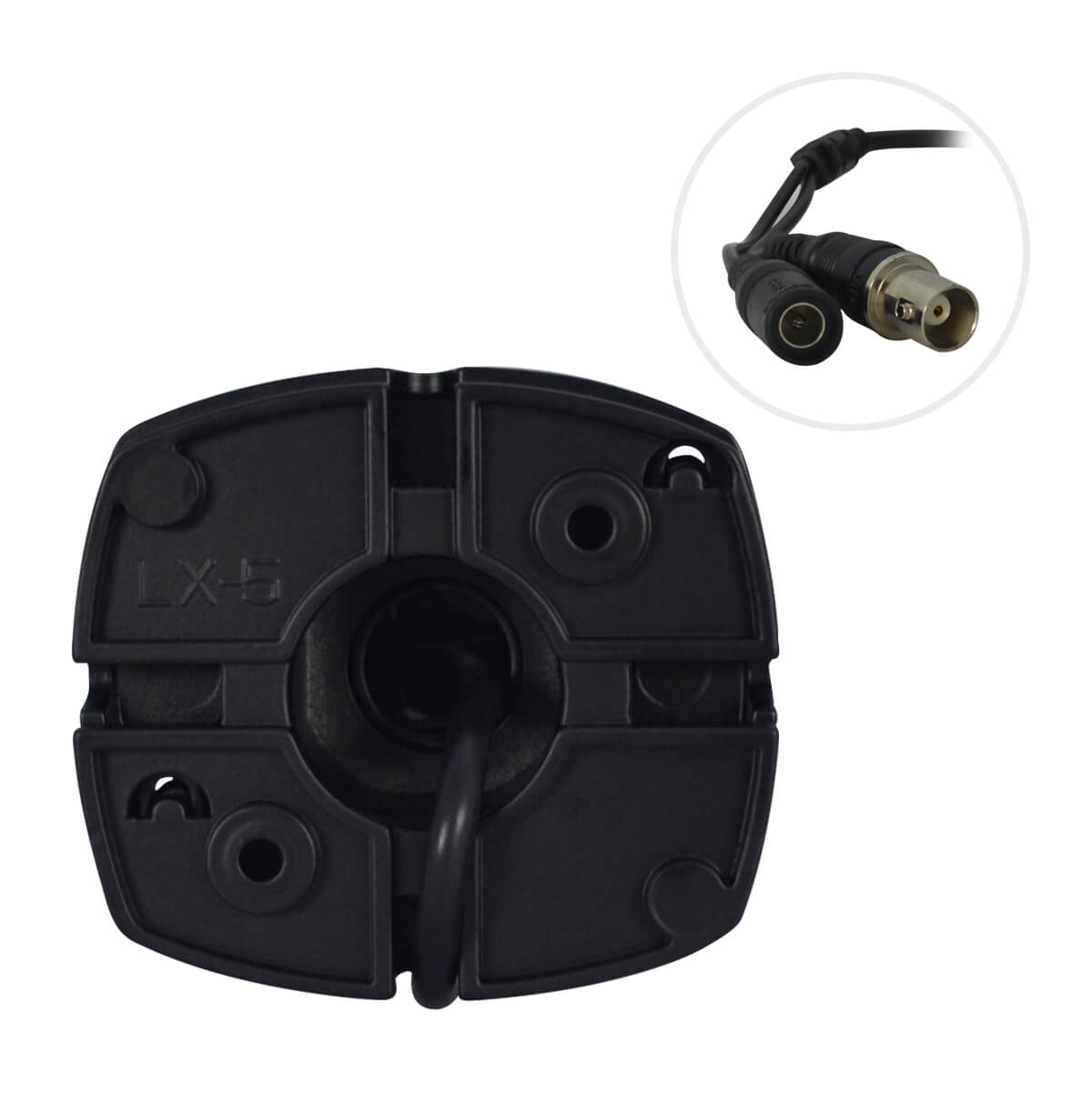

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - 1/3" PC1099 CMOS Sensor.
    - 900TVL resolution.
    - IR-CUT filter.
    - 4mm/F 1.2 Lens.
    - 98ft night vision, 2pcs LEDs Array.
    - Cable Management Bracket.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    LED array
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Waterproof
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Warranty: One (1) Year
  • IR Bullet Camera, CMOS Image Sensor, 900TVL, 4mm lens, 2 LEDs Array
    General
    Brand LineMak
    Model LS-A830D-1099
    Sensor
    Resolution 900TVL
    Sensor 1/3" CMOS Image (PC1099)
    Effective pixels PAL: 976*582
    NTSC: 976*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC Connector)
    Scanning Area 4.9mm*3.7mm
    Lens
    Lens 4mm/F.1.2
    IR Range 98ft night vision
    LEDs 2pcs LEDs Array
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 78°
    Environment
    Operation temperature -10ºC ~ 50ºC
    14ºF ~ 122ºF
    Power
    Power supply DC 12V
    Power consumption 30mA (250mA with LED on)
    Appearance
    Color White and black
    Size 10.63(L) * 2.76(H) * 3.35(W) inches
    Weight 1.43 pounds
    Material Aluminum
    Special function
    Back Light Compensation (BLC) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/10,000s
    NTSC: 1/60s ~ 1/10,000s
    Auto Gain Control (AGC) Included
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
    Gamma correction 0.45
  • Instrucción
    File Size: 462.84 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 445.63 Kb
    Languages: English
    File Type: PDF
