IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs

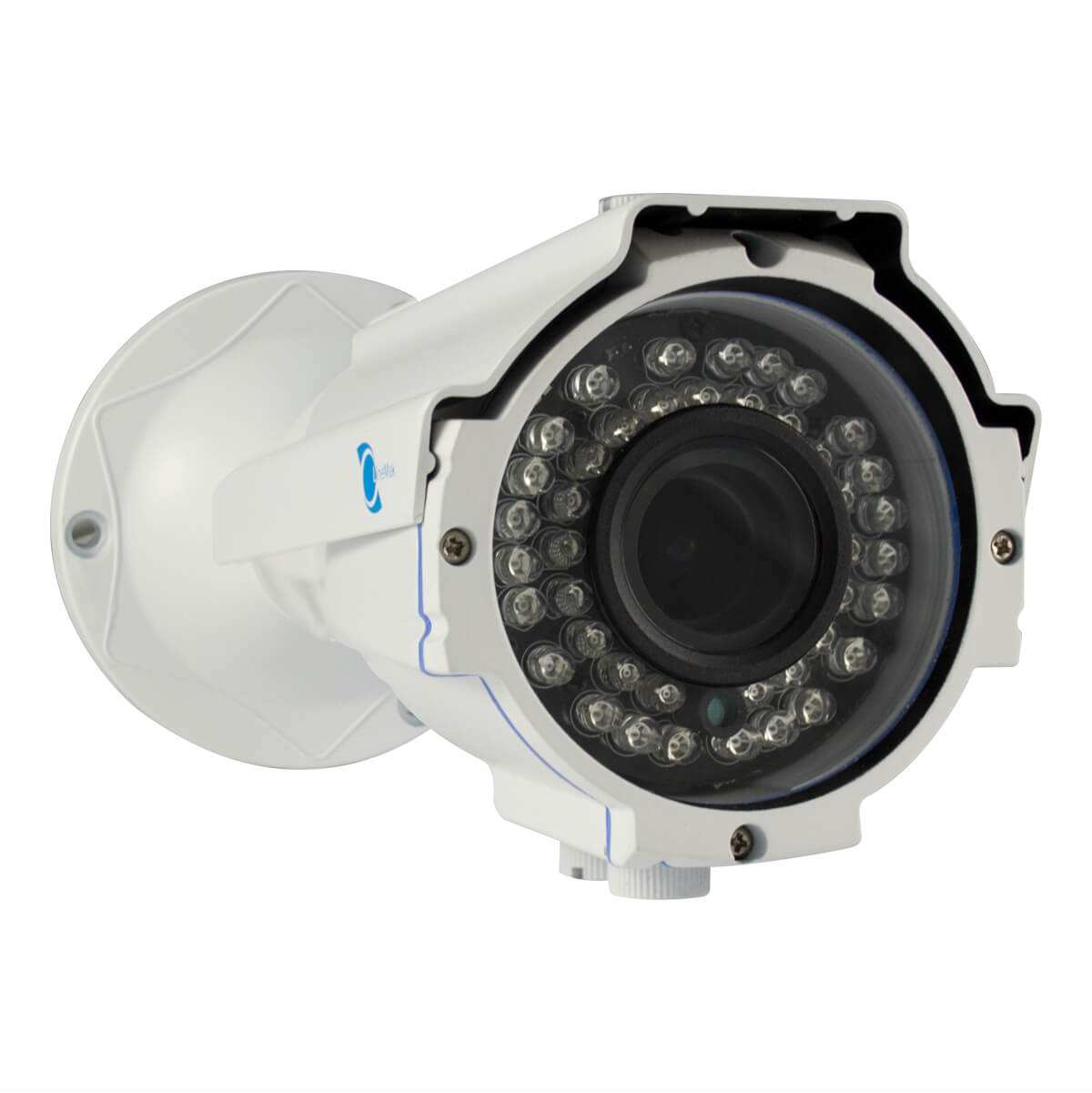

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 1

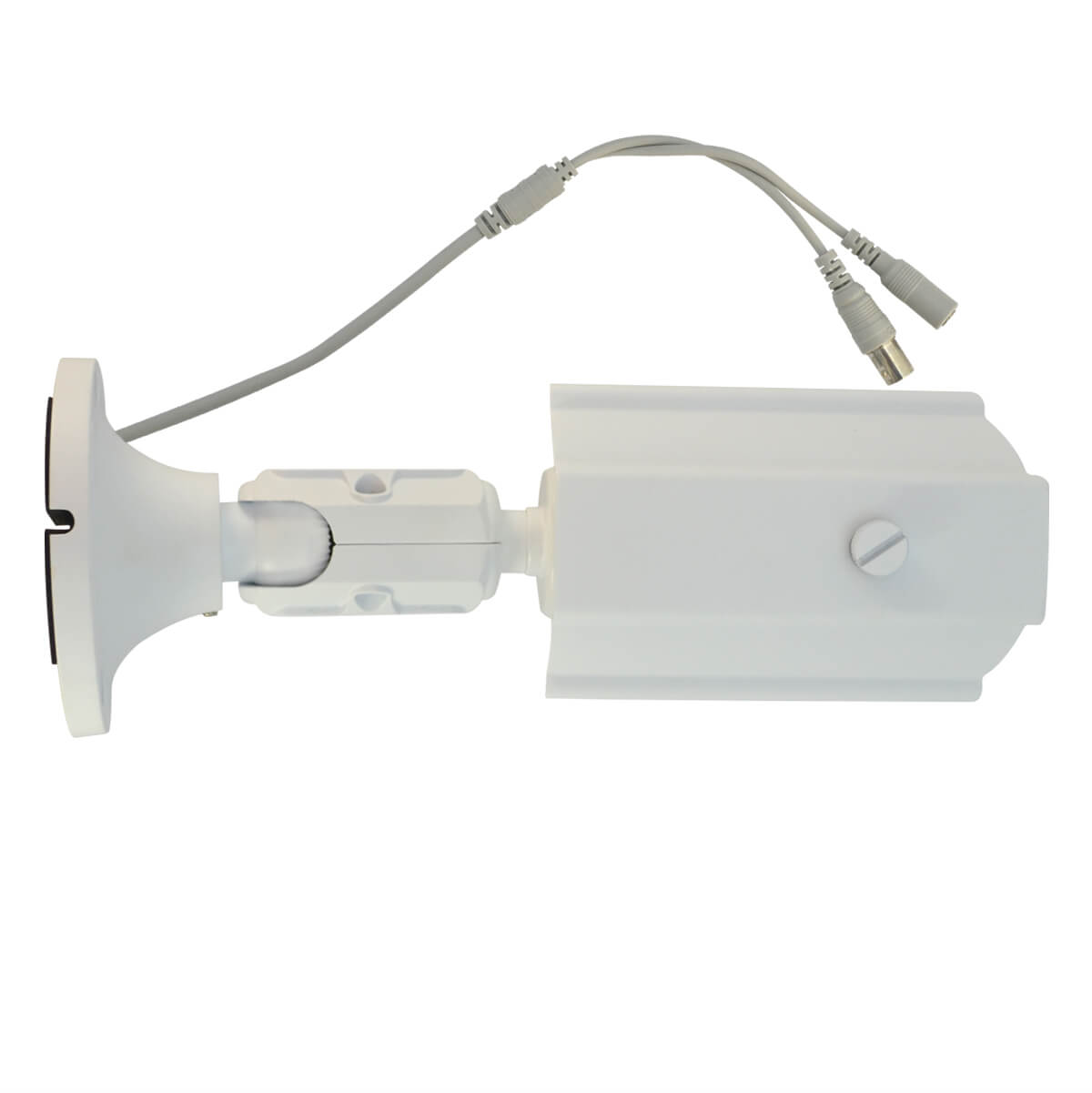

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 2

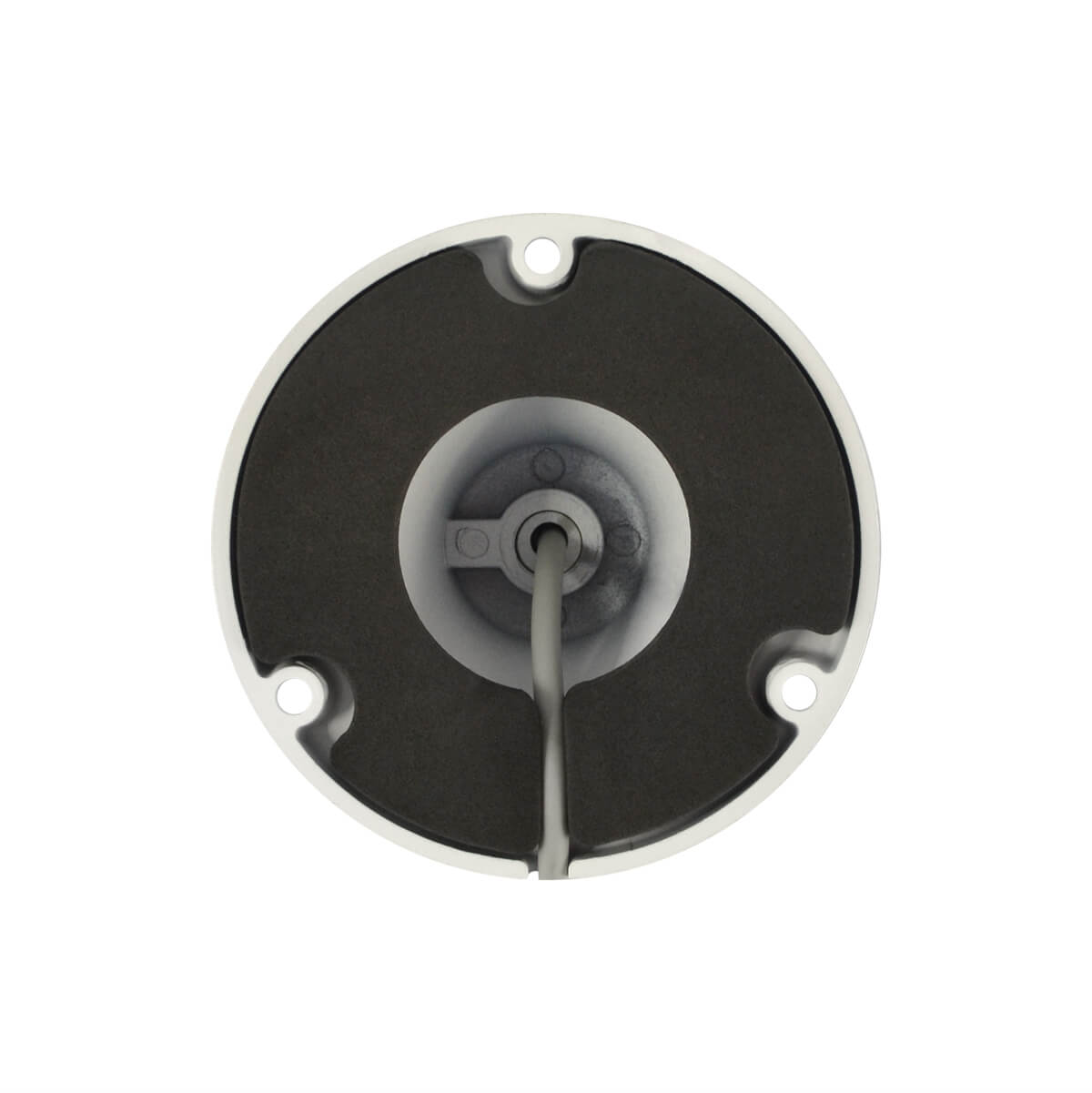

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 3

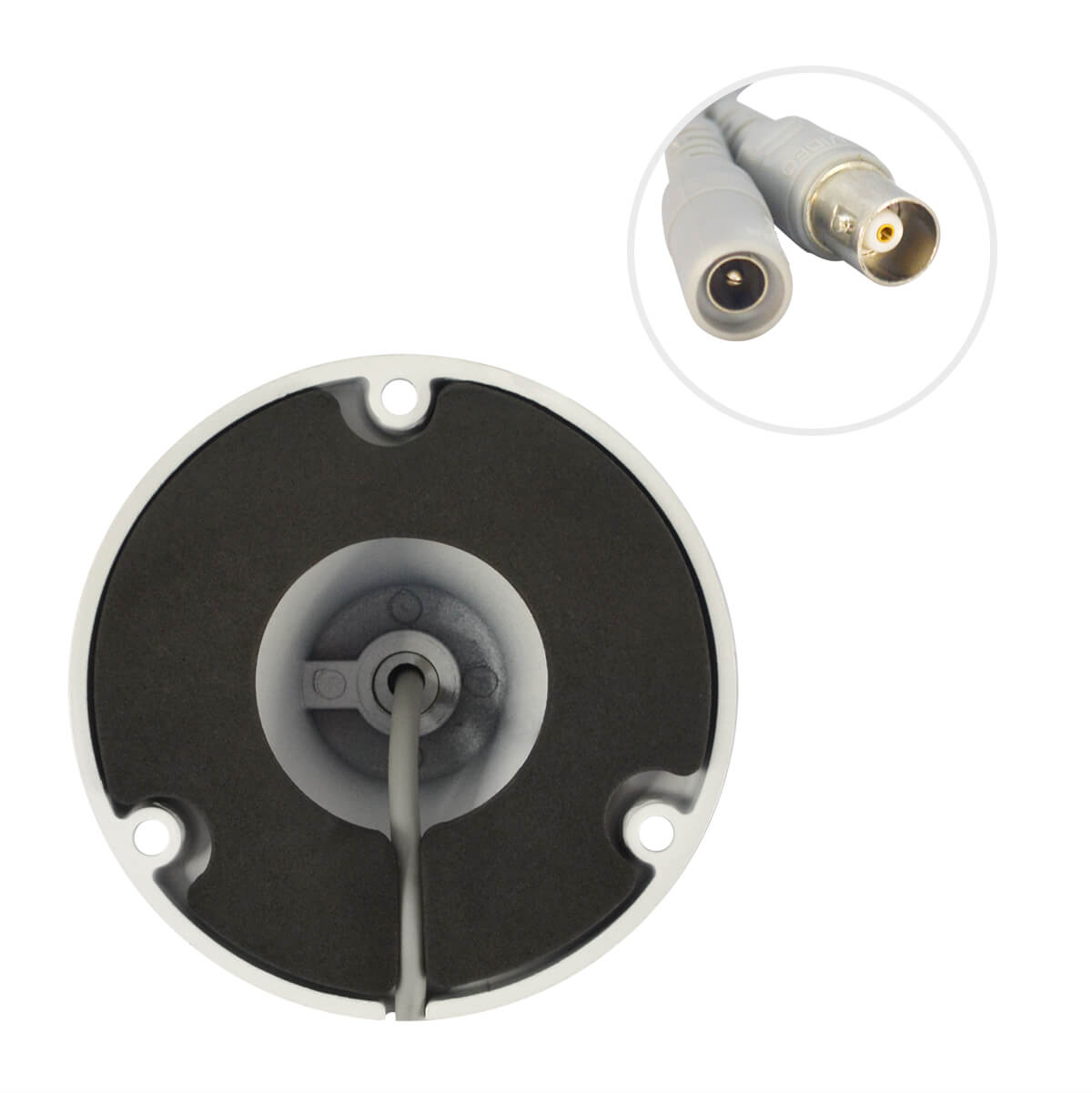

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 4

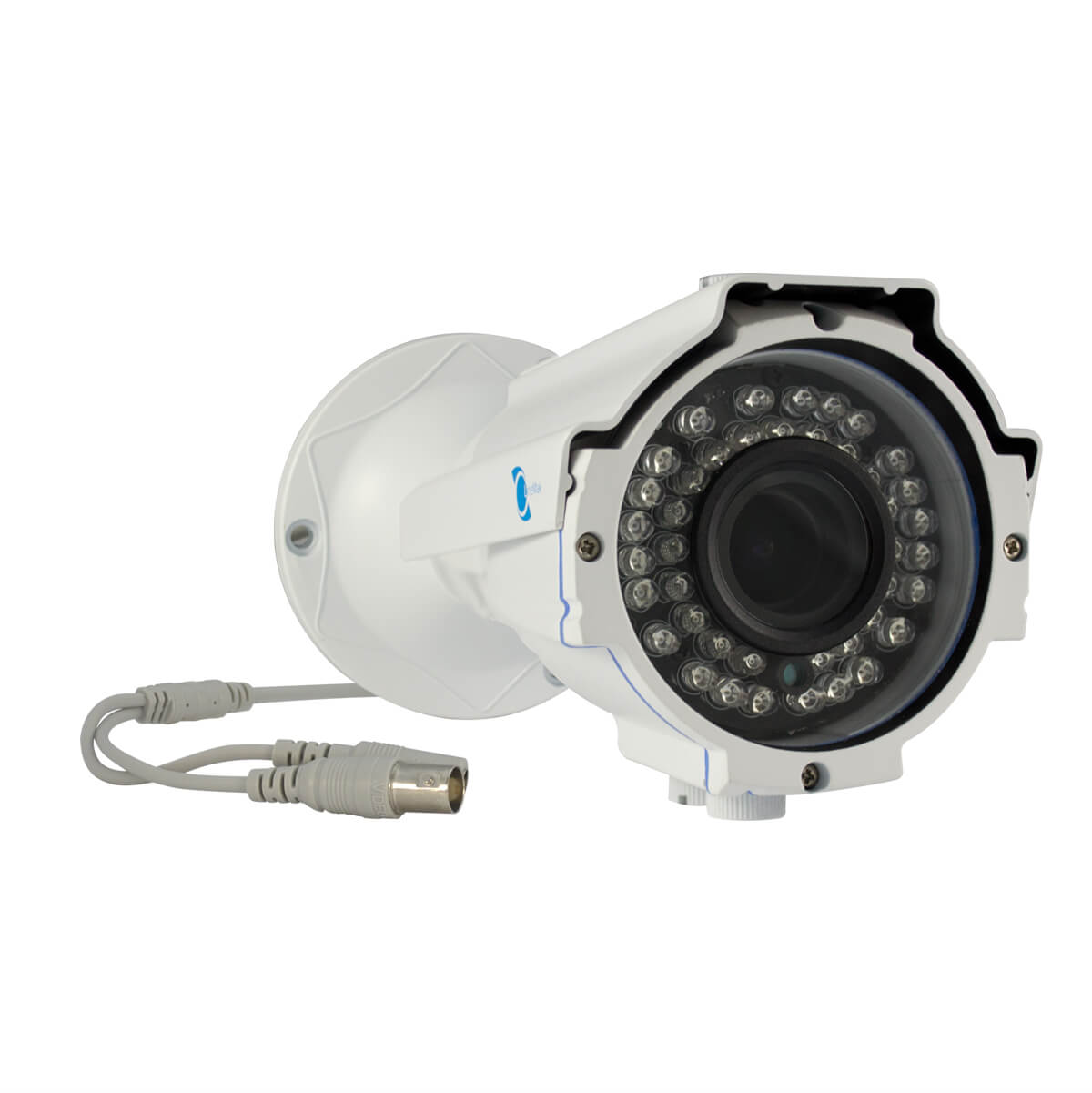

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 5

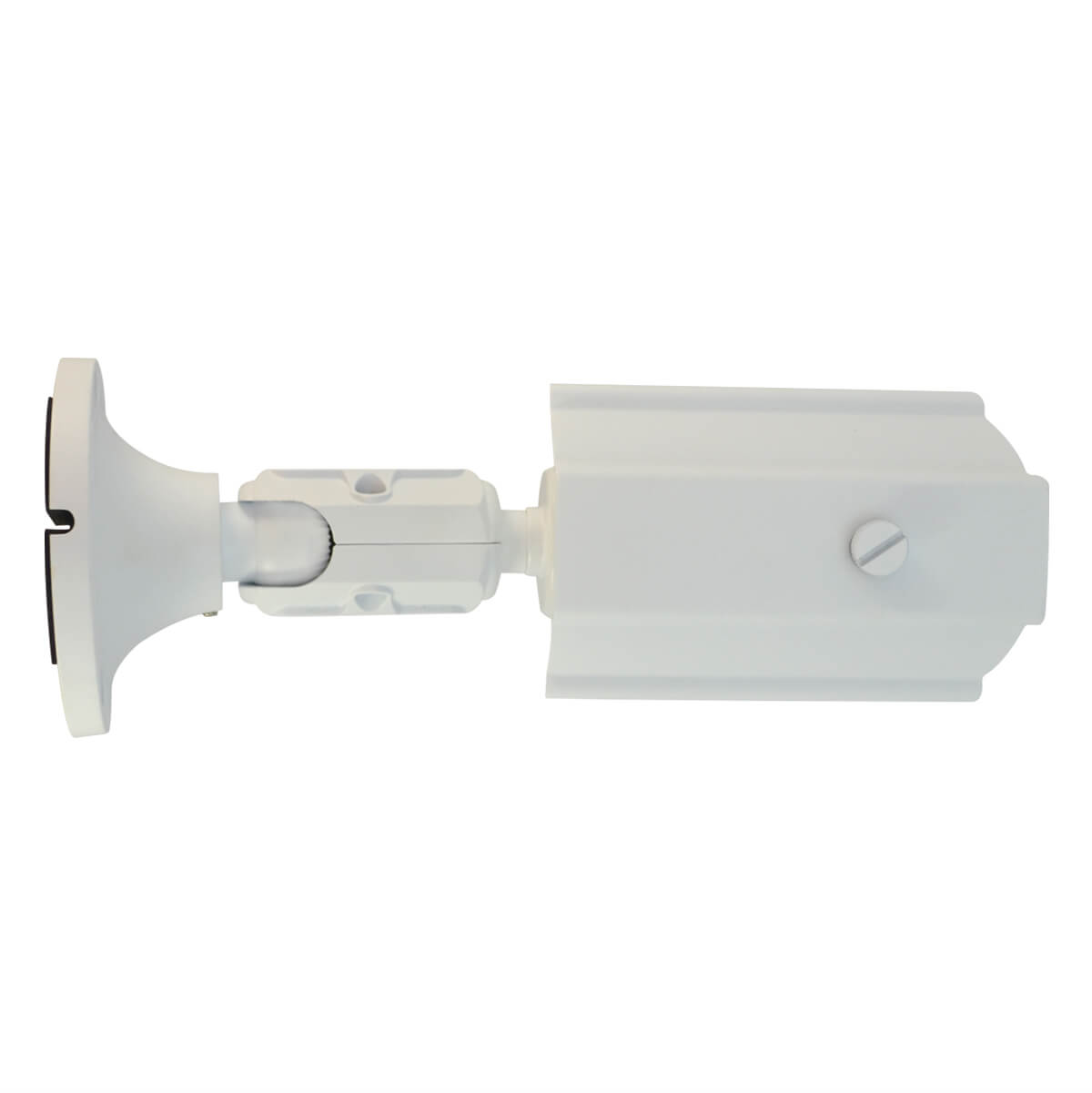

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 6

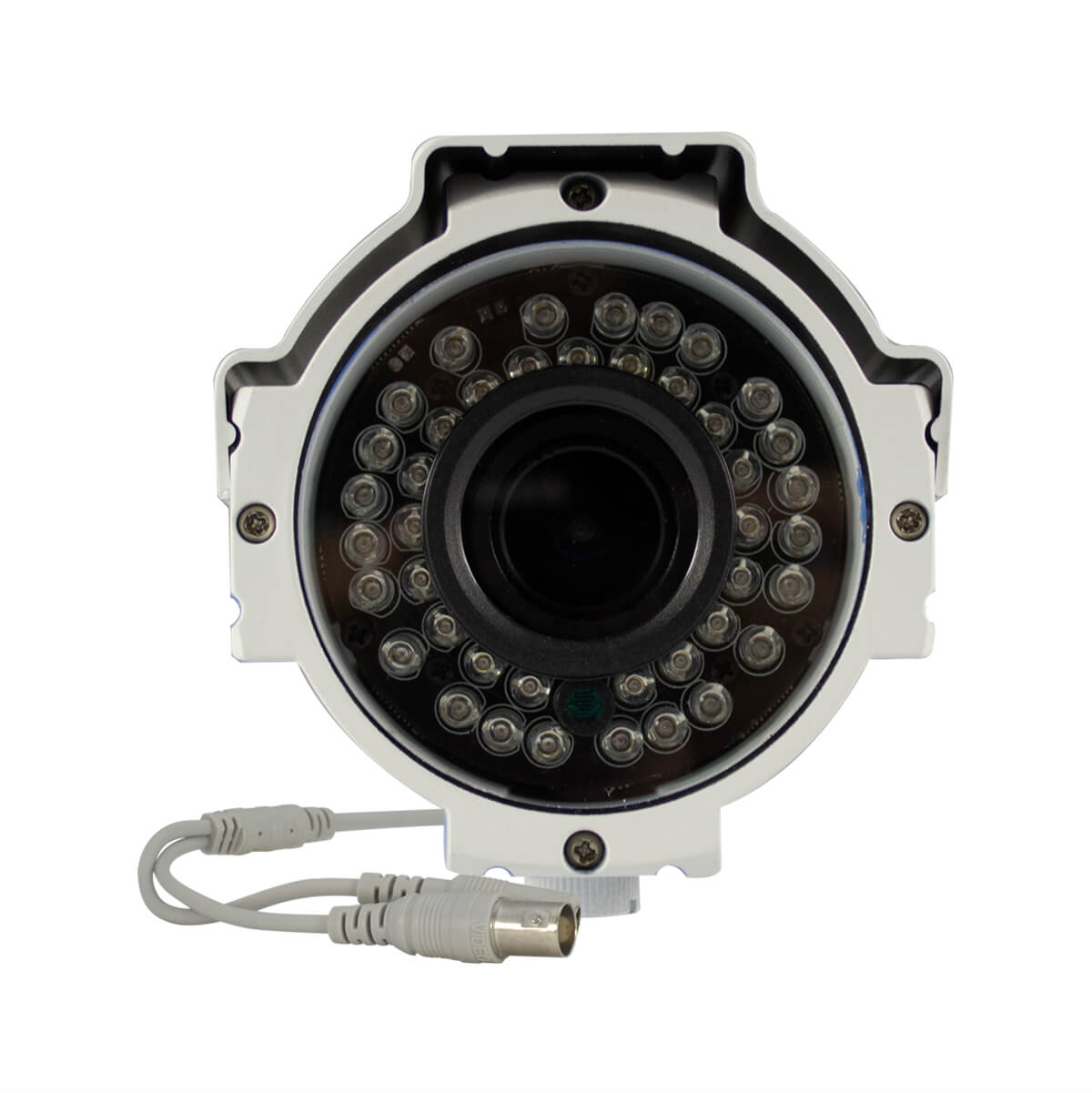

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 7

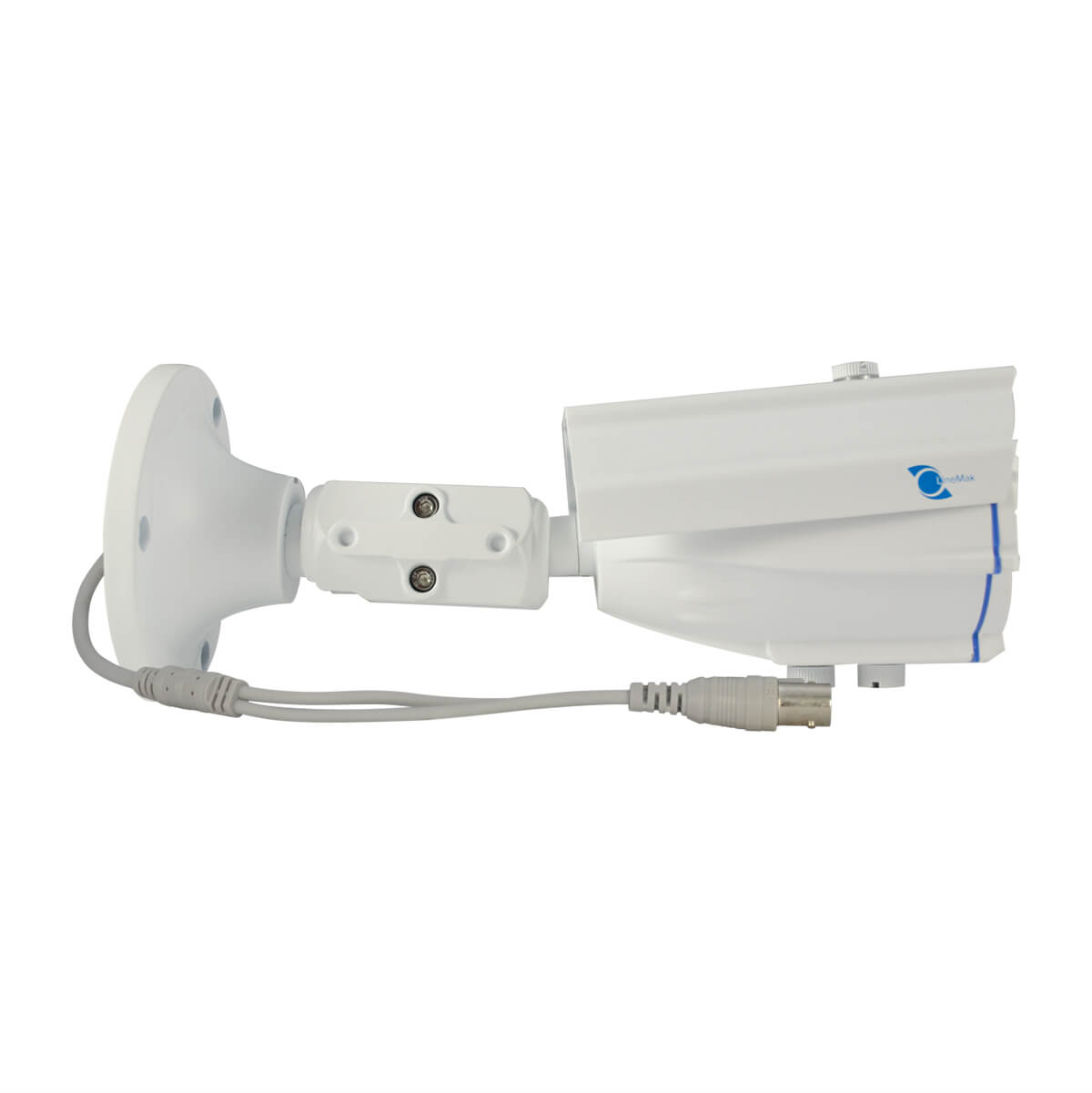

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 8

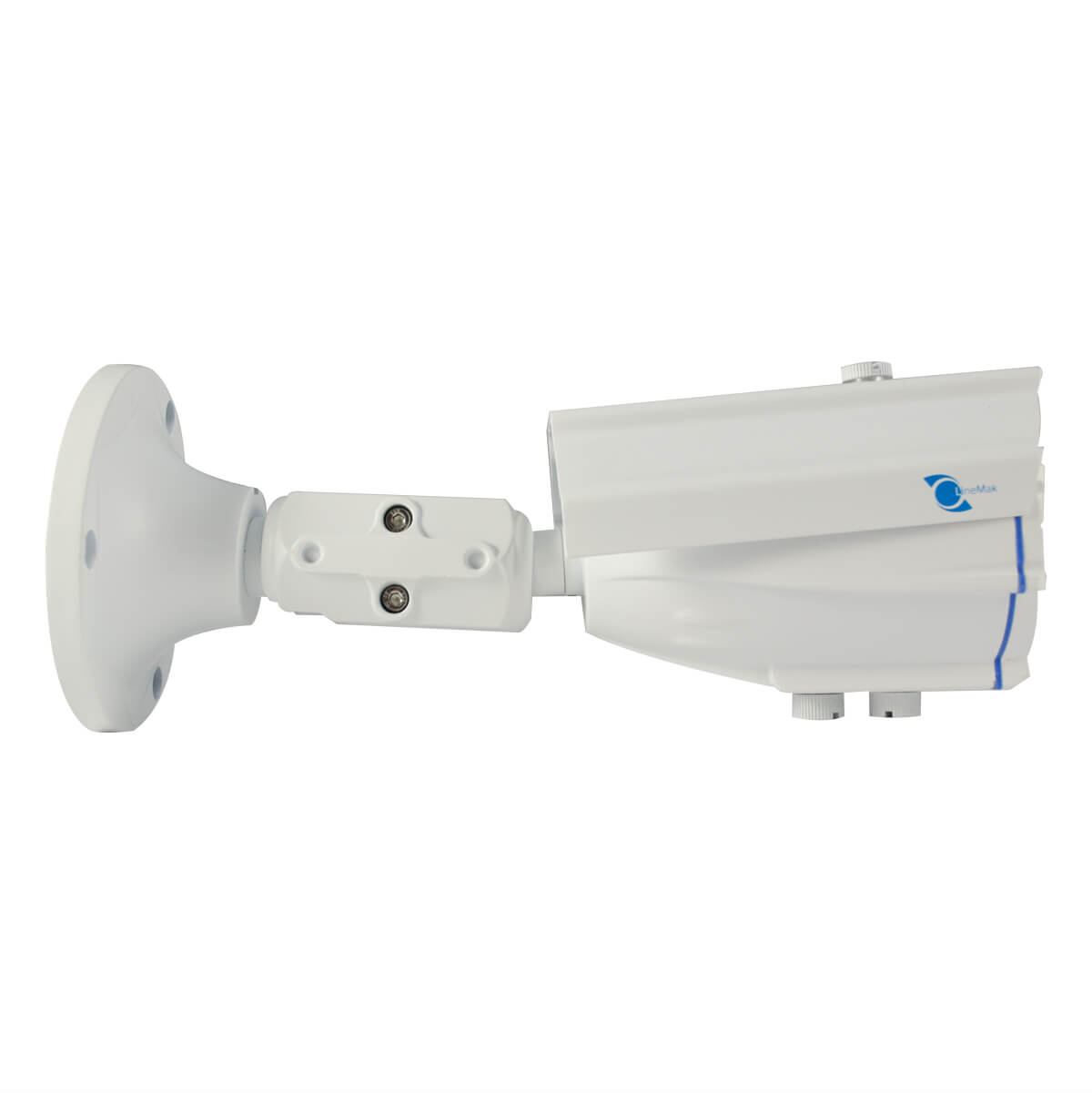

  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs - Image 9
  • - 1/2.8" HDIS Color CMOS Sensor, 1200TVL.
  • - 2.8-12mm varifocal lens.
  • - 42pcs LEDs, 131ft IR distance.
  • - Power adapter not included.
  • - 25°~115° viewing angle.
  • - Synchronizing system: Internal.
  • High-resolution bullet camera with 1/2.8" HDIS Color CMOS sensor and 1200TVL of resolution which has a 2.8mm~12mm varifocal lens, a viewing angle of 25? ~ 115?, a 131ft range of infrared night vision and 42pcs 5mm LEDs each. Available in gray.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Waterproof
    Warranty: One (1) Year
  • IR Bullet camera, 1/2.8 HDIS CMOS, 1200TVL, varifocal lens, 42 LEDs
    General
    Brand LineMak
    Model LS-VE8071CB08
    Sensor
    Resolution 1200TVL
    Sensor 1/2.8" HDIS Color CMOS
    Effective pixels 1280*720
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (Composite output)
    Lens
    Lens 2.8mm~12mm varifocal
    IR Range 131ft night vision
    LEDs 42pcs (5mm each)
    Infrared wavelength 850nm
    Minimum illumination 0 LUX (with LED on)
    Viewing angle 30° ~ 120°
    Environment
    Operation temperature -10ºC ~ 50ºC
    14ºF ~ 122ºF
    Power
    Power supply DC 12V
    Power consumption 450mA
    Appearance
    Size 10.63(L) * 3.55(H) * 3.55(W) inches
    Weight 1.93 pounds
    Special function
    Electronic shutter speed (AES) 1/50s ~ 1/12,000s
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instrucción
    File Size: 536.89 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 478.66 Kb
    Languages: English
    File Type: PDF
