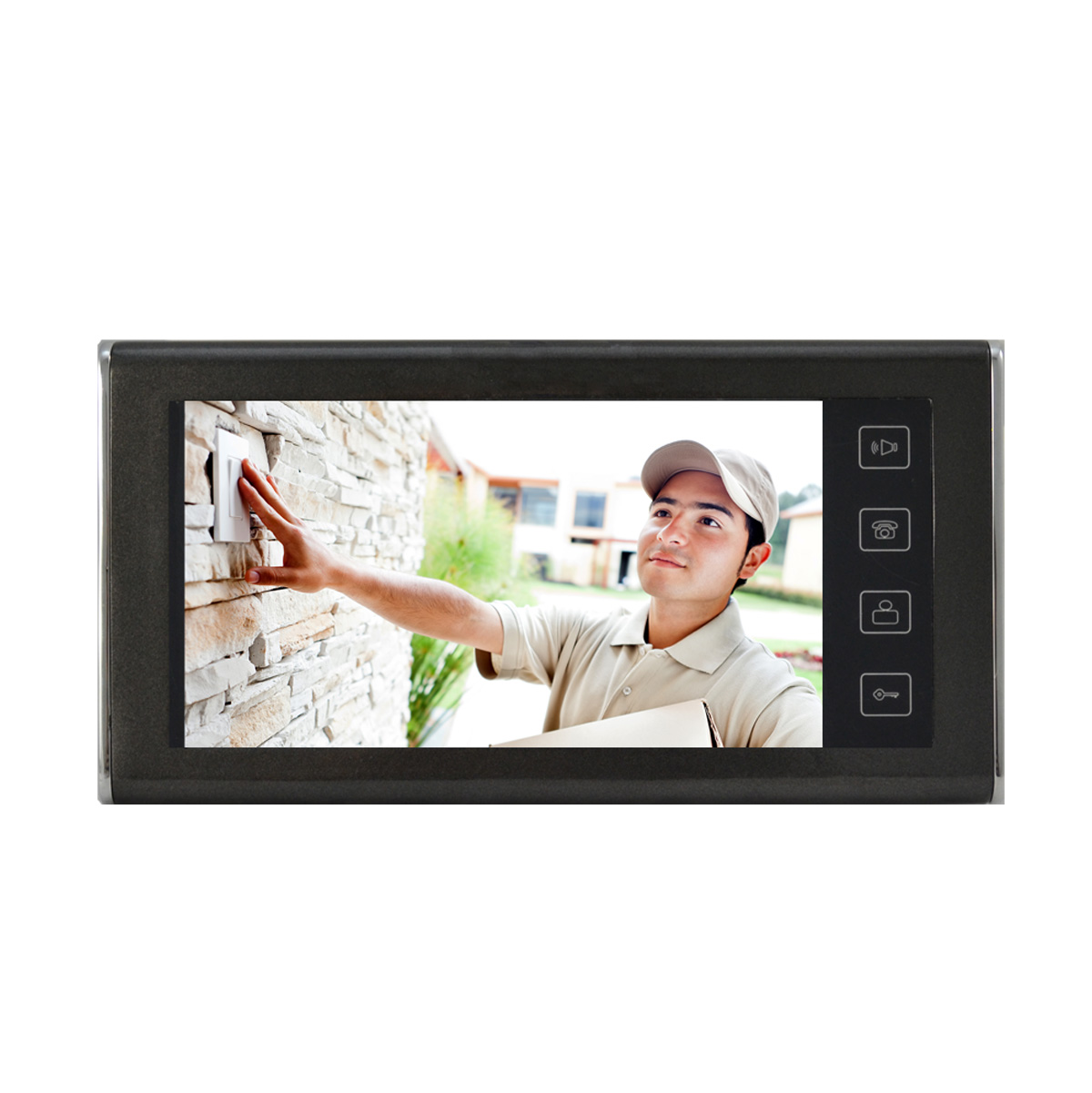

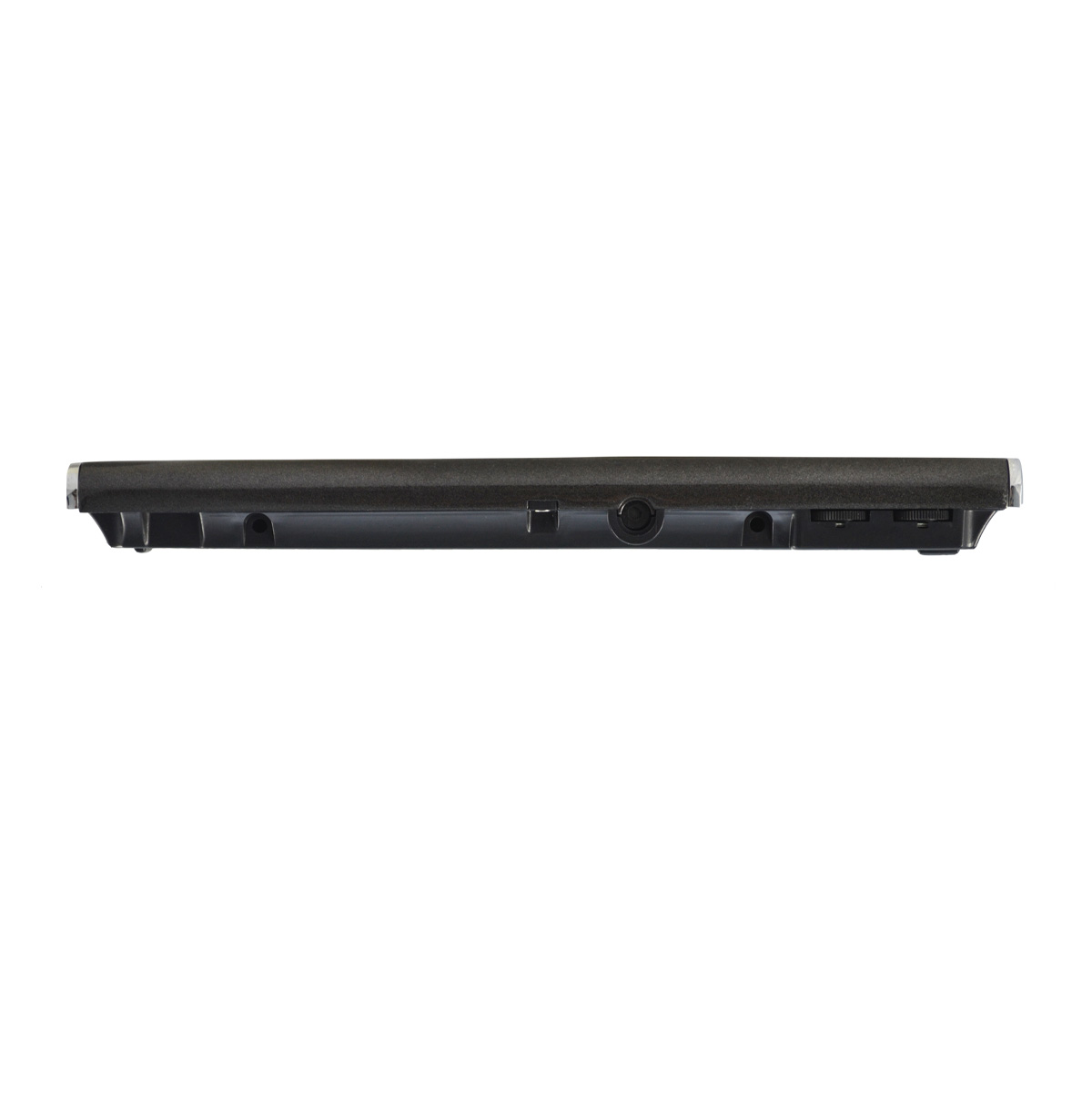

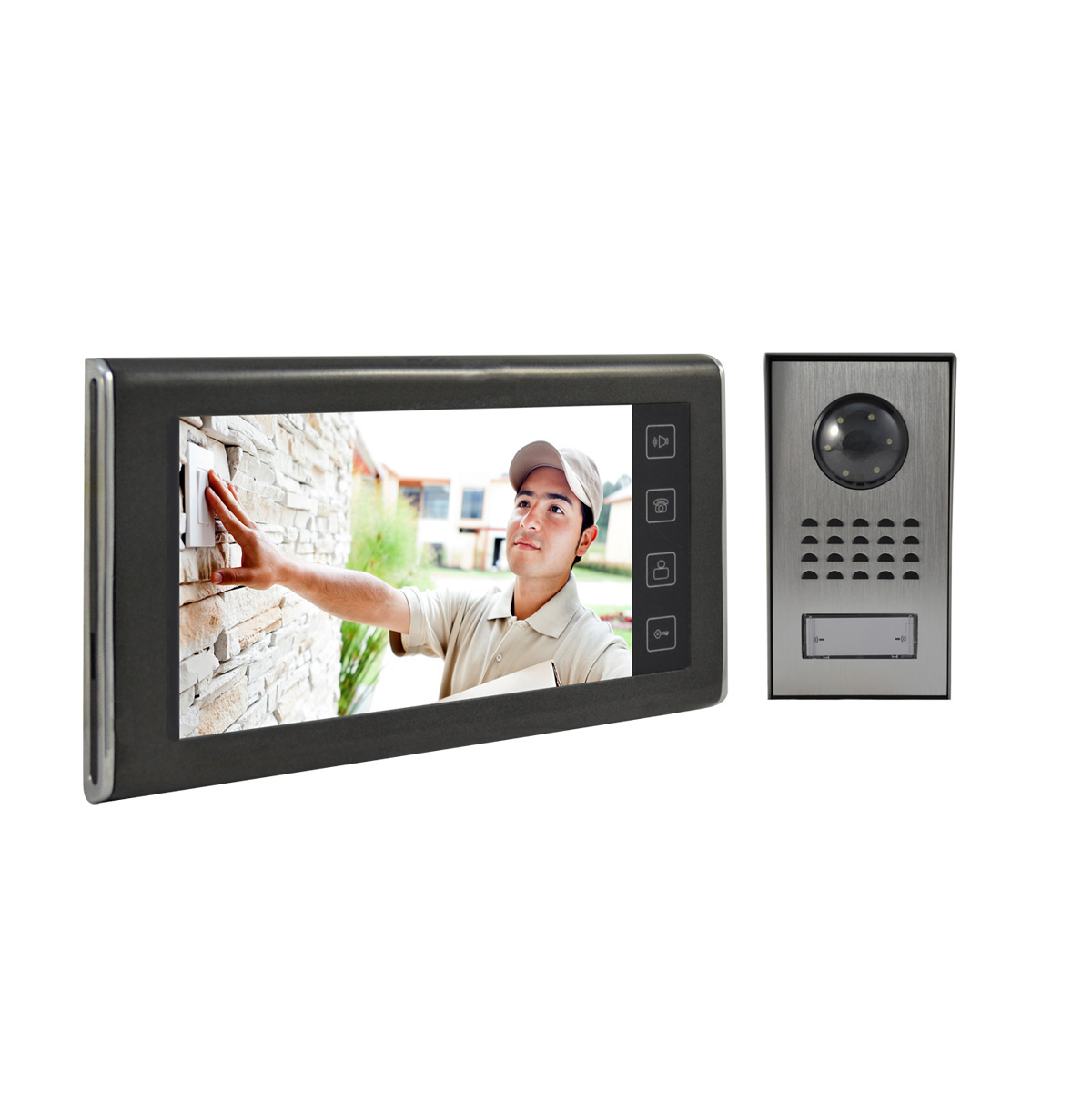

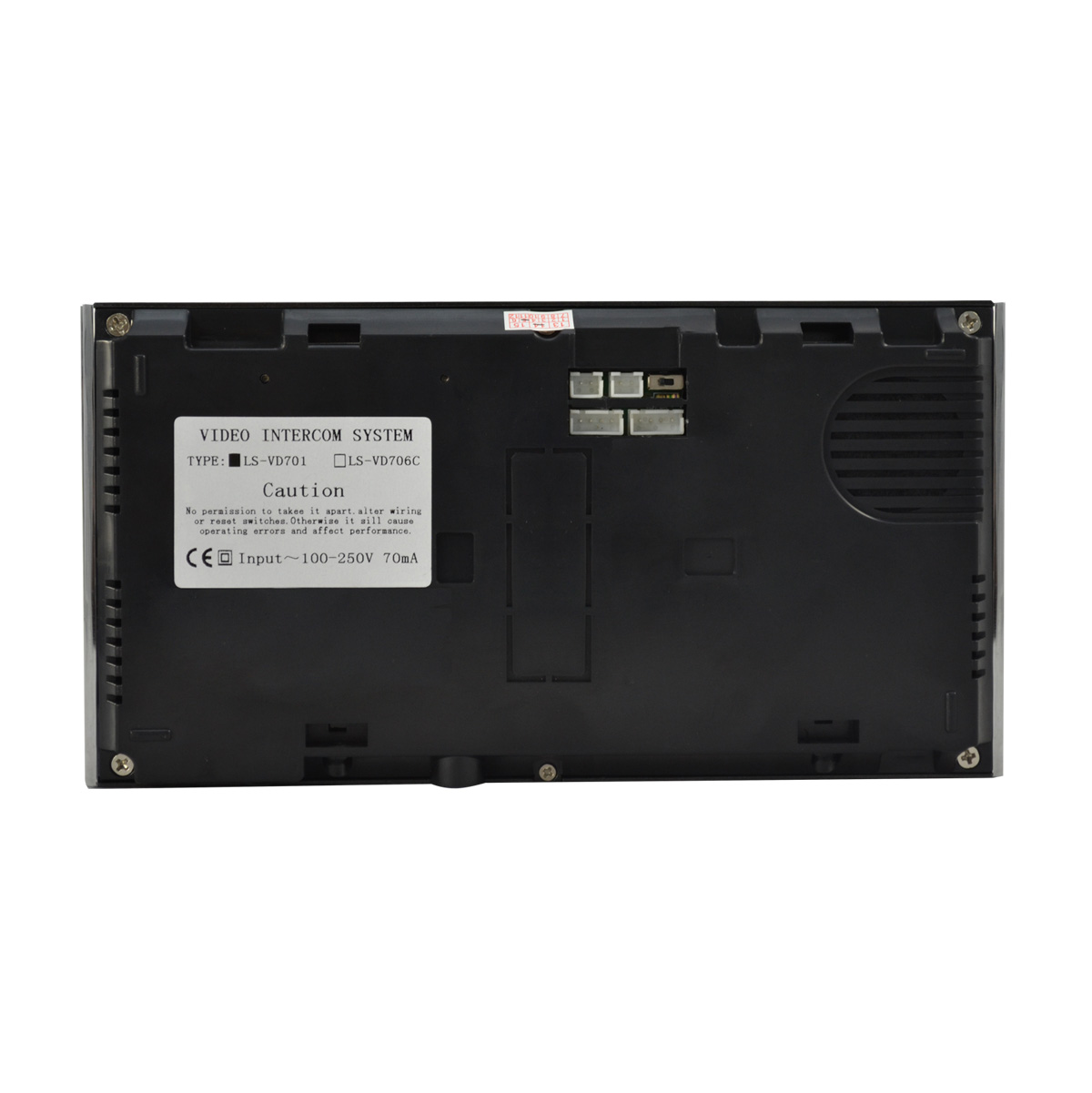

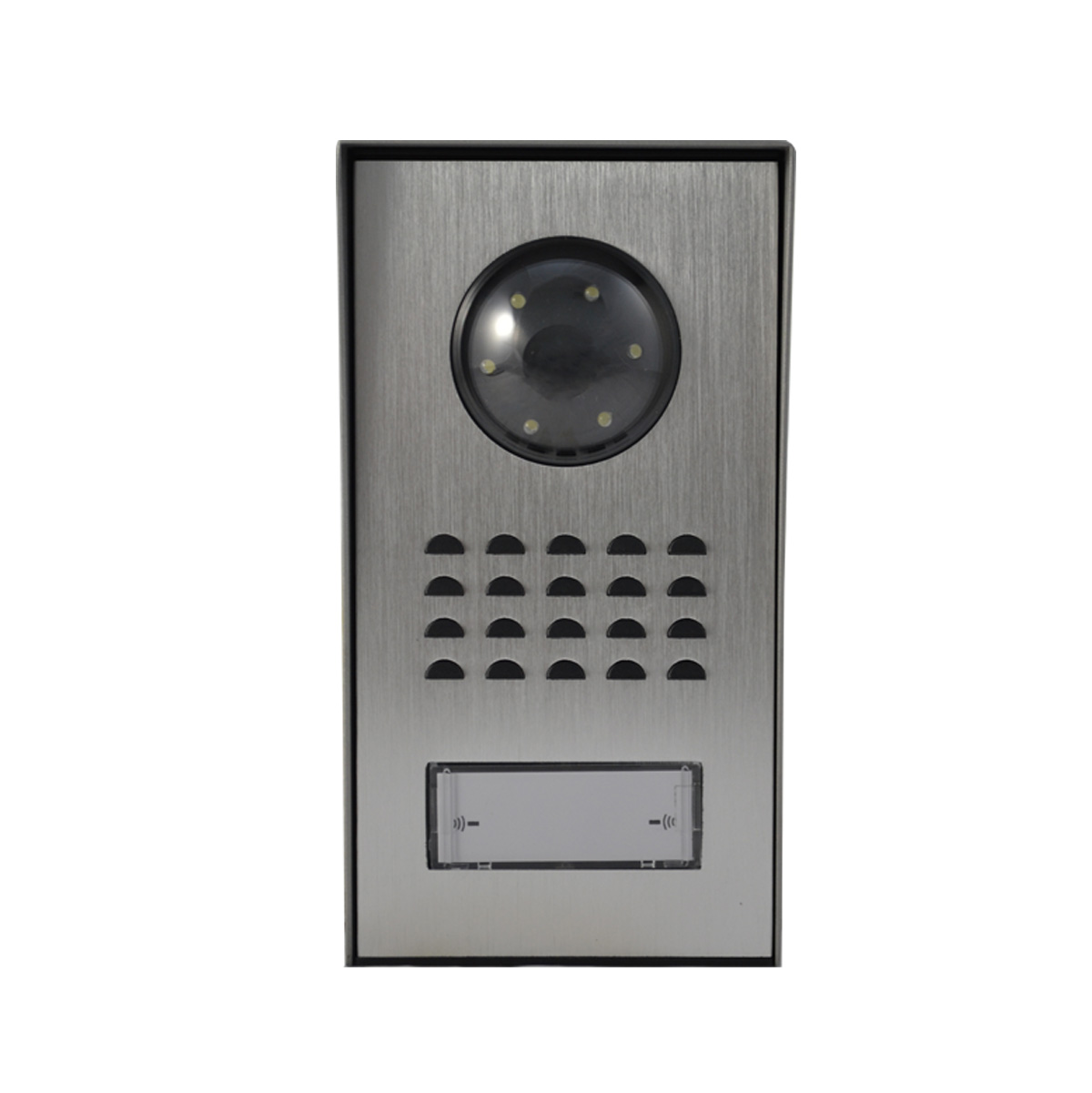

Video Intercom System with LCD screen 7in and camera CMOS Sensor 1/4
|
|
General
|
|
Brand | LineMak |
Model | LS-VD701 |
LCD Panel
|
|
Monitor | 7" TFT-LCD |
Resolution | 200,000 pixels |
Brightness | 260cd/m2 |
Brightness descrimination rate | >8 |
Display
|
|
Video format | NTSC / PAL |
Sensor
|
|
Sensor | 1/4" color CMOS |
Video
|
|
Video format | NTSC / PAL |
Video output | 1.0Vp-p, 75ohm |
Lens
|
|
LEDs | 6 pcs |
Minimum illumination | 1.5 Lux@F 6.0 |
Viewing angle | 70° |
Environment
|
|
Operation temperature | Screen: 0°C ~ 50°C / 32°F ~ 122°F Camera: -20°C ~ 50°C / -4ºF ~ 122ºF |
Power
|
|
Power supply | Screen: AC 100-250V |
Power consumption | Screen: Standby: AC 130mW / Working: 14W |
Appearance
|
|
Color | Screen: Black Camera: Silver |
Size | Screen: 0.79(L) * 5.52(H) * 9.06(W) inches Camera: 1.19(L) * 7.29(H) * 3.94(W) inches |
Weight | Screen: 1.18 pounds Camera: 12.53 ounces |
Material | Camera: Aluminum |
Standard
|
|
Wiring | 4 wires for connection with outdoor camera, 2 wires for Lock-camera connection |
Lock connection | To camera |
Mounting | Desktop / Wall-mounted |
