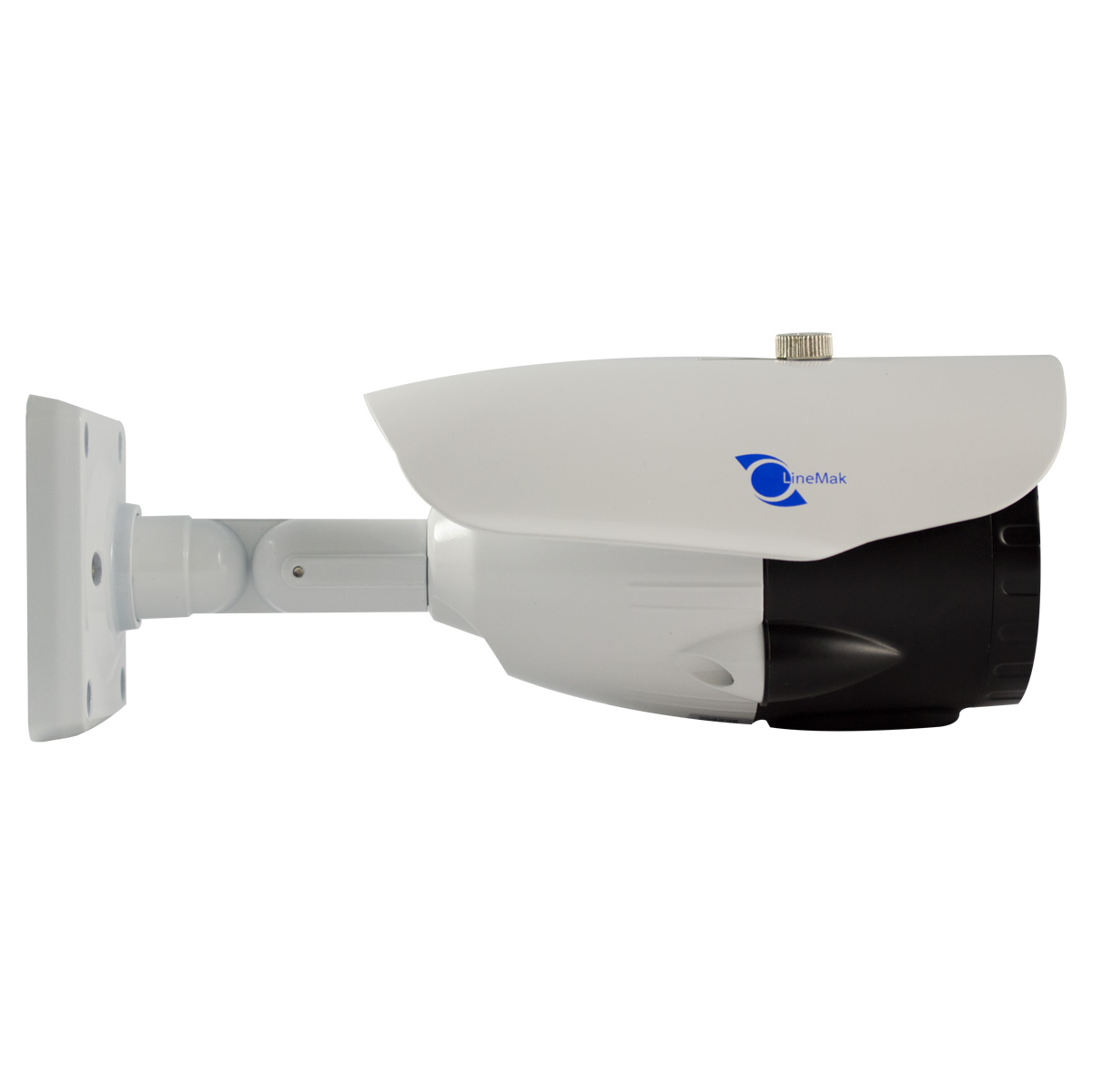

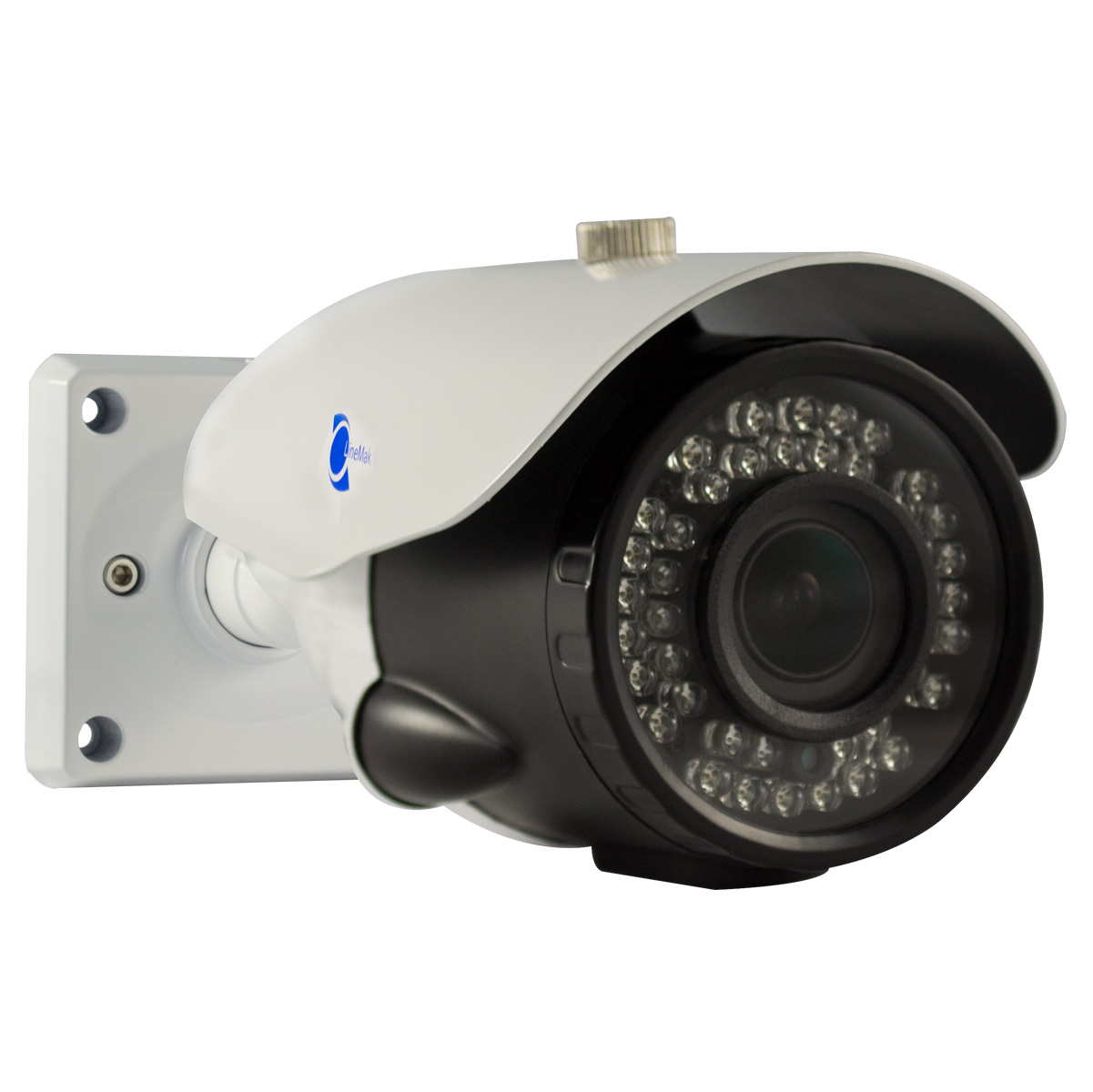

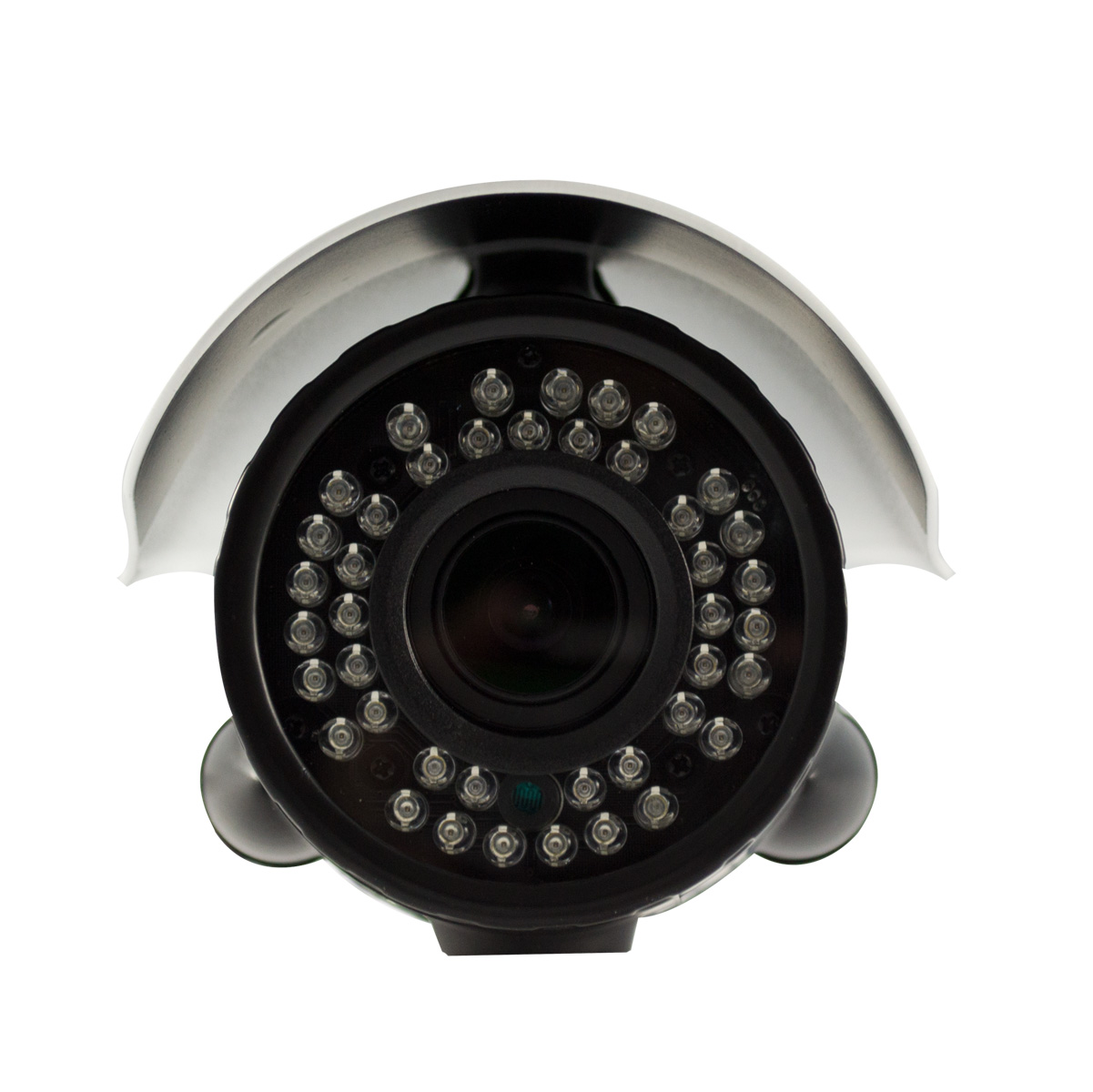

IR Bullet camera 1/3 CMOS Sensor 800TVL 2.8-12mm lens 42 LEDs 131ft IR
  • IR Bullet camera 1/3 CMOS Sensor 800TVL 2.8-12mm lens 42 LEDs 131ft IR - Image 1
  • - Excellent image quality.
  • - BLC, AES, AGC and AWB function.
  • - Weatherproof: IP66.
  • - Power adapter not included.
  • - It supports ICR infrared filter
  • - Images easily identified.
Products recommendaded to work with this item:
ir bullet camera 1/3 cmos sensor 800tvl 2.812mm lens 42 leds 131ft ir
1 channel passive video balun 2000ft, contains 6 pairs 12 pcs
dc12v 1a power adapter specially for security cameras
8ch dvr, h264/g711a, vga/hdmi/cvbs/loop/spot outputs, d1
Price for all 4: $456.96
  • High-resolution IR waterproof bullet camera with a 2.8-12mm varifocal lens and a viewing angle of 115? ~ 25?, a 131ft range of infrared night vision, and 42pcs LEDs.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Weatherproof: IP66.

    Hinged base included.

    Power adapter not included.

    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Demist functions. Automatic electrical level adjustment and contour correction.
    - Gray scale up to 135 level standards.
    - Mist presence effectively solved.
    - Excellent image quality. Available especially under the condition of unpredictable illumination (such as building entrance, crossroad, etc.).
    - Images easily identified.
    - It supports ICR infrared filter to be auto-switch. Images turn from color to black automatically, and the camera monitors day and night.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - It uses an advanced double loop glass design for clearer images.

    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    Weatherproof cameras in a year-round protection
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    Warranty: One (1) Year
  • IR Bullet camera 1/3 CMOS Sensor 800TVL 2.8-12mm lens 42 LEDs 131ft IR
    Brand LineMak
    Resolution 800TVL
    Sensor 1/3" CMOS PC1099
    Effective pixels NTSC: 976*494
    Video format NTSC
    Video output 1.0Vp-p, 75ohm (composite signal)
    Frequency 36Mhz
    Lens 2.8mm ~ 12mm Varifocal
    IR Range 131ft night vision
    LEDs 42pcs
    IR-CUT Filter Yes
    Minimum illumination 0.01 Lux (with LED on)
    Viewing angle 25º ~ 115°
    IR Power ON CDS Auto Control
    IR Status Under 10 Lux by CDS
    Operation temperature -10°C ~ 50°C
    14ºF ~ 122ºF
    Storage temperature -30°C ~ 60°C
    -22ºF ~ 140ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Working humidity 95% RH
    Power supply DC 12V
    Power consumption 400mA
    Color White
    Size 10.04(L) * 3.15(H) * 3.55(W) inches
    Weight 1.48 pounds
    Special function
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100,000s
    NTSC: 1/60s ~ 1/100,000s
    Auto Gain Control (AGC) Included
    Scanning system 2:1 interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
