IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66

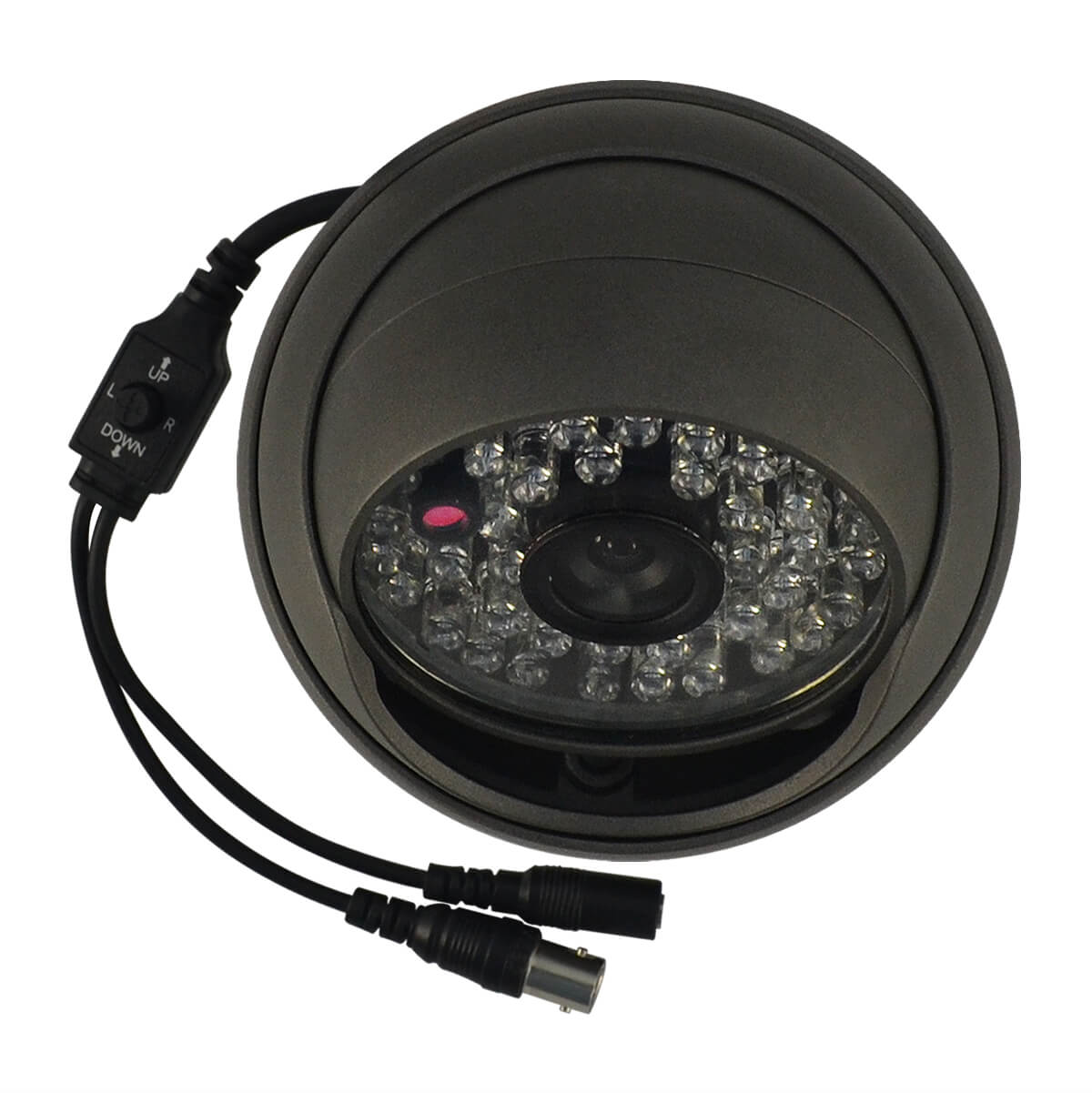

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 1

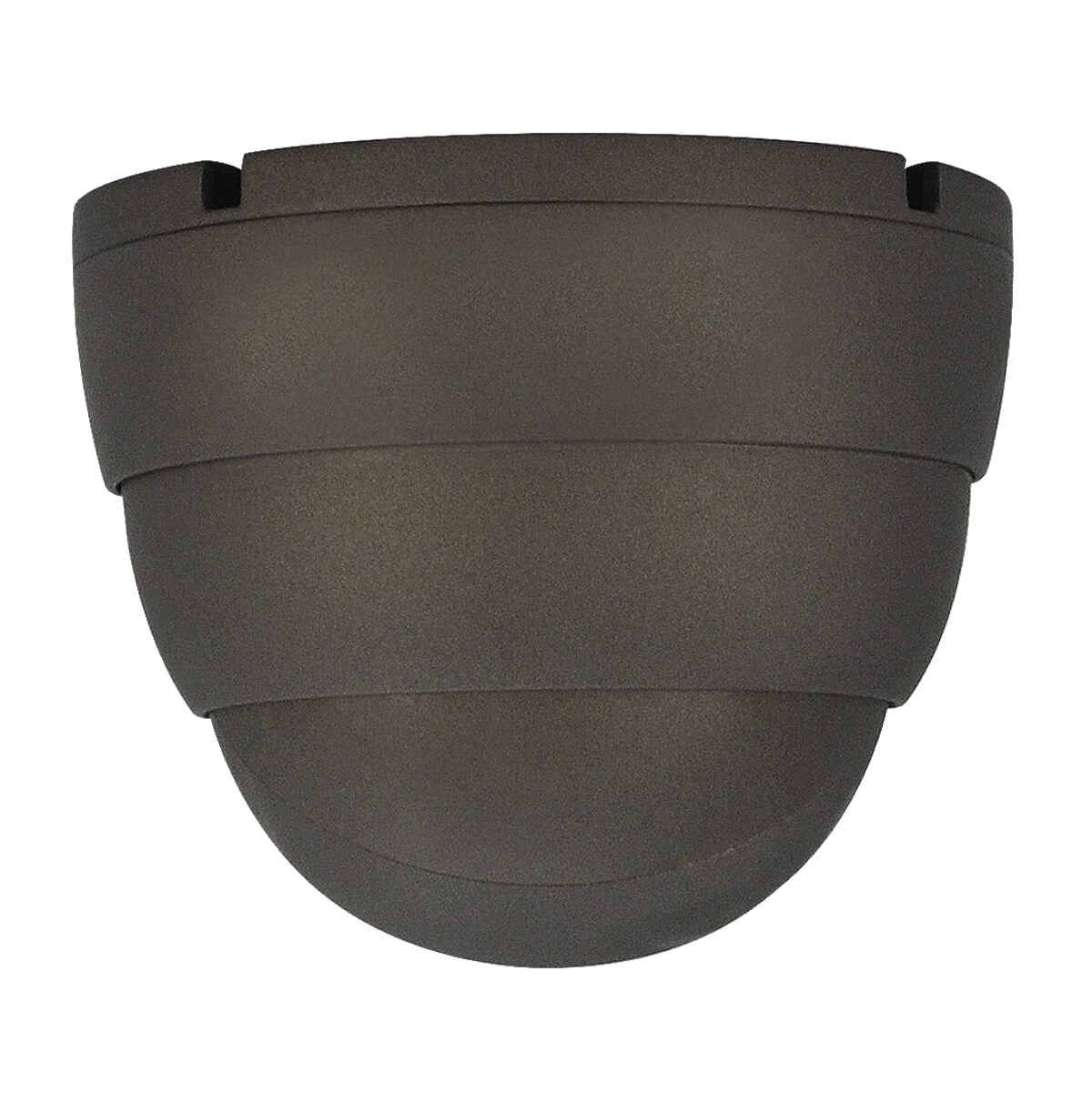

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 2

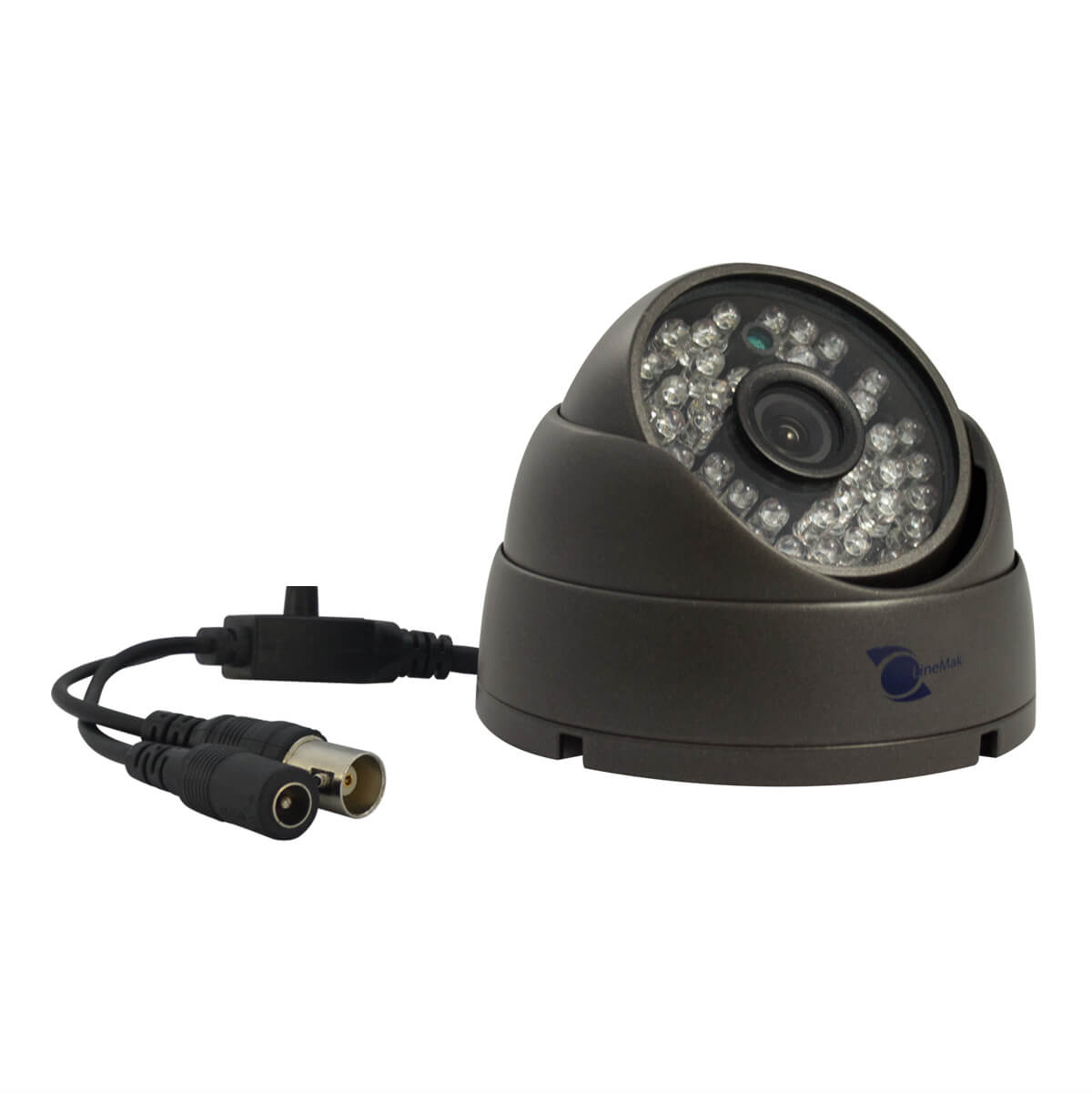

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 3

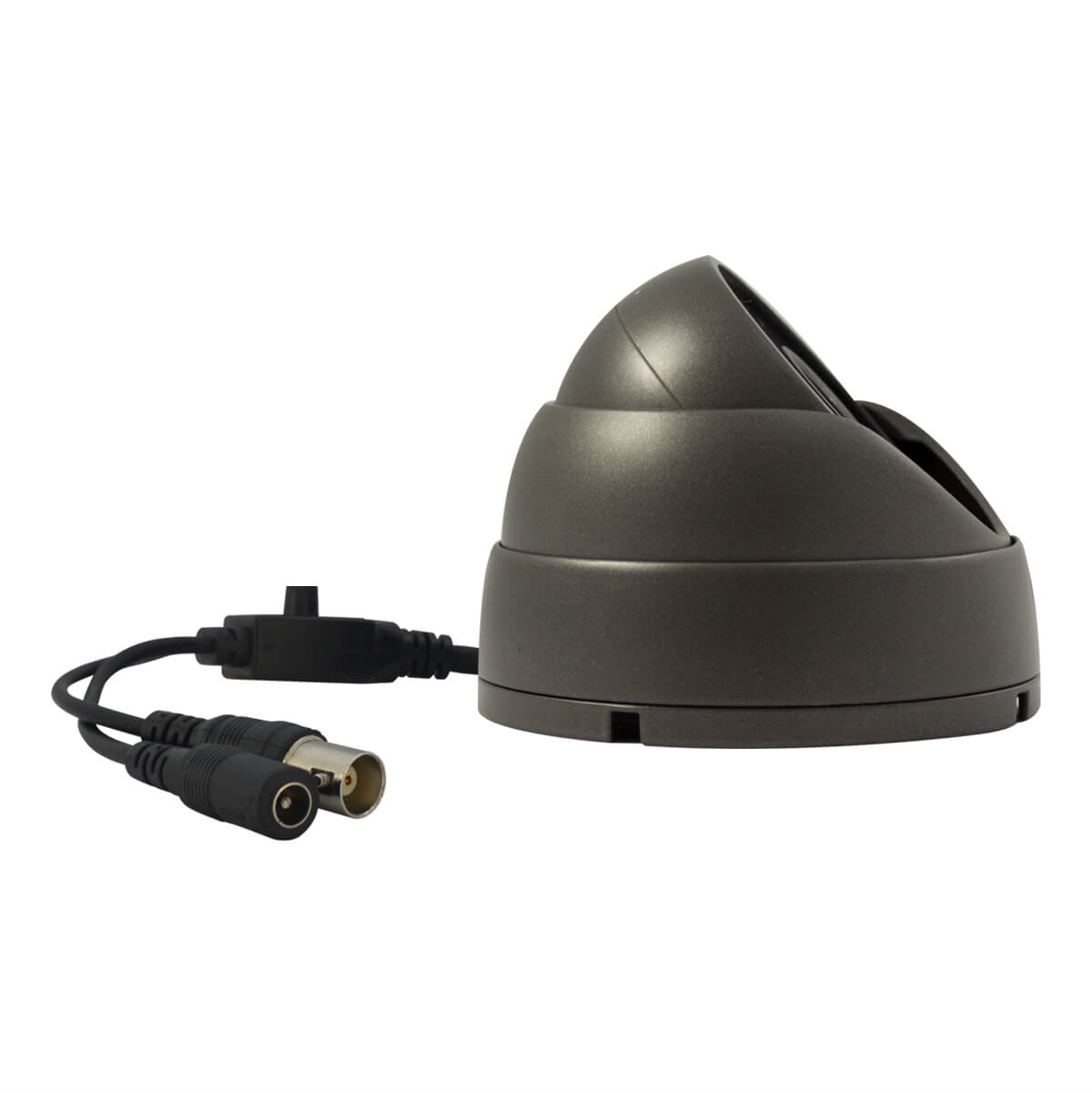

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 4

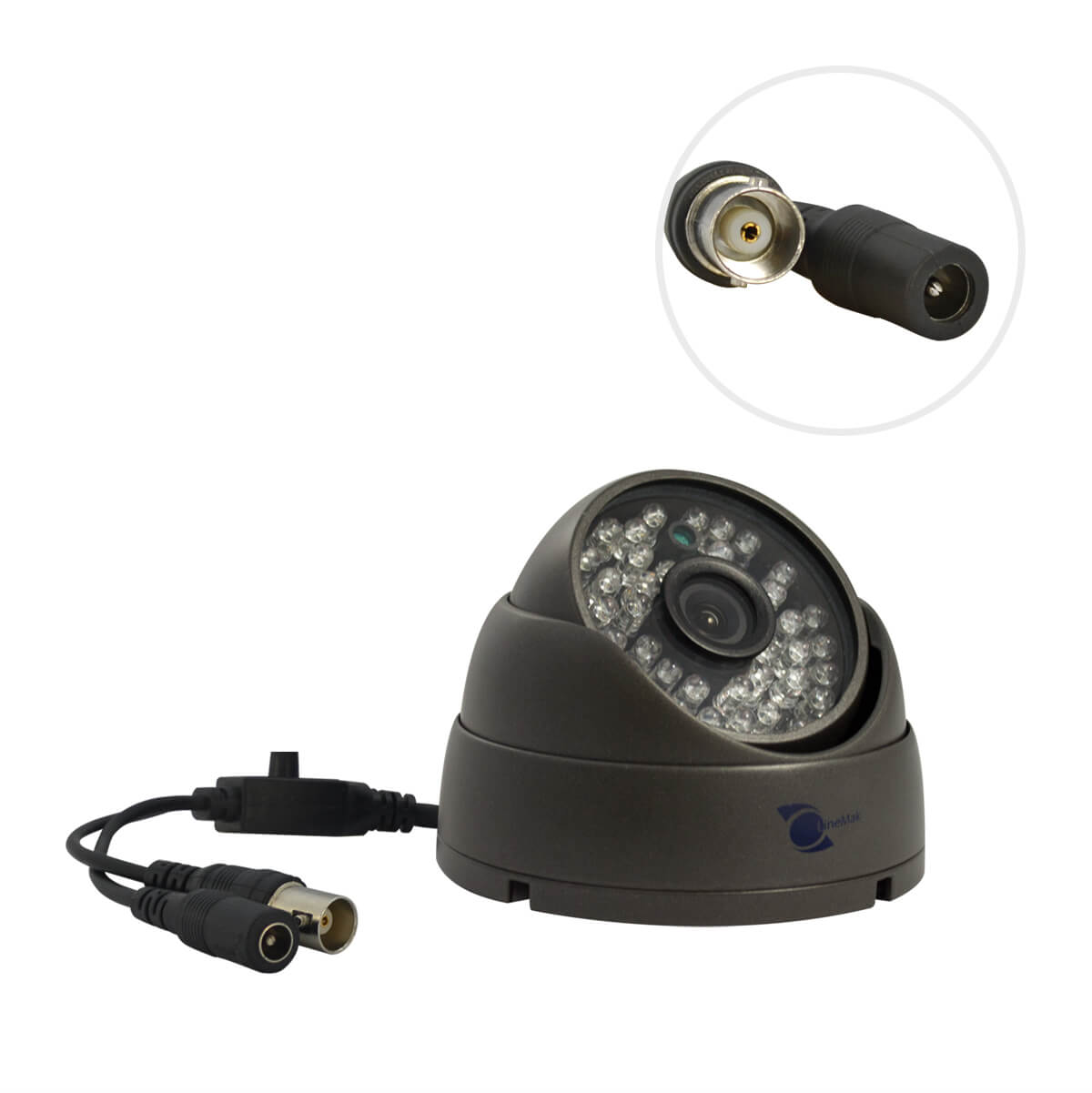

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 5

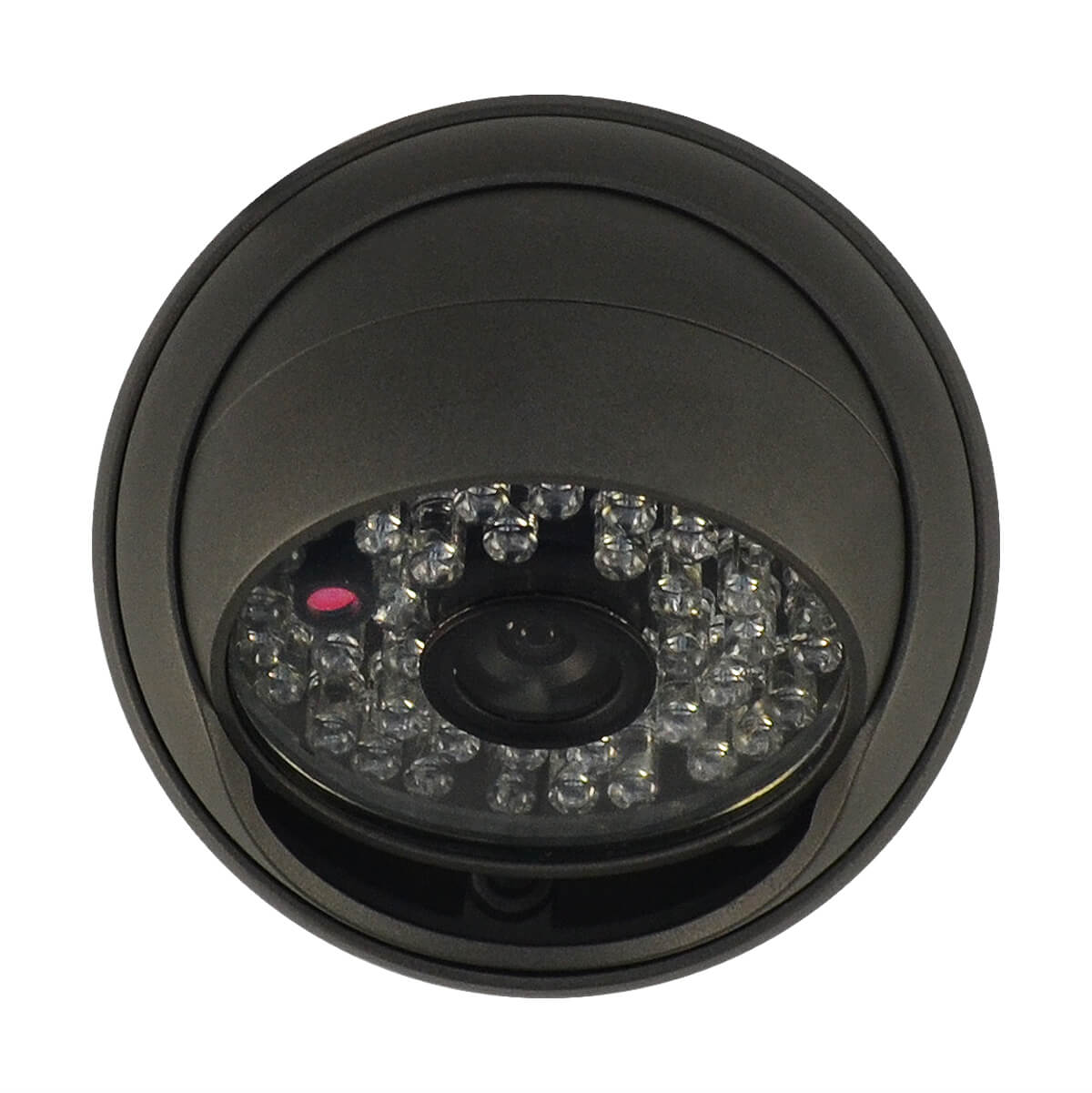

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 6

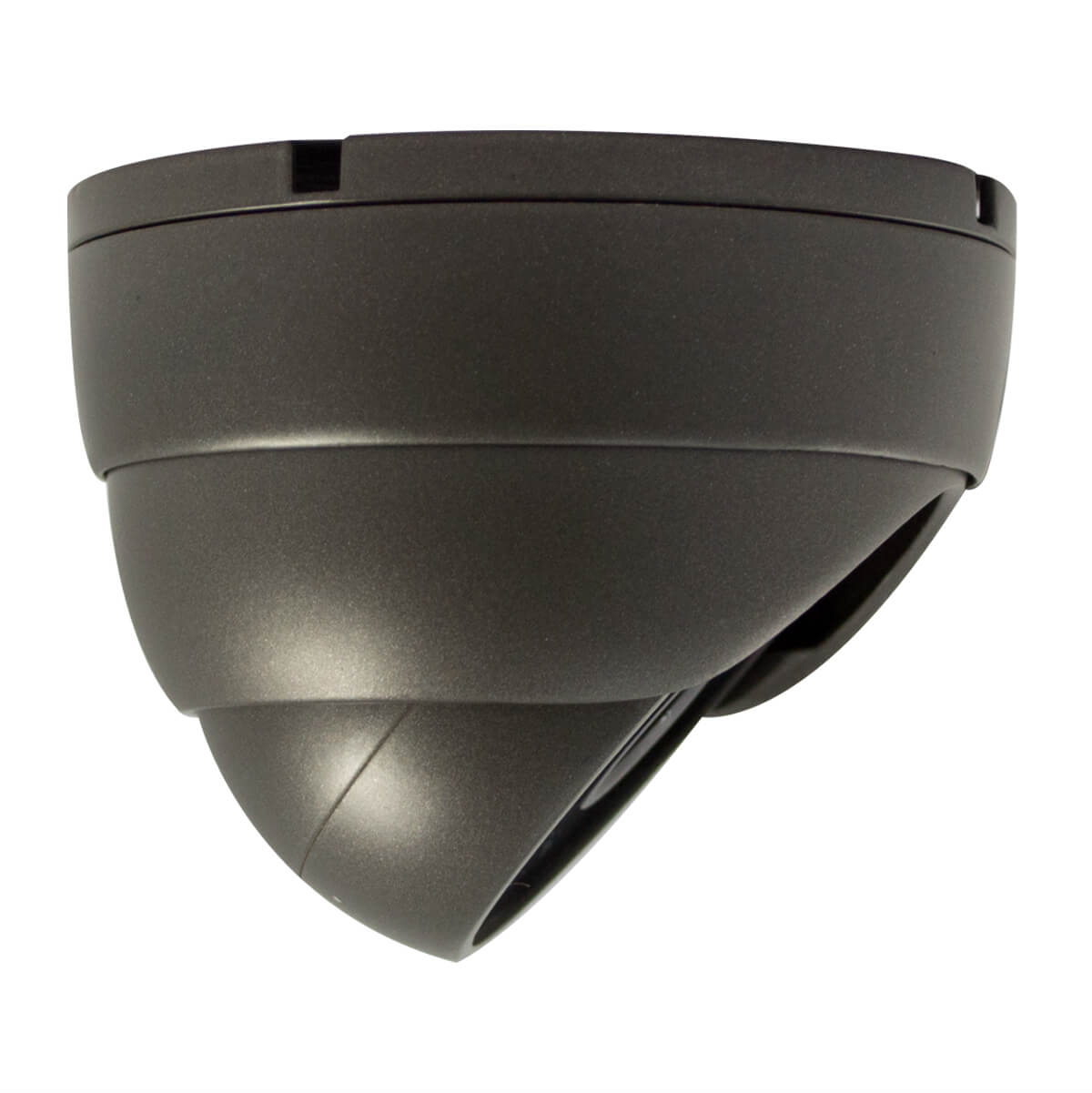

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 7

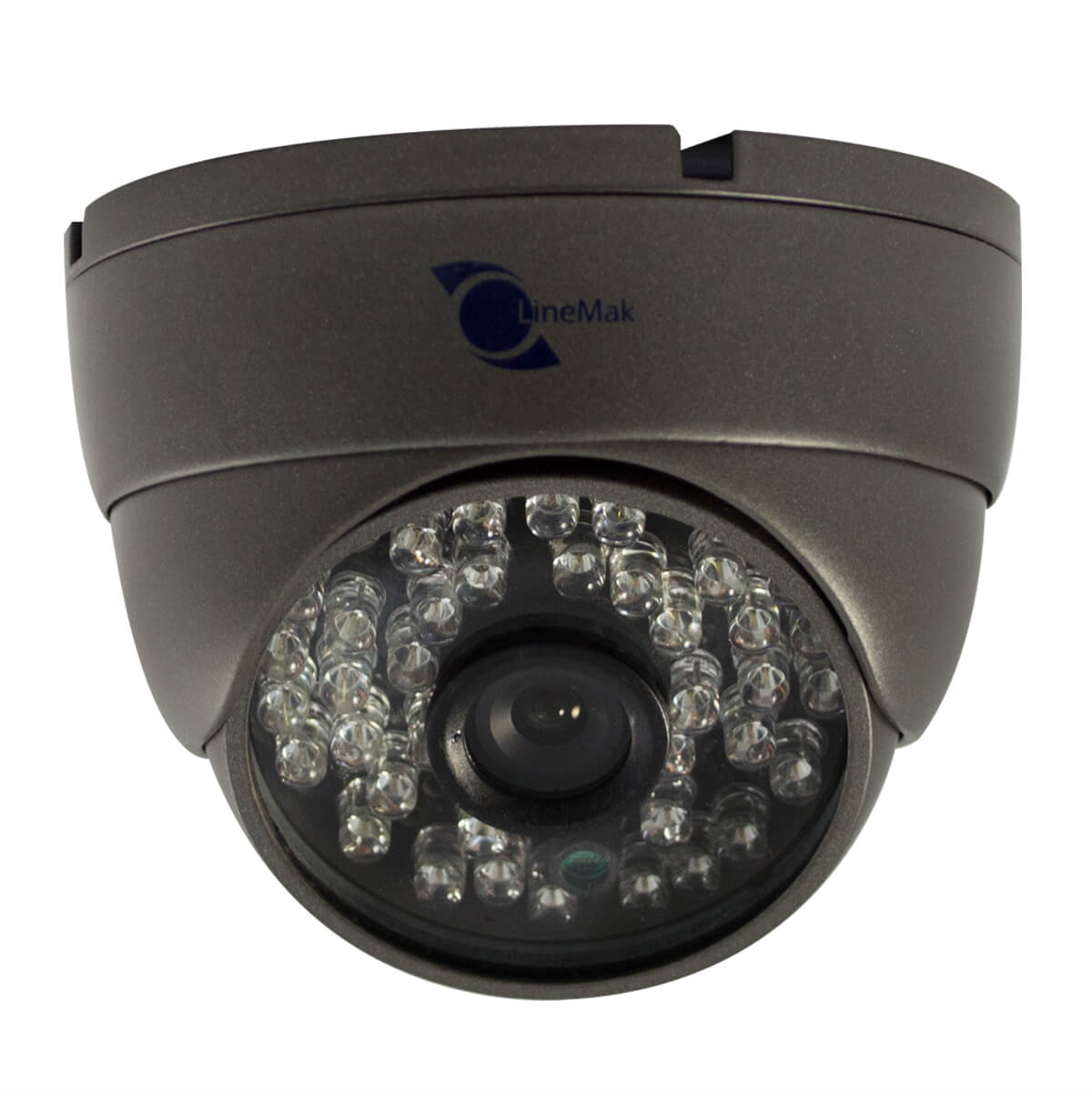

  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 8
  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 9
  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 10
  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66 - Image 11
  • - AES, AGC, AWB, BLC and mirror function.
  • - ATR, WDR, DNR and OSD menu.
  • - Waterproof: IP66.
  • - Power adapter not included.
  • - 1/3" SONY Effio-E CCD Sensor, 700TVL.
  • - 48pcs LEDs, 131ft IR distance.

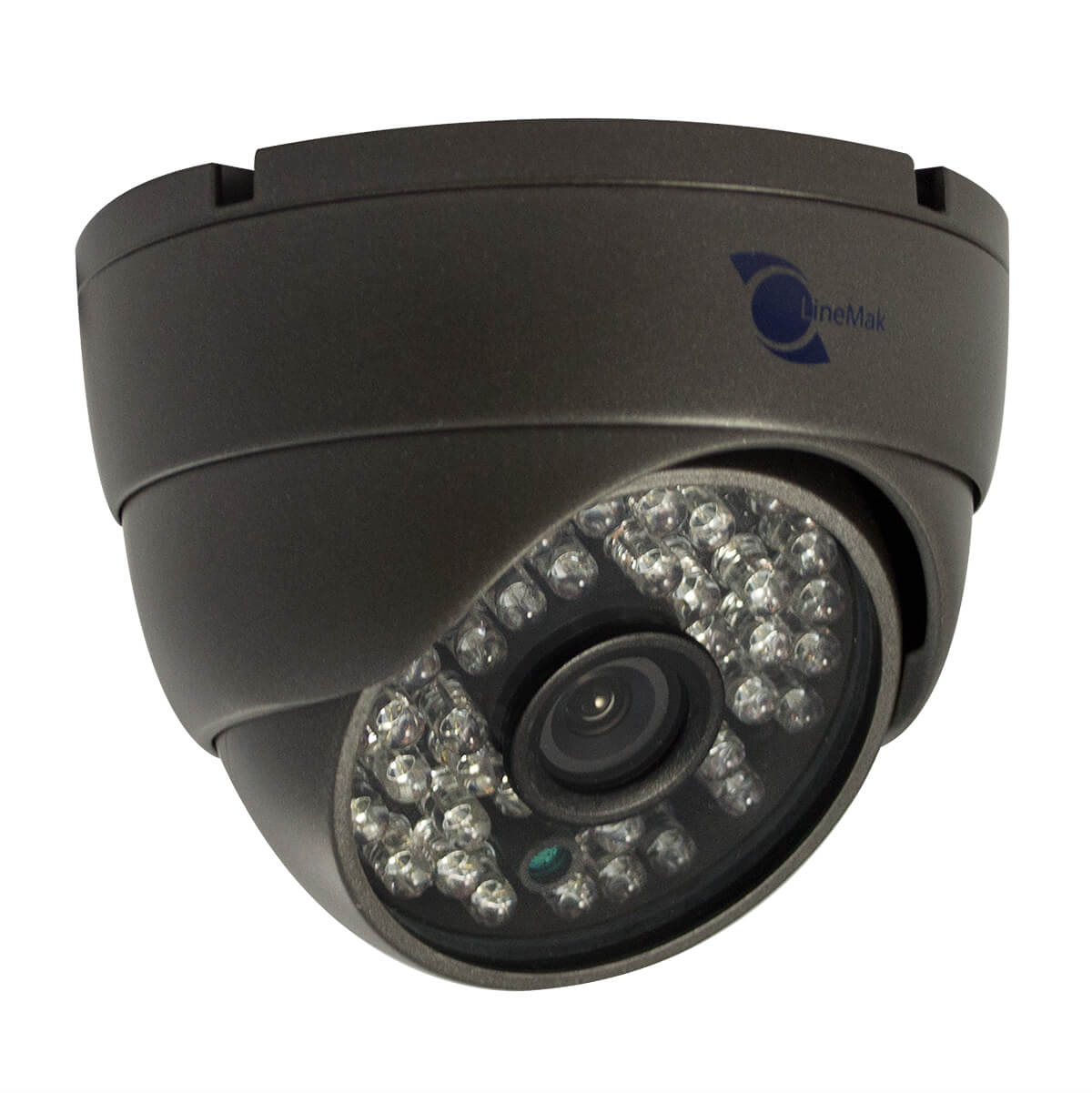

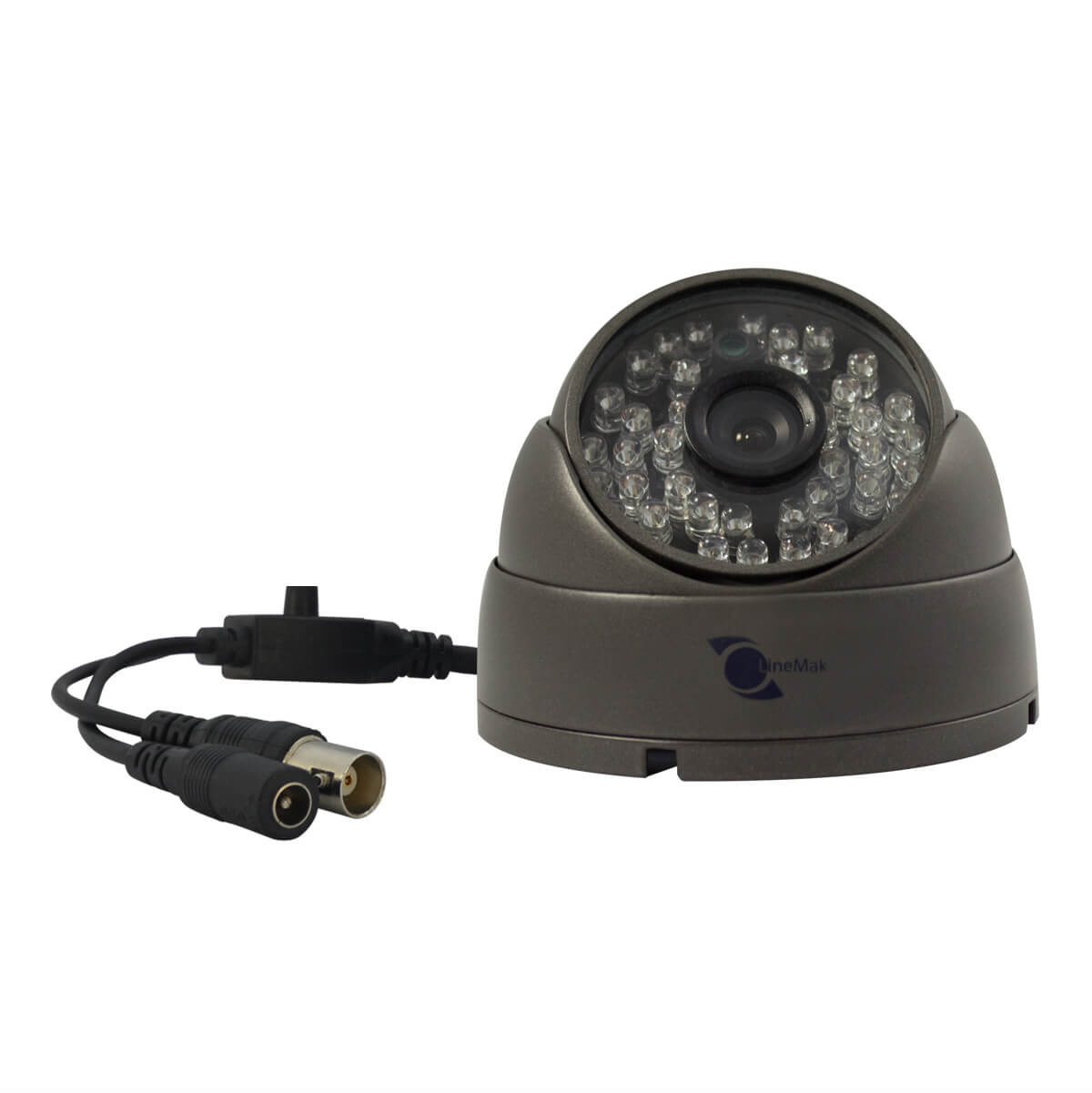

  • IR dome camera with a 6mm lens and a viewing angle of 53? which has a 131ft range of infrared night vision and a 48 pcs LEDs 5mm each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

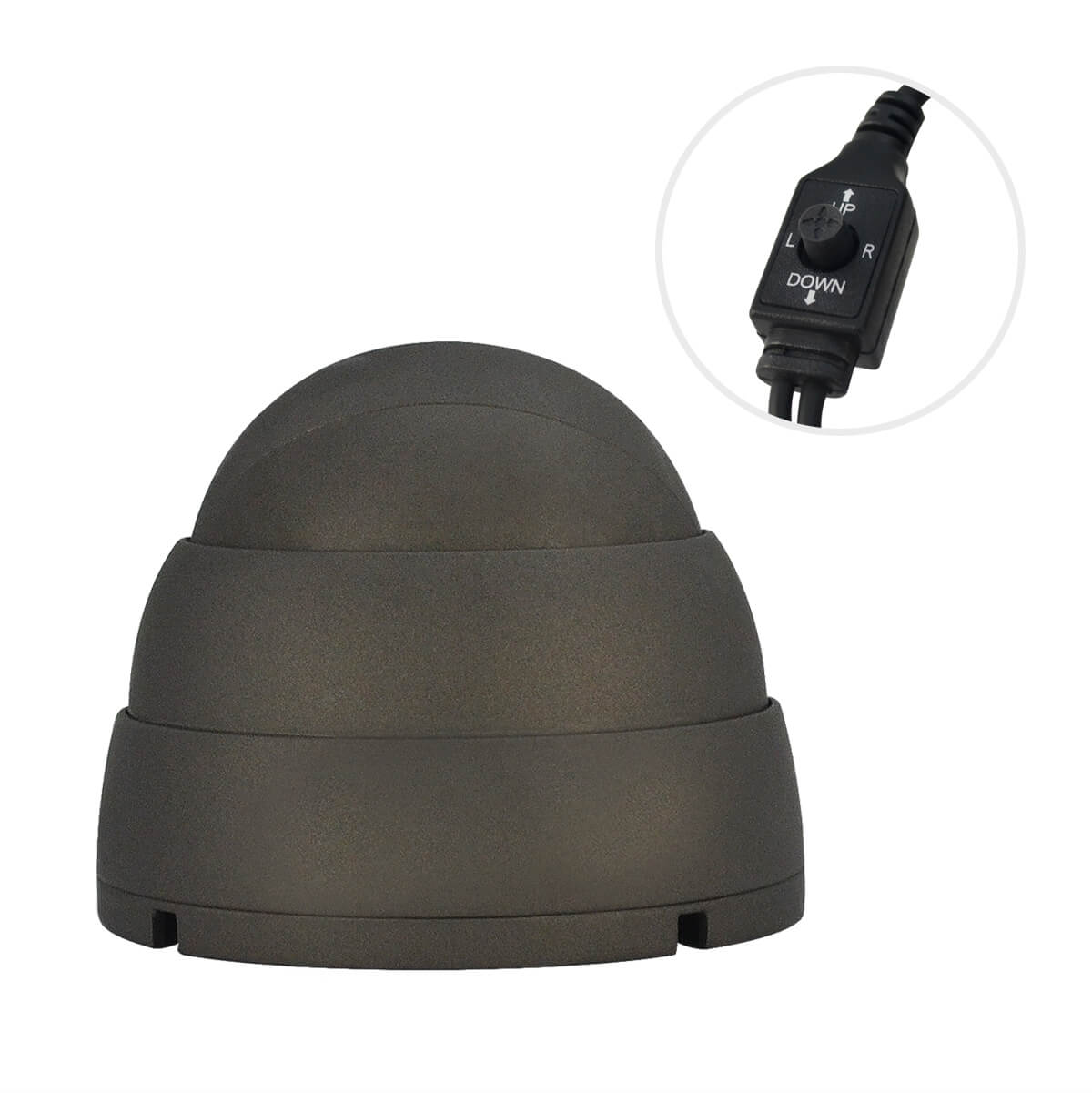

    OSD menu not included (control placed at the end of the cable).

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - IR dome camera.
    - 48pcs LEDs 5mm each.
    - 131ft IR distance.
    - 6mm Lens.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - ATR, DWDR, DNR and OSD menu.
    OSD Menu
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Digital Noise Reduction (DNR)
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    Wide Dynamic Range (WDR)
    Warranty: One (1) Year
  • IR Dome camera 1/3 SONY CCD 700TVL 6mm lens 48 LEDs 131ft IR IP66
    General
    Brand LineMak
    Model LS-CV164H
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY Effio-E CCD
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 6mm
    IR Range 131ft nigt vision
    LEDs 48pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LEDs on)
    Viewing angle 53°
    Environment
    Operation temperature -10°C ~ 50°C
    -4°F ~ 122°F
    Weatherproof standard IP66 (dustproof and waterproof)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Dark grey
    Size 3.15(H) * 3.54(D) inches
    Weight 10.23 ounces
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) Yes
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) Yes
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction >0.45
