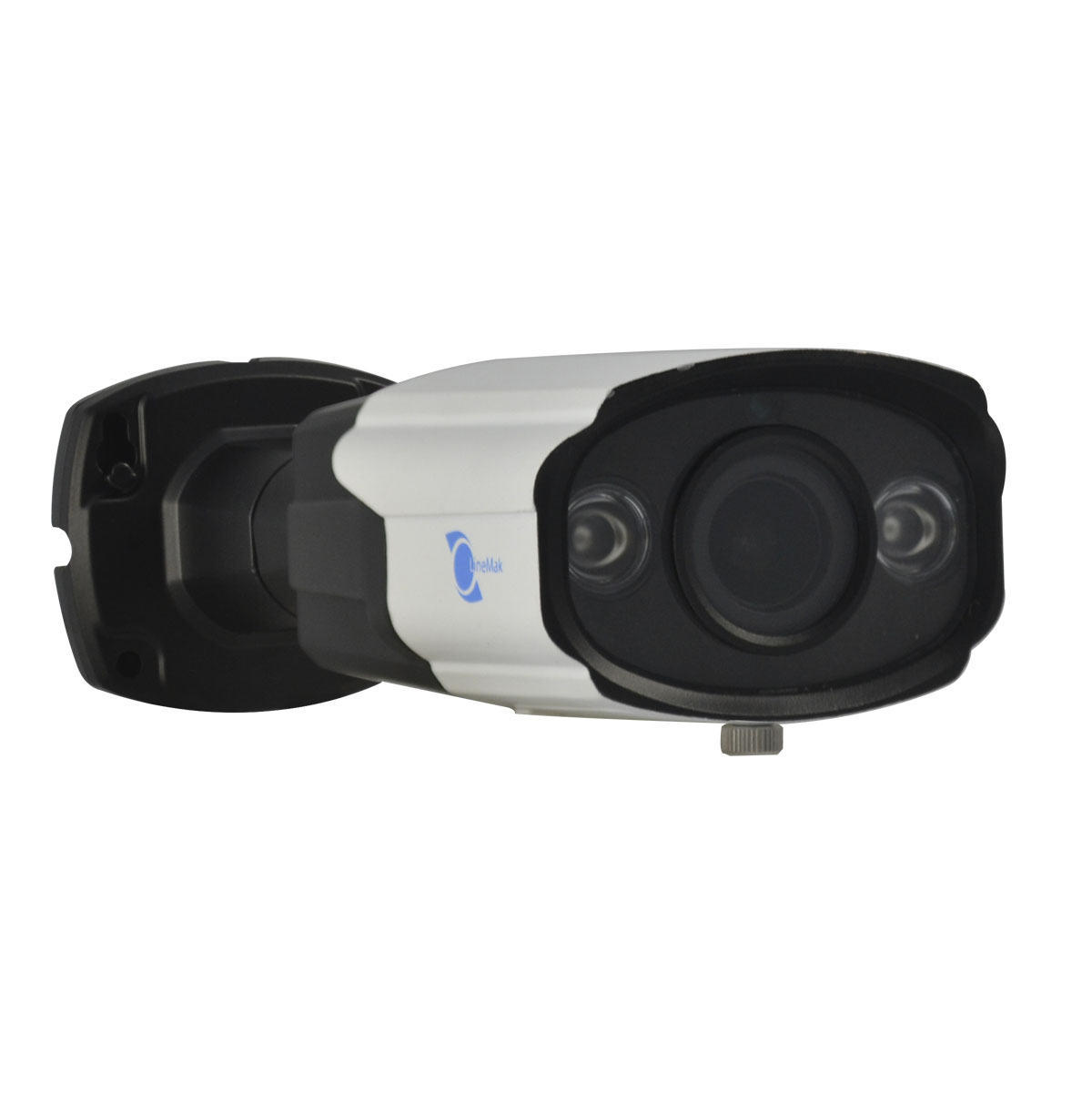

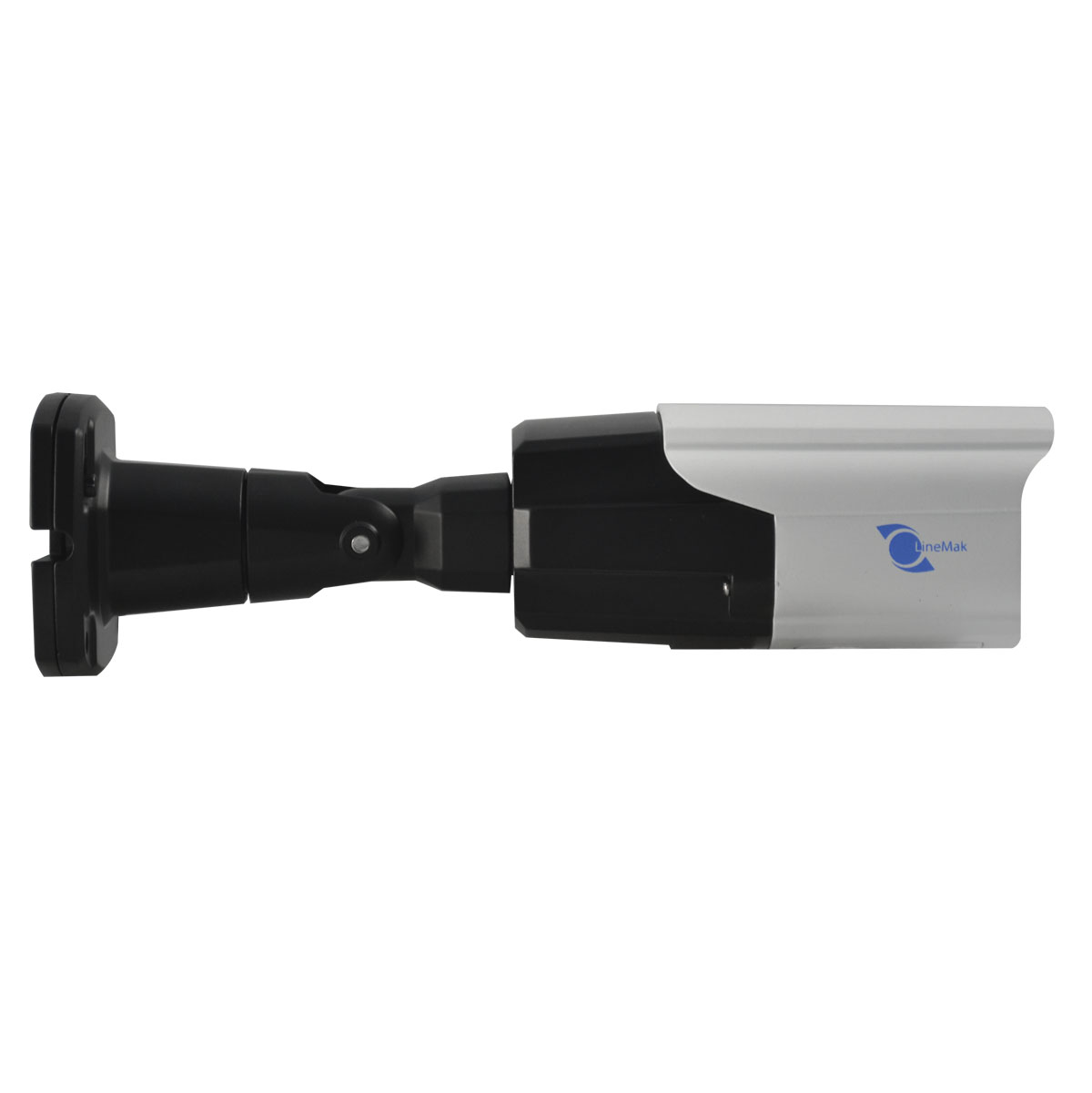

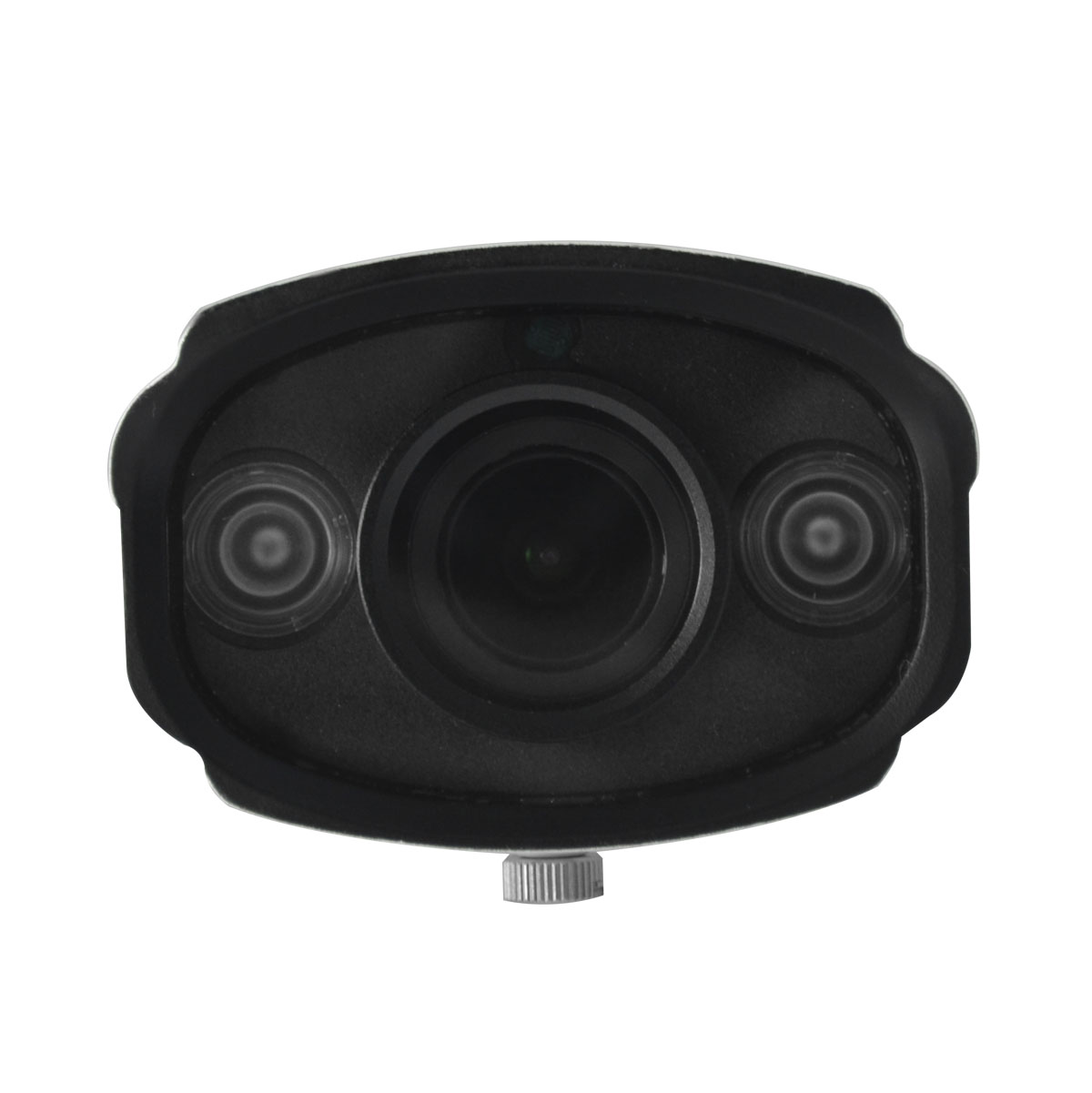

IR Bullet camera 1/3 CMOS Sensor 900TVL varifocal lens 2 LED Array, Outdoor Cameras

$55.99 $45.99

- 1/3" PC1099 CMOS Sensor, 900TVL.
- BLC and AGC functions.
- IR-CUT Filter.
- Power adapter not included.
- 2pcs Array LED. 98ft IR distance.
- Cable management bracket.

Product Features Specifications Download

IR waterproof bullet high-resolution camera with a 2.8-12mm lens and a viewing angle of 115Â° ~ 25Â° which has a 98ft range of infrared night vision and 2pcs LEDs array.
Top of the line equipment regarding sensor and driver.

This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

Hinged base included.

Power adapter not included.
This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

Main features:
- 1/3" PC1099 CMOS Sensor.
- 800TVL.
- IR-CUT Filter.
- 2.8-12mm varifocal lens.
- 98ft IR night vision. 2pcs LED Array.
- Cable Management Bracket.
- BLC support function: suitable for objects monitoring under backlight environment.
- AES support function: adapt to different monitoring environment.
- AGC support function: adaptive brightness.

IR illumination gives your cameras night vision

IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.

Varifocal

Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.

True Day/Night for round-the-clock surveillance

Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.

LED array

The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.

Back Light Compensation (BLC)

In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.

Automatic Gain Control (AGC)

Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.

Automatic Electronic Shutter (AES)

To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.

Waterproof

Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.

Vandalproof

The vandal-proof provides robust protection from vandalism. If the camera has integrated housing shields from dust and water, it will be allowed to be applied in the harsh weather conditions of outdoor environments as well. A vandal-proof camera is a camera and housing intended to resist vandalism, making sure the camera will continue to operate in conditions where people attempt to break it or impair its function.

Warranty: One (1) Year

IR Bullet camera 1/3 CMOS Sensor 900TVL varifocal lens 2 LED Array
General
Brand	LineMak
Model	LS-A831D-1099
Sensor
Resolution	900TVL
Sensor	1/3" CMOS PC1099 Image
Effective pixels	PAL: 976582 NTSC:* 976*494
Video
Video format	PAL / NTSC
Video output	1.0Vp-p, 75ohm (BNC connector)
Scanning Area	4.9mm*3.7mm
Lens
Lens	2.8-12mm varifocal lens
IR Range	98ft night vision
LEDs	2 LEDs Array
IR-CUT Filter	Yes
Minimum illumination	0 Lux (with LED on)
Viewing angle	25Â° ~ 115Â°
Environment
Operation temperature	-10ÂºC ~ 50ÂºC 14Â°F ~ 122Â°F
Power
Power supply	DC 12V
Power consumption	30mA (Max 250mA)
Appearance
Color	White
Size	10.63(L) * 2.76(H) * 3.35(W) inches
Weight	1.37 pounds
Material	Aluminum
Special function
Back Light Compensation (BLC)	Included
Electronic shutter speed (AES)	PAL: 1/50s ~ 1/10,000s NTSC: 1/60s ~ 1/10,000s
Auto Gain Control (AGC)	Included
Standard
Synchronizing system	Internal
S/N Ratio	>50dB
Gamma correction	0.45
