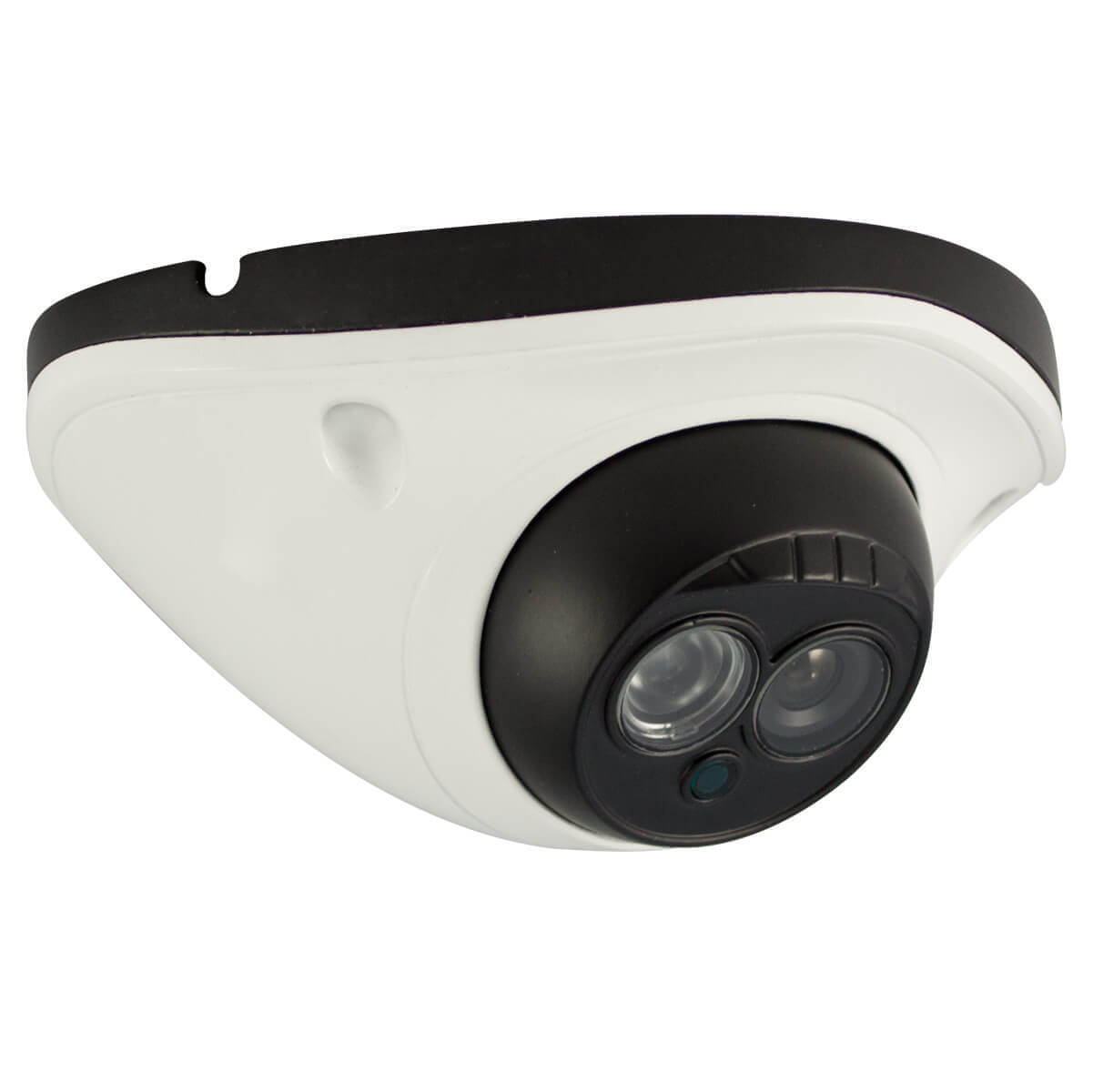

IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 1
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 2
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 3
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 4
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 5
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 6
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 7
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR - Image 8
  • - 1/3" CMOS Image Sensor, 900TVL.
  • - BLC and AGC function.
  • - 49ft night vision, 1 LED Array.
  • - Power adapter not included.
  • - 3.6mm lens.
  • - 92° Viewing angle.
Products recommendaded to work with this item:
ir dome camera 1/3 cmos sensor 900tvl 3.6mm lens 1 led array 49ft ir
+
1 channel passive video balun 1082ft, contains 6 pairs 12 pcs
+
dc12v 2a power adapter specially for security cameras
Price for all 3: $66.97
  • High-resolution IR camera with a 3.6mm fixed lens and a viewing angle of 92° which has a 49ft of IR night vision. Available in white.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Recommendations:
    - Power camera by using an individual power source.
    - Never point the camera towards the sun.
    - Do not operate camera beyond its temperature, humidity or power source ratings.

    Power adapter not included:
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    LED array
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    Warranty: One (1) Year
  • IR Dome Camera 1/3 CMOS Sensor 900TVL 3.6mm lens 1 LED Array 49ft IR
    General
    Brand LineMak
    Model LS-618D-1099
    Sensor
    Resolution 900TVL
    Sensor 1/3" CMOS Image
    Effective pixels PAL: 976*582
    NTSC:976*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC Connector)
    Lens
    Lens 3.6mm
    IR Range 49ft night vision
    LEDs 1 LED Array
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 92°
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 30mA (LED on Max 250mA)
    Appearance
    Color White
    Size 2.76(H) * 4.72(D) inches
    Weight 10.58 ounces
    Material Aluminum
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) PAL: 1/50~1/10,000s
    NTSC: 1/60~1/10,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Adaptive Tone Reproduction (ATR) No
    Mirror No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
    Gamma correction 0.45
  • Instrucción
    File Size: 354.44 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 344.99 Kb
    Languages: English
    File Type: PDF
