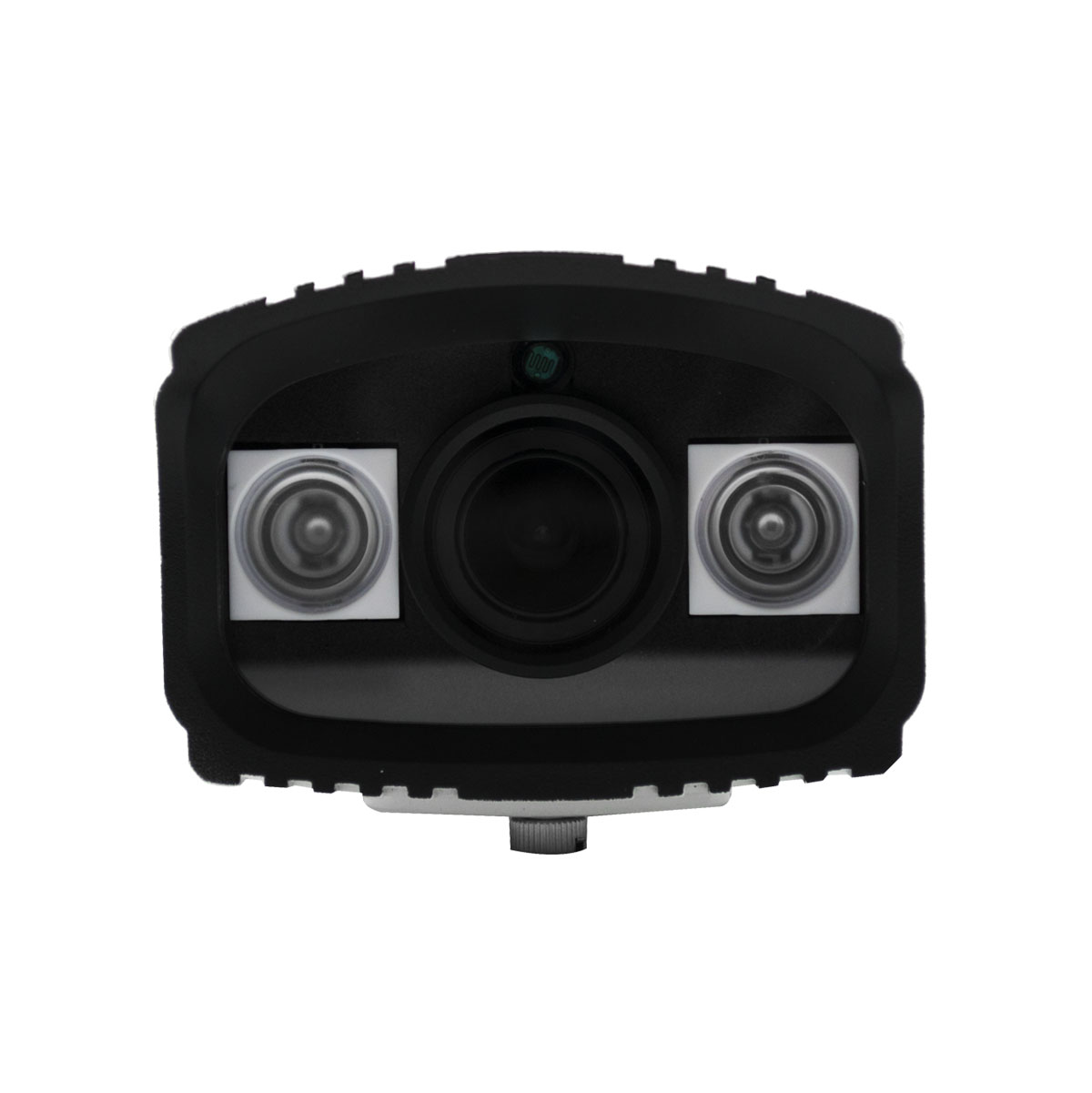

Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 2 LED Array 196ft IR
  • Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 2 LED Array 196ft IR - Image 1
  • Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 2 LED Array 196ft IR - Image 2
  • Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 2 LED Array 196ft IR - Image 3
  • - 1/3" SONY Exmor CMOS Sensor, 1200TVL.
  • - 2pcs Array LED, 196ft IR distance.
  • - D/N (IR CUT), OSD menu. Cable management bracket.
  • - Power adapter not included.
  • - 2.8~12mm varifocal lens.
  • - 25°~115° viewing angle
  • IR waterproof high-resolution bullet camera with a 2.8-12mm varifocal lens, a viewing angle of 115° ~ 25° which has a 196ft range of infrared night vision and has 2 pieces LEDs array.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - 1/3" SONY Exmor CMOS Sensor.
    - 1200TVL.
    - IR-CUT Filter
    - OSD menu.
    - 2.8~12mm varifocal lens.
    - IR 196ft. 2pcs Array LED.
    - Cable management bracket.
    - AES support function: adapt to different monitoring environment.
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    OSD Menu
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    LED array
    Waterproof
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Warranty: One (1) Year
  • Bullet camera 1/3 SONY CMOS 1200TVL 2.8-12mm lens 2 LED Array 196ft IR
    General
    Brand LineMak
    Model LS-861SH
    Sensor
    Resolution 1200TVL
    Sensor 1/3" SONY Exmor CMOS
    Effective pixels 1280*960
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC connector)
    Scanning Area 4.9mm*3.7mm
    Lens
    Lens 2.8mm~12mm varifocal
    IR Range 196ft night vision
    LEDs 2pcs LED Array
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    Environment
    Operation temperature -10°C ~ 50°C
    4ºF ~ 122ºF
    Power
    Power supply DC 12V
    Power consumption 100mA (Max 600mA)
    Appearance
    Color White
    Size 7.88(L) * 4.73(H) * 2.76(W) inches
    Weight 1.91 pounds
    Material Aluminum alloy
    Special function
    Back Light Compensation (BLC) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100000s
    NTSC: 1/60s ~ 1/100000s
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
    OSD Menu Included
  • Instrucción
    File Size: 502.5 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 436.83 Kb
    Languages: English
    File Type: PDF
