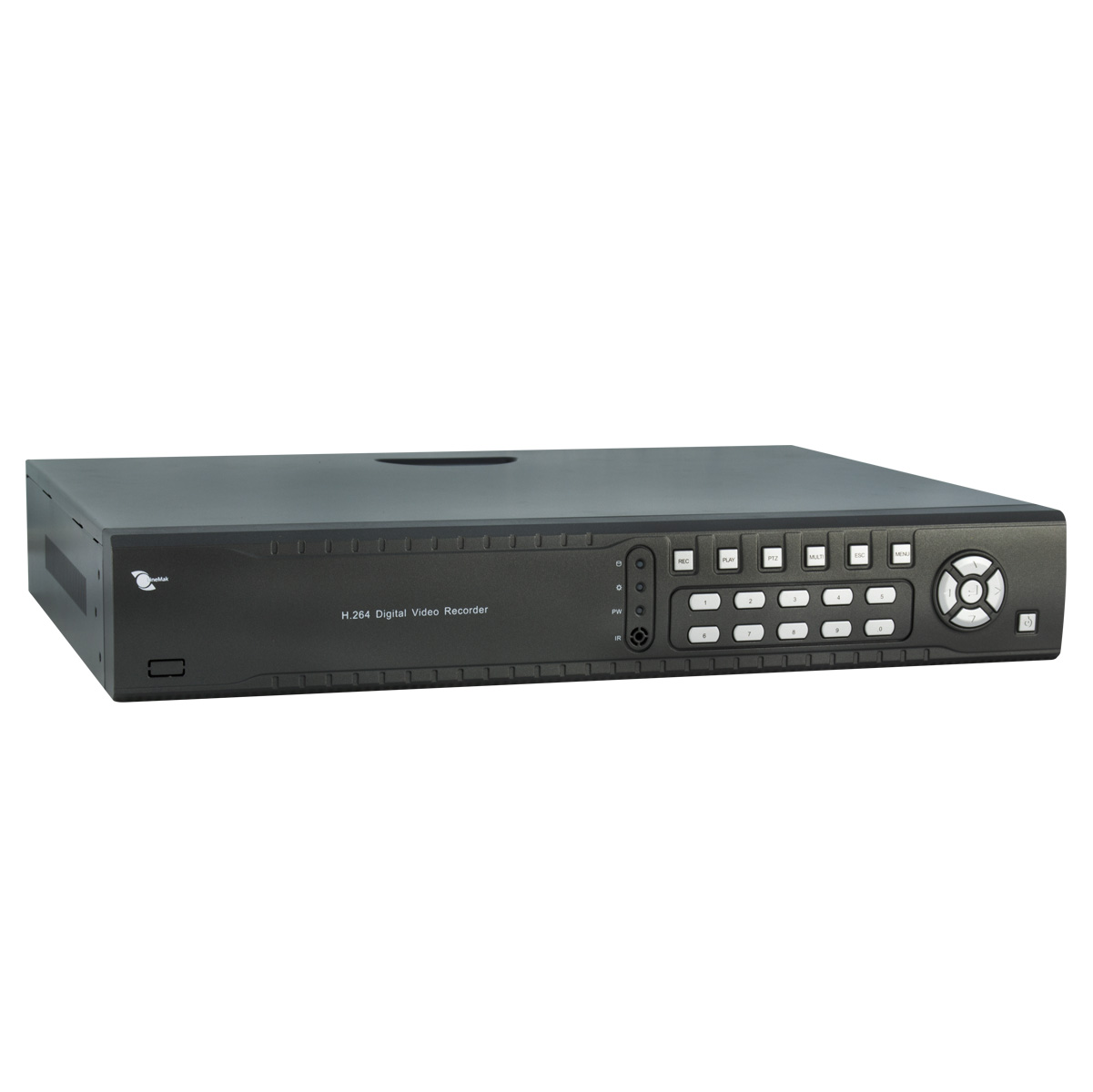

16Ch NVR, H264, VGA/HDMI output, Pentaplex function, ONVIF/RTSP
  • 16Ch NVR, H264, VGA/HDMI output, Pentaplex function, ONVIF/RTSP - Image 1
  • - 1080P / 960P / 720P HD Recording support.
  • - Support mobile surveillance.
  • - Wi-Fi module sold separetly.
  • - Hard drive not included.
  • - It supports IP cameras with ONVIF 2.0 or NET-IP protocol.
  • - Free DDNS / P2P.
Products recommendaded to work with this item:
16ch nvr, h264, vga/hdmi output, pentaplex function, onvif/rtsp
ip dome camera, 1.0mp/720p, 3.6mm hd lens, 30pcs leds, 33fts~49fts ir
ip bullet camera 1.3mp/1080p 2.812mm varifocal lens 42 leds ir
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $476.96

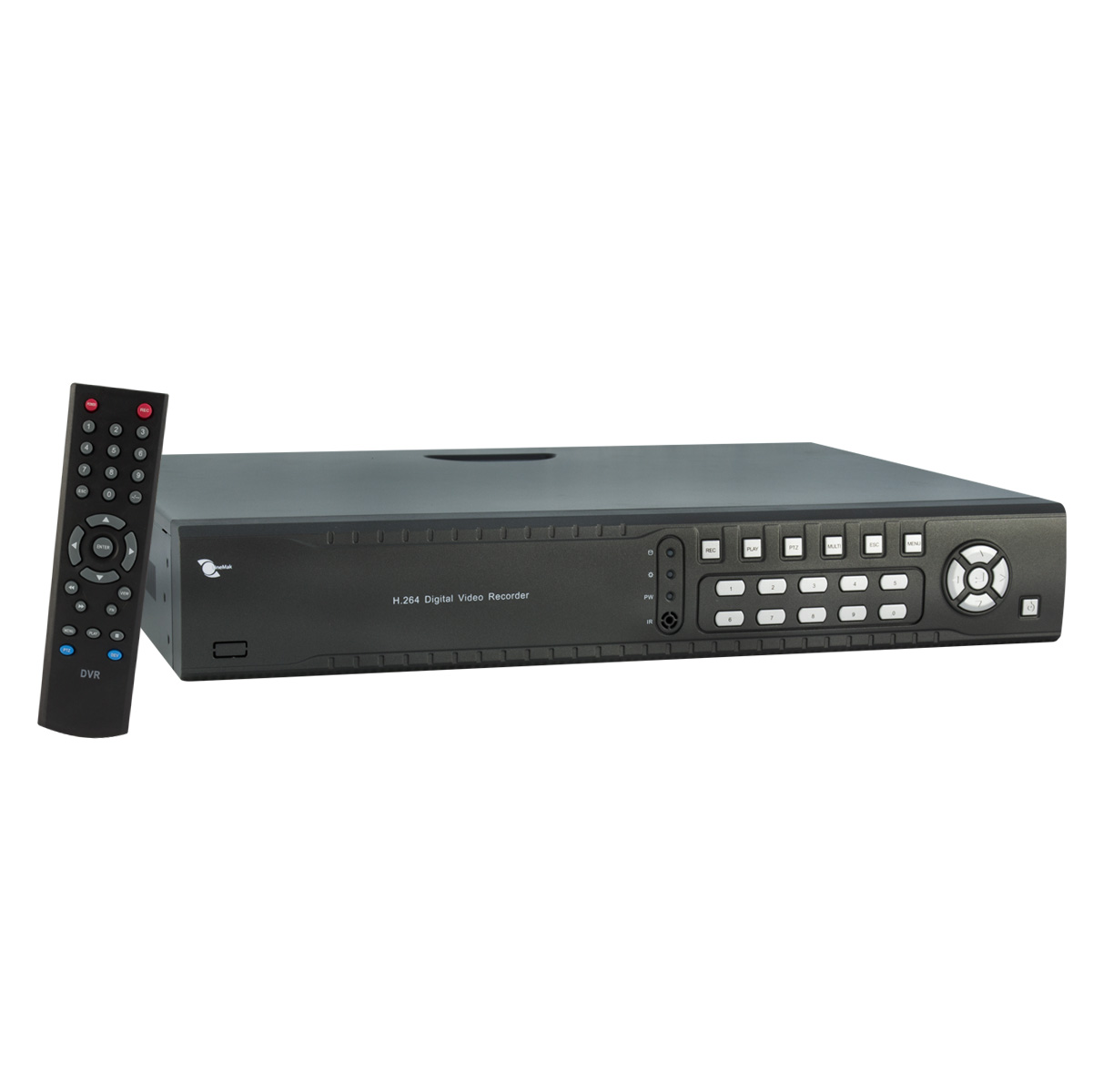

  • This NVR (hard disk recording) is very easy to use and features an English menu and motion detection recording. Monitor your cameras anywhere online through any computer or 3G mobile smartphone (BlackBerry, iPhone, Android) devices in real time. Also, it includes a mouse and remote control.

    It has both VGA and HDMI video outputs, and option to record on the motion detection option.

    Multiple recording mode: alarm, auto, motion detection, manual recording.

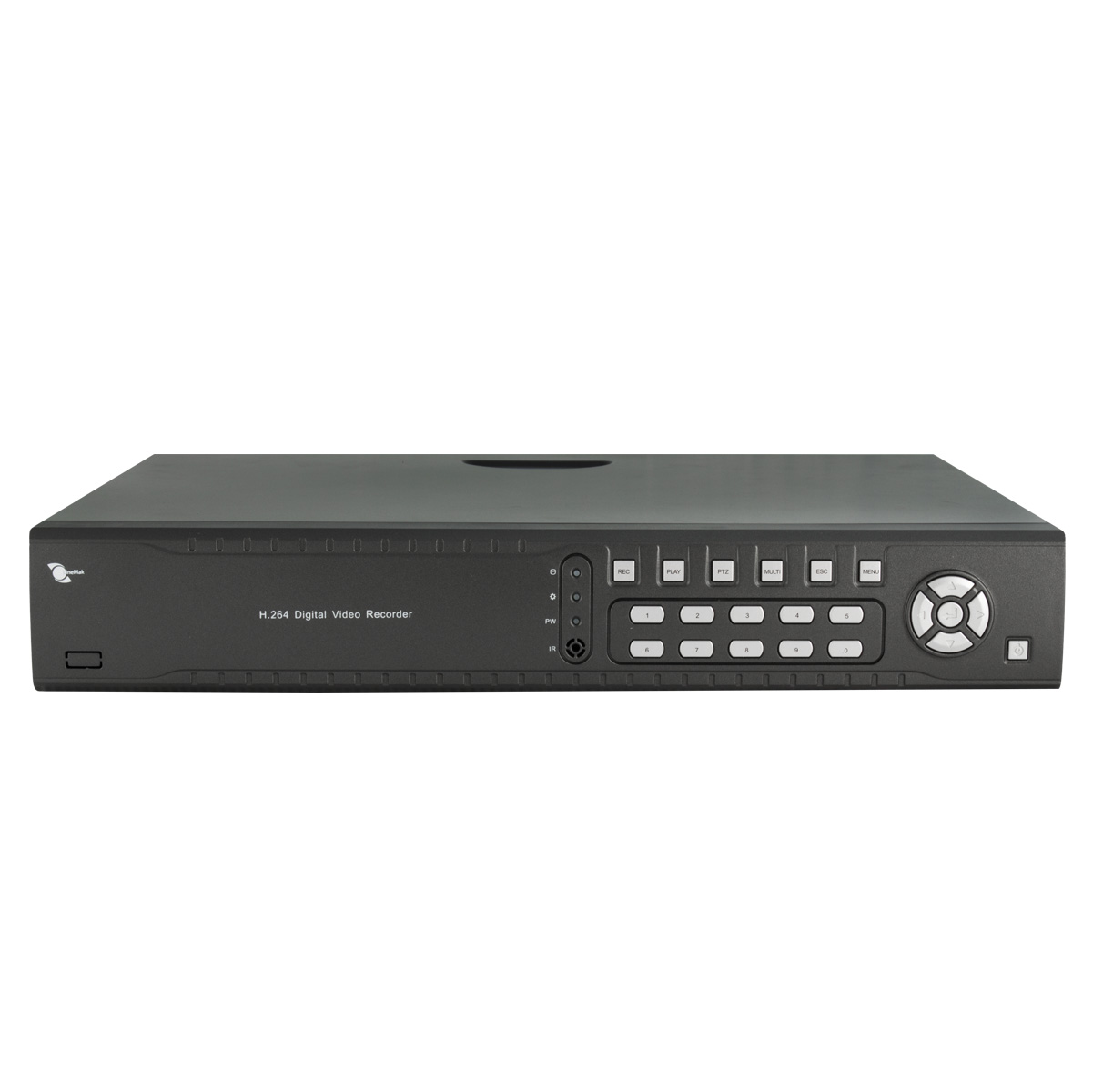

    Multiple control mode: USB mouse, front panel, network controller and remote control.
    Compatible with: WINXP, WIN2000, WIN7.

    Main Features:
    - 1080P/960P/720P HD recording support.
    - VGA and HDMI simultaneous output, the best resolution up to 1920-1080.
    - ONVIF protocol support.
    - Free DDNS (no DDNS setting needed).
    - Supported with remote view by mobile phone (Eseenet for iPhone and Android).

    Wi-Fi adapter needed (sold separetly).

    Hard drive not included.

    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Free iOS/Android App allows easy remote viewing
    Enjoy convenient remote access from your iOS or Android mobile device with a FREE downloadable app. You can monitor your security system from anywhere at any time.
    Free iOS/Android App allows easy remote viewing
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    A device called a wireless transmitter receives information from the internet via your broadband connection. The transmitter converts the information into a radio signal and sends it. Wireless for home security systems also act as a visible deterrent to criminals that allow you to record events at home and/or monitor staff at work.
    Full HD sets
    Be able to handle High Definition signal of 1080 lines of information across the screen with Full HD. Since Full HD is only a marketing term, it does not indicate any particular qualities besides 1080p. 1080p televisions have a resolution of 1920×1080 and are progressive scan, which means all lines of each frame of video are drawn on the set.
    Full HD sets
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Remote monitoring Surveillance
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 16Ch NVR, H264, VGA/HDMI output, Pentaplex function, ONVIF/RTSP
    Brand LineMak
    Model LS-N9316-S4
    Operating system Embedded Linux
    System resources Pentaplex Function (Recording, Playback, Backup, Remote view, Mobile view)
    Display area 1/4/9/16
    Resolution 1080P(1920*1080), 960P(1280*960), 720P(1280*720)
    Display quality 1080P(1920*1080), 960P(1280*960), 720P(1280*720)
    Frame rate PAL: 25fps
    NTSC: 30fps
    Video recording 16-Ch 1080P/960P/720P
    Streams Dual Stream
    Recording & Playback
    Recording mode Alarm, auto, motion detection, manual recording
    Local playback 1-Ch 1080P
    4-Ch 960P/720P
    Storage & Backup
    Recording storage Internet, Hard disk
    Backup mode USB disk, Hard drive, mobile, Internet.
    Video input/output Input:
    1) 16×(1280*720) sub[640*480] 16Play 16-CH*1.0Mp IP Camera
    2) 16×(1280*960) sub[640*480] 16Play 16-CH*1.3Mp IP Camera
    3) 16×(1920*1080) sub[640*480] 16Play 16-CH*2.0Mp IP Camera

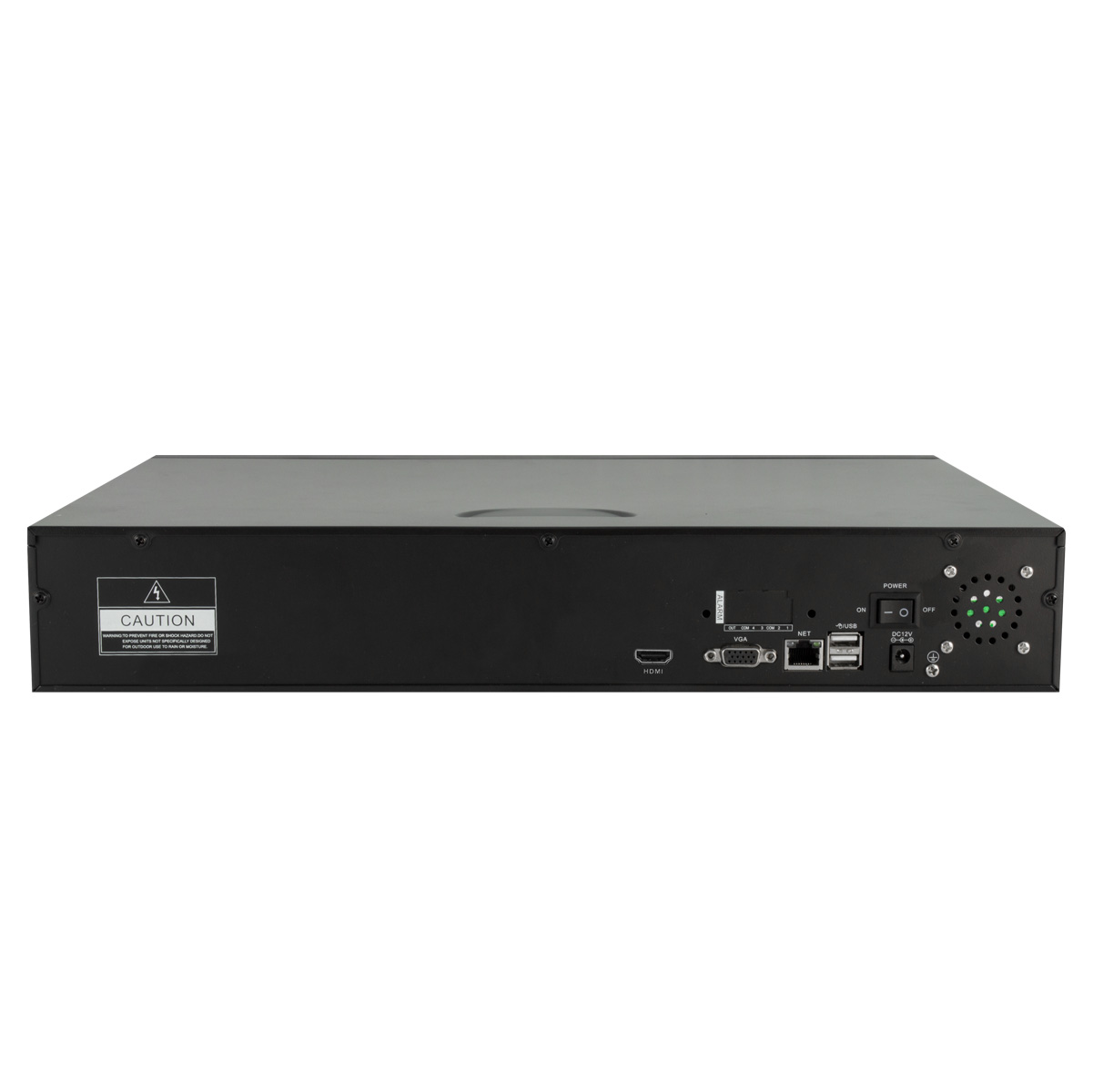

    1-Ch VGA (1280*1024) / 1-Ch HDMI (1920*1080)
    PTZ Control 1 RS485 port
    USB Port 2 USB 2.0 ports
    HDD Port 2 SATA HDDs port (up to 4TB each)
    Wireless port 3G and Wifi (Wifi adapter needed, sold separately)
    Network interface 1 RJ45 10M/100M Base-T port (self-adaptive Ethernet port). Digital and Power transmission through one cable.
    Network protocol ONVIF
    Mobile surveillance iOS and Android
    Password protection Yes
    Operation temperature -10ºC ~ 55ºC
    14ºF ~ 131ºF
    Working humidity >90%

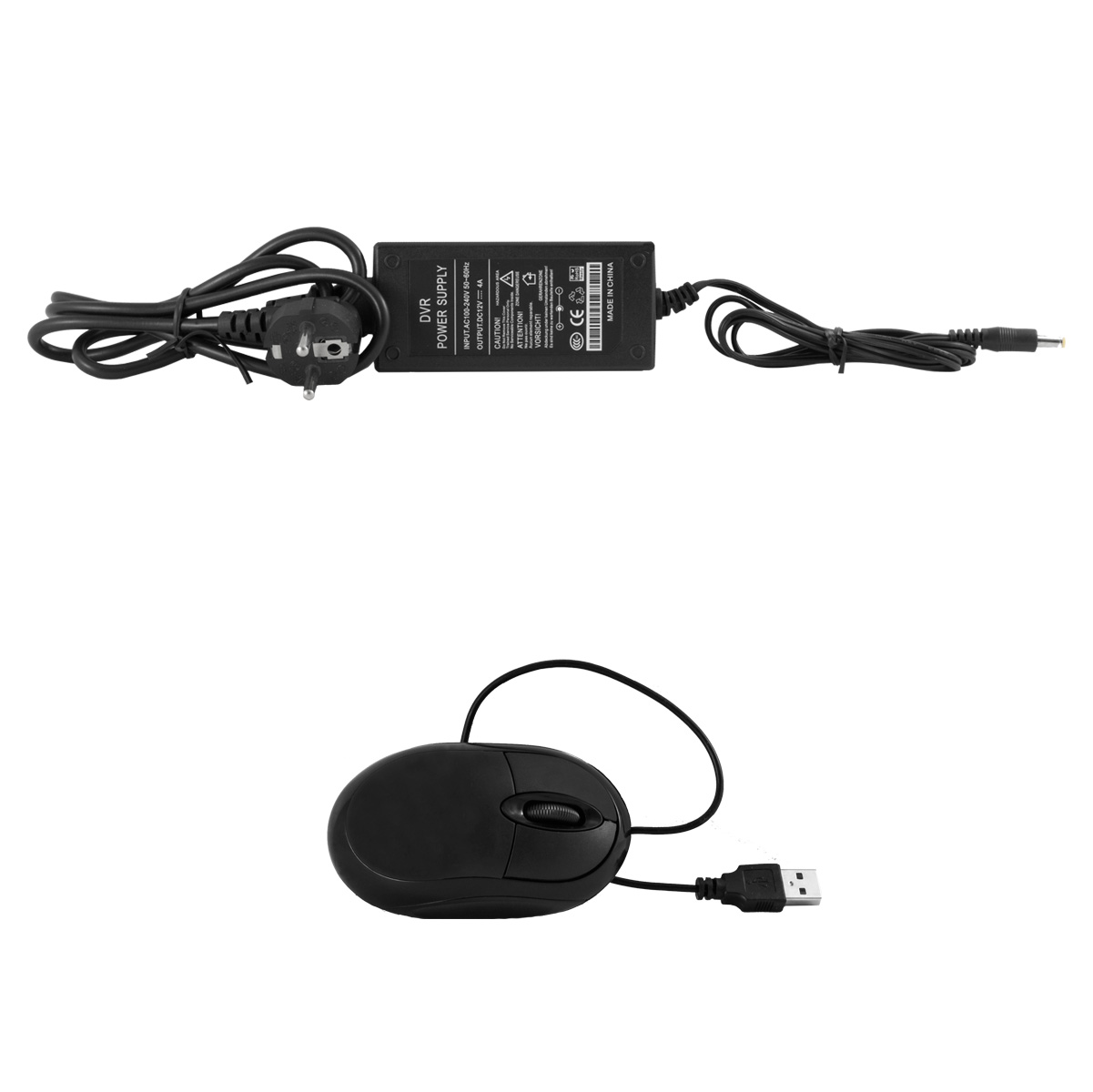

    Power supply DC12V 4A
    Power consumption <20W (Not including HDD)
    Color Dark grey
    Size 13(L) * 2.37(H) * 16.93(W) inches
    Weight 5.9 pounds
    Remote control Yes
    Mouse Yes
