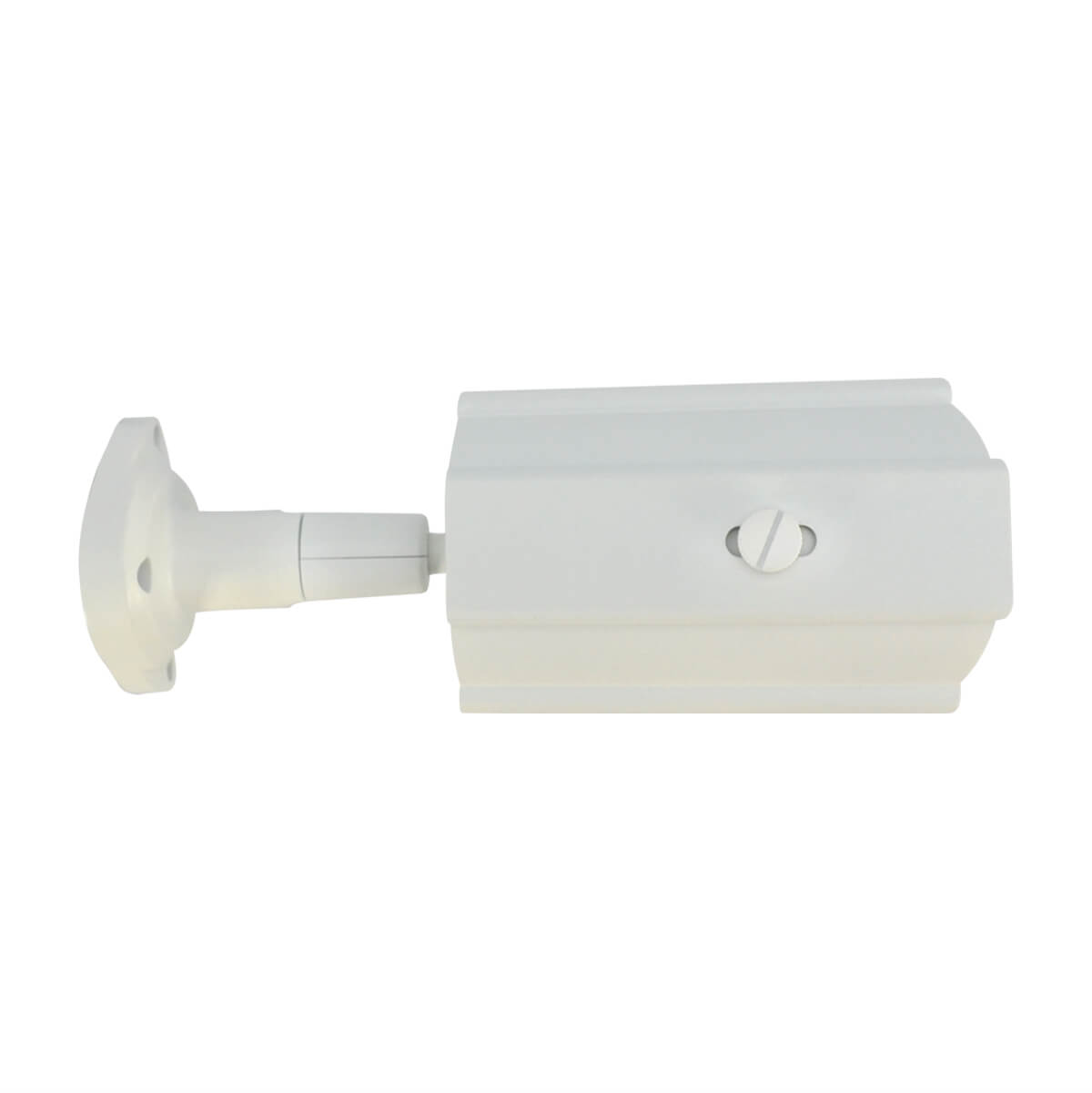

IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66

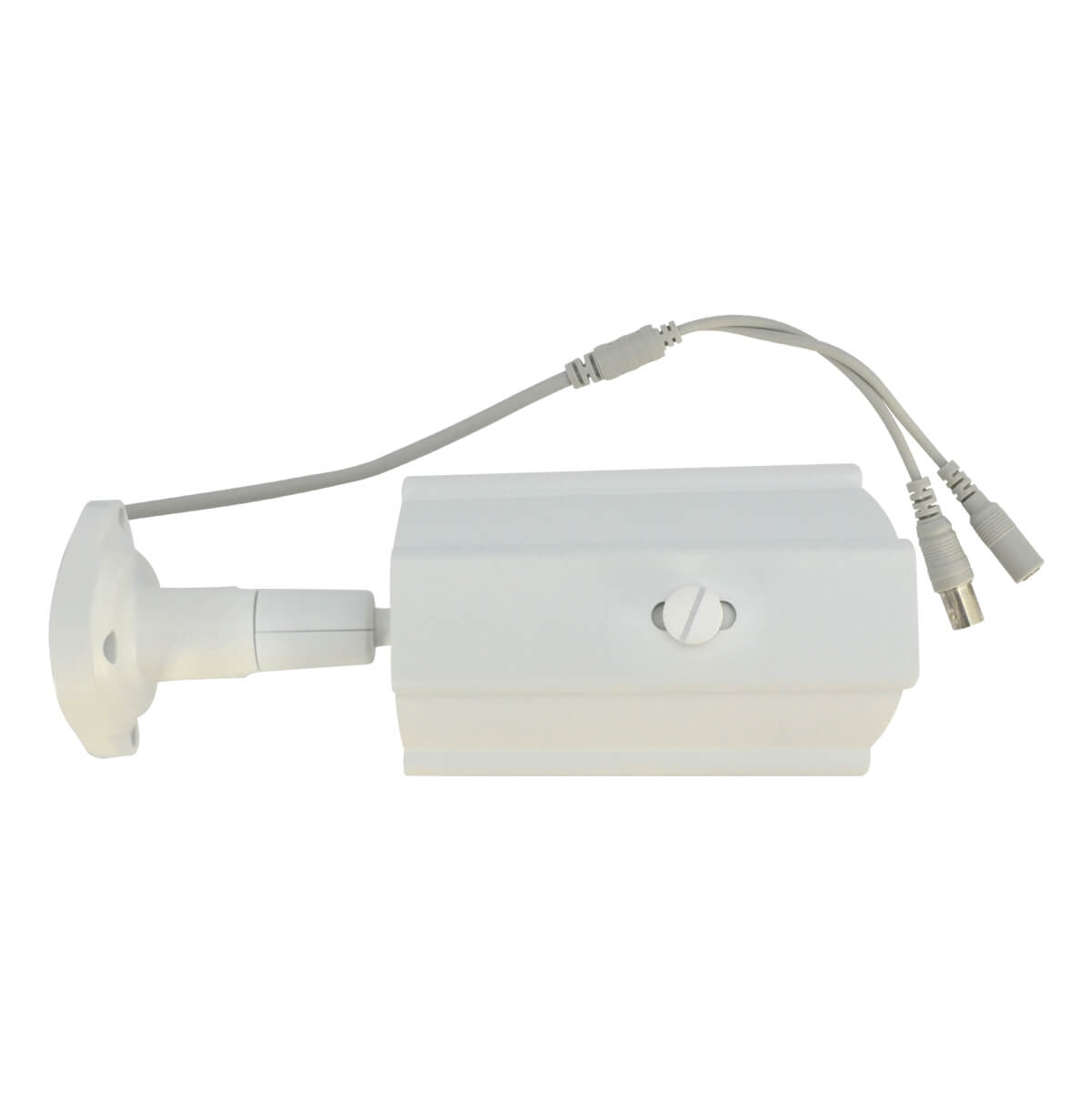

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 1

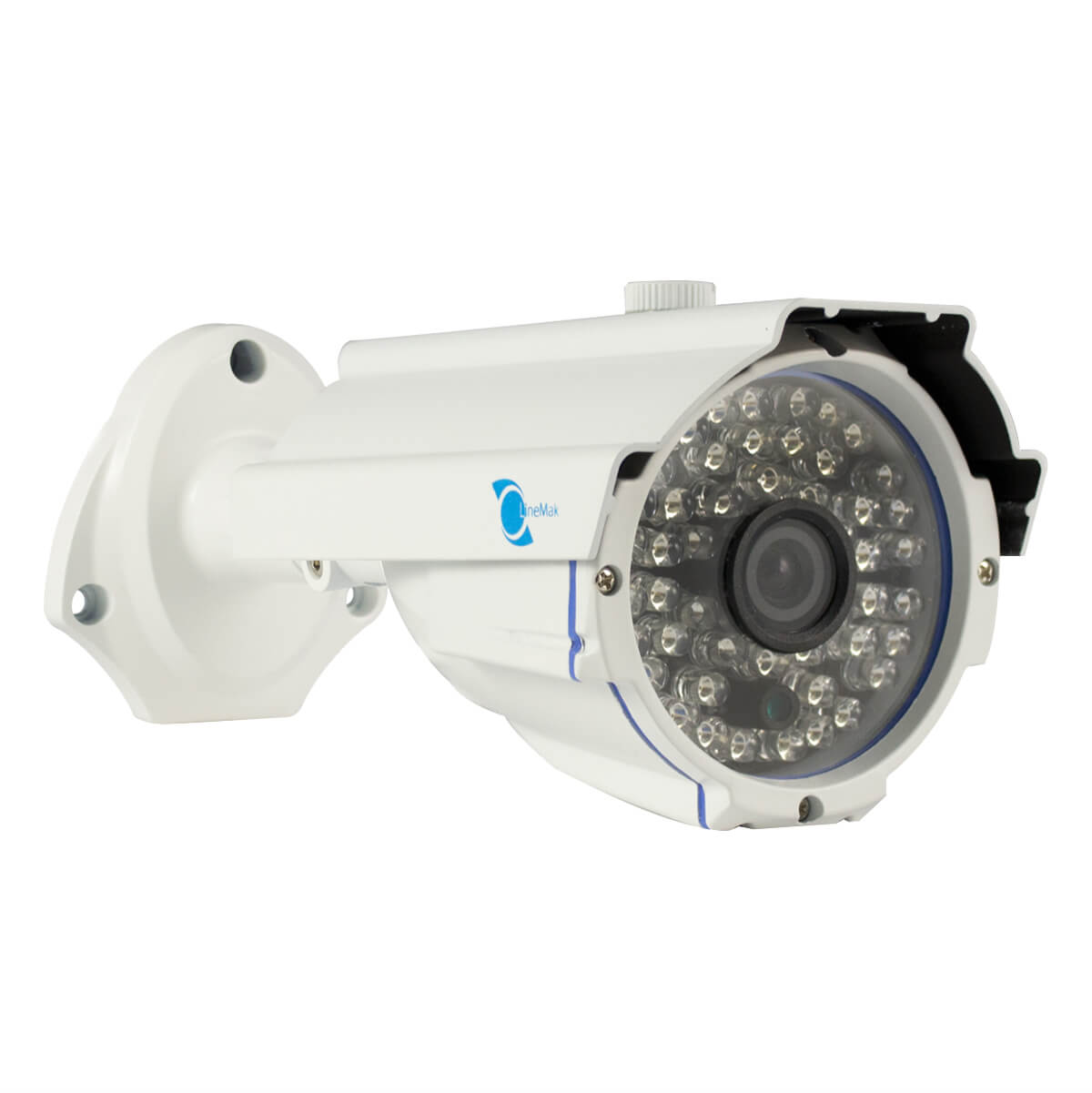

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 2

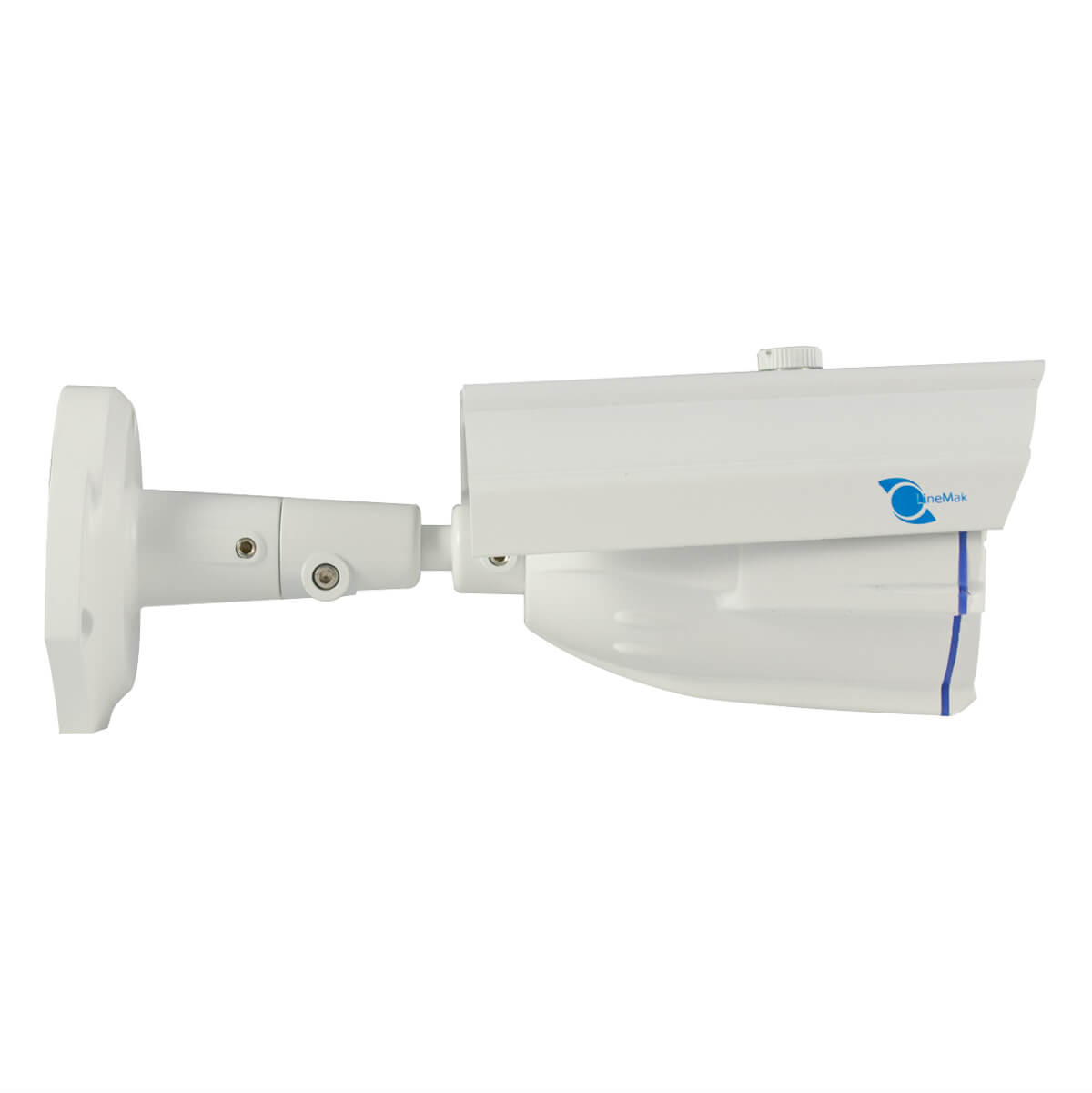

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 3

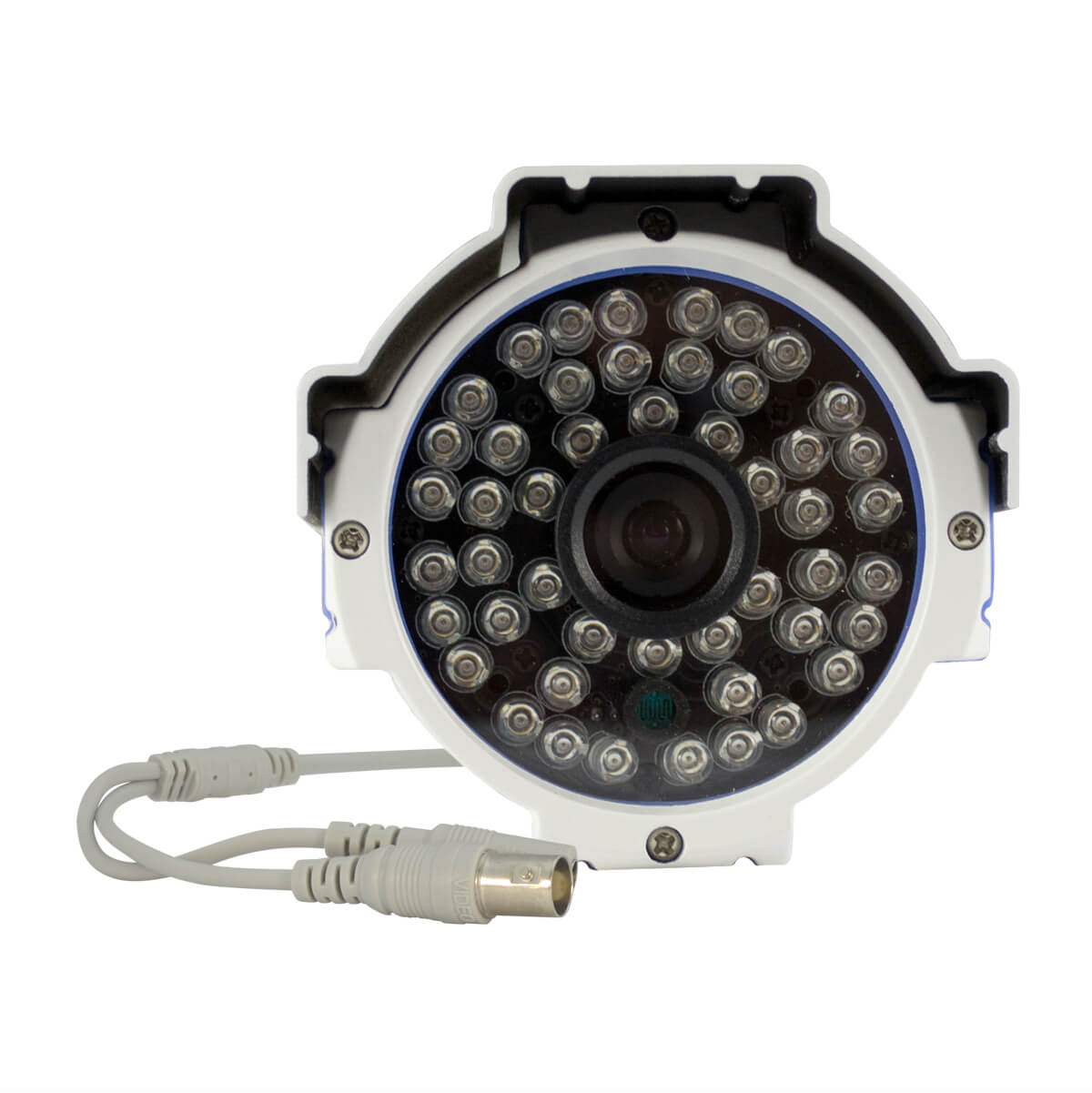

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 4

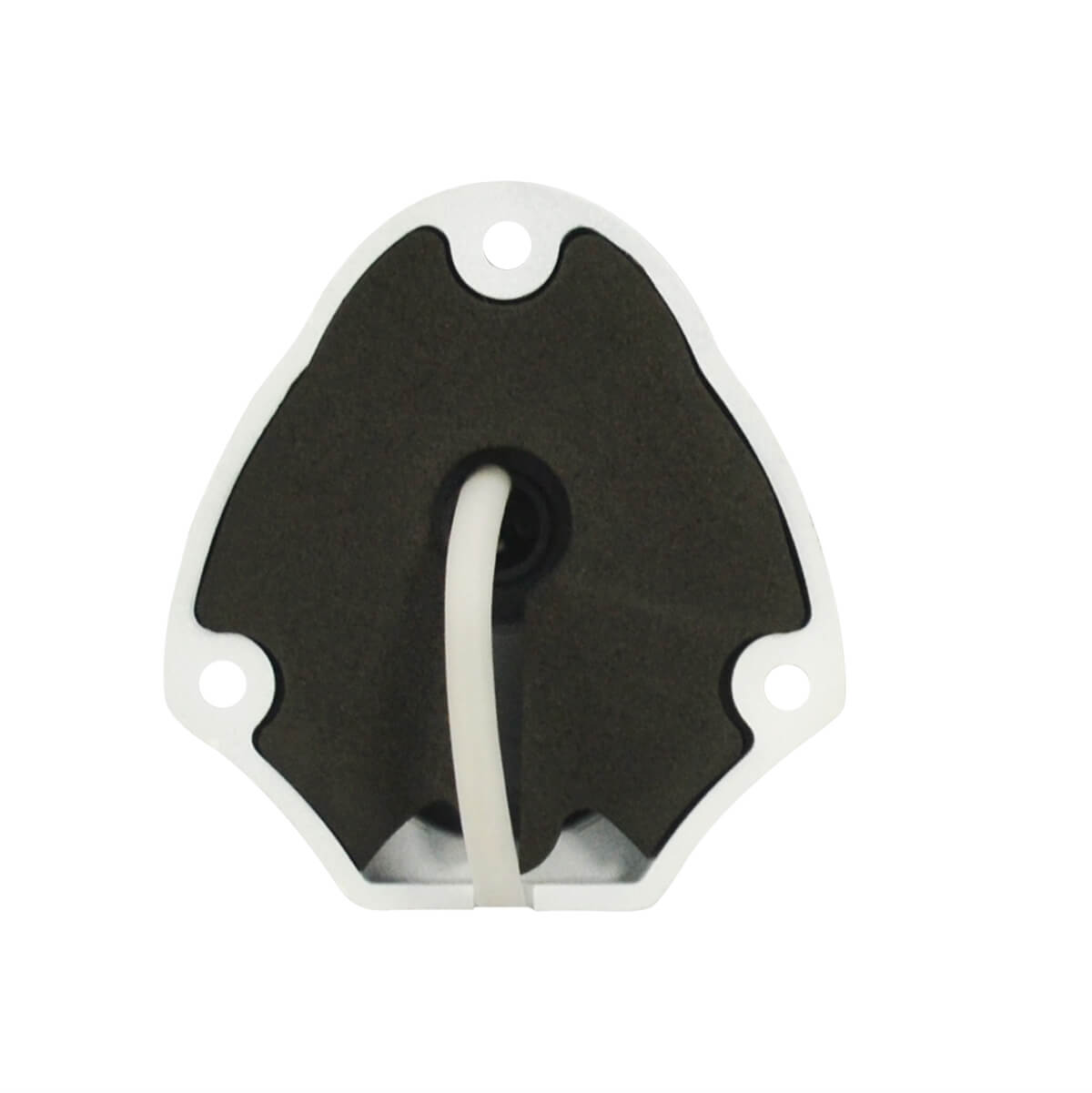

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 5

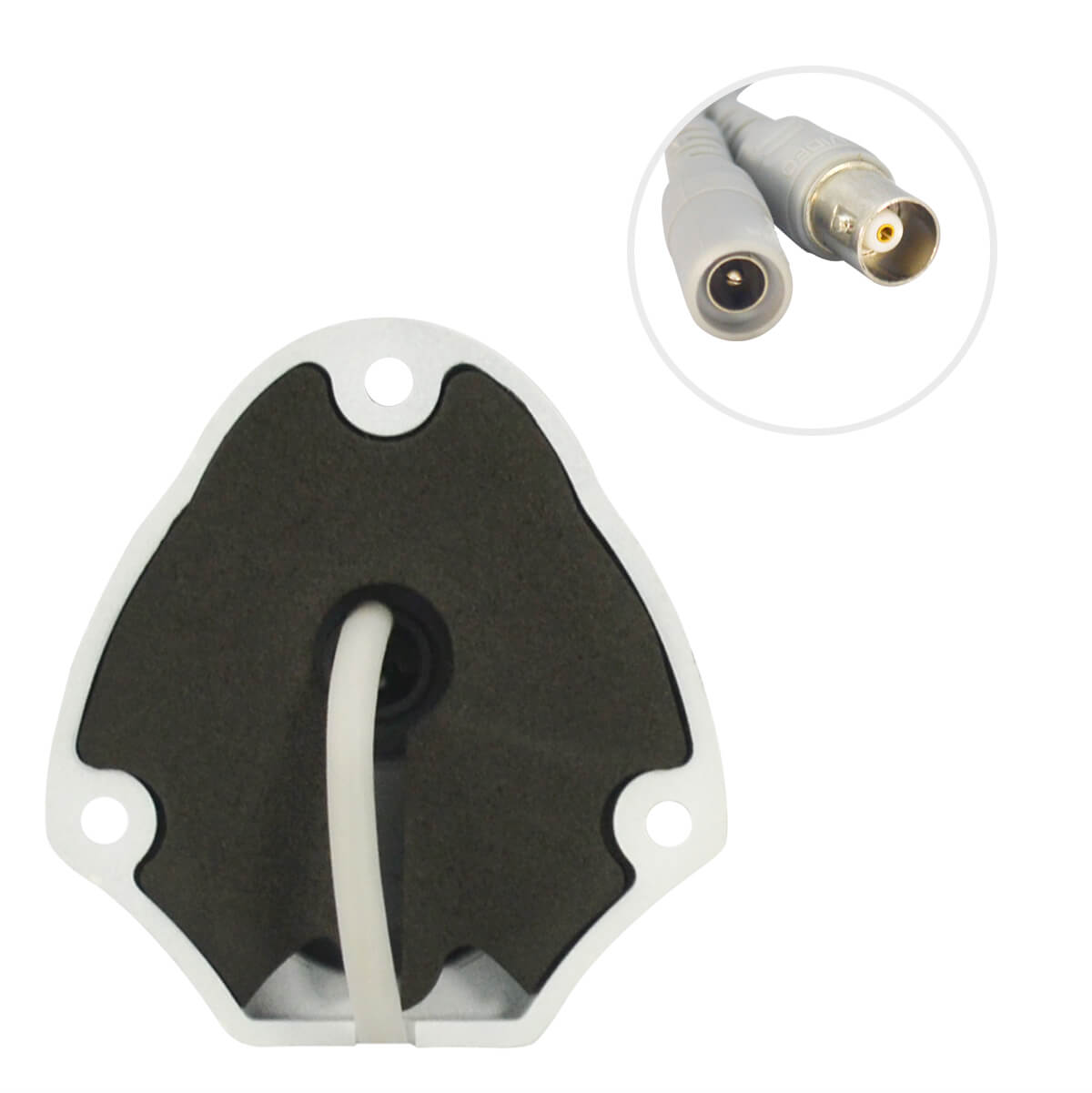

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 6

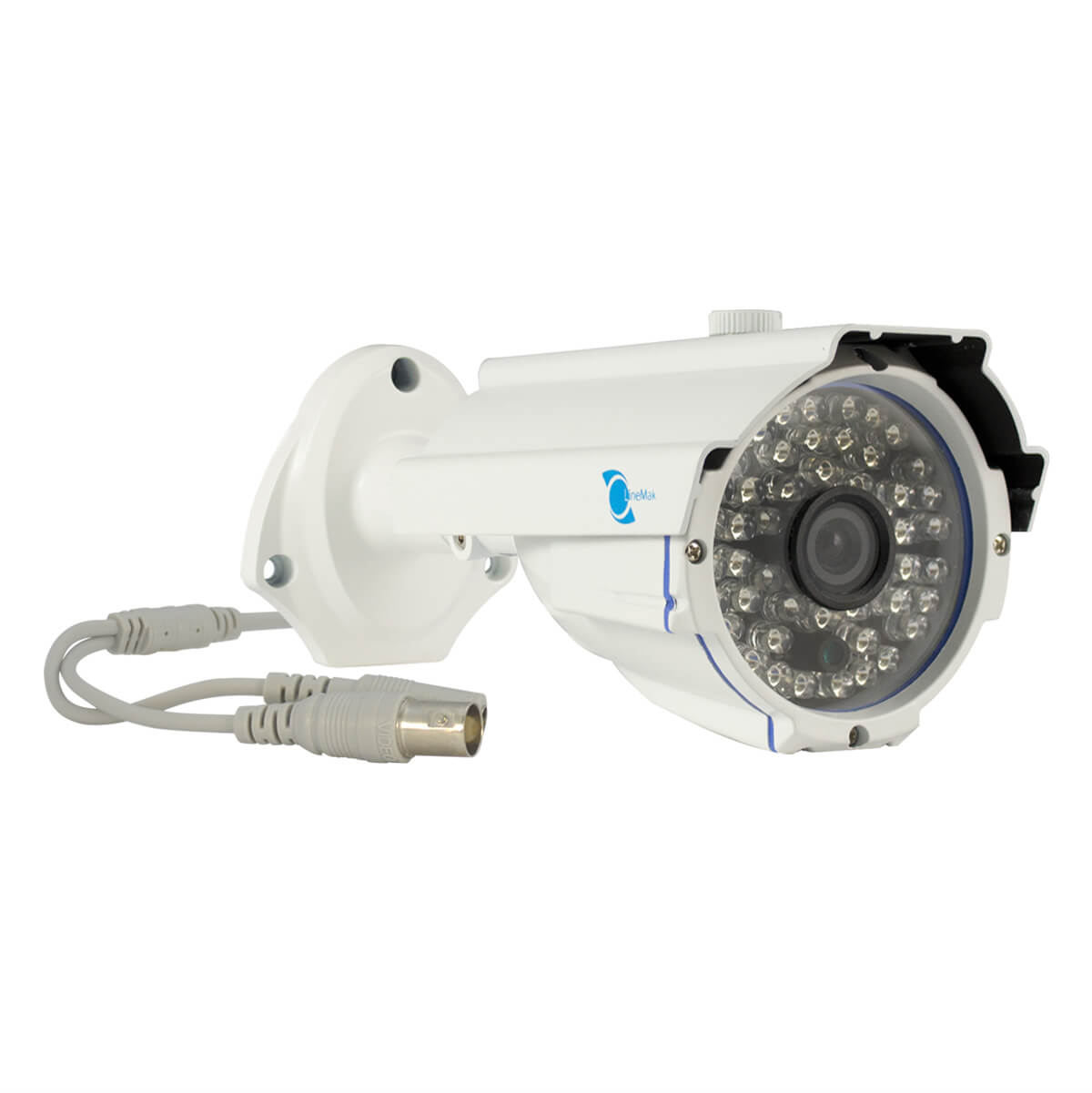

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 7

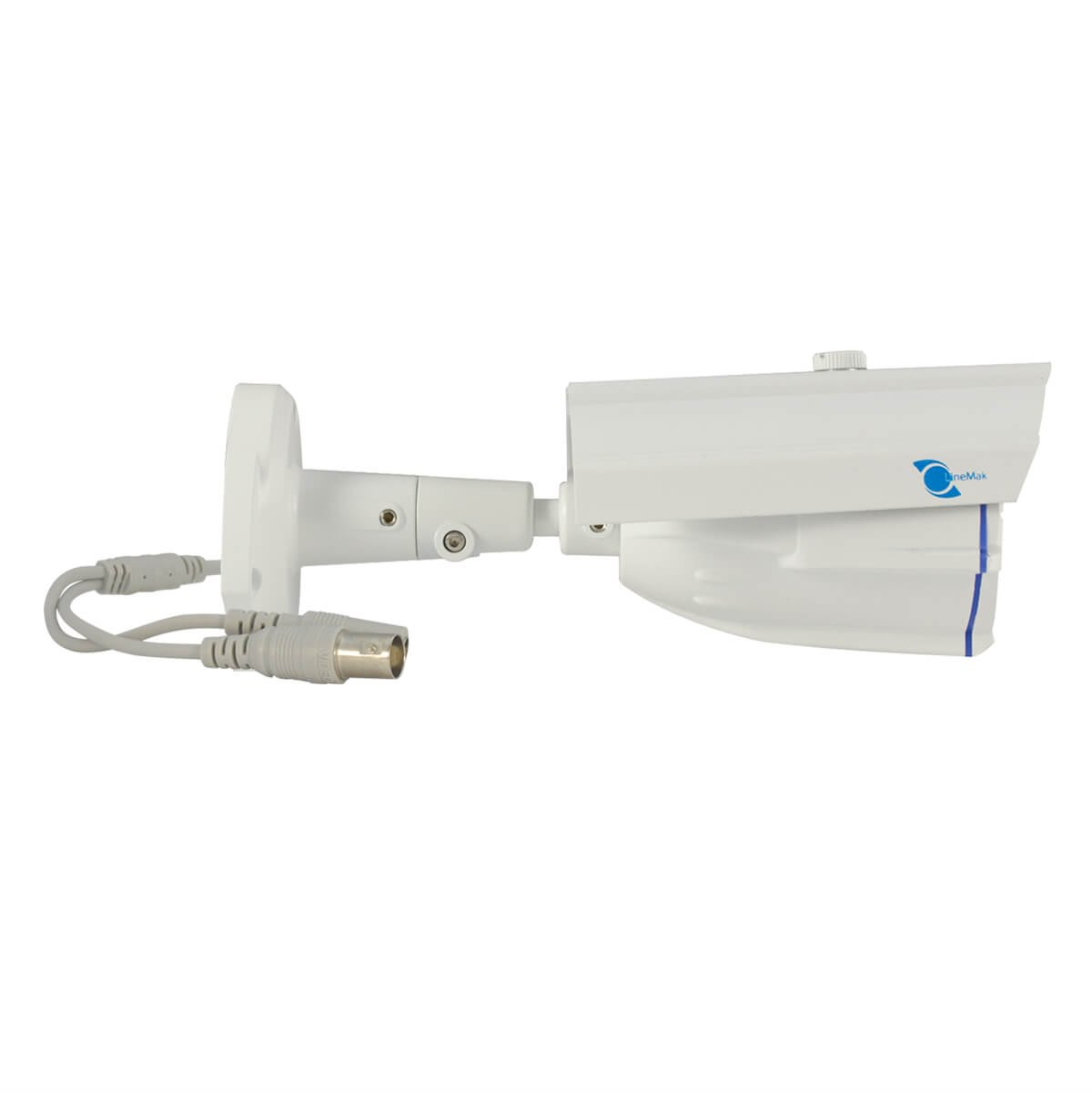

  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 8
  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 9
  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66 - Image 10
  • - DWD and DNR technology and UTC function.
  • - Day and Night cameras can switch into color or B/W
  • - Weatherproof: IP66.
  • - Power adapter not included.
  • - Hi-resolution Video Resolution.
  • - 48pcs LEDs, 131ft IR distance.
Products recommendaded to work with this item:
ir bullet camera 1/3 sony ccd 700tvl 6mm lens 48 led 131ft ir ip66
+
1 channel passive video balun 2000ft, contains 6 pairs 12 pcs
+
dc12v 1a power adapter specially for security cameras
Price for all 3: $88.97
  • Metal IR waterproof high-resolution bullet camera with a 3.6mm lens and a 53° viewing angle, a 131ft range of infrared night vision and 48pcs 5mm LEDs each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Weatherproof: IP66.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    UTC control not included.
    This camera has the UTC function that can be accessed through a UTC control. This camera does not include it. We sell various types of UTC controls if needed. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - IR waterproof camera.
    - Cable conceal inside of the all-oriented bracket.
    - 48pcs LEDs 5mm each, 131ft IR distance.
    - Hi-resolution Video Resolution.
    - Day and Night cameras can switch automatically into color or B/W according to optical changes.
    - Digital Wide Dynamic Technology.
    - 3D-DNR (Digital Noise Reduction) Technology.
    - It supports UTC function.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    Wide Dynamic Range (WDR)
    Wide Dynamic Range (WDR)
    Security Cameras (Analogue Cameras) with WDR Function can treat different areas in the image individually. They can also apply separate brightness modifications within the same view. This function is ideal for are scenarios in which stark contrasts and differences in darkness and brightness within the same image view are expected.
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Digital Noise Reduction (DNR)
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    A rear-view mirror cameras
    UTC
    UTC
    The UTC support the camera OSD control via coaxial cable by using remote controller. This coaxtron functions let our end-user enjoy more easy & simple way to install camera and control camera OSD menu.
    Warranty: One (1) Year
  • IR Bullet camera 1/3 SONY CCD 700TVL 6mm lens 48 LED 131ft IR IP66
    General
    Brand LineMak
    Model LS-TC3075EF-UTC
    Sensor
    Resolution 700TVL
    Sensor 1/3" Sony 960H Exview CCD
    Effective pixels PAL: 960*582
    NTSC: 967*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.6mm
    IR Range 131ft night vision
    LEDs 48pcs (5mm each)
    IR-CUT Filter Included
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 92°
    Security
    Motion detection zone On / Off
    Privacy zone On / Off (8 Zones)
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Storage temperature -30°C ~ 80°C
    -22°F ~ 176°F
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Power
    Power supply DC 12V
    Power consumption 400mA
    Appearance
    Color White
    Size 8.27(L) * 3.15(H) * 3.15(W) inches
    Weight 14.29 ounces
    Special function
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100000s
    NTSC:1/60s ~ 1/100000s
    Auto Gain Control (AGC) Included
    Digital Noise Reduction (DNR) Included
    Wide Dynamic Range (WDR) Included
    Mirror Included
    Standard
    Brightness 0-90 adjustable
    Synchronizing system Internal
    S/N Ratio >120dB
    Freeze On / Off
    Digital zoom On / Off
    Gamma correction 0.05~1 adjustable
