Hidden PIR camera SONY CCD 1/3 700TVL 3.7mm lens

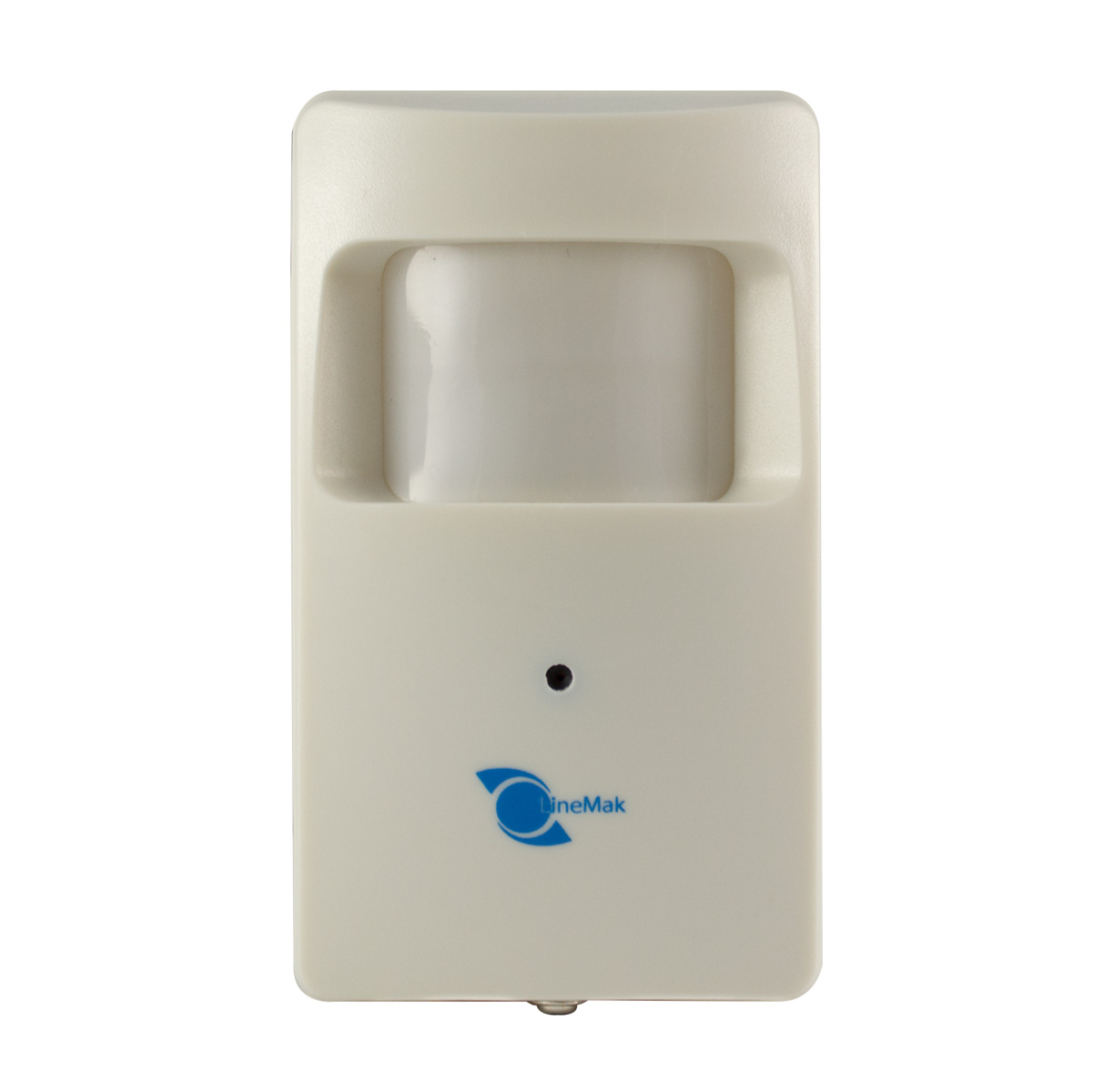

  • Hidden PIR camera SONY CCD 1/3 700TVL 3.7mm lens - Image 1

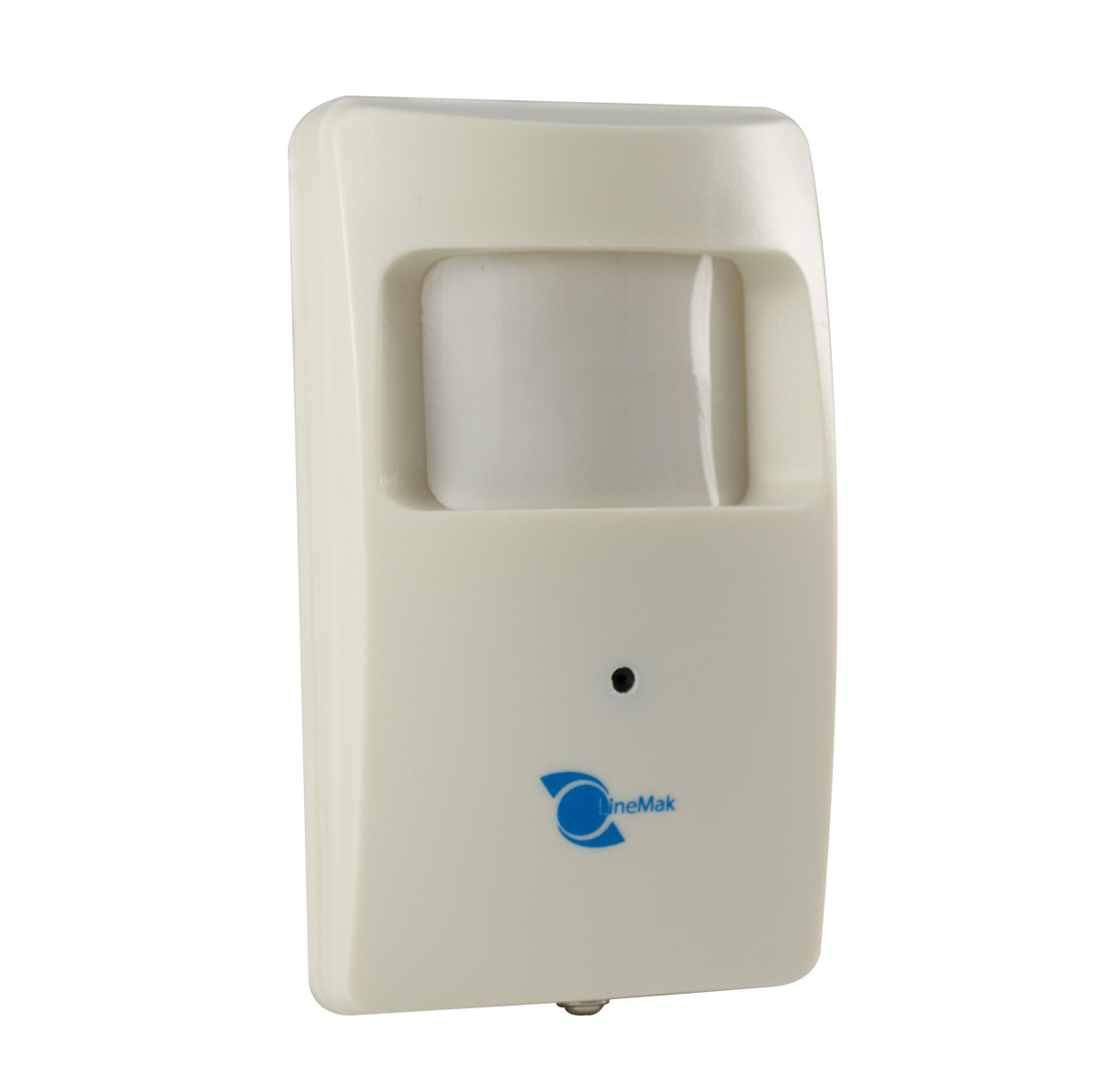

  • Hidden PIR camera SONY CCD 1/3 700TVL 3.7mm lens - Image 2

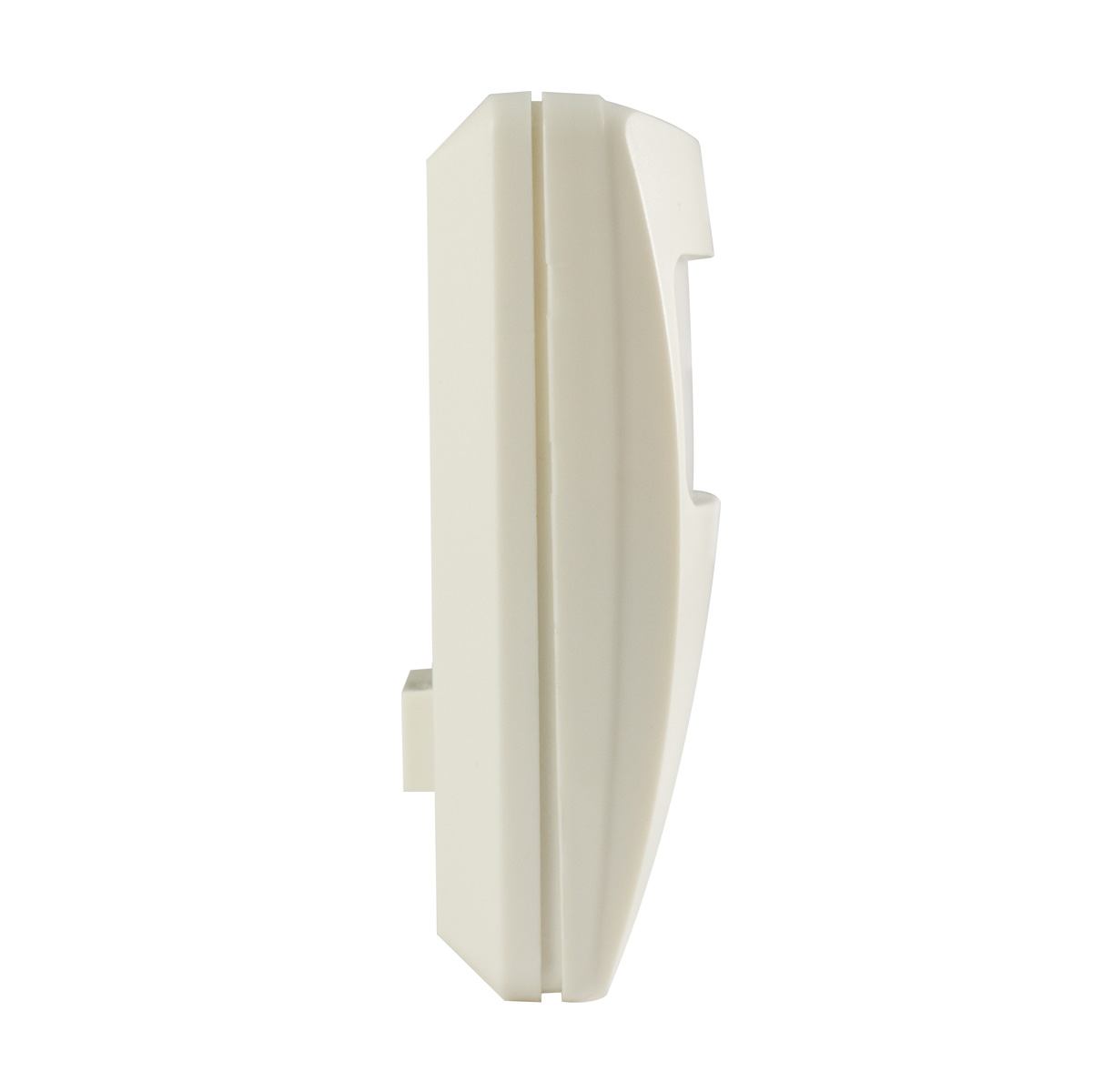

  • Hidden PIR camera SONY CCD 1/3 700TVL 3.7mm lens - Image 3
  • - 1/3" SONY 960H Exview CCD.
  • - 700TVL.
  • - It supports UTC function.
  • - Power adapter not included.
  • - 3.7mm pinhole lens.
  • - Minimun illumination: 0.1 Lux.
  • Plastic PIR camera with a viewing angle of 90?. Available in white.

    This equipment can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface. It?s resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and Digital Video Recorders (DVR). See this camera online through any of our recording systems.

    UTC function.
    This camera has the UTC function that can be accessed through a UTC control. This camera does not include it. We sell various types of UTC controls if needed. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    Pinhole
    Pinhole
    A Pinhole consists of a camera which works without a lens, but carries a small aperture through which the recording is made. Typically, the smaller the hole, the sharper the image, but dimmer its projection.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    UTC
    UTC
    The UTC support the camera OSD control via coaxial cable by using remote controller. This coaxtron functions let our end-user enjoy more easy & simple way to install camera and control camera OSD menu.
    Warranty: One (1) Year
  • Hidden PIR camera SONY CCD 1/3 700TVL 3.7mm lens
    General
    Brand LineMak
    Model LS-NCL10EF-UTC
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY 960H Exview CCD
    Effective pixels PAL: 960*582
    NTSC: 967*492
    Video
    Video format PAL (CCIR) / NTSC (EIA)
    Video output 1.0Vp-p, 75ohm, BNC connector
    Lens
    Lens 3.7mm Pinhole lens
    Minimum illumination 0.1 Lux/F1.2
    Power
    Power supply DC 12V
    Power consumption 150mA
    Appearance
    Color White
    Size 2.76(L) * 3.94(H) * 2.37(W) inches
    Weight 2.82 ounces
    Special function
    Electronic shutter speed (AES) 1/50~1/100,000 On / Off
    Standard
    S/N Ratio >50dB
