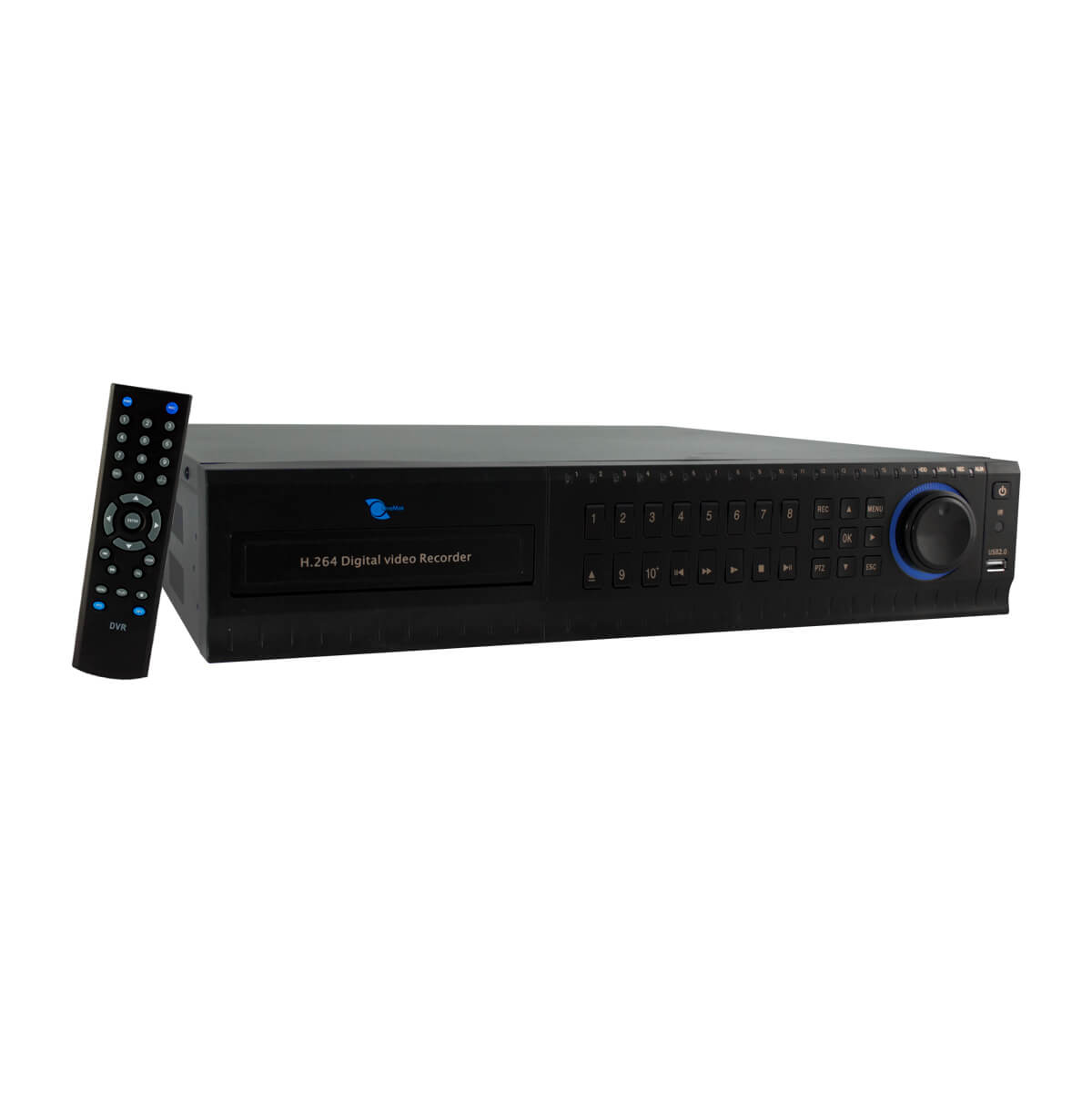

32 Channel HVR, H264/G711A, BNC/VGA/HDMI, 3G/WIFI, D1/CIF, ATX Power
                                             |
                                     	|
|
                                             General
                                             |
                                        |
| Brand | LineMak |
| Model | LS-DVR6332MD |
|
                                             System
                                             |
                                        |
| Main processor | Huawei Hisilicon chipset 3531 |
| Operating system | Embbeded Linux |
| System resources | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
| System recovery | System auto recovery after power failure |
|
                                             Display
                                             |
                                        |
| Display area | 1/4/8/9/16/24/32 screen |
| Graphic user interface (GUI) | 16 bit real color GUI interface support mouse operation |
| Language | 28 different languages |
|
                                             Video
                                             |
                                        |
| Resolution | D1 / HD1 / CIF |
| Video format | PAL / NTSC |
| Compression format | H.264 (Main Profile) |
| Display quality | Monitor:D1VGA and HDMI: (1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600) |
| Encode capacity |  8CH real time D1 24CH real time CIF  |

| Decode capacity | 8CH real time D1 / CIF |
| Multi-mode input |  Pure analog video: 8-D1 24-CIF Pure network HD video: 24-D1 / 20-960H / 4-1080P / 1-1080P 8-720P / 2-1080P 4-720P 4-960H  |

| Frame rate |  PAL:50fps NTSC:60fps  |

|
                                             Audio
                                             |
                                        |
| Audio compression | G.711A |
|
                                             Recording & Playback
                                             |
                                        |
| Recording mode | Alarm, motion detection, manual and timing |
| Local playback | Max. 32-Ch playback (8*D1@25fps / 24*CIF) |
| Search mode | Time, date, event, channel search |
|
                                             Storage & Backup
                                             |
                                        |
| Space ocupation | Video: CIF 4~5G/day*channel; D1 8~20G/day*channelAudio: 691.2M/day*channel |
| Recording storage | Local Hard Disk, Network |
| Backup mode | Network backup, USB portable HDD, USB DVD-RW, SATA DVD-RW |
|
                                             Interface
                                             |
                                        |
| Video input/output | Input:32-Ch BNC (1.0Vp-p 75ohm)Output: 2-Ch BNC (1.0Vp-p 75ohm), 1-Ch VGA and 1-Ch HDMI |
| Audio input/output | Input: 16-Ch RCA (200-2800mV 30K)Output 1-Ch RCA (200-3000mV 5K) |
| Alarm input/output | Input:16-ChOutput: 4-Ch |
| PTZ Control | RS485 port (Support more than 20 kinds protocols) |
| USB Port | 2 USB 2.0 port |
| HDD Port | 8 SATA HDDs (1 HDD capacity up to 3TB) |
| Wireless port | 3G and WIFI (extension via USB port) |
| Network interface | RJ45 10M/100M Base-T (self-adaptive Ethernet port) |
|
                                             User
                                             |
                                        |
| User level | Admin / User |
| User right | Users can set different permissions (How to use please refer to the manual book) |
| On-line user | Max. 10 |
|
                                             Network
                                             |
                                        |
| Web Browser | IE, Mozilla Firefox, Google Chrome, Safari |
|
                                             Remote
                                             |
                                        |
| Network protocol | DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center |
| Remote independent operation | Yes |
| Download records | Yes |
| Remote event trigger recording | Yes |
| Mobile surveillance | Yes, support iPad, iPhone, BlackBerry, Windows Mobile, Symbian and Android (iPad, iPhone, Android have remote playback function) |
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) |
| Live audio | Yes |
|
                                             Security
                                             |
                                        |
| Password protection | Yes |
| Motion detection zone | 16*12 grids per channel, 6 adjustable parameters for accurate detection (for local analog channel only) |
| Event notificacion | FTP / E-Mail |
| Pre-alarm recording | Yes |
| Video loss | Video loss notification |
|
                                             Environment
                                             |
                                        |
| Operation temperature |  0°C ~ 55°C 14°F ~ 131°F  |

| Cooling fan | Yes |
|
                                             Power
                                             |
                                        |
| Power supply | DC 12V/6A |
| Power consumption | <25W (Without HDD) |
|
                                             Appearance
                                             |
                                        |
| Size | 18.11 (L) * 3.54 (H) * 17.32 (W) inches |
| Weight | 13.91 pounds |
|
                                             Accessories
                                             |
                                        |
| Remote control | Yes |
| Mouse | Yes |
