24 Channel HVR, H264/G711A, D1/CIF, BNC/VGA/HDMI, 3G/WIFI, ATX Power

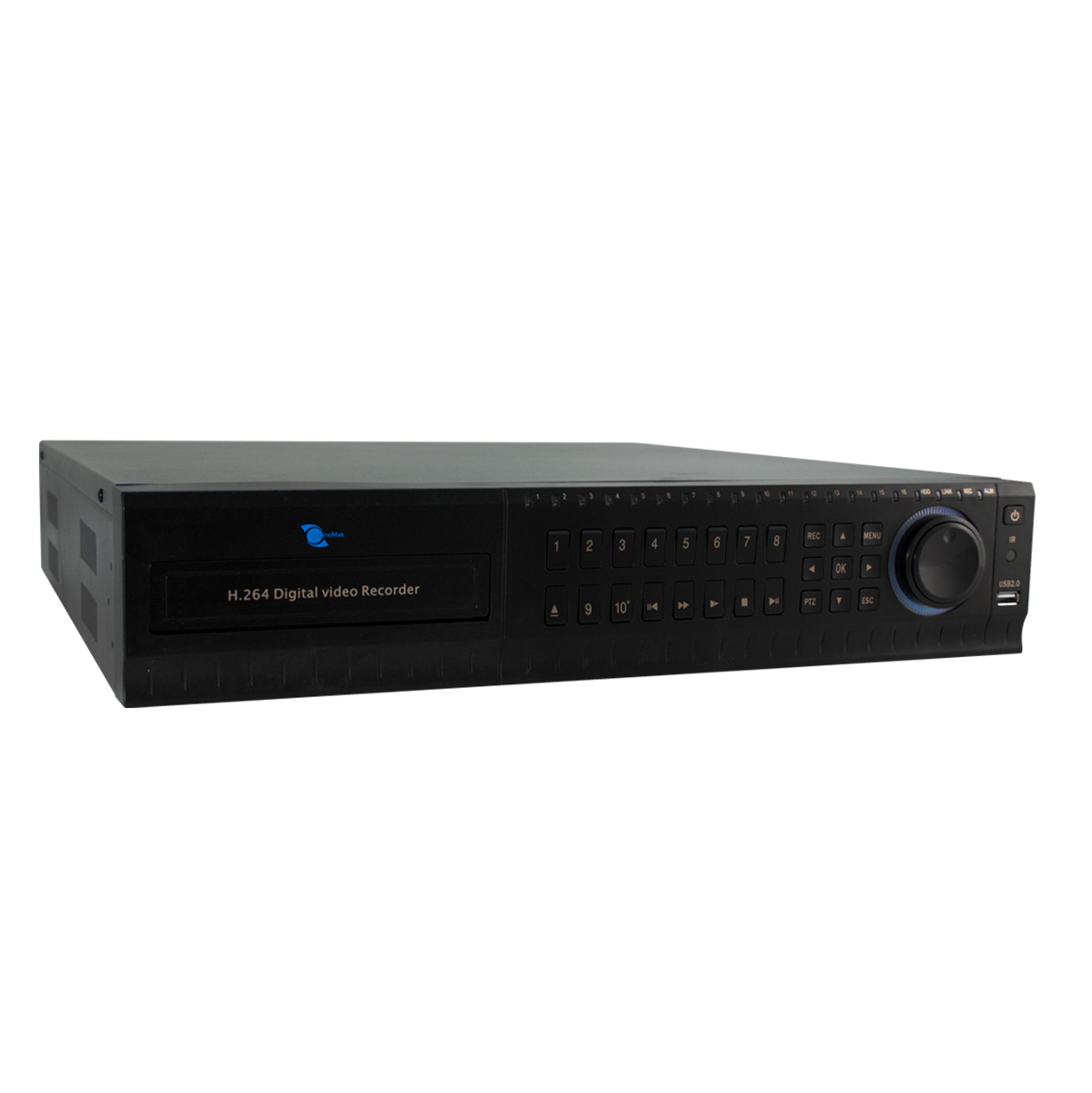

  • 24 Channel HVR, H264/G711A, D1/CIF, BNC/VGA/HDMI, 3G/WIFI, ATX Power - Image 1

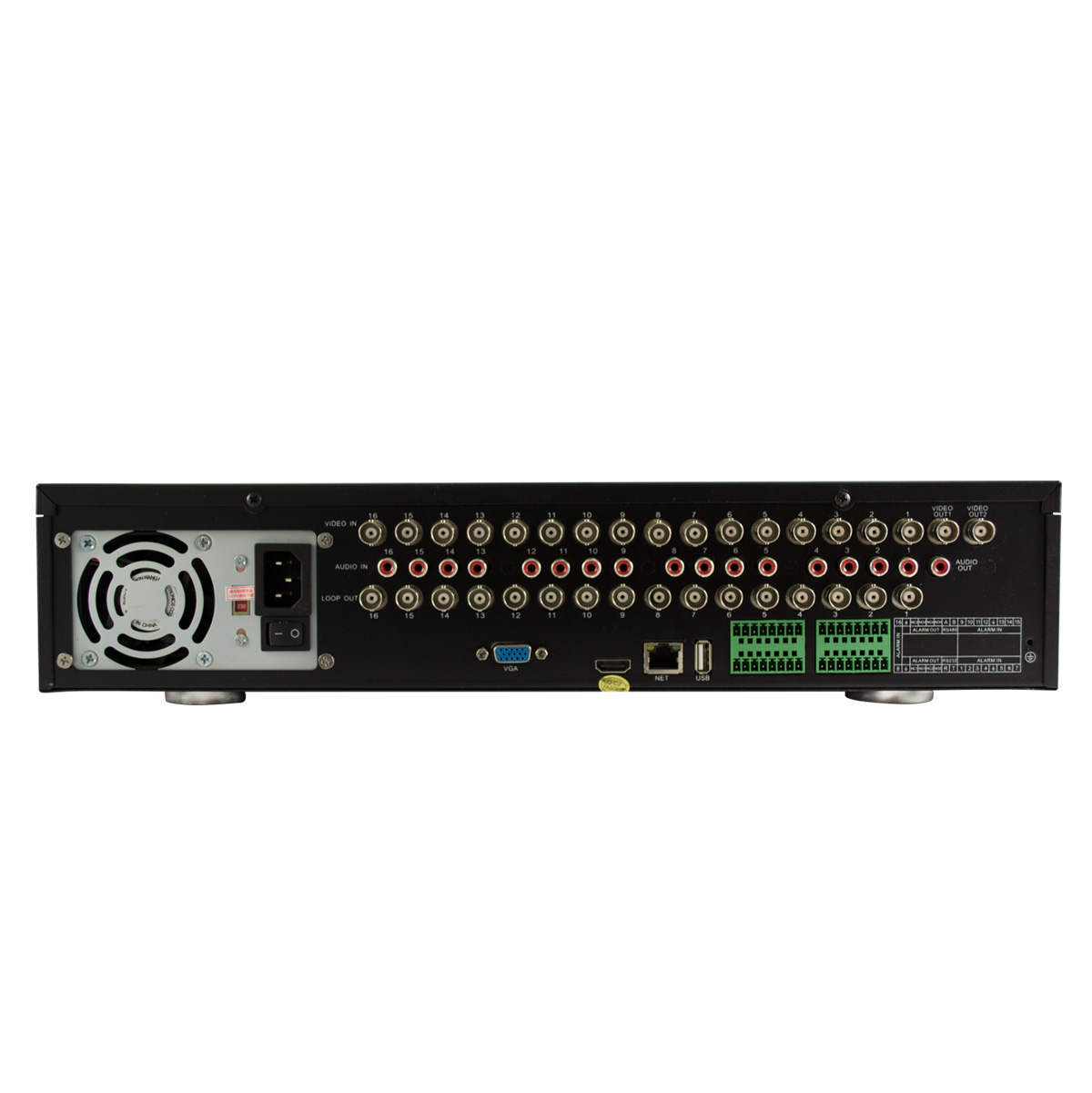

  • 24 Channel HVR, H264/G711A, D1/CIF, BNC/VGA/HDMI, 3G/WIFI, ATX Power - Image 2
  • 24 Channel HVR, H264/G711A, D1/CIF, BNC/VGA/HDMI, 3G/WIFI, ATX Power - Image 3

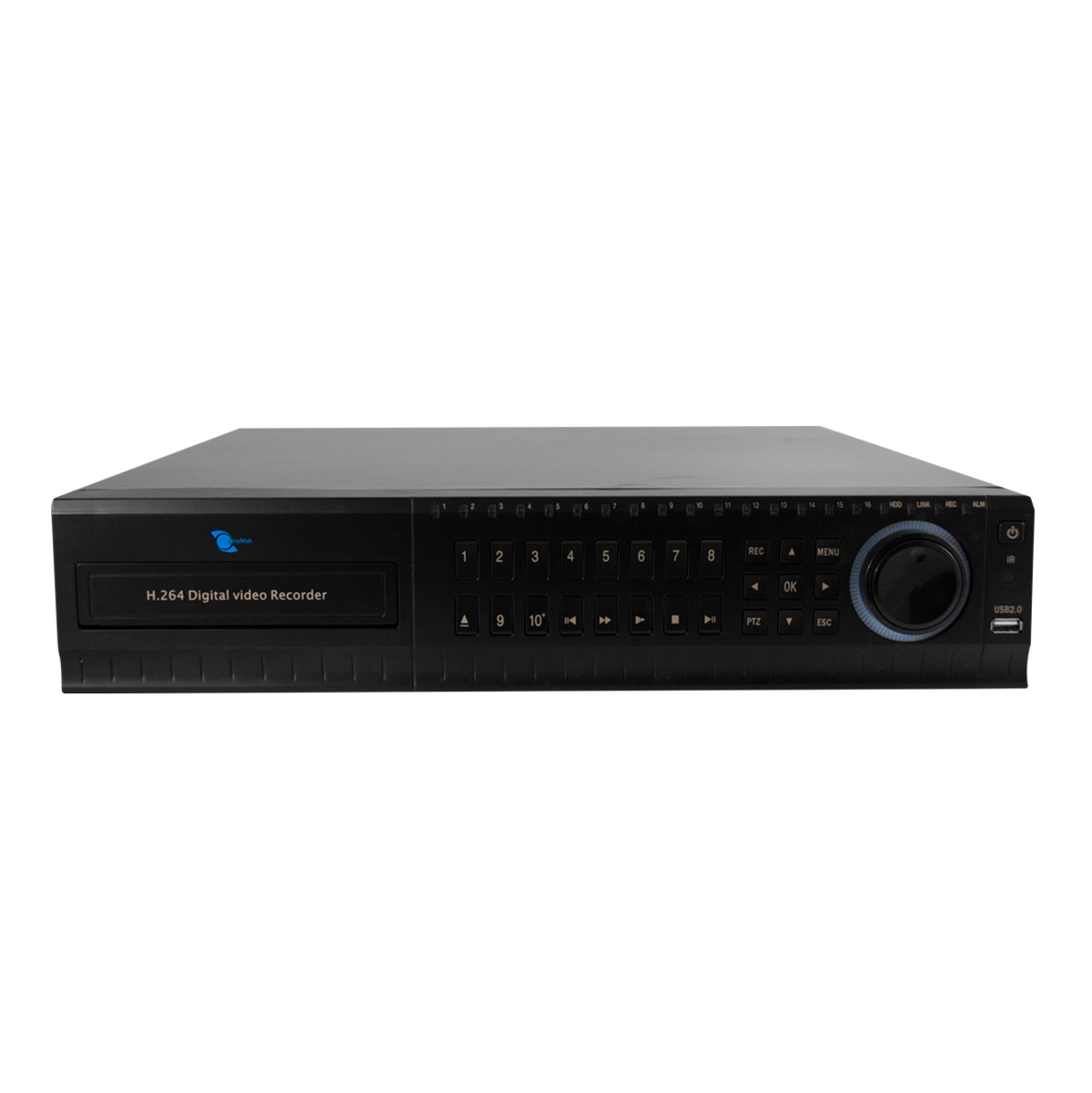

  • 24 Channel HVR, H264/G711A, D1/CIF, BNC/VGA/HDMI, 3G/WIFI, ATX Power - Image 4
  • - With our own DDNS Service. ATX Power function supported.
  • - For web browsers, compatible with Internet Explorer, Mozilla Firefox, Google Chrome and Safari.
  • - All kinds of mobile monitor support (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
  • - WIFI module sold separately. Hard drive not included.
  • - It supports IP cameras with ONVIF 2.0 or NET-IP protocol.
  • - 3G and WIFI support. Powerful net service.
Products recommendaded to work with this item:
24 channel hvr, h264/g711a, d1/cif, bnc/vga/hdmi, 3g/wifi, atx power
+
ip dome camera, 1.0mp/720p, 3.6mm hd lens, 30pcs leds, 33fts~49fts ir
+
ip bullet camera 1.3mp/1080p 2.812mm varifocal lens 42 leds ir
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $777.96
  • Easy to use HYBRID DVR/NVR video recorder which features an English menu and motion detection recording. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Both mouse and remote control included.

    Multiple recording modes: alarm, motion detection, manual network controller and timing.
    Multiple operation methods: USB mouse, front panel, network controller and remote control.
    Compatible with WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

    ATX Power function built-in.

    Main features:
    - Multi-mode input (pure analog video, analog network HD video, pure network HD video).
    - Easy and conventional remote control without any complicated setting.
    - Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%.
    - Main stream and extra steam support encode synchronously. Main stream is for local storage, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
    - 3G and Wi-Fi extension support.
    - All kinds of mobile monitor support (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
    - HDMI 1080P / VGA 1080P / TV simultaneous video output.
    - Completely new graphics operating interface design.
    - Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center, etc.), complete enclosure(WEB, CMS, SDK), to achieve interconnection.
    - Compatible with Internet Explorer, Mozilla Firefox, Google Chrome and Safari.
    - With our own DDNS Service (ARSP), Remote operation step on the Internet. Also supplied DynDNS, NO-IP, Myq-See, Oray, 3322.
    - Alarm triggered recording will send alerts matter to the designated email. Re-alarm recording (before 10 sec) will not lose any suspicious screen.
    - Channel switching is independent from the local site, allowing users to have private image monitoring remotely.
    - Live display, record, playback, backup, network and mobile surveillance at the same time.
    - USB flash disk, USB portable HDD and network.
    - 28 different languages (English, Finnish, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc.).
    - Auto recovery system after power failure.

    Wi-Fi adapter needed (sold separately).

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    HDMI delivers enhanced image clarity
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Keep everything under watch with multiple recording modes
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Be informed
    The DVR will automatically send an email alert with a text notification when an event triggered by motion has occurred. This provides a record of the event and enables you quickly to take action when an incident occurs.
    Be informed
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Remote monitoring Surveillance
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    WiFi
    A device called a wireless transmitter receives information from the internet via your broadband connection. The transmitter converts the information into a radio signal and sends it. Wireless for home security systems also act as a visible deterrent to criminals that allow you to record events at home and/or monitor staff at work.
    WiFi
    Backup for saving critical video evidence
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Save money with no contracts and no monthly fees
    Warranty: One (1) Year
  • 24 Channel HVR, H264/G711A, D1/CIF, BNC/VGA/HDMI, 3G/WIFI, ATX Power
    General
    Brand Linemak
    Model LS-DVR6324MD
    System
    Main processor Huawei Hisilicon chipset 3531
    Operating system Embedded Linux
    System resources Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up
    System recovery Auto recovery system after power failure
    Display
    Display area 1/4/8/9/16/24 screen
    Graphic user interface (GUI) 16 bit real color GUI interface support mouse operation
    Language 28 different languages
    Video
    Resolution D1 / CIF
    Video format PAL / NTSC
    Compression format H.264 (main profile)
    Display quality Monitor: D1
    VGA and HDMI: (1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600)
    Encode capacity 8-Ch real time D1
    8-Ch real time CIF
    Decode capacity 8-Ch real time D1
    16-Ch real time CIF
    Multi-mode input Pure analog video: 16-Ch D1
    Pure network HD video: 24-Ch D1
    Frame rate PAL: 50fps
    NTSC: 60fps
    Audio
    Audio compression G.711A
    Recording & Playback
    Recording mode Alarm, motion detection, manual and timing
    Local playback Max. 24-Ch playback (8*D1@25fps / 16*CIF)
    Search mode Time, date, event, channel search
    Storage & Backup
    Space ocupation Video: CIF 4~5G/day*channel; D1 8~20G/day*channel
    Audio: 691.2M/day*channel
    Recording storage Local Hard Disk, Network
    Backup mode Network backup, USB portable HDD, USB DVD-RW, SATA DVD-RW
    Interface
    Video input/output Input: 24-Ch BNC (1.0Vp-p 75ohm)
    Output: 2-Ch BNC (1.0Vp-p 75ohm), 1-Ch VGA and 1-Ch HDMI
    Audio input/output Input: 16-Ch RCA (200-2800mV 30K)
    Output: 1-Ch RCA (200-3000mV 5K)
    Alarm input/output Input: 16-Ch
    Output: 4-Ch
    PTZ Control 1 RS485 port (Support more than 20 kinds protocols)
    USB Port 2 USB 2.0
    HDD Port 8 SATA HDDs (up to 3TB each)
    Wireless port 3G and Wi-Fi (extension via USB port)
    Network interface 1 RJ45 10M/100M Base-T port (self-adaptive Ethernet port)
    User
    User level Admin / User
    User right Users can set different permissions (How to use please refer to the manual book)
    On-line user Max. 10
    Network
    Network protocol DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, alarm center, ONVIF 2.0 standard
    Web Browser IE, Mozilla Firefox, Google Chrome, Safari
    Remote
    Network protocol DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center
    Remote independent operation Yes
    Download records Yes
    Remote event trigger recording Yes
    Mobile surveillance Yes, support iPad, iPhone, BlackBerry, Windows Mobile, Symbian and Android (iPad, iPhone, Android have remote playback function)
    CMS CMS software for multiple DVR (up to 255 DVR simultaneously)
    Live audio Yes
    Security
    Password protection Yes
    Motion detection zone 16*12 grids per channel, 6 adjustable parameters for accurate detection (for local analog channel only)
    Event notificacion FTP / E-Mail
    Pre-alarm recording Yes
    Video loss Video loss notification
    Environment
    Operation temperature 0°C ~ 55°C
    14ºF ~ 131ºF
    Cooling fan Yes
    Power
    Power supply DC 12V/6A
    Power consumption <25W (Without HDD)
    Appearance
    Size 14.96 (L) * 4.33 (H) * 15.75 (W) inches
    Weight 14.67 pounds

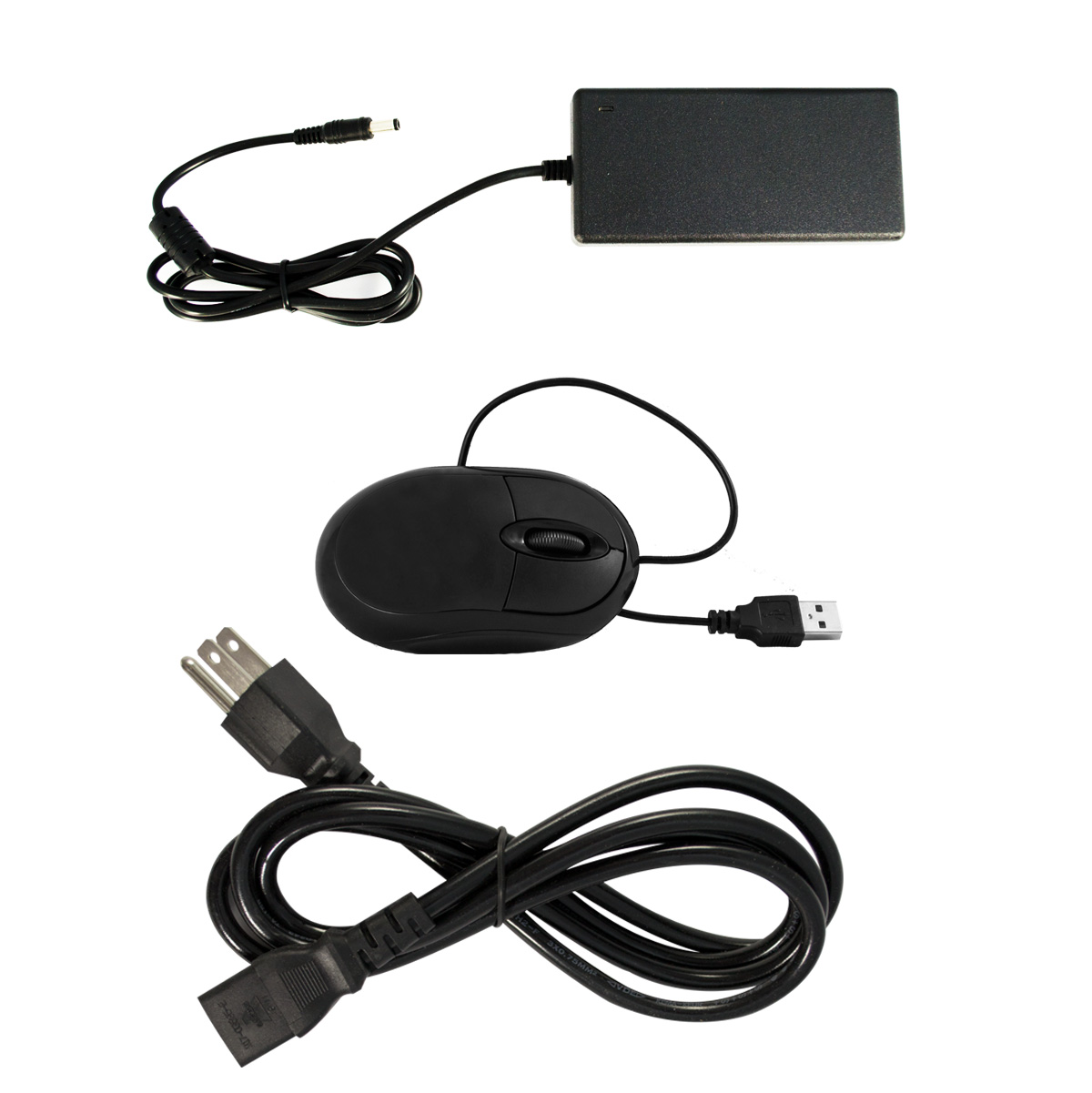

    Accessories
    Remote control Yes
    Mouse Yes
