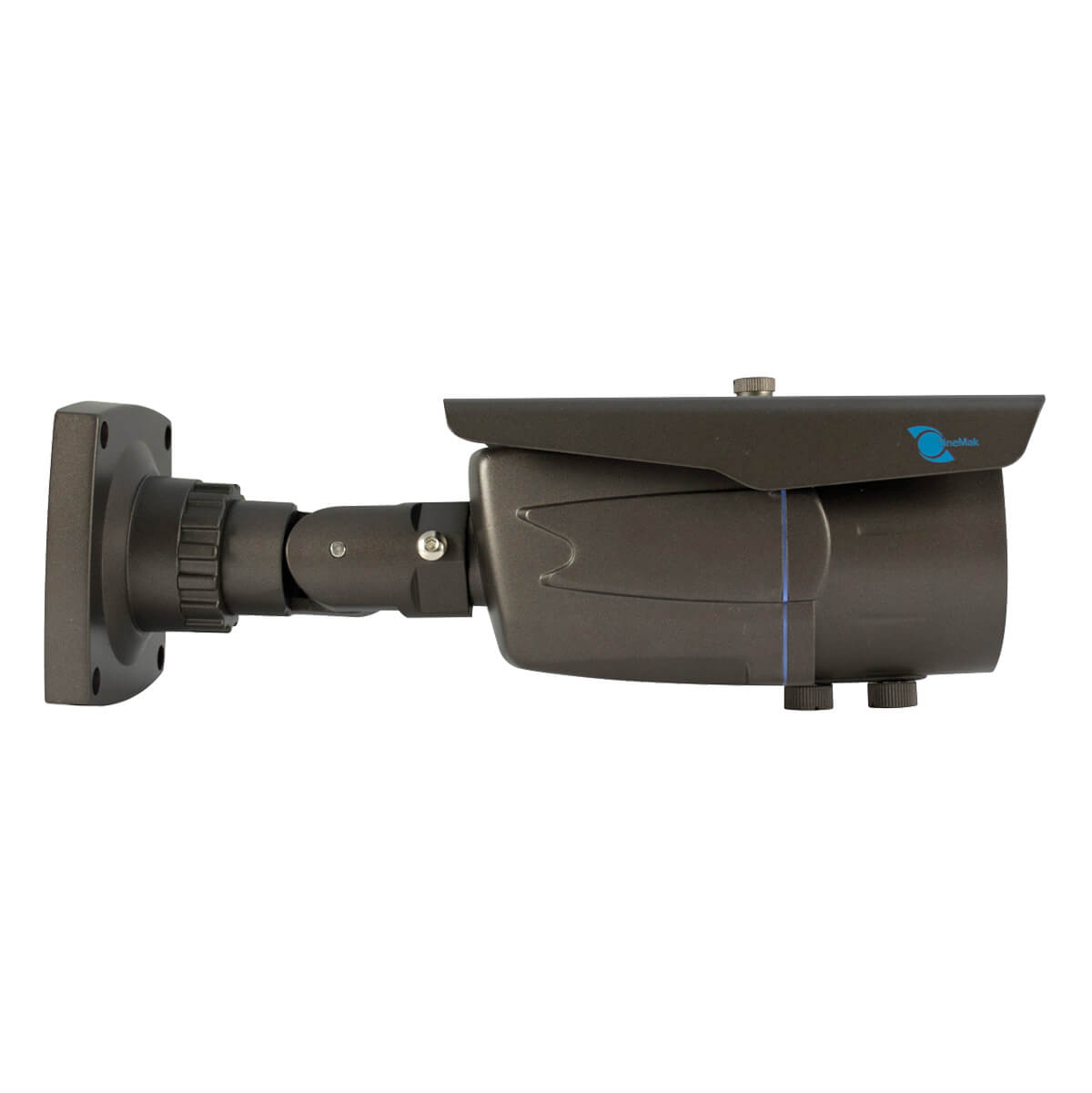

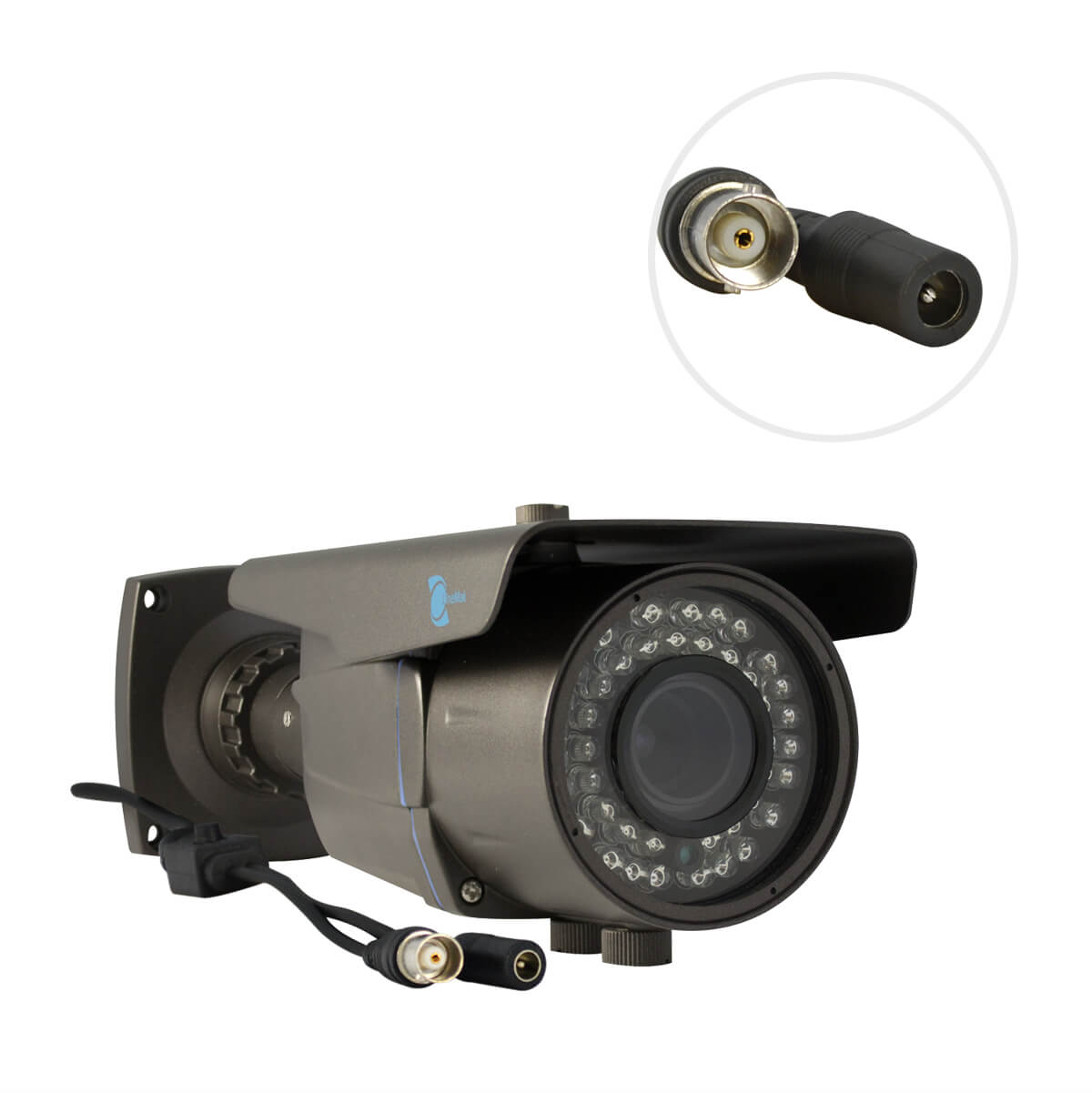

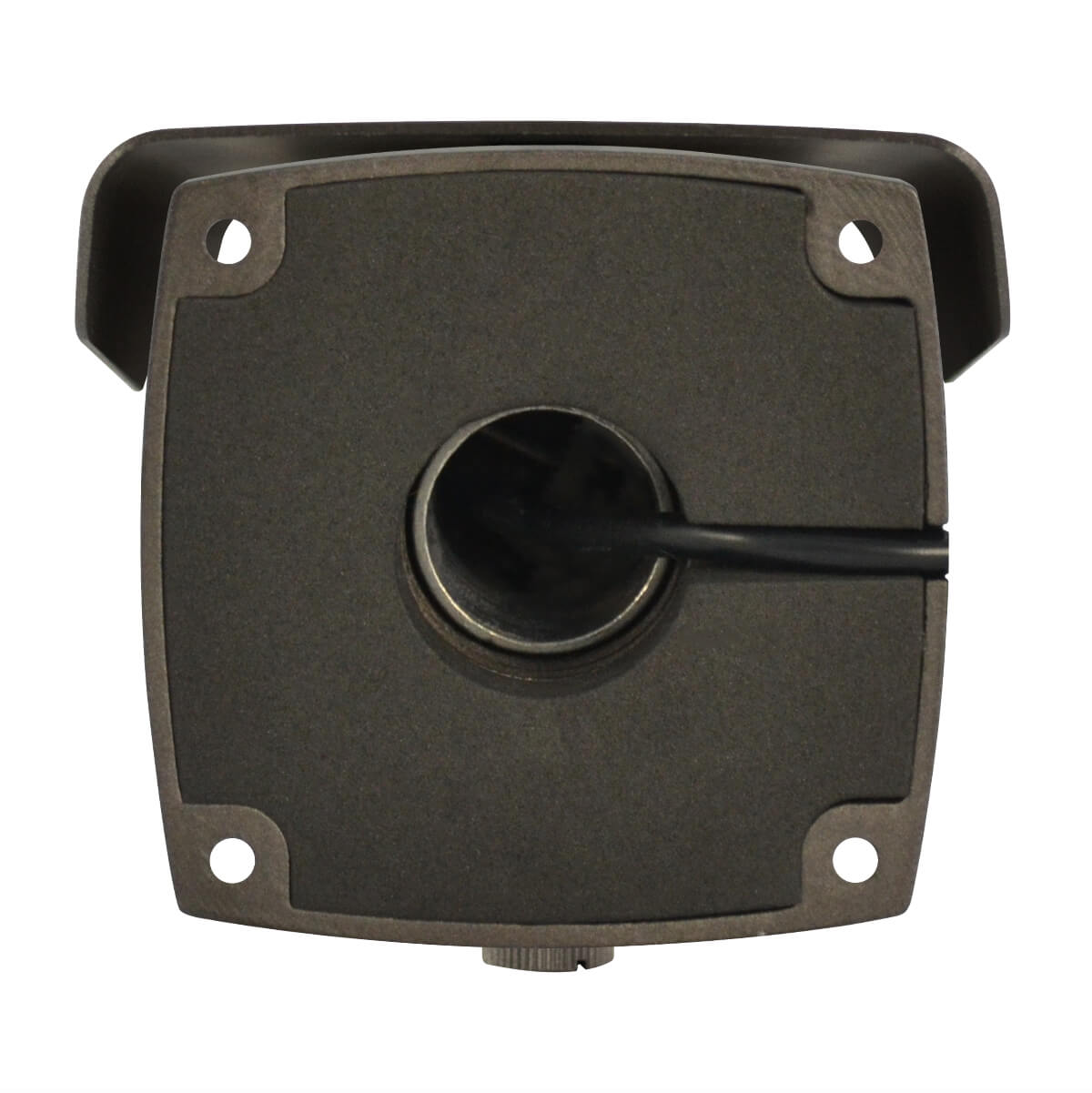

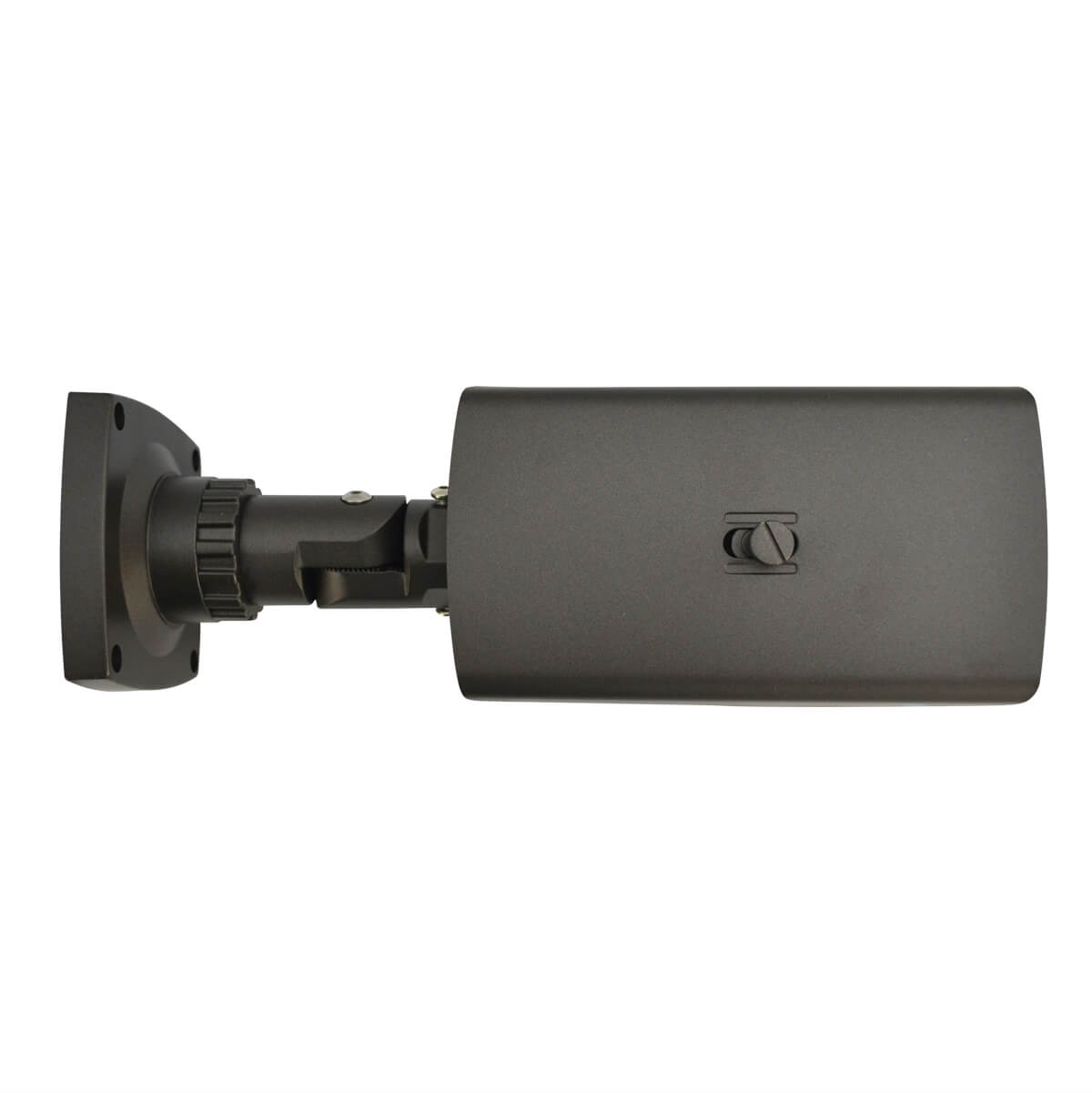

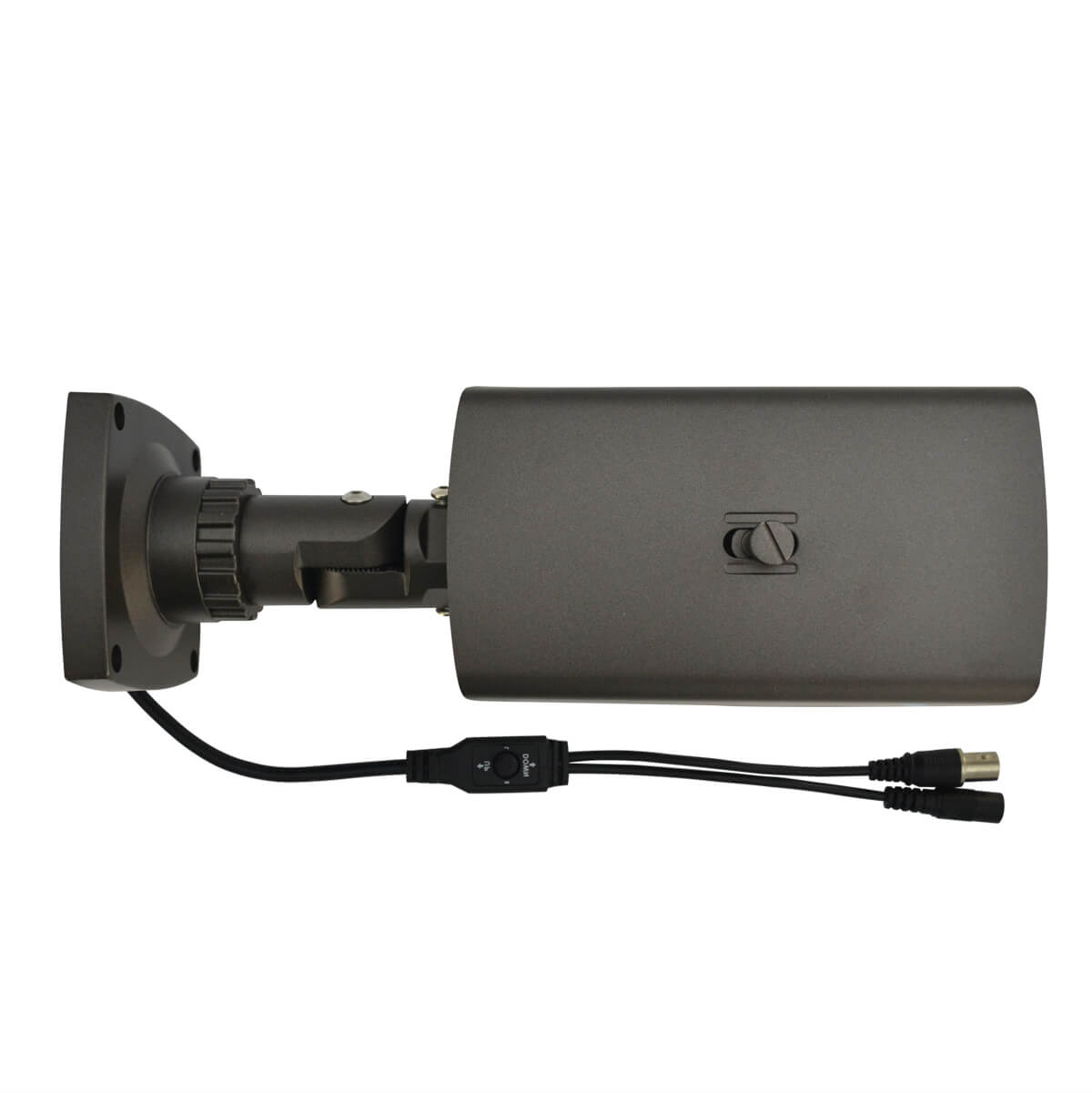

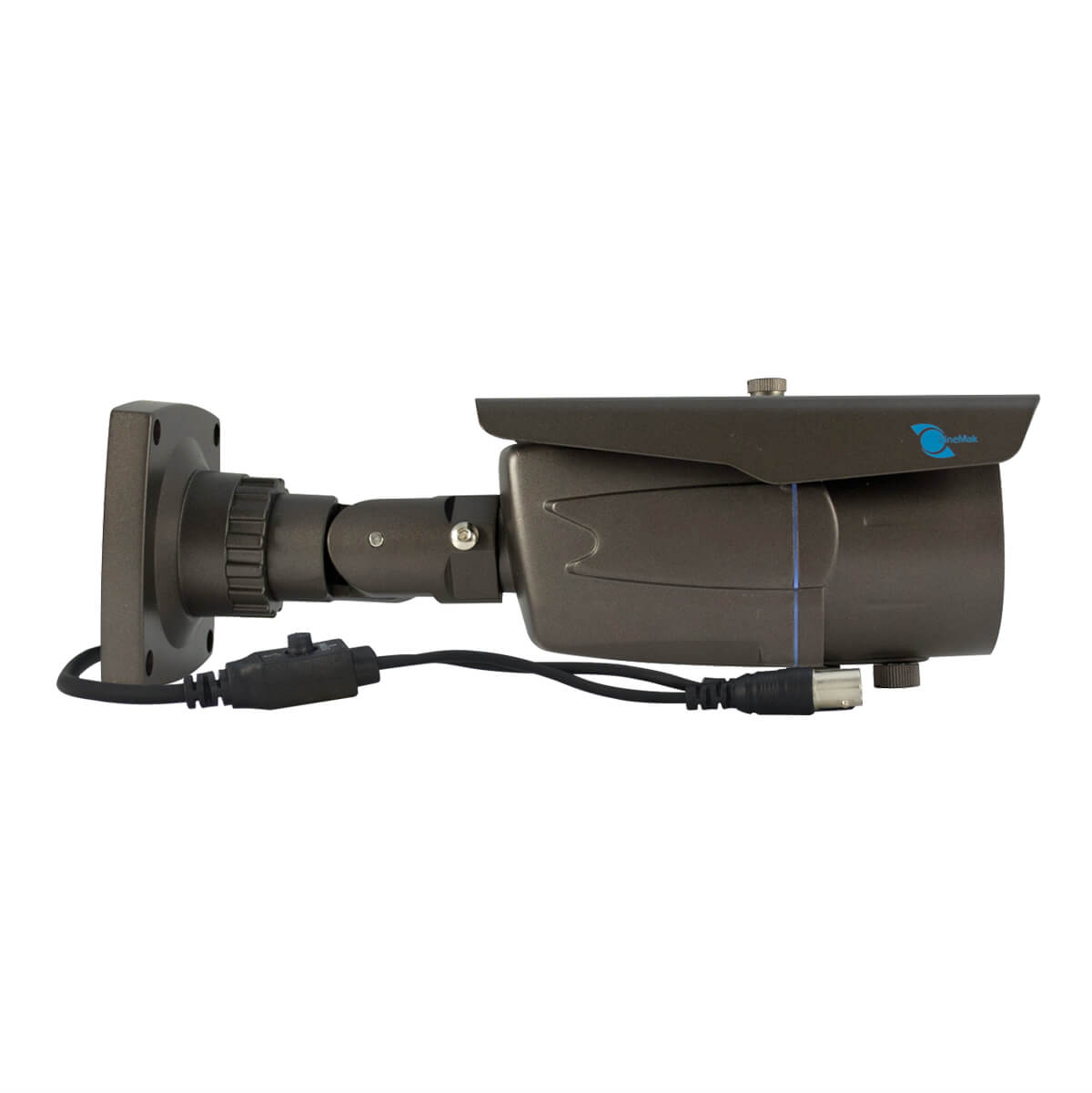

Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 1
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 2
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 3
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 4
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 5
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 6
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 7
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 8
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 9
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 10
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR - Image 11
  • - AWB and AES function.
  • - 1/3" Panasonic High Resolution Color CCD Sensor, 800TVL.
  • - 42pcs IR LEDs, 131ft IR distance.
  • - Power adapter not included.
  • - 2.8~12mm Varifocal lens.
  • - 25° ~ 115° Viewing angle.
Products recommendaded to work with this item:
bullet camera 1/3 panasonic ccd 800tvl 2.812mm lens 42 led 131ft ir
+
1 channel passive video balun 1082ft, contains 6 pairs 12 pcs
+
dc12v 1a power adapter specially for security cameras
Price for all 3: $94.97

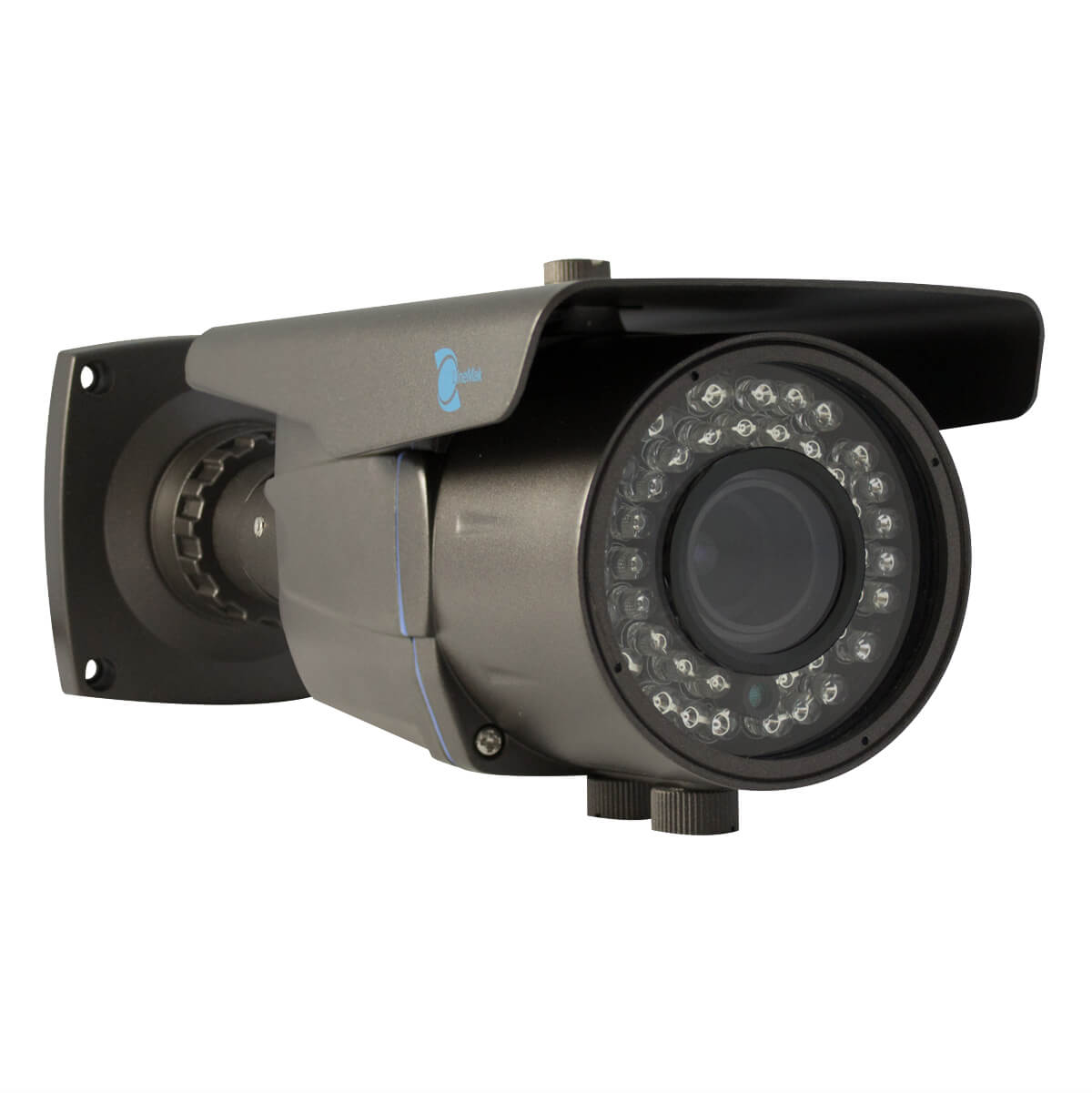

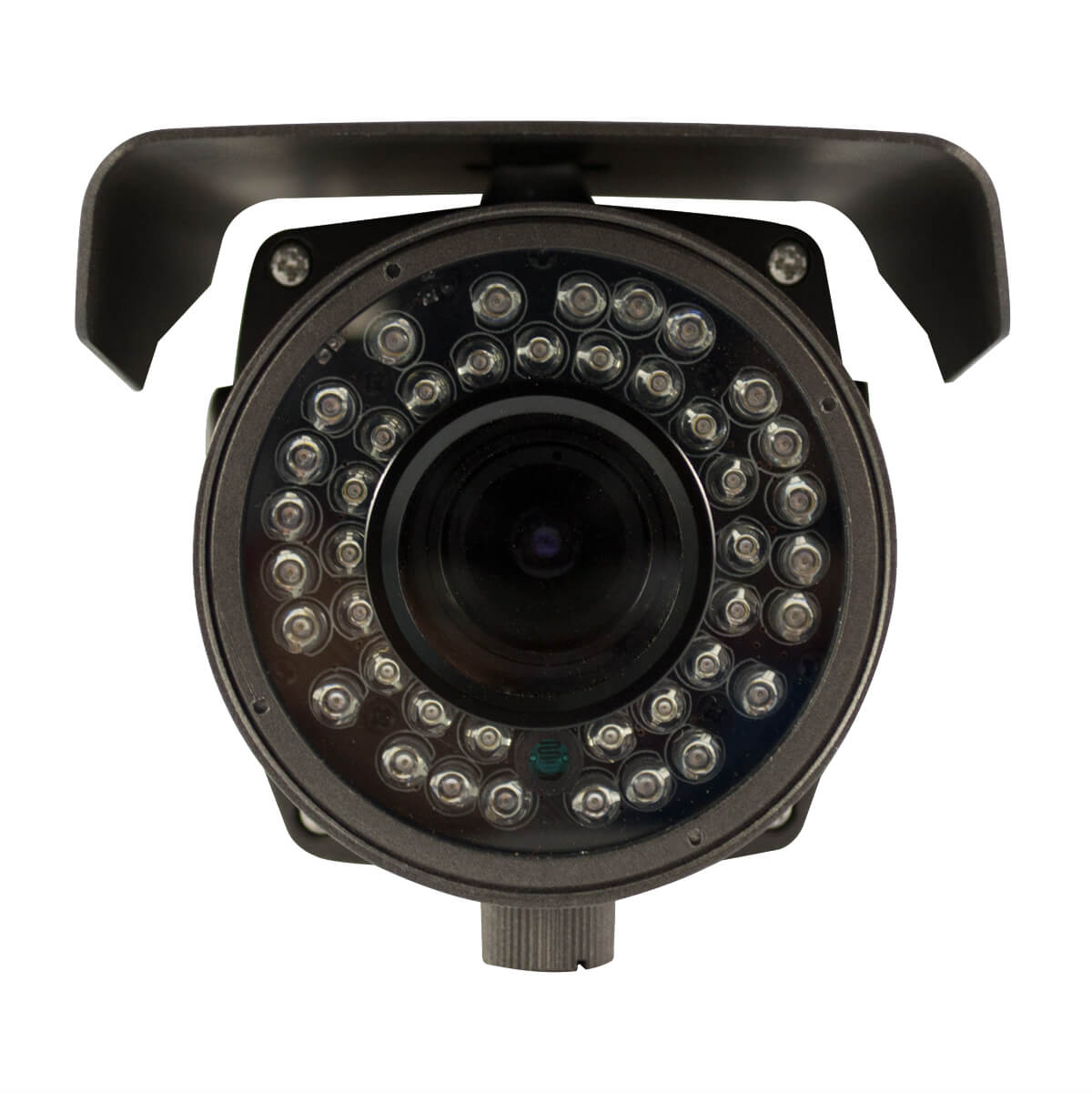

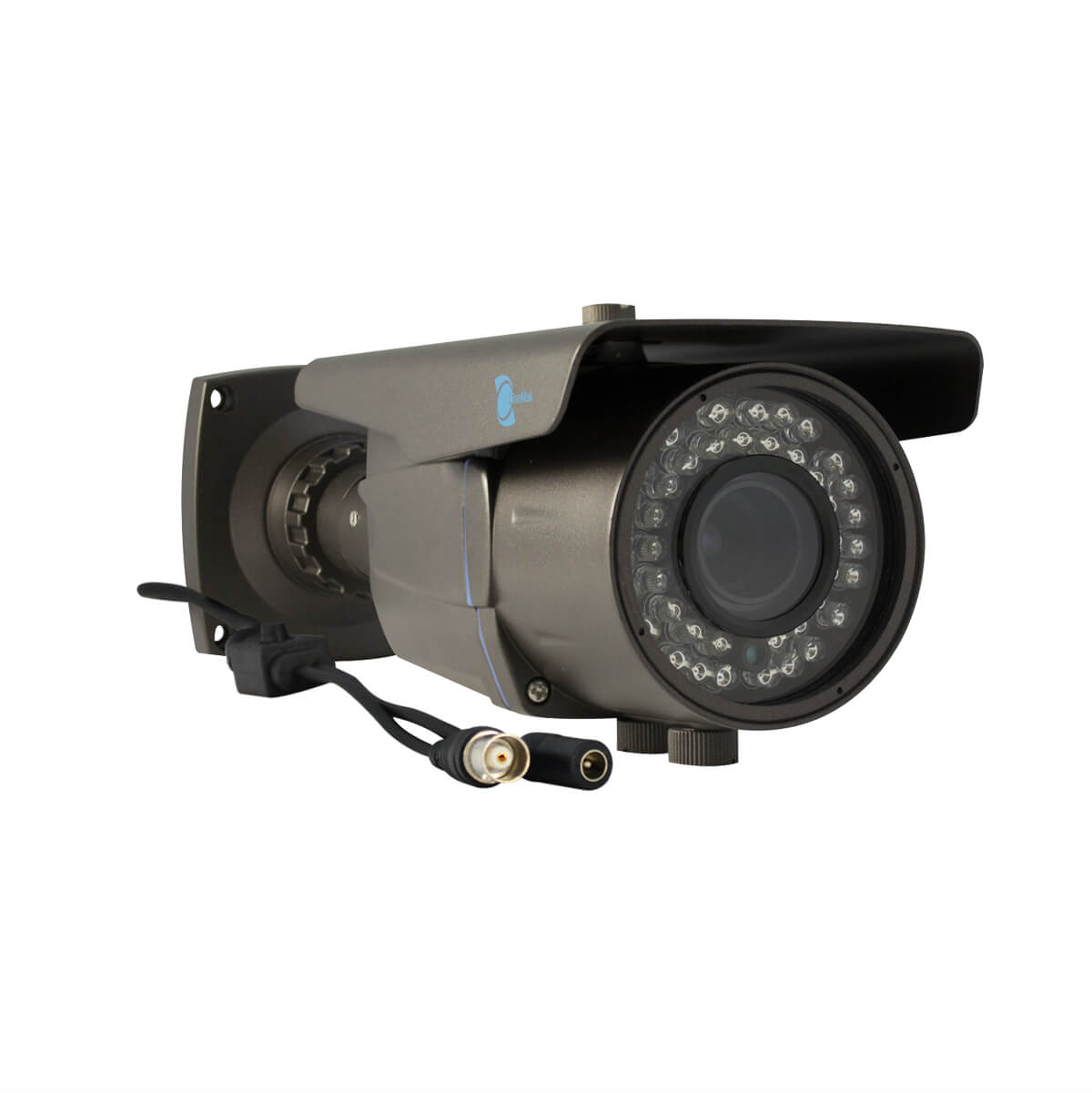

  • IR metal waterproof high-resolution bullet camera with a 2.8mm~12mm varifocal lens and a viewing angle of 25?~115? which has a 131ft range of infrared night vision and 42pcs 5mm LEDs each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Metal IR waterproof bullet camera.
    - 2.8~12 mm Varifocal lens.

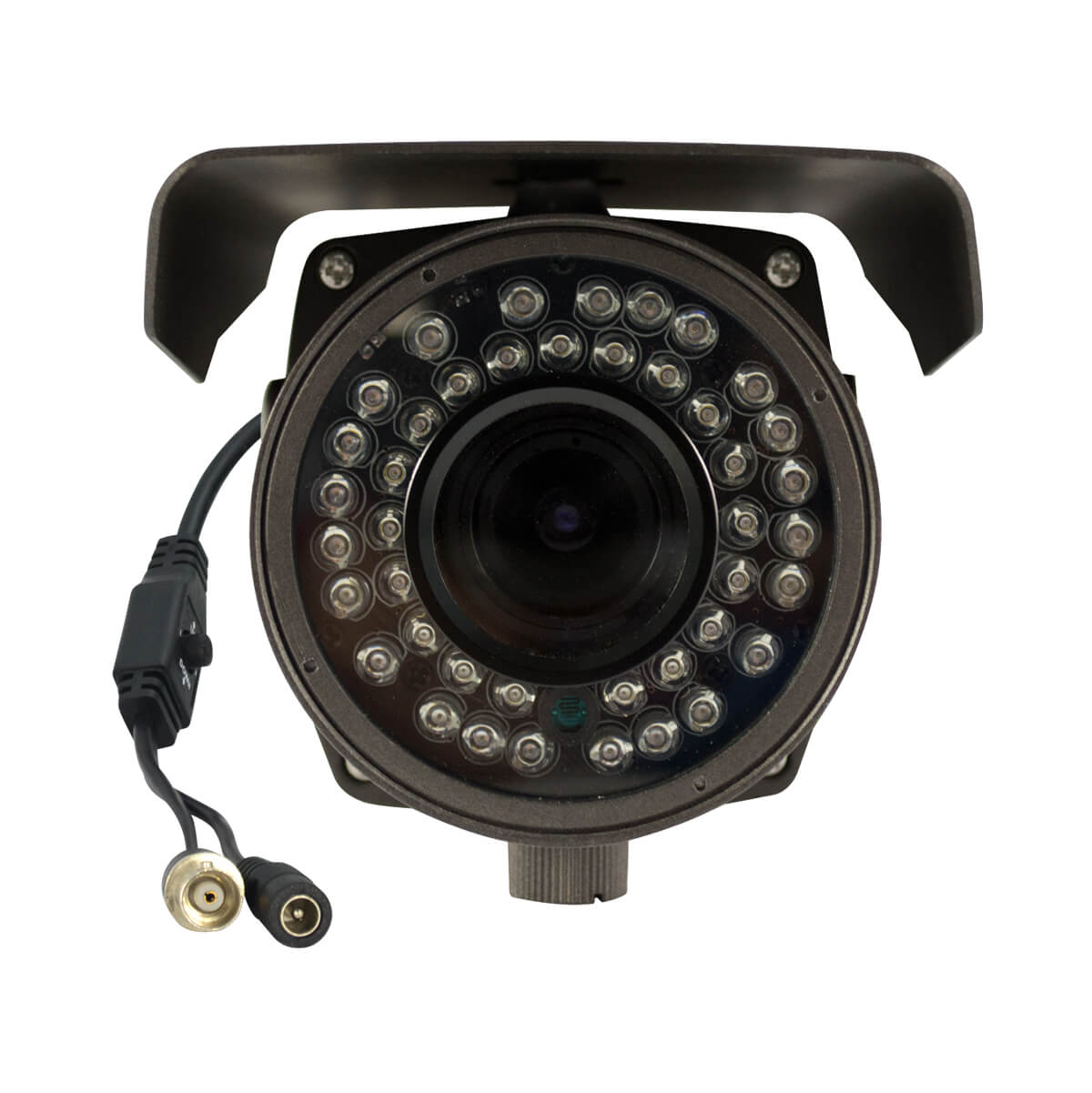

    - 42pcs 5mm IR LEDs, 131ft IR distance.
    - AWB support function: high color reproduction and real image.
    - AES support function: adapt to different monitoring environment.
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)

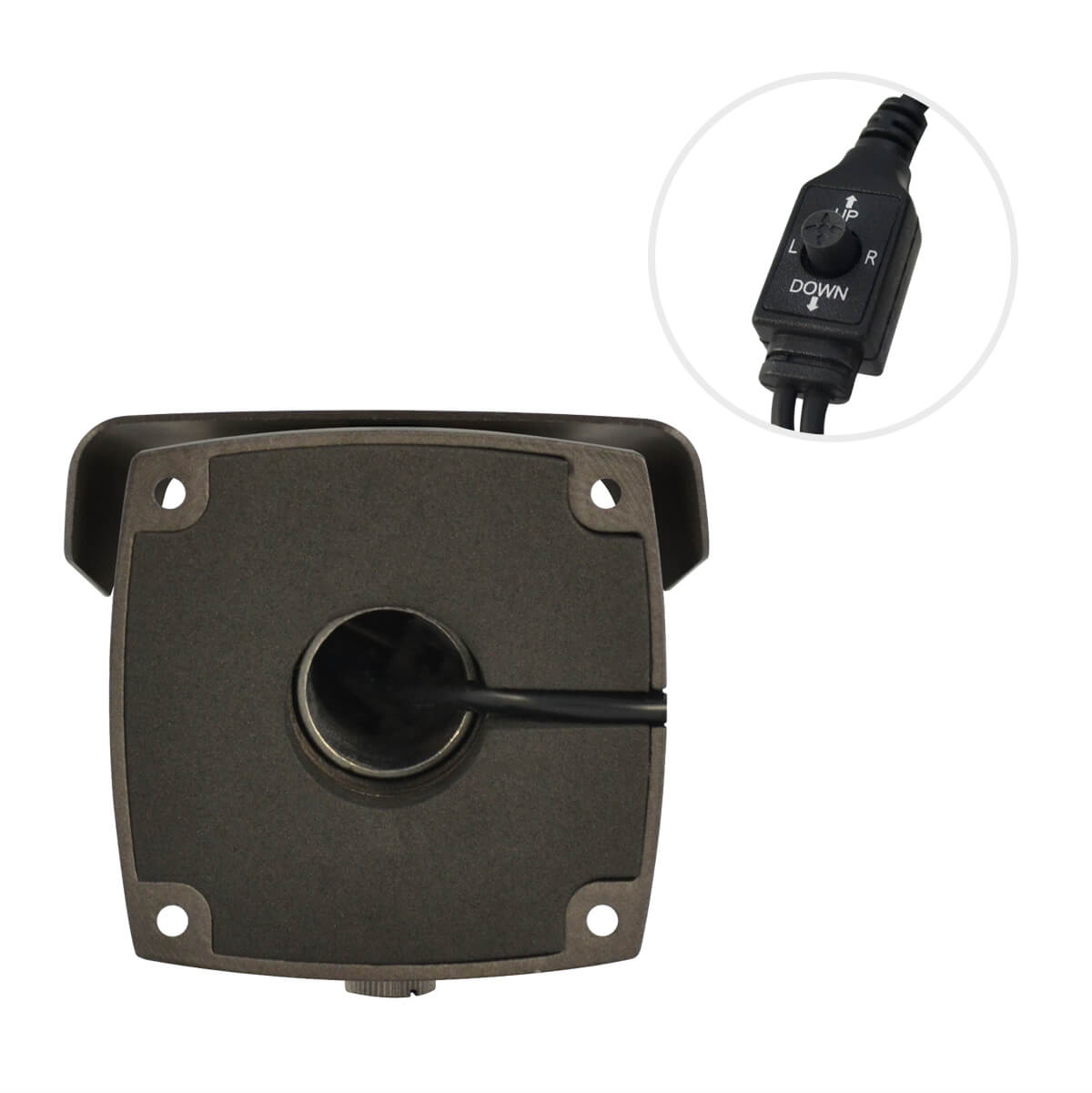

    OSD Menu
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Waterproof
    Warranty: One (1) Year
  • Bullet camera 1/3 Panasonic CCD 800TVL 2.8-12mm lens 42 LED 131ft IR
    General
    Brand LineMak
    Model LS-VE8041PA-OSD
    Sensor
    Resolution 800TVL
    Sensor 1/3" Panasonic High Resolution Color CCD
    Effective pixels PAL: 960*582
    NTSC: 967*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC connector)
    Lens
    Lens 2.8mm~12mm / F1.2 Varifocal
    IR Range 131ft night vision
    LEDs 42pcs (5mm each)
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    Environment
    Operation temperature -10°C ~ 50°C
    14ºF ~ 122ºF
    Storage temperature -30°C ~ 80°C
    -22ºF ~ 176ºF
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Dark gray
    Size 10.63(L) * 3.15(H) * 3.75(W) inches
    Weight 1.6 pounds
    Special function
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) PAL: 1/50s ~ 1/100,000s
    NTSC: 1/60s ~ 1/100,000s
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
    OSD Menu Included
  • Instrucción
    File Size: 527.08 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 442.45 Kb
    Languages: English
    File Type: PDF
