IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR

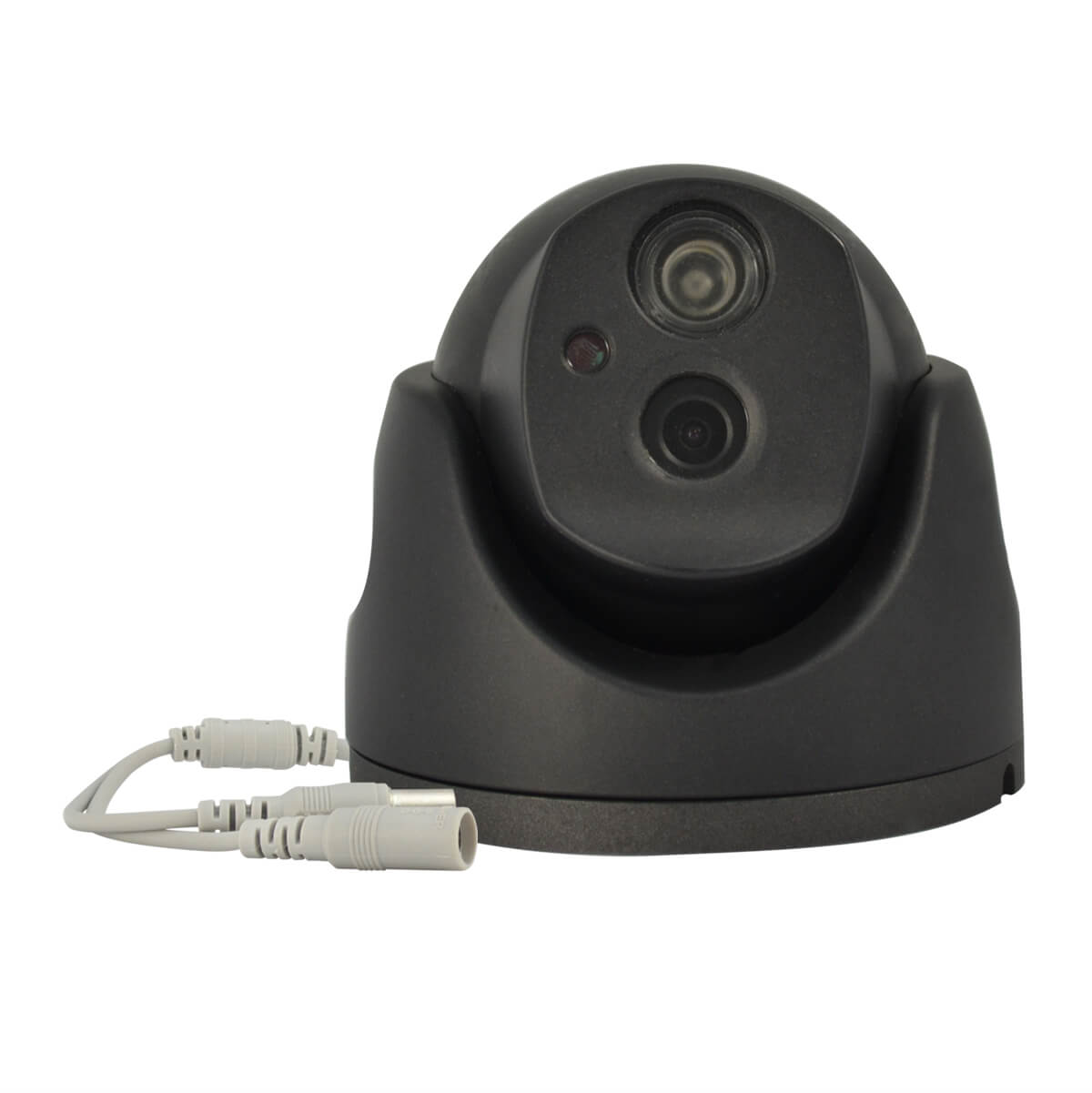

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 1

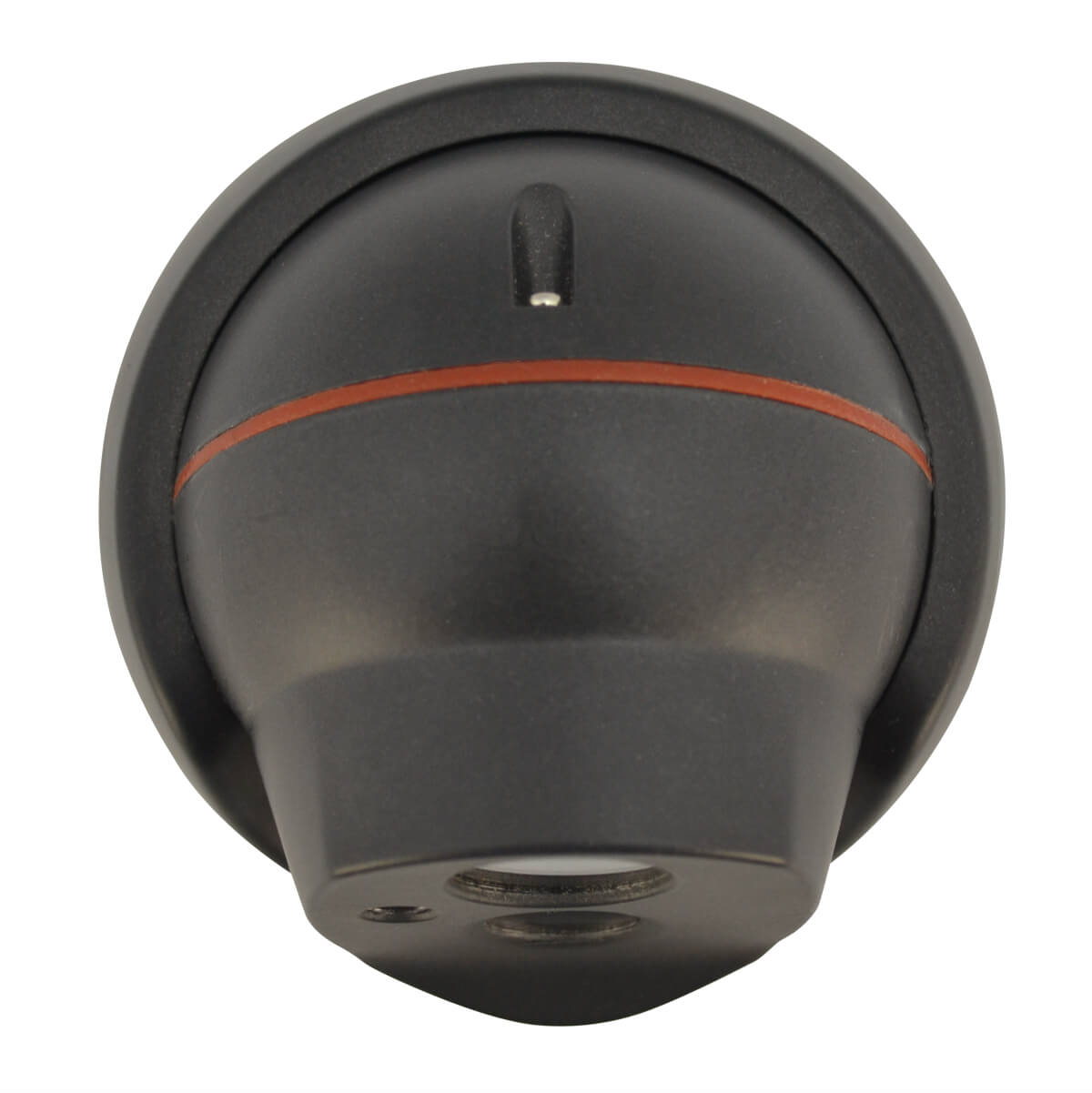

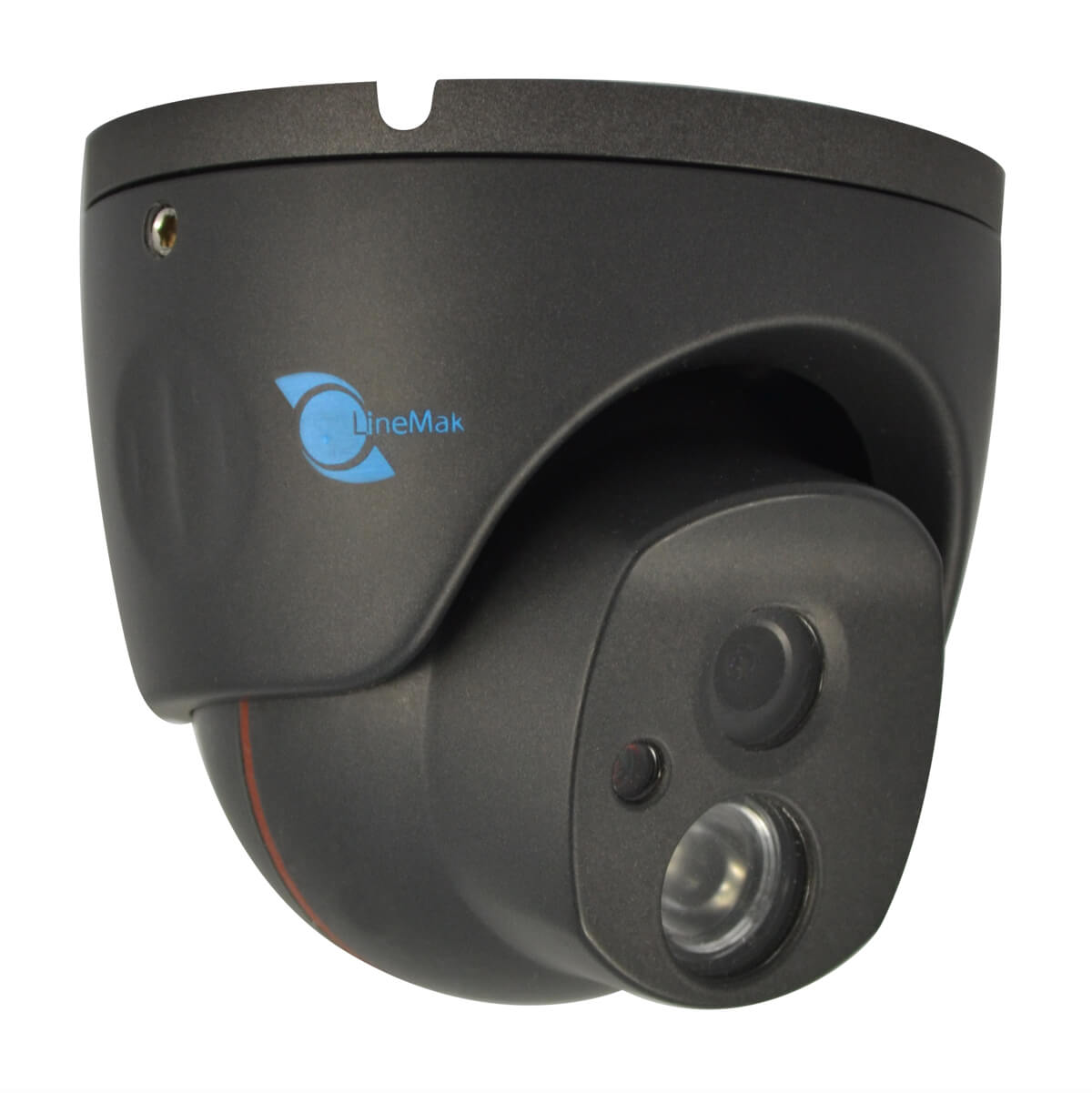

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 2

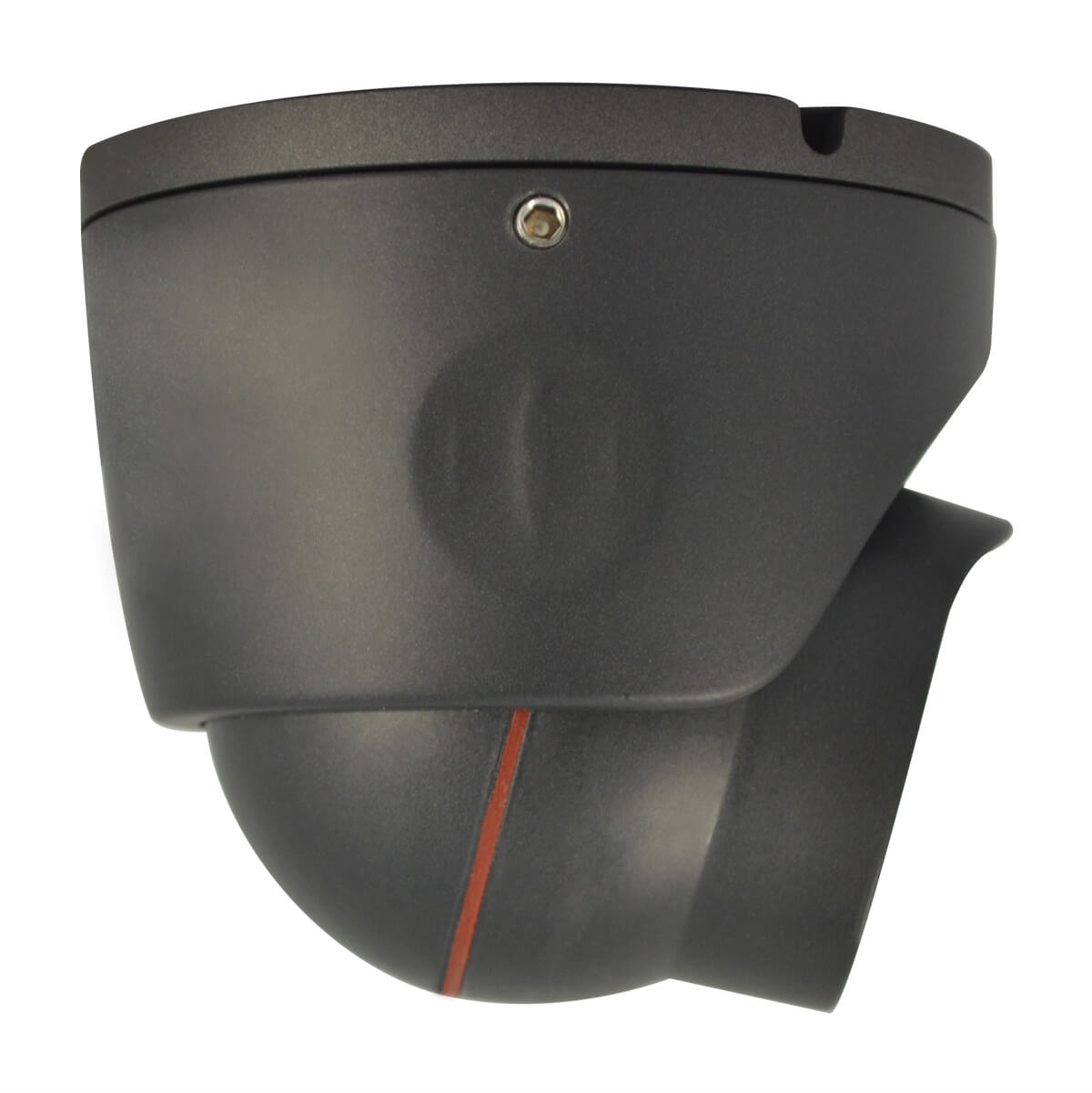

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 3

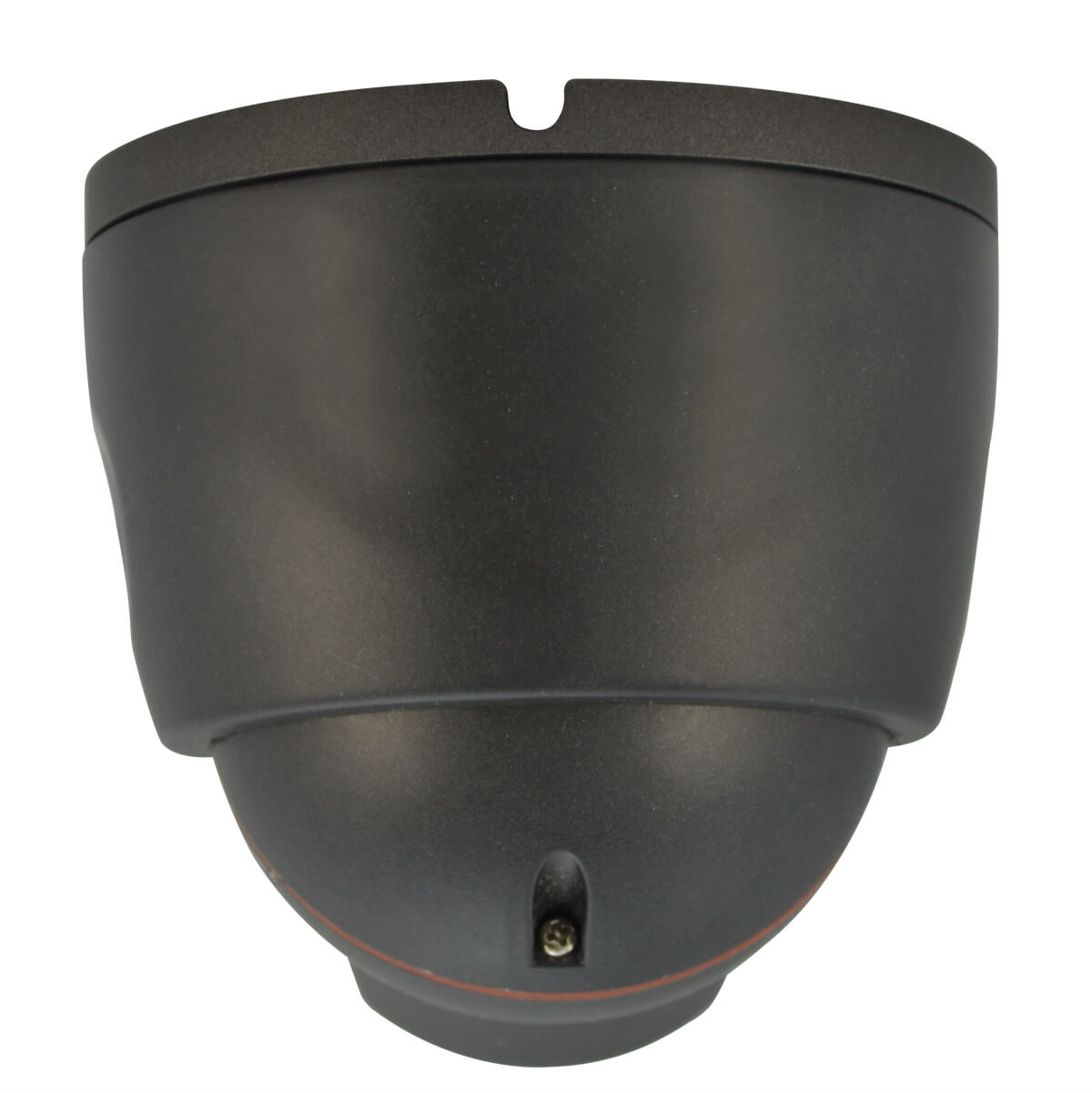

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 4

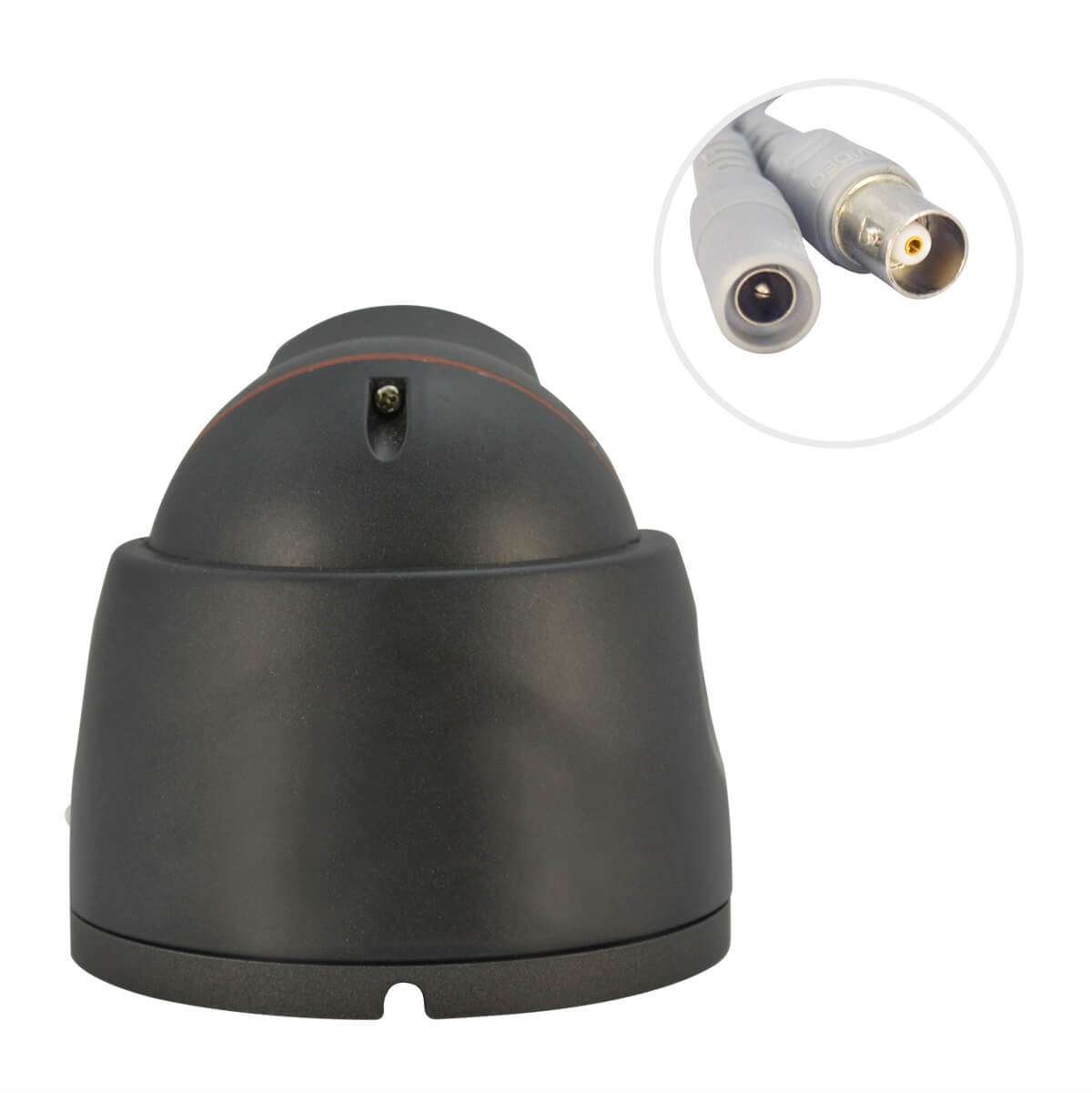

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 5

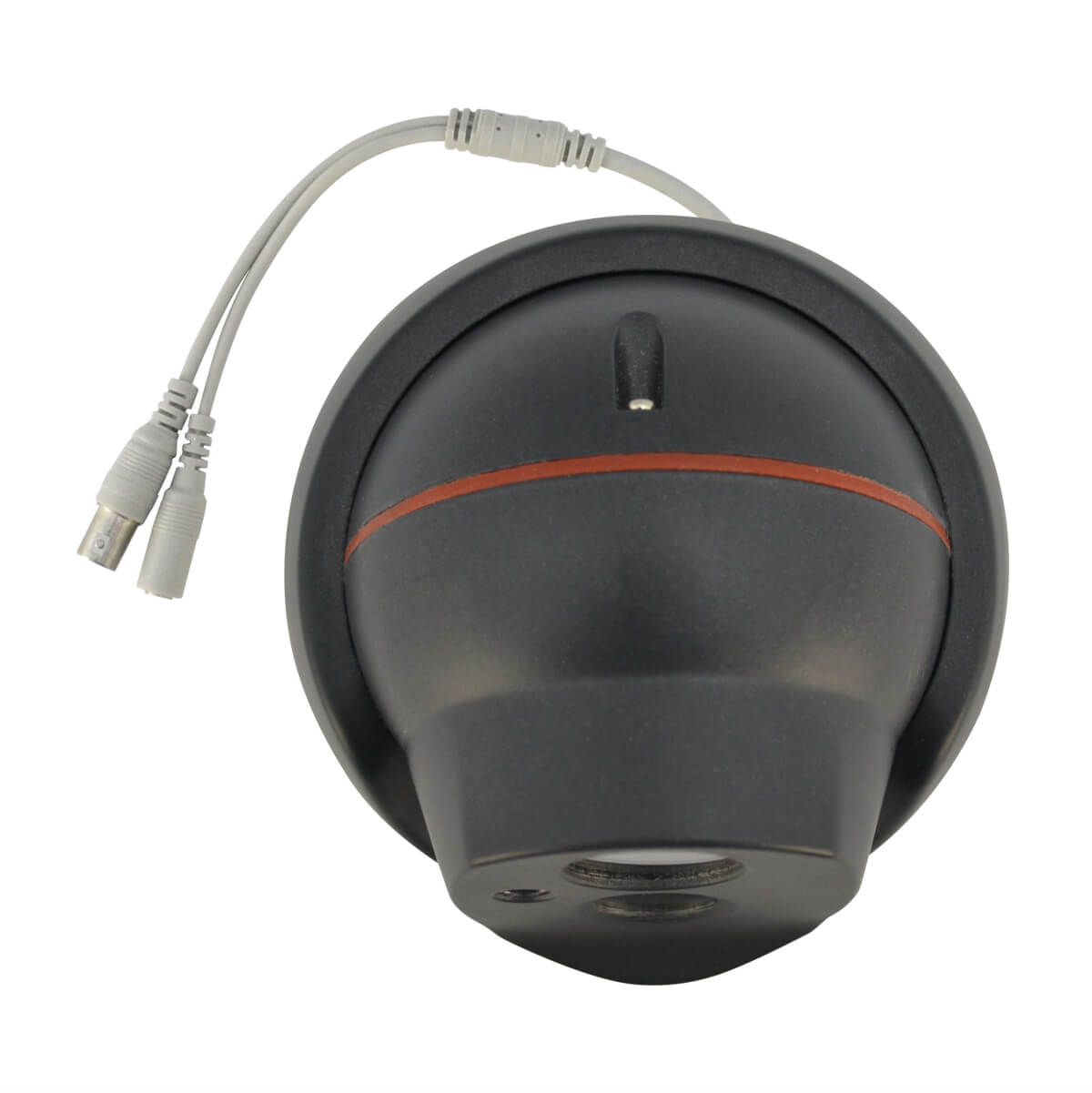

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 6

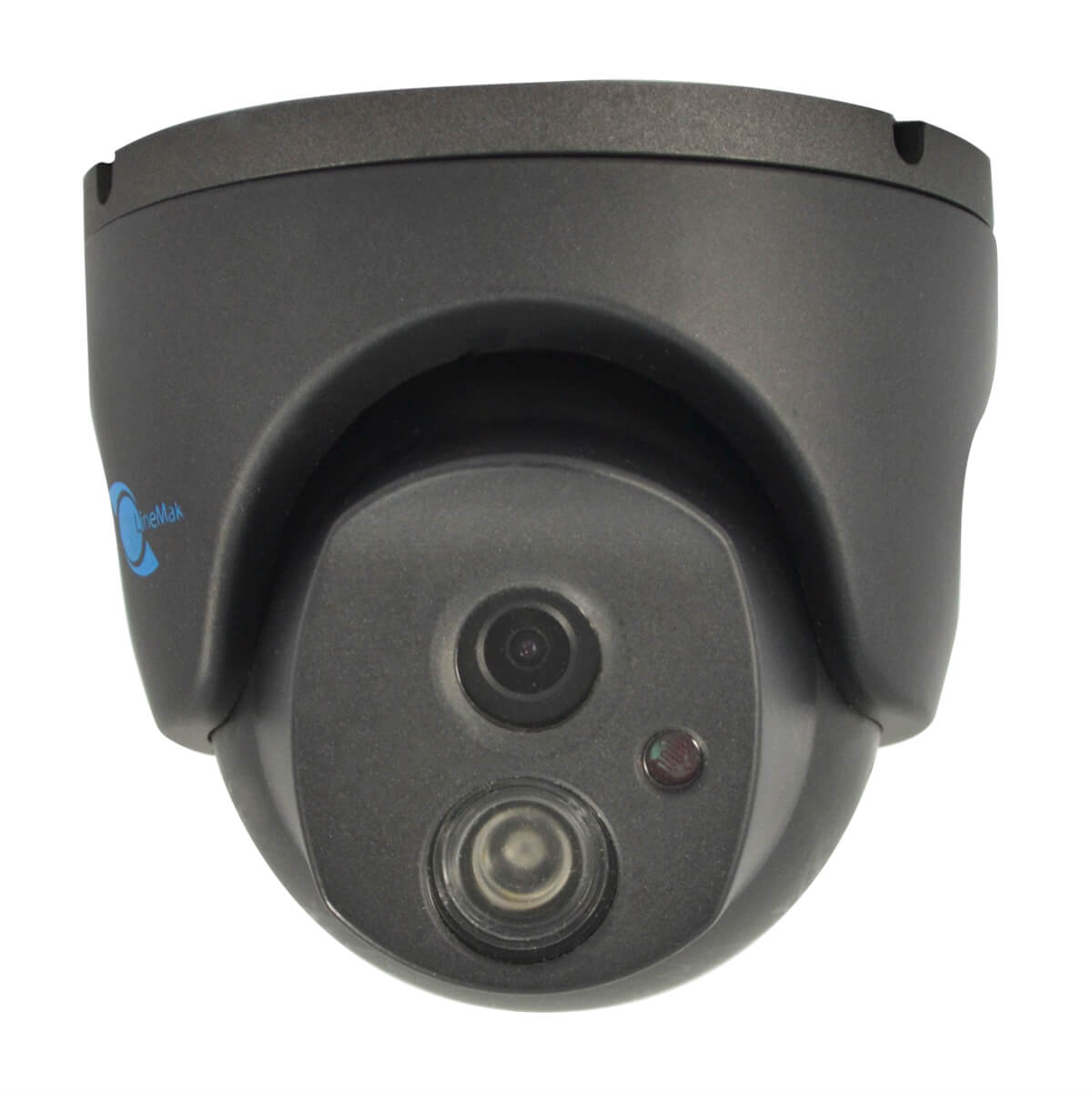

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 7

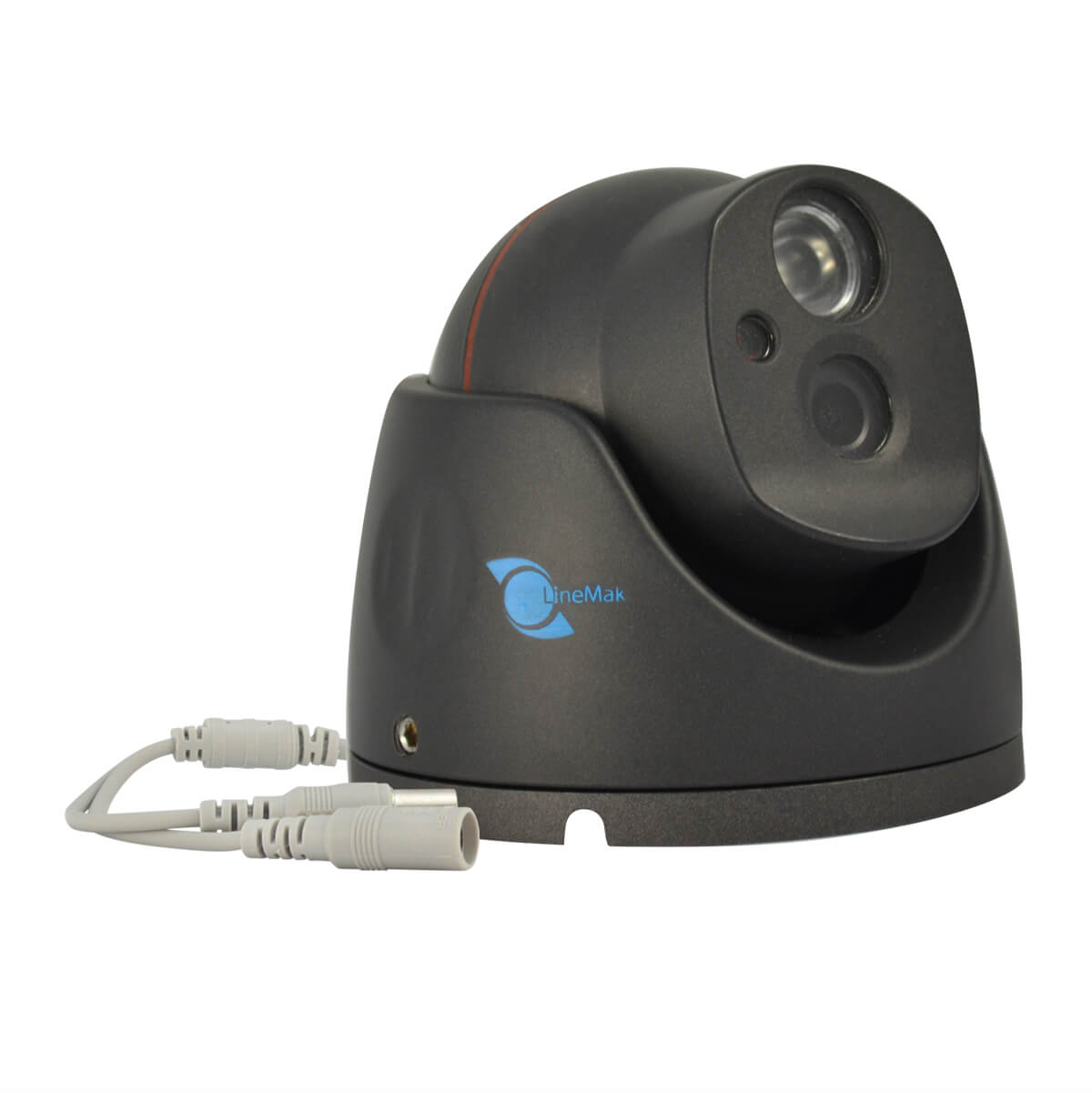

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 8

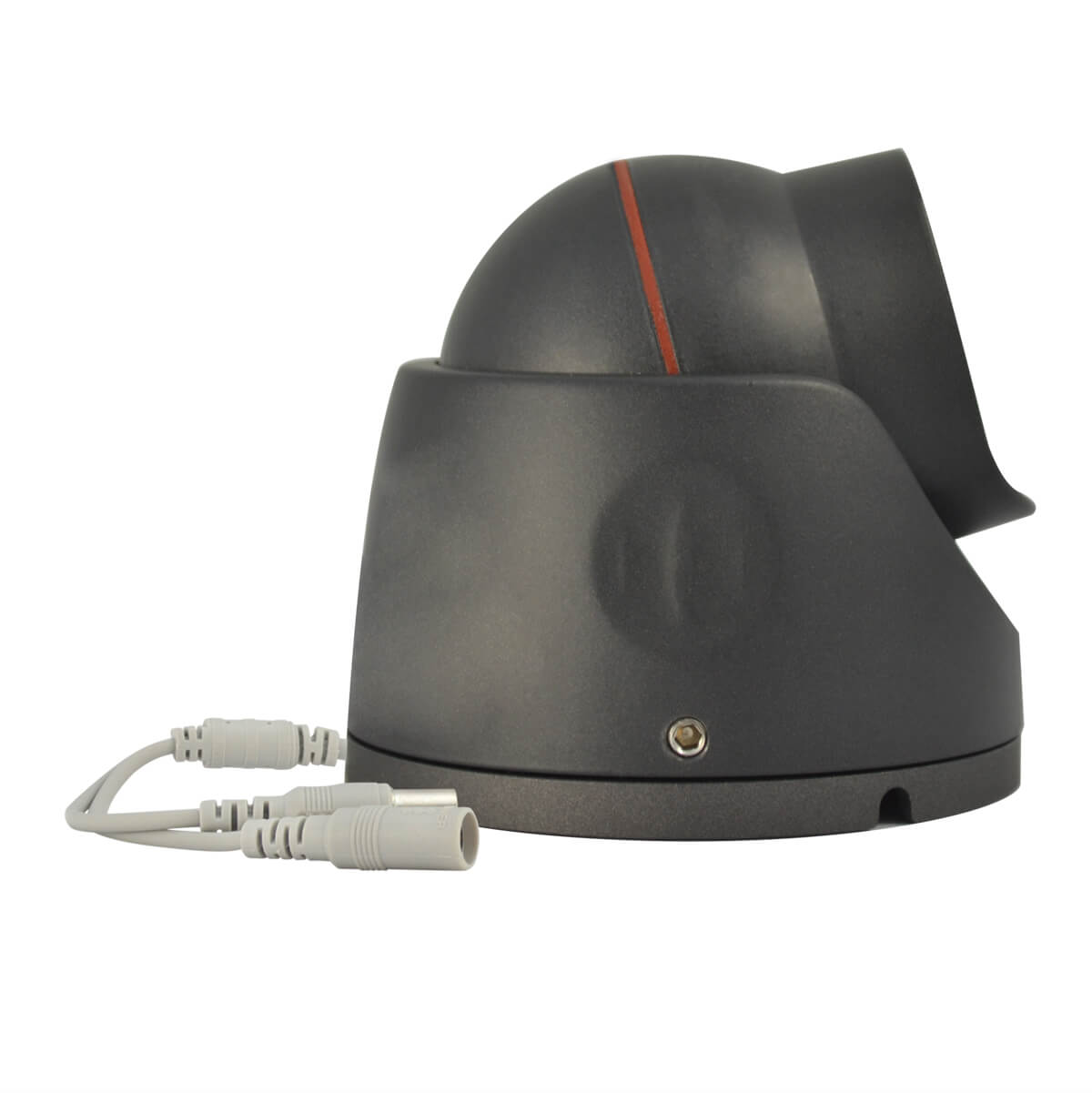

  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 9
  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR - Image 10
  • - 1/3" SONY Super HAD II CCD Sensor, 700TVL.
  • - AWB and WDR function.
  • - Waterproof: IP66.
  • - Power adapter not included.
  • - 1 LED Array, 82ft IR distance.
  • - 3.6mm lens. 92° Viewing angle.
Products recommendaded to work with this item:
ir dome camera 1/3 sony ccd 700tvl 3.6mm lens 1 led array 82ft ir
+
passive video balun with power 300m / 1000ft
+
dc12v 1a power adapter specially for security cameras
Price for all 3: $55.97
  • High-resolution camera with a 3.6mm lens and a viewing angle of 92° which has an 82ft IR range of infrared night vision and 1 LED array.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Waterproof: IP66.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    LED array
    Warranty: One (1) Year
  • IR Dome camera 1/3 SONY CCD 700TVL 3.6mm lens 1 LED Array 82ft IR
    General
    Brand LineMak
    Model LS-VE7059WN
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY Super HAD II CCD
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.6mm
    IR Range 82ft night vision
    LEDs 1 LED Array Gen III
    Minimum illumination 0.01 Lux
    Viewing angle 92°
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Storage temperature -30°C ~ 80°C
    -22°F ~ 176°F
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Black
    Size 3.94(H) * 3.54(D) inches
    Weight 10.93 ounces
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100000s
    NTSC: 1/60~1/100000s
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) Yes
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB (WDR ON)
