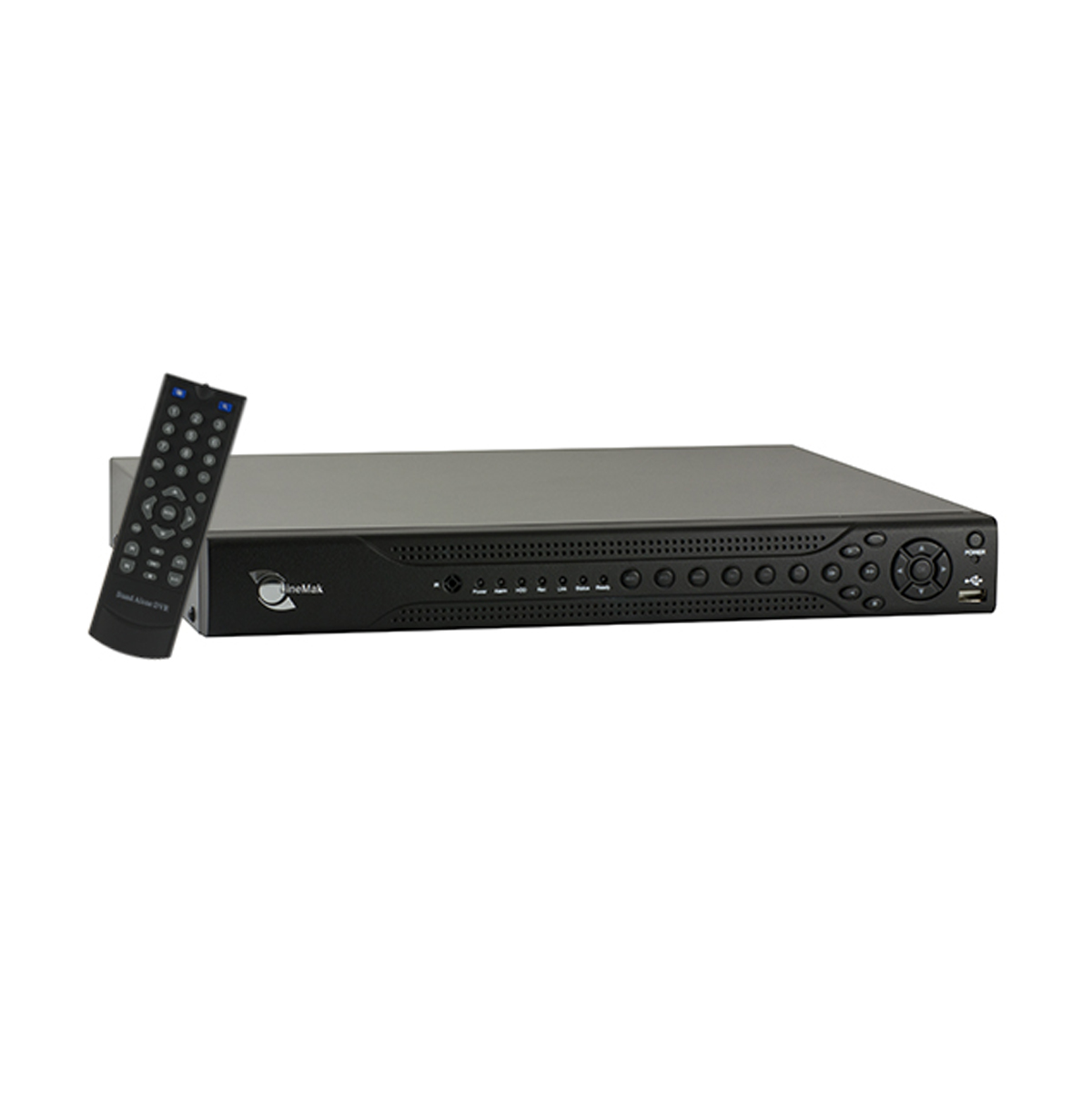

16Ch HVR, H264/G711A, BNC/VGA/HDMI output, 3G/Wi-Fi, D1/CIF resolution
  • 16Ch HVR, H264/G711A, BNC/VGA/HDMI output, 3G/Wi-Fi, D1/CIF resolution - Image 1
  • 16Ch HVR, H264/G711A, BNC/VGA/HDMI output, 3G/Wi-Fi, D1/CIF resolution - Image 2
  • 16Ch HVR, H264/G711A, BNC/VGA/HDMI output, 3G/Wi-Fi, D1/CIF resolution - Image 3
  • 16Ch HVR, H264/G711A, BNC/VGA/HDMI output, 3G/Wi-Fi, D1/CIF resolution - Image 4
  • 16Ch HVR, H264/G711A, BNC/VGA/HDMI output, 3G/Wi-Fi, D1/CIF resolution - Image 5
  • - D1 resolution.
  • - H.264 / G.711A compression format.
  • - BNC, VGA and HDMI output.
  • - WIFI module sold separately. Hard drive not included.
  • - It supports IP cameras with ONVIF 2.0 or NET-IP protocol.
  • - 2 USB ports.
Products recommendaded to work with this item:
16ch hvr, h264/g711a, bnc/vga/hdmi output, 3g/wifi, d1/cif resolution
+
ir dome camera, cmos sensor, 900tvl, 3.6mm lens, 1 led array, 49ft ir
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $402.96
  • Easy to use HYBRID DVR/NVR video recorder which features an English menu and motion detection recording. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Both mouse and remote control included.

    This HVR features additionally and intelligent analysis and connects you to the iCloud store so you can back up all of you data.

    Multiple recording modes: alarm, motion detection, manual and timing.
    Multiple operation methods: USB mouse, front panel and remote control.
    Compatible with WIN98/WIN2000 / ME WIN / WIN XP / WIN VISTA / WIN SEVEN).

    Main features:
    - All-in-one DVR/HVR/NVR.
    - It supports16-Ch D1 or 16-Ch 960H recording.
    - It supports 16-Ch real-time playback (max support 8-Ch D1/960H playback at the time).
    - It supports hybrid input of analog and network HD video.
    - No need mapping setting in router for remote view.
    - It supports main streaming and extra steaming.
    - It supports iPhone, Windows Mobile, BlackBerry, Symbian, Android surveillance.
    - It supports 3G Internet and WIFI module.
    - It supports IE, Chrome, Firefox, Safari view.
    - It supports TV, VGA and HDMI outputs.
    - It comes with DNS function.
    - Watch-dog function to prevent DVR from being crashed.
    - Twenty kinds of language (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish and etc.).

    Intelligent function:
    - Retrograde detection.
    - Suspicious objection detection.
    - Illegal parking detection.
    - Guard line crossing detection and counting.
    - Missing object detection.
    - Abnormal video signal diagnosis.

    Wi-Fi adapter needed (sold separately).

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Remote setup to access the DVR screen setting
    Remote monitoring Surveillance
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Backup for saving critical video evidence
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Motion detection
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 16Ch HVR, H264/G711A, BNC/VGA/HDMI output, 3G/Wi-Fi, D1/CIF resolution
    General
    Brand LineMak
    Model LS-DA6016-H
    System
    Operating system Embedded Linux
    System resources Pentaplex function (live recording, playback, backup, and remote access)
    Display
    Graphic user interface (GUI) VUI, on screen menu tips
    Video
    Resolution D1 / 960H
    Video format PAL / NTSC
    Compression format H.264 (Main Profile)
    Multi-mode input Only Analog: 8 *D1/960H
    Analog IP: 4*D1 (1*1080P 3*720P)
    Only IP: 16*D1 / 2*1080P 2*720P / 1*1080P 1*720P 6*960H / 8*720P
    Frame rate PAL: 50fps
    NTSC: 60fps
    Video recording PAL: D1: 1fps ~ 25fps
    NTSC: D1: 1fps ~ 30fps
    Audio
    Audio compression G.711A
    Bidirectional talk Yes
    Recording & Playback
    Recording mode Alarm, motion detection, manual and continuous
    Local playback 8-Ch simultaneous
    Search mode Timing, date, alarm, detection motion and exact search (accurate second)
    Storage & Backup
    Space ocupation Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16-20G/day/ch
    Audio: 691.2M/day/ch
    Backup mode Network download and flash stick
    Interface
    Video input/output Input: 16-Ch BNC
    Output: 2-Ch BNC, 1-Ch VGA and 1-Ch HDMI
    Audio input/output Input: 4-Ch RCA
    Output: 1-Ch RCA
    Alarm input/output Input: 8-Ch
    Output: 1-Ch
    PTZ Control 1 RS485 and 1 RS232 ports
    USB Port 2 USB 2.0
    HDD Port 2 SATA HDDs (up to 2TB each)
    Wireless port 3G and WIFI (extension via USB port)
    Network interface 1 RJ45 10M/100M Base-T port (self-adaptive Ethernet port)
    Mode control
    Operating mode USB mouse, front panel and remote control
    Security
    Motion detection zone Zones: 192 (16x12) Detection zones
    Sensitivity: 1-6 (6 highest)
    Event notificacion Trigger recording, tour, alarm, e-mail, FTP
    Environment
    Operation temperature 0ºC ~ 55ºC
    14ºF ~ 131ºF
    Working humidity 10% ~ 90%
    Atmosphere pressure 86kpa ~ 106kpa
    Power
    Power supply DC 12V/4A
    Power consumption <10W
    Appearance
    Color Black
    Size 12.21(L) * 1.97(H) * 13.78(W) inches
    Weight 4.25 pounds
    Accessories
    Remote control Yes
