32 Channels passive, Video Balun, 1082 fts passive UTP, 4921fts active

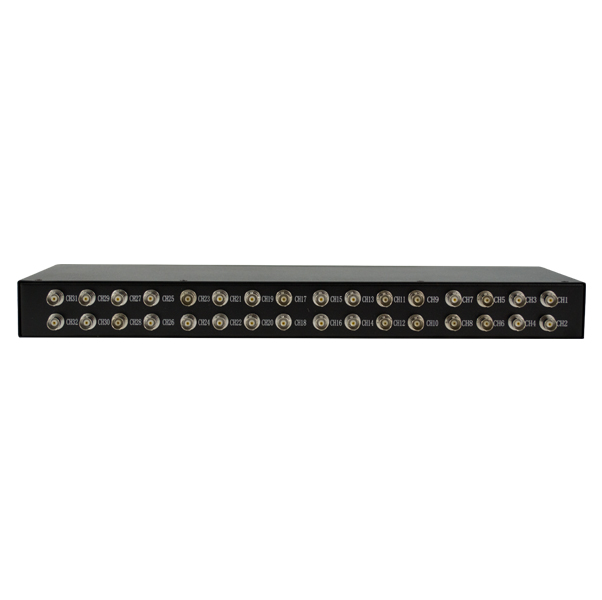

  • 32 Channels passive, Video Balun, 1082 fts passive UTP, 4921fts active - Image 1

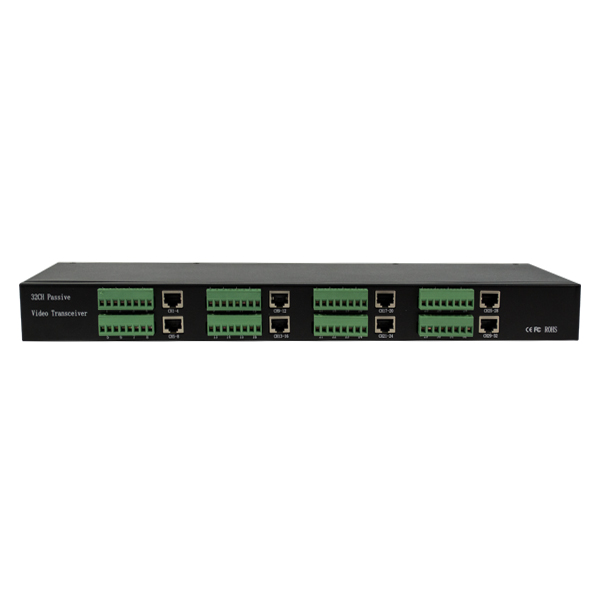

  • 32 Channels passive, Video Balun, 1082 fts passive UTP, 4921fts active - Image 2

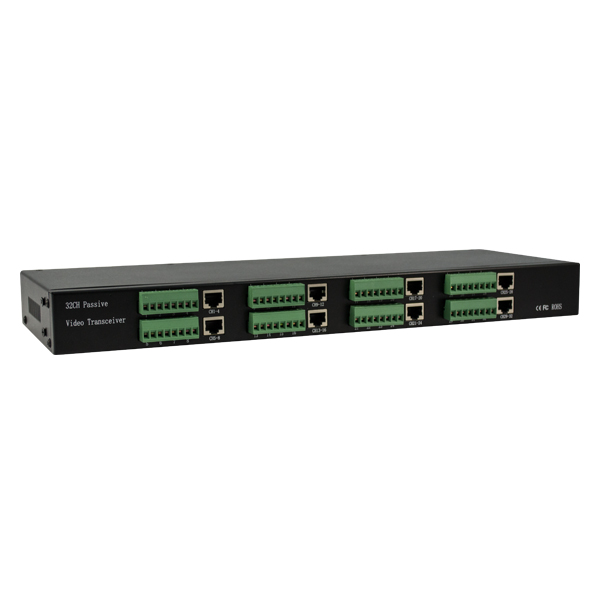

  • 32 Channels passive, Video Balun, 1082 fts passive UTP, 4921fts active - Image 3
  • 32 Channels passive, Video Balun, 1082 fts passive UTP, 4921fts active - Image 4
  • - Excellent anti-jamming ability.
  • - Built-in transsient suppression protection.
  • - No power required.
  • Conductor device with converter function of unbalanced transmission lines to balanced lines, through a pair of wires with opposite polarities.

    Our video balun also counts with impedance functions, whose potency varies its design and construction material of the device.

    Main features:
    - Adopt differential signal transmission with excellent anti-jamming ability.
    - Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twited pair wire can simultaneously transmit four channels of video signal.
    - Full-motion CCTV video at distances up to 1082fts when used with any passive UTP video transceiver.
    - UP to 4921 fts with any Active UTP video receiver
    - No power required.
    - Built-in transsient suppression protection.
    Warranty: One (1) Year
  • 32 Channels passive, Video Balun, 1082 fts passive UTP, 4921fts active
    General
    Brand LineMak
    Model LS-UTPP1132
    Video Balun
    Frequency response DC - 8MHz
    Common mode rejection ratio 60dB
    Video Properties Applicable to NTSC, PAL, SECAM and CCIR system
    Video Connector BNC: 75ohm
    UTP cable connector RJ-45:100ohm
    Environment
    Storage temperature -30ºC - 70ºC
    Working humidity -10ºC - 70ºC
    Appearance
    Color Black
    Size 7.48(L) * 1.77(H) * 17.13(W) inches
    Weight 4.22 pounds
