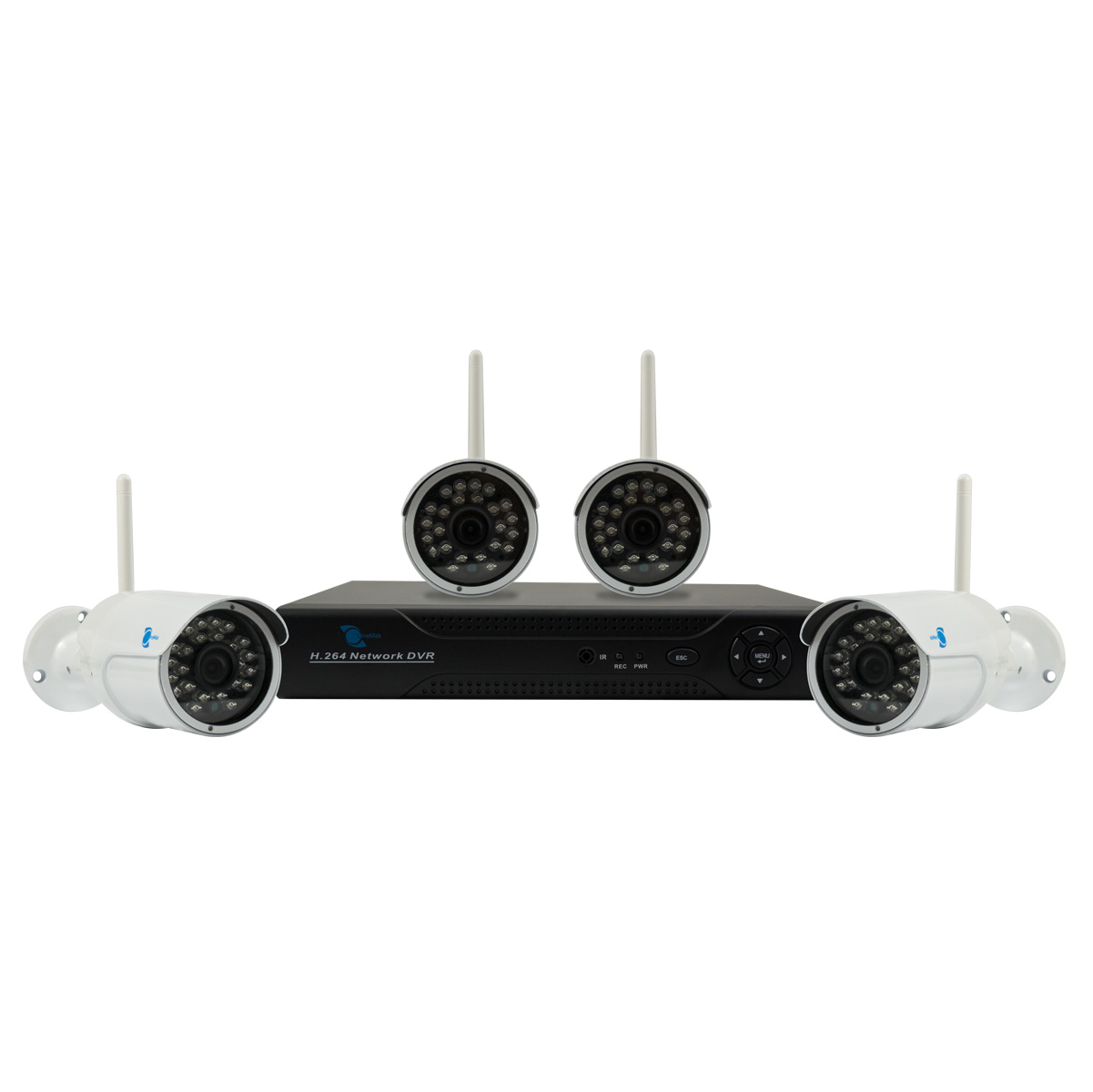

Kit 4 cameras, CMOS Sensor, 36 LEDs, 98ft IR, H264, 960H/D1/CIF, ONVIF
  • Kit 4 cameras, CMOS Sensor, 36 LEDs, 98ft IR, H264, 960H/D1/CIF, ONVIF - Image 1
  • Kit 4 cameras, CMOS Sensor, 36 LEDs, 98ft IR, H264, 960H/D1/CIF, ONVIF - Image 2
  • Kit 4 cameras, CMOS Sensor, 36 LEDs, 98ft IR, H264, 960H/D1/CIF, ONVIF - Image 3
  • Kit 4 cameras, CMOS Sensor, 36 LEDs, 98ft IR, H264, 960H/D1/CIF, ONVIF - Image 4
  • Kit 4 cameras, CMOS Sensor, 36 LEDs, 98ft IR, H264, 960H/D1/CIF, ONVIF - Image 5
  • - Kit of 4 IP cameras, 720P/1080P/960H/D1/HD1 resolution.
  • - H.264 High profile compression algorithm ideal for network NVR.
  • - Dual-streams, to make mobile monitoring very easy, flexible for network transmission.
  • - ONVIF / DHCP / PPOE / FTP / DNS / NTP network protocol
  • - 36pcs LED. 98ft night vision.
  • Kit of 4 cameras ideal for monitoring homes, offices or local chambers, is easy to install and can see the images captured by the cameras via internet.

    Each camera contain a sensor 1/4" OV CMOS Image Sensor, it has a Megapixel 3.6mm lens, his crown of 36 LEDs 5mm each allows a night vision of 98ft, it has a network interface RJ-45 and support doble stream, support network protocol: TCP / UDP / IP / HTTP / RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP.

    The NVR is designed to work with IP cameras wirelessly, it has a 3 output channels (BNC, VGA and HDMI), recorded in H.264 and G.711A format in real time, has a compact size to be placed anywhere, has two USB ports 2.0 (for back up and mouse) and a network port RJ-45, , playing from 1 to 4 channels simultaneously. It has a Pentaplex function (Live, recording, playback, backup and remote access).

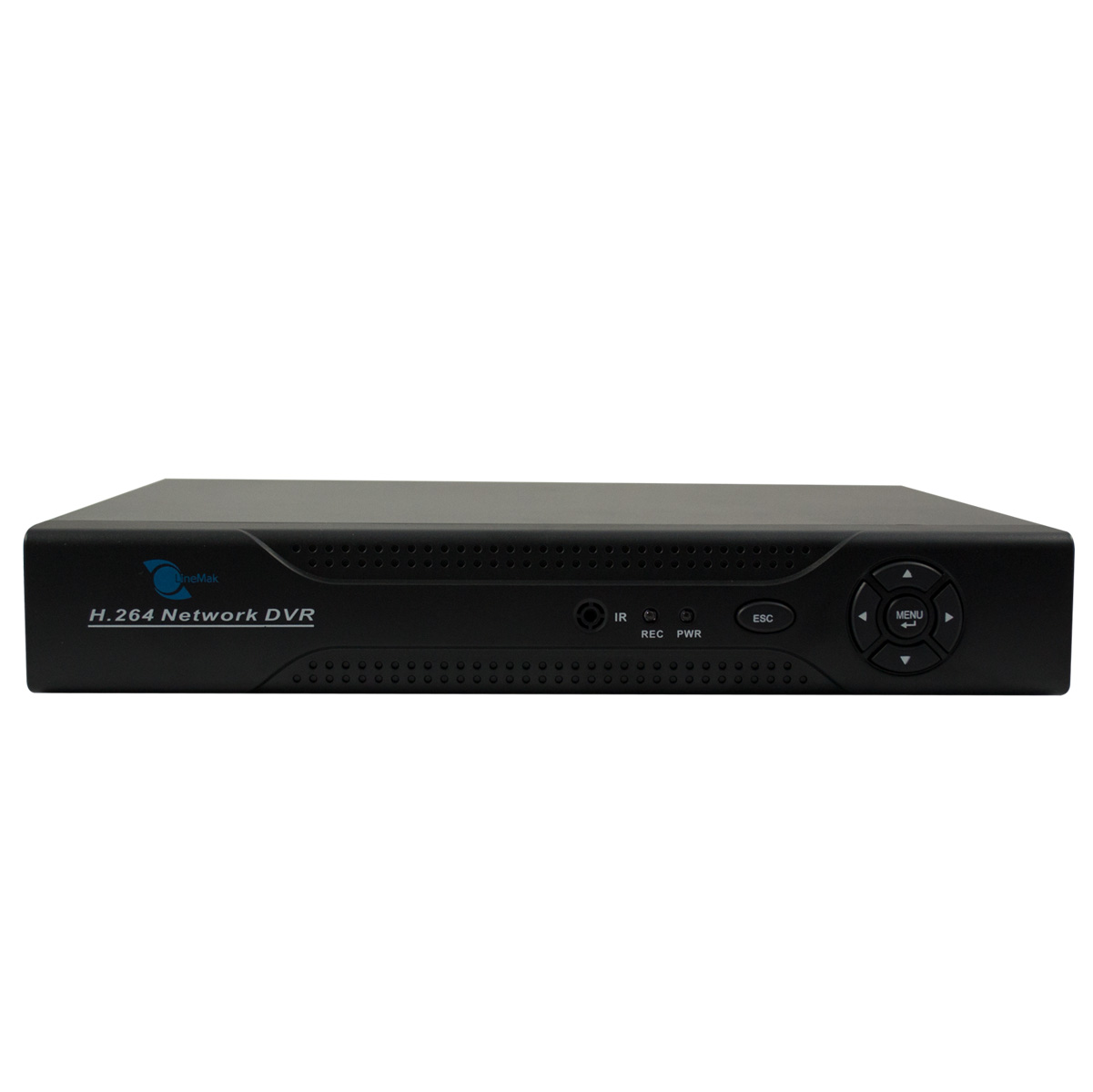

    Network video recorder (NVR) LS-NVR6304Q

    With a DVR, the video is encoded and processed at the DVR, while with a NVR, the video is encoded and processed in the camera then transmitted to the NVR for both storage and remote viewing. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time and CMS. Also the mouse and remote control are included.

    It has both VGA and HDMI video outputs, and option to record on the motion detection option.

    Multiple recording mode: Alarm, auto, motion detection, manual recording.
    Multiple control mode: USB mouse, network controller and remote control.
    Compatible with: WINXP, WIN2000, WIN7.

    Main features:
    - H.264 high profile compression algorithm ideal for network NVR.
    - Real time live display up to 4/8 IP cameras.
    - Pentaplex function: Live, recording, playback, backup and remote access.
    - Support dual-streams, to make mobile monitoring very easy, flexible for network transmission.
    - Multiple control methods: IR remote controller, USB mouse and front panel press button.
    - Smart video detection: motion detection, video blind, video loss.
    - Smart camera settings: privacy masking, camera lock, color setting and tittle display.
    - Pan-tilt-zoom and speed dome control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported.
    - Easy backup methods: USB devices, remote network and client software backup.
    - Alarm triggering screen tips, buzzer, PTZ preset, e-mail and FTP upload.
    - Smart HDDs management: non-working HDD hibernating, HDD faulty alarm, raid function.
    - Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.
    - Enable strong multi-way synchronization with max 1 channel playback, realize the zero-delay between playback channels.
    - Onvif support.
    - Cloud support (xmeye.net), no need to do router mapping, just 1 step go to internet with cloud technology.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

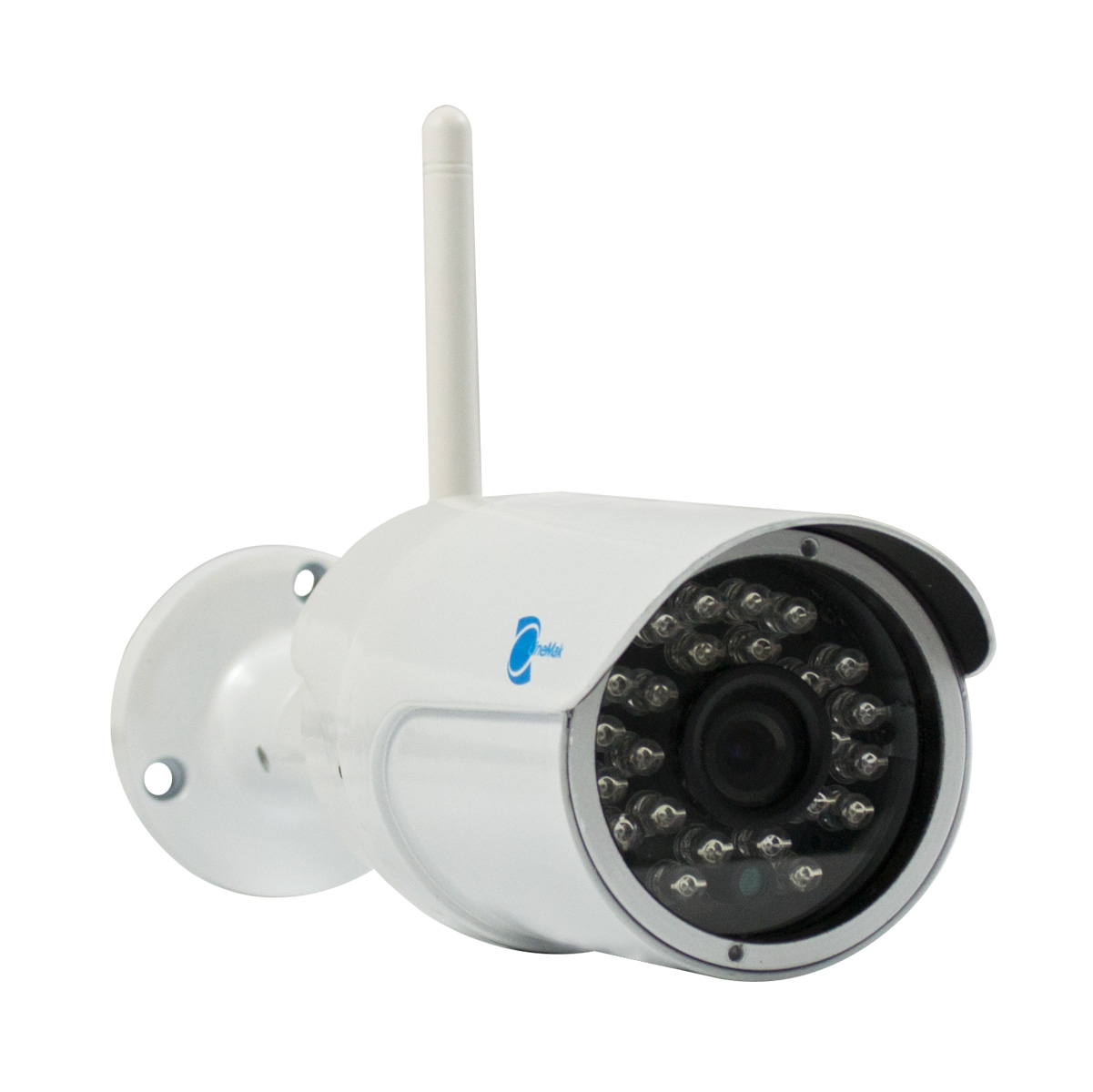

    IP bullet camera LS-IPC-3087-NFW

    IP Bullet camera for outdoors with a lens of 3.6mm, a 65ft range of infrared night vision, and 24pcs LEDs 5mm each. Available in white. The latest technology of sensor and driver adopted. The most attractive characteristics are night-time vision and easy to mount.

    This equipment can be easily installed anywhere going unnoticed thanks to its size. Resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

    Using our servers and digital video recorders (DVR) for good results in image quality is recommended. You can see this camera online through any of our recording systems.

    This camera can work wirelessly.

    Main features:
    - IP waterproof camera.
    - 1/4" OV CMOS image sensor.
    - Hisilicon Hi3518C high performance DSP.
    - H.264 video compression, support dual stream.
    - Built-in mega pixel 3.6mm lens.
    - Built-in web server makes it possible for users to visit camera through IE browser.
    - Adjust the stream and frame rate according to the bandwidth.
    - Video lost, motion detection support.
    - Self-connection to the internet when disconnection happens enabled.
    - 8 users to visit the camera at the same time enabled.
    - Remote system upgrade function enabled.
    - Compatible SDK and client software enabled.
    - Support IR-CUT enabled.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

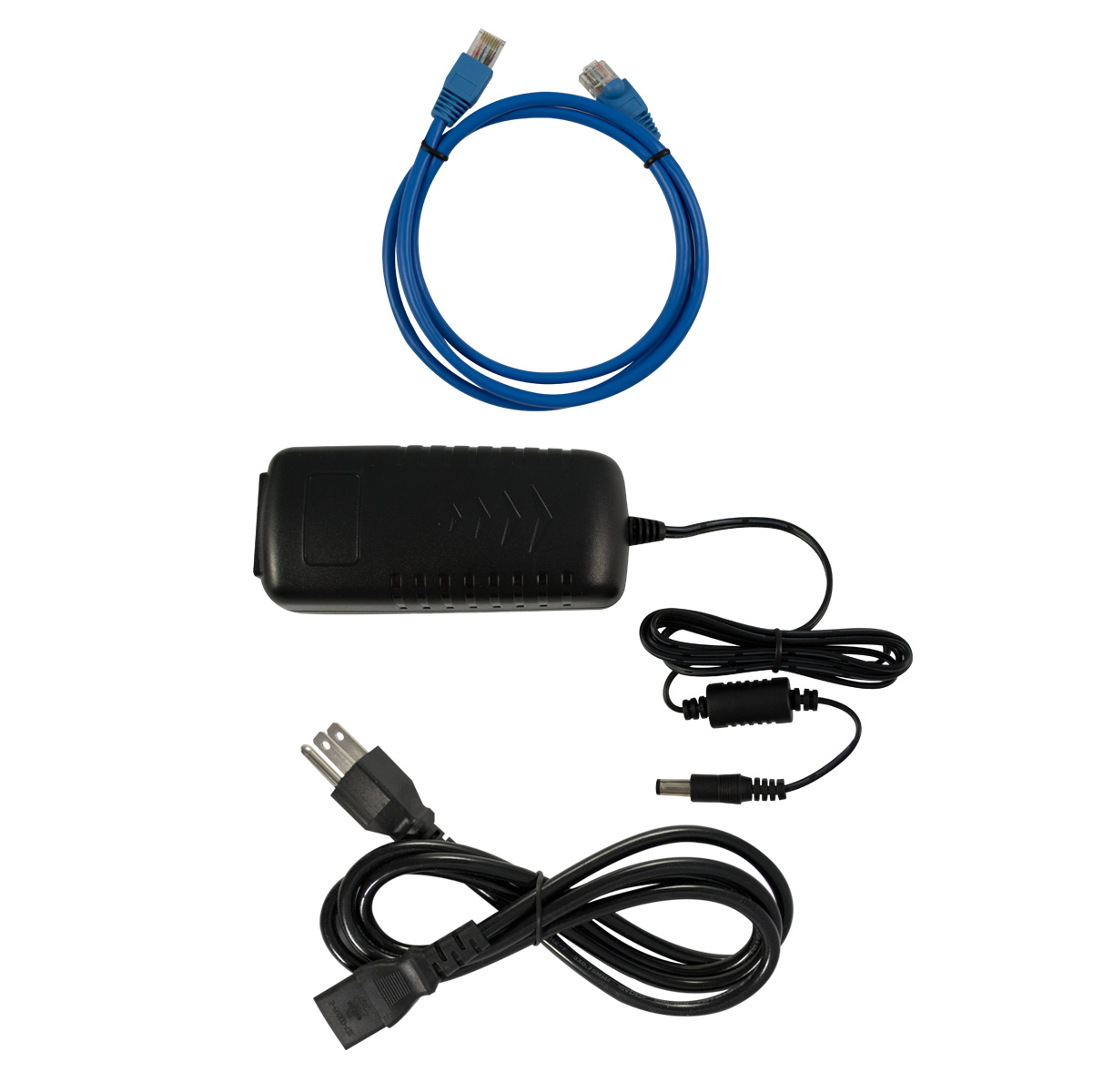

    Package includes:
    - 1 Digital video recorder (LS-NVR6304Q).
    - 4 IP bullet cameras (LS-IPC-3087-NFW).
    - 5 Power supply.
    - 1 Patch cord (data cable) 3ft.
    - 1 Mouse.
    - Manual.
    - Software.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Motion detection
    Be informed
    Be informed
    The DVR will automatically send an email alert with a text notification when an event triggered by motion has occurred. This provides a record of the event and enables you quickly to take action when an incident occurs.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    IP
    Wireless
    Wireless
    A Wireless security camera can transmit a video and audio signal to a wireless receiver through a radio band. It is sometimes required at least one cable or wire for power, however, some wireless security cameras are battery-powered, making the cameras truly wireless from top to bottom.
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Remote monitoring Surveillance
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 4-Ch NVR, H264/G711A, BNC/VGA/HDMI, 960H/D1/CIf, ONVIF Protocol
    General
    Brand LineMak
    Model LS-NVR6304Q
    System
    Main processor Hi3515A
    Operating system Embedded Linux
    System resources Pentaplex function: live, recording, playback, backup and remote access
    Display
    Display area 1/4
    Graphic user interface (GUI) 16-bit true color graphic menu operation interface, support mouse operation
    Video
    Resolution 720P/1080P/960H/D1/HD1
    Compression format H.264 High Profile
    Display quality Monitor: D1
    VGA: High definition; HDMI
    Frame rate PAL: 50fps
    NTSC: 60fps
    Video recording 4-Ch 720P
    Streams Dual
    Audio
    Audio compression G.711A
    Recording & Playback
    Recording mode Alarm, motion detection, manual recording and continuous
    Local playback 1/4-Ch simultaneously
    Search mode Time, date, alarm, motion detection and exact search (accurate to second).
    Storage & Backup
    Space ocupation Video: 1080P: 80G/day/Ch; 720P: 26G/Day/Ch; 960H: 24G/Day/Ch; D1: 16-20G/Day/Ch
    Audio: 691.2M/Day/Ch
    Recording storage Local HDD, network
    Backup mode Network download, Flash stick, USB, and SATA
    Interface
    Video input/output Input: N/A
    Output: 1.Ch BNC, 1-Ch VGA, 1-Ch HDMI
    Audio input/output Input: N/A
    Output: 1-Ch RCA
    USB Port 2 USB 2.0 ports
    HDD Port 1 SATA HDDs port (max. 3TB)
    Network interface 1 RJ45 10M/ port
    Network
    Network protocol ONVIF / DHCP / PPOE / FTP / DNS / NTP / Email Alarm / Ip right management / IP search / Network alarm center functions / Standalone client / SDK
    Remote
    Remote event trigger recording Motion detection, video blind, video loss
    Security
    Motion detection zone Zones: 396 (22*18), multi-level sensitivity can be set (Local channel only)
    Event notificacion Alarm triggering screen tips,buzzer,PTZ preset,e-mail and FTP upload
    Power
    Power supply DC 12V/2A
    IP Bullet camera, CMOS Sensor, 3.6mm lens, 36 LEDs, 98ft IR, IR-CUT
    General
    Brand LineMak
    Model LS-IPC-3087-NFW
    System
    Main processor Hisilicon Hi3518C high performance DSP
    Sensor
    Sensor 1/4" OV CMOS Image
    Video
    Compression format H.264
    Display quality 1280*720 / 640*360 / 320*180
    Frame rate 30fps
    Streams Dual
    Interface
    Wireless port WiFi
    Network interface RJ-45 10/100 Base T port, WiFi
    User
    On-line user Max. 8
    Network
    Network protocol TCP/UDP/IP/HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
    Lens
    Lens Mega Pixel 3.6mm
    IR Range 98ft night vision
    LEDs 36pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0.6Lux @ F1.2 (Color)
    0.8Lux @ F1.2 (B/W)
    Viewing angle 70°
    Security
    Safety Password protection, User management system
    Motion detection zone Yes
    Event notificacion Email / Picture
    Video loss Yes
    Environment
    Operation temperature 0ºC ~ 45ºC
    32ºF ~ 113ºF
    Working humidity 10% ~ 90%
    Power
    Power supply 12V/1A
    Appearance
    Color Blanco
    Standard
    Sensitivity 1.0V/lux-sec (550nm)
    Regulatory compliance FCC part 15, Subpart B Class B; EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22, CISPR 24
